Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Dodge Durango 1999

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

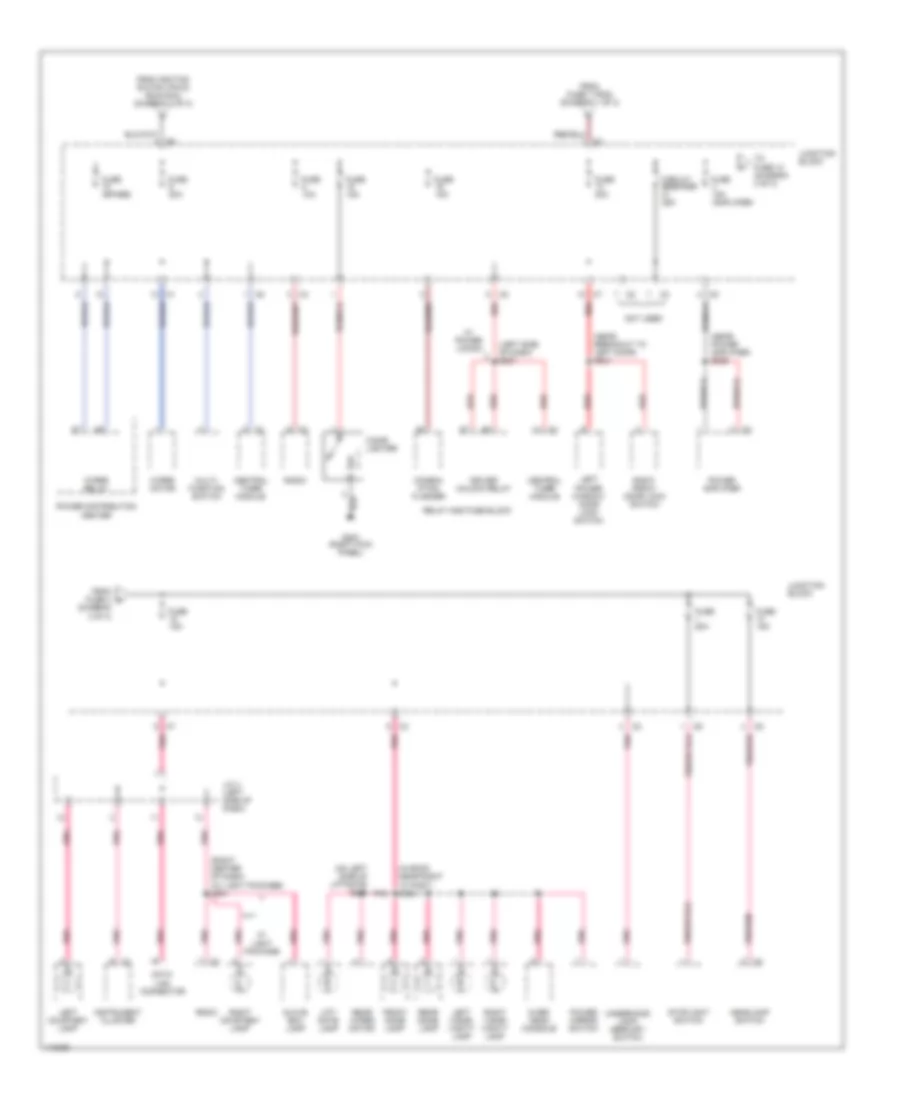

Электросхема блока предохранителей и реле (1 из 3) для Dodge Durango 1999

Электросхема блока предохранителей и реле (1 из 3) для Dodge Durango 1999 - Список элементов:

82

• (diagram 1 of 3)
• (maximum cooling) (trailer tow)
• (near breakout to pdc) (w/ awal) s117
• (near breakout to power outlet) s220
• (near left fender red/tan side shield) s162
• (near left headlamp breakout) s118
• (near left headlamp breakout) s127
• A/c compressor clutch relay
• Auto- matic shut down relay
• Battery
• Blower motor relay no1
• Blower mototr
• Combination flasher
• Controller anti-lock brake
• Daytime running lamp module
• Down- stream heated oxygen sensor
• Drl/base
• Electric brake
• Engine controls system
• Engine starter motor
• Engine starter motor relay
• Fog lamp relay
• From fuse 4 b
• From fuse g (diagram 1 of 3)
• From j/c 2 (pin 15) (diagram 1 of 3)
• Fuel pump module
• Fuel pump relay
• Fuse 20a
• Fuse 30a
• Fuse 40a
• Fuse 50a
• Fuse 50a 40a
• Fuse a 10a
• Fuse b 20a
• Fuse c 20a
• Fuse d 20a
• Fuse e 15a
• Fuse f 25a
• Fuse g 15a
• Fusible link 140a
• Generator
• Headlamp relay
• High speed cooling fan relay
• Horn relay
• Ignition relay
• J/c 1 (in pdc)
• J/c 2 (in pdc)
• Leak detection pump sensor
• Left fog lamp
• Left headlamp
• Low speed cooling fan relay
• Maxiumum cooling
• Nca
• Other
• Power distribution center
• Power outlet
• Power seat switch
• Powertrain control module
• Premium
• Rear power outlet
• Rear wiper/ defogger switch
• Red
• Red/tan
• Relay & fuse block
• Right fog lamp
• Right headlamp
• S209 (center of dash)
• To fuse 1 (diagram 1 of 3)
• To fuse 7 (diagram 1 of 3)
• To fuse a (pdc) (diagram 1 of 3)
• To ignition switch (pin 4) (diagram 2 of 3)
• To ignition switch (pin 7) (diagram 2 of 3)
• To junction block (fuses 4, 13 & circuit breaker 21) (diagram 3 of 3)
• Trailer tow
• Trailer tow connector
• Trailer tow relay
• Trans- mission control relay
• Transmission) s122
• Up- stream heated oxygen sensor
• W/ awal only
• W/ power seats
• W/o power seats

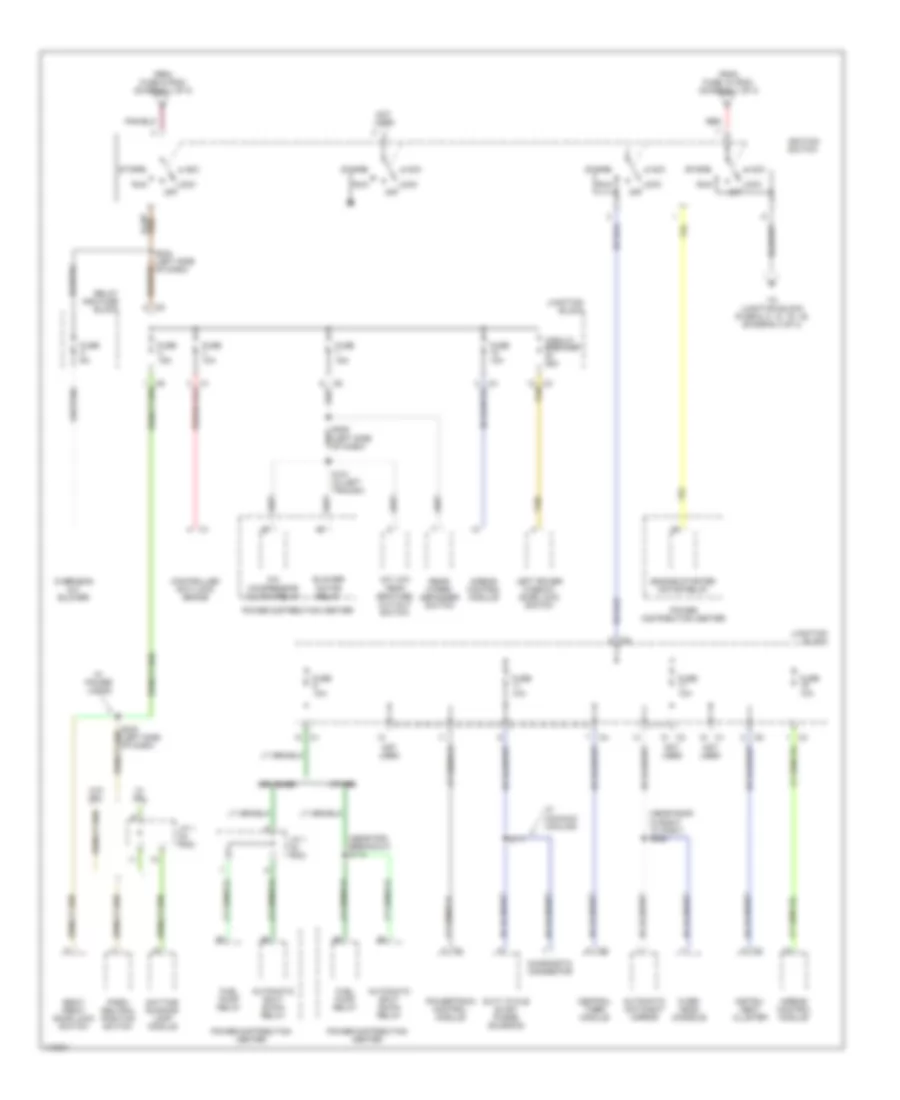

Электросхема блока предохранителей и реле (2 из 3) для Dodge Durango 1999

Электросхема блока предохранителей и реле (2 из 3) для Dodge Durango 1999 - Список элементов:

53

• (left side of dash)
• (near pdc breakout) s114
• (near roof, in right "a" post) s322
• A/c compressor clutch relay
• A/c low temp- erature cut-out switch
• Acc
• Airbag control module
• Automatic day/night mirror
• Automatic shut down relay
• Blower motor relay
• C3 tan
• Central timer module
• Circuit breaker 25a
• Controller anti-lock brake
• Daytime running lamp module
• Diagnostic connector
• Drl/base
• Duty cycle evap/ purge solenoid
• Engine starter motor relay
• From fuse 10 (pdc) (diagram 1 of 3)
• From fuse 9 (pdc) (diagram 1 of 3)
• Fuel pump relay
• Fuse 10a
• Fuse 15a
• Fuse c 5a
• Ignition switch
• Instru- ment cluster
• J/c 1 (in pdc)
• Junction block
• Left power window/ door lock switch
• Lock off
• Not used
• Other
• Over- head console
• Overhead a/c blower
• Park/ neutral position switch
• Power distribution center
• Powertrain control module
• Rear wiper/ defogger switch
• Red
• Relay and fuse block
• Right front door lock switch
• Run
• S121 (in left trough)
• S171
• S234 (left side of dash)
• Start
• Tan
• To junction block (fuse 6, 8, 10, 15, 16) (diagram 3 of 3)
• W/ drl
• W/ maximum cooling
• W/ power locks
• W/o drl

Электросхема блока предохранителей и реле (3 из 3) для Dodge Durango 1999

Электросхема блока предохранителей и реле (3 из 3) для Dodge Durango 1999 - Список элементов:

55

• (diagram 3 of 3)
• (in roof, near right "a" post) s324
• (left side of dash) s227
• (near breakout to left door) s321
• (near power amplifier) s225
• (on left side of liftgate) s334 pnk
• (right center of dash) (w/ light package) s201
• Central timer module
• Cigar lighter
• Circuit breaker 25a
• Combin- ation flasher
• Data link connector
• Driver unlock relay
• From fuse 4 h
• From fuse 7 (pdc) (diagram 1 of 3)
• From ignition switch (pin 6) (run/acc) (diagram 2 of 3)
• Front dome lamp
• Fuse (spare)
• Fuse 10a
• Fuse 15a
• Fuse 15a (amplifier)
• Fuse 20a
• G203 (right kick panel)
• Glove box lamp
• Headlamp switch
• Instrument cluster
• J/c 4 (left side of dash)
• Junction block
• Left courtesy lamp
• Left power window/ door lock switch
• Left visor/ vanity lamp
• Lift- gate lamp
• Multi- function switch
• Not used
• Over- head console
• Pnk
• Pnk/red
• Power amplifier
• Power distribution center
• Power mirror switch
• Radio
• Rear dome lamp
• Rear wiper motor
• Red
• Relay and fuse block
• Right courtesy lamp
• Right front door lock switch
• Right visor/ vanity lamp
• Stoplight switch
• To fuse 12 (diagram 3 of 3)
• Underhood lamp/ mercury switch
• W/ light package
• W/ power locks
• Wiper motor
• Wiper relay
