Электросхемы СИСТЕМА КОНДИЦИОНЕРА Dodge Durango 1999

СИСТЕМА КОНДИЦИОНЕРА

схема нагревателя для Dodge Durango 1999

схема нагревателя для Dodge Durango 1999 - Список элементов:

• (in breakout for 2 inline connectors, 8 pin gray & 5 pin natural, left inner fender) s113
• (right front inner fender) g101
• (right side of dash) g201
• Blower motor (behind upper center of dash)
• Blower motor relay
• Defrost
• Fan switch
• Fuse 15a
• Fuse 40a
• Heat
• Heater control
• High
• High/ low
• Hot at all times
• Hot in run
• Interior lights system
• Junction block (on left end of dash)
• Low
• Mode switch
• Off
• Power distribution center (on left front inner fender)
• Resistor block (in engine compartment, on right side of firewall)
• S206 (right center of dash)
• Tan

Электросхема кондиционера с ручный управлением для Dodge Durango 1999

Электросхема кондиционера с ручный управлением для Dodge Durango 1999 - Список элементов:

• (in wiring trough) s121
• (left inner frame ground) g113
• (near battery) s126
• (near distributor breakout) s108
• (near left headlamp breakout) s112
• (right center of dash) s206
• (right front inner fender) g101
• (right side of dash) g201
• (w/maximum cooling) (at left front of engine compartment)
• 87a
• A/c
• A/c compressor clutch
• A/c compressor clutch relay
• A/c compressor clutch relay ctrl
• A/c heater control
• A/c high pressure switch (near a/c compressor, on discharge line)
• A/c low pressure switch (near engine compartment dash panel, on suction line jumper)
• A/c low temperature cut-out switch (in engine compartment, mounted on outboard side of thermal expansion valve)
• A/c select input
• A/c select switch
• A/c switch sense
• Blower motor (behind upper center of dash)
• Blower motor relay
• C116
• C13
• C20
• C90
• Connectors, 8 pin gray & 5 pin natural, left inner fender) s113
• Defrost
• Diagnostic connector (partial)
• Engine coolant temperature switch (w/maximum cooling) (at left front of engine compartment)
• Fan switch
• Fuse 15a
• Fuse 40a
• Fuse 6 50a
• Fuse a 10a
• Fuse d 20a
• Heat
• Hi/low
• High
• High pressure cut out switch (w/maximum cooling) (at left front of engine compartment)
• High speed cooling fan relay (w/maximum cooling) (at left front of engine compartment)
• Hot at all times
• Hot in run
• Hot w/automatic shut down relay enabled
• Ignition
• Ignition relay
• Interior lights system
• J/c
• Junction block (on left end of dash)
• Low
• Low speed cooling fan relay (w/maximum cooling) (at left front of engine compartment)
• Max
• Med 1
• Med 2
• Mode switch
• Mode switch output
• Nca
• Off
• Power distribution center (on left front inner fender)
• Powertrain control module (on right front inner fender, forward of washer fluid reservoir)
• Radiator fan motor (w/maximum cooling)
• Resistor block (in engine compartment, on right side of firewall)
• Tan
• W/maximum cooling

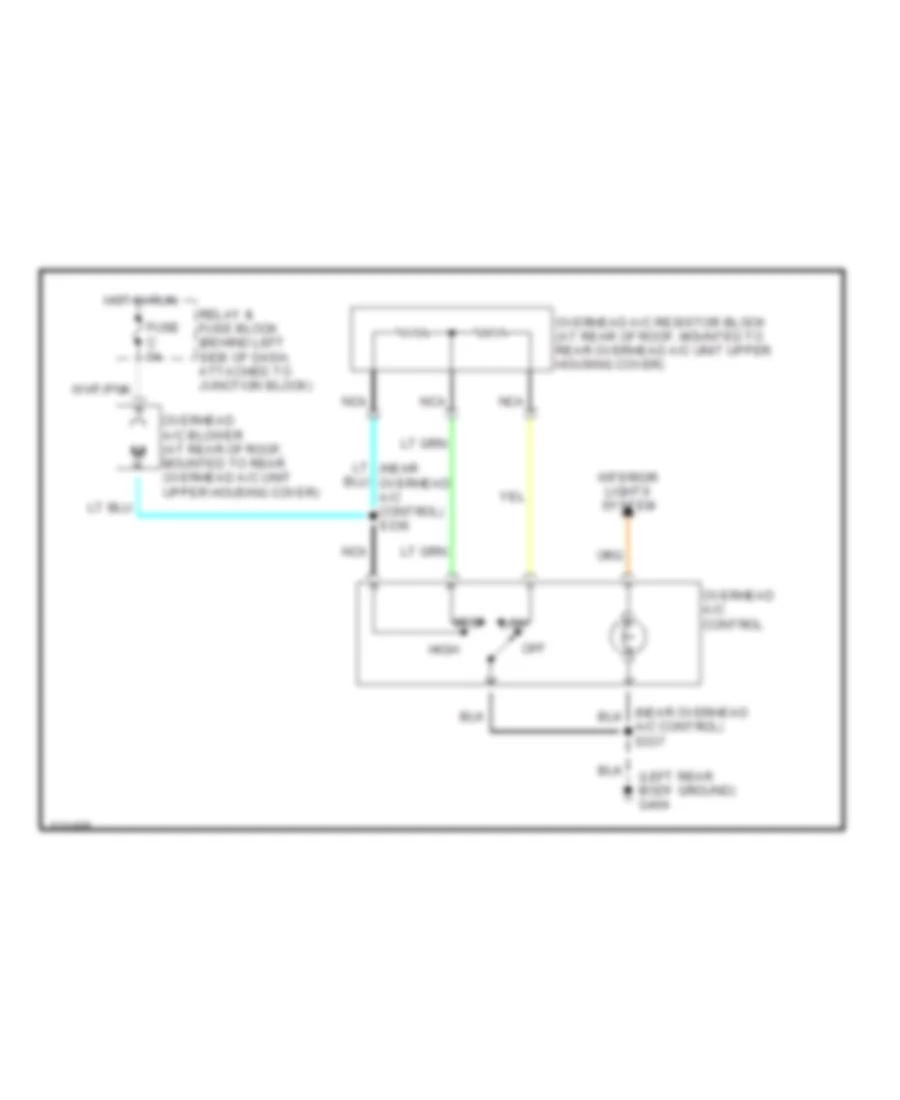

Электросхема кондиционера с ручный управлением, Задний счет для Dodge Durango 1999

Электросхема кондиционера с ручный управлением, Задний счет для Dodge Durango 1999 - Список элементов:

• (left rear body ground) g404
• Fuse c 5a
• High
• Hot in run
• Interior lights system
• Low
• Lt (near overhead a/c control) s336
• Med
• Nca
• Off
• Overhead a/c blower (at rear of roof, mounted to rear overhead a/c unit upper housing cover)
• Overhead a/c control
• Overhead a/c resistor block (at rear of roof, mounted to rear overhead a/c unit upper housing cover)
• Relay & fuse block (behind left side of dash, attached to junction block)
