Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge Durango 1999

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

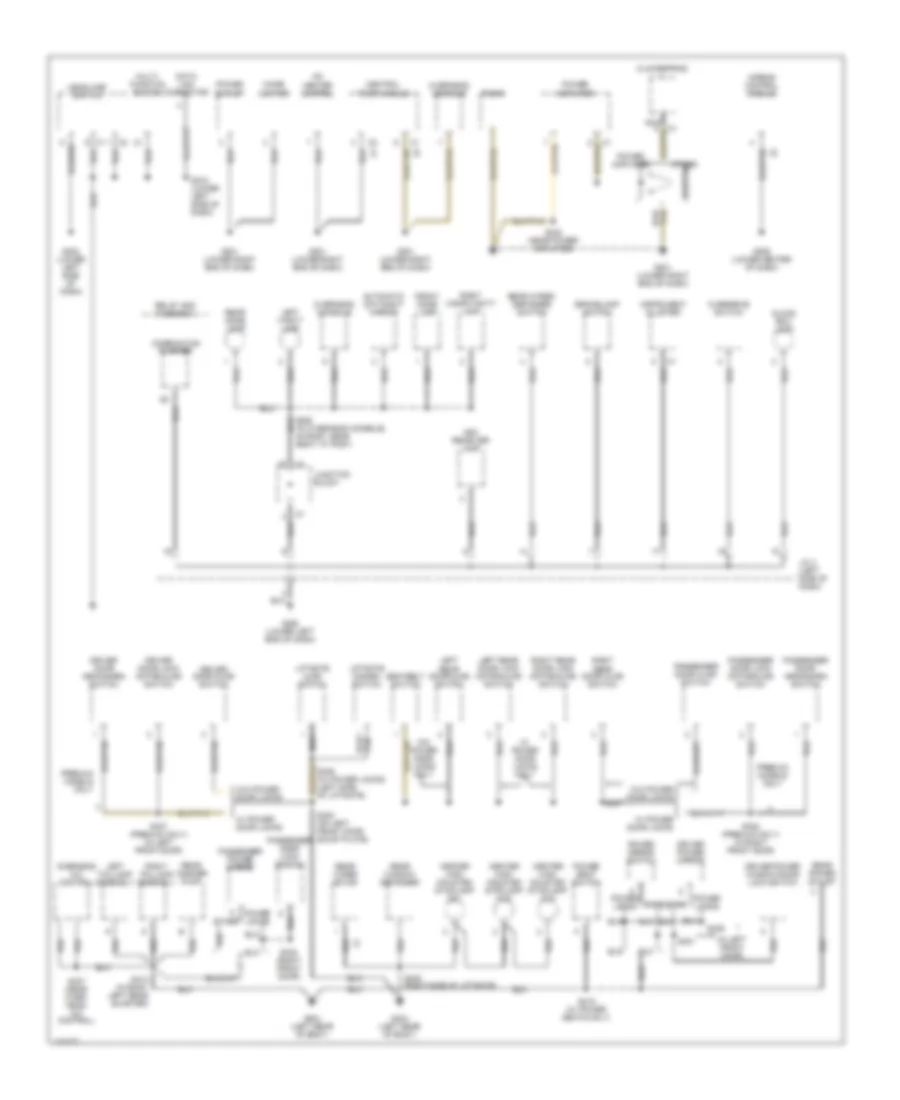

Электросхема подключение массы заземления (1 из 2) для Dodge Durango 1999

Электросхема подключение массы заземления (1 из 2) для Dodge Durango 1999 - Список элементов:

• 4wd switch
• A/c compressor clutch
• Awal
• Battery
• Blower motor relay
• Brake pressure switch
• Controller anti-lock brake
• Datalink connector
• Daytime running lamp module
• Diagnostic connector (max cooling)
• Downstream 1/2 oxygen sensor
• Electric brake (trailer tow)
• Engine coolant temperature switch
• Fuel pump module
• G100 (front of left front fender)
• G100 (left inner fender)
• G101 (right front inner fender)
• G110 (left front of engine)
• G110 (on left front of engine)
• G113 (left front fender to frame ground)
• G119 (right front of engine)
• Generator
• Headlamp relay
• High note horn
• High pressure cut out switch
• High speed cooling fan relay
• Instrument cluster
• Left front side marker lamp
• Left park/turn signal lamp no1
• Left park/turn signal lamp no2
• License lamp
• Low note horn
• Low speed cooling fan relay
• Max cooling
• Nca
• Oil pressure sensor
• Power distribution center
• Powertrain conrol module
• Radiator fan motor
• Right front side marker lamp
• Right park/ turn signal lamp no1
• Right park/ turn signal lamp no2
• Rwal
• S326 (near breakout to fuel tank)
• Trailer tow connector
• Trailer tow relay
• Underhood lamp/ mercury switch
• Upstream 1/1 oxygen sensor
• Vehicle speed control servo
• Washer fluid level sensor
• Windshield washer pump motor
• Wiper motor
• Z12

Электросхема подключение массы заземления (2 из 2) для Dodge Durango 1999

Электросхема подключение массы заземления (2 из 2) для Dodge Durango 1999 - Список элементов:

• (in left front door)
• A/c heater control
• Airbag control module
• Ash receiver lamp
• Automatic day/night mirror
• Base
• Brakelamp switch
• Center high mounted stoplamp no1
• Center high mounted stoplamp no2
• Center high mounted stoplamp no3
• Central timer module
• Cigar lighter
• Clockspring
• Combination
• Data link connector
• Driver door ajar switch
• Driver door arm/disarm switch
• Driver door lock motor/ajar switch
• Driver power mirror
• Driver power window/door lock switch
• Flasher
• Front dome lamp
• G201 (lower right end of dash)
• G202 (lower left end of dash)
• G202 (lower left side of dash)
• G206 (lower center of dash)
• G404 (left rear of body)
• Glove box lamp
• Headlamp switch
• Instrument cluster
• J/c 4 (left side of dash)
• Junction block
• Left rear door ajar switch
• Left rear door lock motor/ajar switch
• Left taillamp assembly
• Left vanity lamp
• Liftgate ajar switch
• Liftgate disarm switch
• Multi- function switch
• Nca
• Other
• Overdrive switch
• Overhead a/c control
• Overhead console
• Passenger door ajar switch
• Passenger door arm/disarm switch
• Passenger door lock motor/ajar switch
• Passenger door lock switch
• Passenger power mirror
• Power amplifier
• Power locks
• Power mirror switch
• Power outlet
• Power seat switch
• Premium models only
• Radio
• Rear dome lamp
• Rear power outlet
• Rear washer pump
• Rear window defogger
• Rear wiper motor
• Rear wiper/ defogger switch
• Relay and fuse box
• Right rear door ajar switch
• Right rear door lock motor/ajar switch
• Right taillamp assembly
• Right visor/vanity lamp
• S218 (lower left side of dash)
• S240 (near power amplifier)
• S301
• S313 (in roof, left rear quarter)
• S315 (w/ power seats only)
• S320 (on left front door scuff plate)
• S327 (premium only) (in left front door)
• S328 (premium only) (in right front door)
• S329 (w/ power locks) (left side of liftgate)
• S335 (right side of liftgate)
• S337 (near over- head a/c control)
• S338 (right front door)
• S339
• Seatbelt switch
• W/ power door locks
• W/ power door locks only
• W/o power door locks
• W/o power door locks only
