Электросхемы Система Фар Dodge Durango 1999

Система Фар

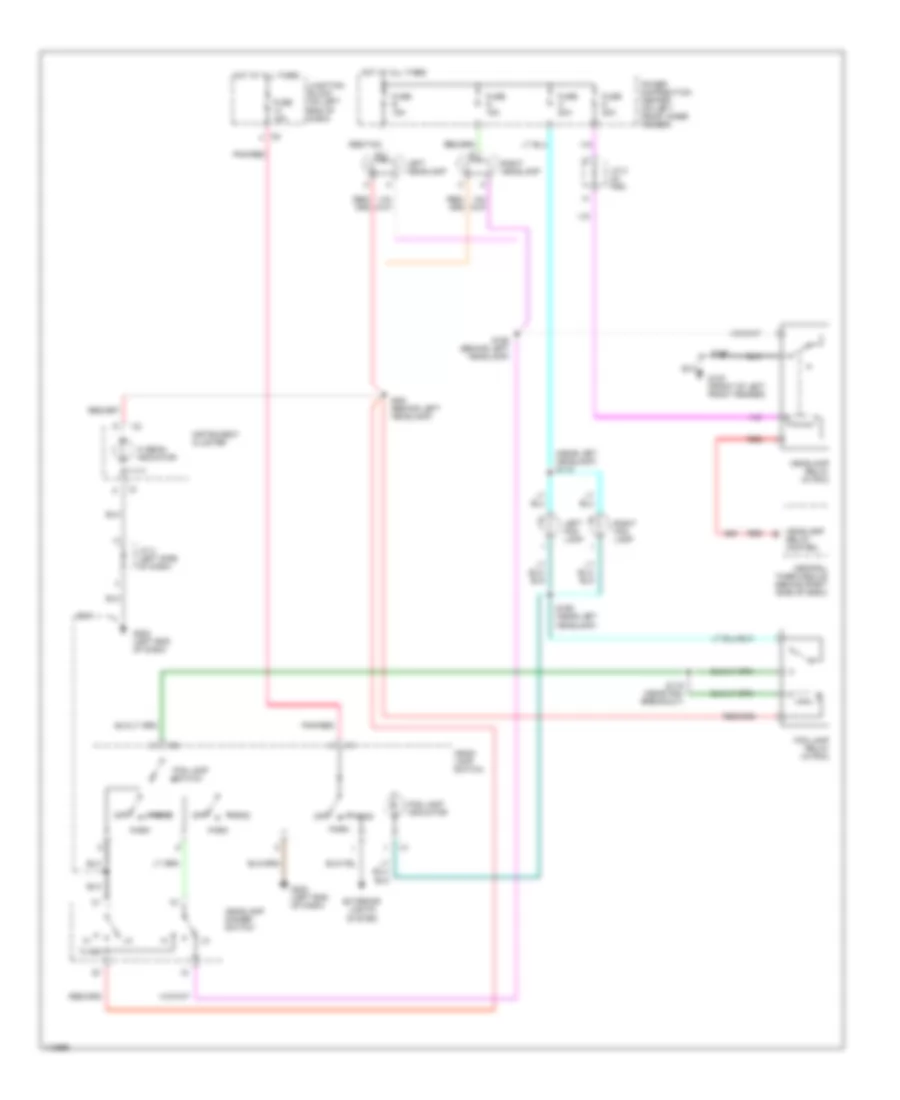

Электросхема фар, С DRL для Dodge Durango 1999

Электросхема фар, С DRL для Dodge Durango 1999 - Список элементов:

• (near left headlamp) s118
• Battery
• Central timer module (behind right side of dash)
• Daytime running lamp module (in left front inner fender)
• Exterior lights system
• Flash
• Fog lamp ctrl
• Fog lamp indicator
• Fog lamp relay (in pdc)
• Fog lamp switch
• Fuse 15a
• Fuse c 20a
• Fuse d 20a
• Fuse e 15a
• Fuse g 15a
• G100 (front of left front fender)
• G11
• G202 (left end of dash)
• G34
• G50
• Ground
• Head
• Head- lamp switch
• Headlamp dimmer switch
• Headlamp relay (in pdc)
• Headlamp relay control
• Hi beam indicator
• High beam ind
• High beam out
• Hot at all times
• Hot in run
• Ignition
• Instrument cluster
• J/c 1 (in pdc)
• J/c 2 (in pdc)
• J/c 4 (left side of dash)
• Junction block (on left end of dash)
• L10
• L161
• L39
• Left fog lamp
• Left headlamp
• Low beam out
• Off
• Park
• Park brake sen
• Park brake switch (on parking brake assembly)
• Pnk/ red
• Pnk/red
• Power distribution center (on left front inner fender)
• Red
• Red/tan
• Right fog lamp
• Right headlamp
• S166
• S168 (behind left head- lamp)
• S169 (near left headlamp)
• Si64 (behind left head- lamp)

Электросхема фар, без DRL для Dodge Durango 1999

Электросхема фар, без DRL для Dodge Durango 1999 - Список элементов:

• (near left headlamp) s118
• Central timer module (behind right side of dash)
• Exterior lights system
• Flash
• Fog lamp indicator
• Fog lamp relay (in pdc)
• Fog lamp switch
• Fuse 15a
• Fuse c 20a
• Fuse d 20a
• Fuse e 15a
• Fuse g 15a
• G100 (front of left front fender)
• G202 (left end of dash)
• G50
• Head
• Head- lamp switch
• Headlamp dimmer switch
• Headlamp relay (in pdc)
• Headlamp relay control
• Hi beam indicator
• Hot at all times
• Instrument cluster
• J/c 2 (in pdc)
• J/c 4 (left side of dash)
• Junction block (on left end of dash)
• Left fog lamp
• Left headlamp
• Off
• Park
• Pnk/red
• Power distribution center (on left front inner fender)
• Red
• Red/tan
• Right fog lamp
• Right headlamp
• S116 (near pdc breakout)
• S166
• S168 (behind left headlamp)
• S169 (near left headlamp)
• Si64 (behind left headlamp)
