Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge Durango 1999

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Dodge Durango 1999

Электросхема заднего хода для Dodge Durango 1999 - Список элементов:

• (left front door scuff plate)
• (w/ trailer tow package)
• Automatic day/night mirror
• Back-up lamp
• Fuse 15a
• G404 (left rear of body)
• Hot in run
• J/c 1 (in power distribution center)
• Junction block
• Left tail lamp assembly
• Park/neutral position switch (on transmission)
• Right tail lamp assembly
• S230
• S313
• Trailer tow connector
• W/ drl
• W/o drl

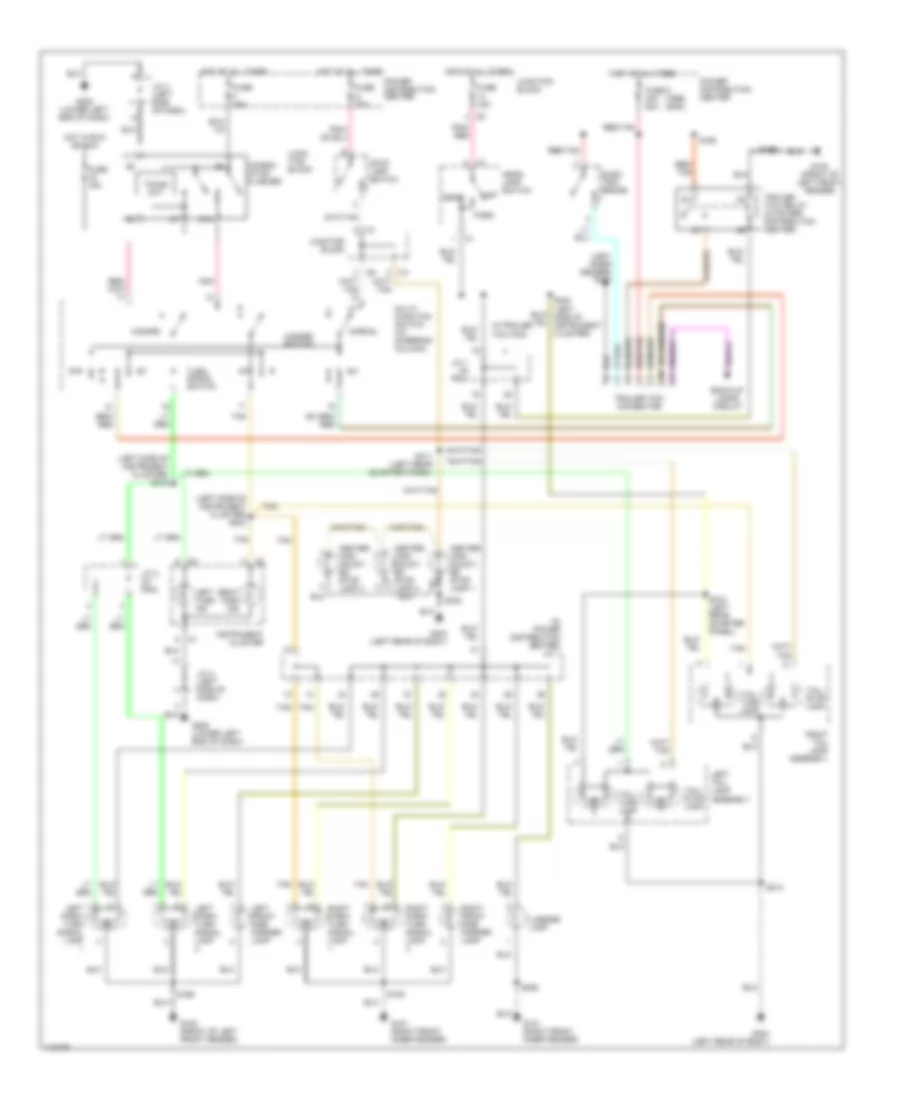

Электросхема внешнего освещения для Dodge Durango 1999

Электросхема внешнего освещения для Dodge Durango 1999 - Список элементов:

• (1999) (2000)
• (in power distribution center) j/c 1
• (left inner fender) g100
• (left side of instrument cluster) s219
• (left side of instrument cluster) s223
• 87a
• Back-up lamps circuit
• Center high mount- ed stop lamp 1
• Center high mount- ed stop lamp 2
• Center high mount- ed stop lamp 3
• Combin- ation flasher
• Elec- tric brake
• Fuse 15a
• Fuse 6 40a 50a
• Fuse f 25a
• Fuse g 20a
• G100 (front of left front fender)
• G101 (right front inner fender)
• G202 (lower left end of dash)
• G404 (left rear of body)
• Hazard
• Hazard switch
• Head
• Head- lamp switch
• Hot at all times
• Hot in run or acc
• Instrument cluster
• J/c 1 (in pdc)
• J/c 2 (in pdc)
• J/c 4 (left side of dash)
• Junc- tion block
• Junction block
• Left front side marker lamp
• Left park/ turn signal lamp
• Left tail lamp assembly
• Left turn ind
• License lamp
• Multi- function switch (at steering column)
• Normal
• Off
• Park
• Pnk
• Pnk/ red
• Power distribution center
• Red/ tan
• Red/tan
• Right front side marker lamp
• Right park/ turn signal lamp
• Right tail lamp assembly
• Right turn ind
• S109
• S162
• S166
• S310 (left rear quarter panel)
• S311 (left rear quarter panel)
• S313
• S326
• S335
• Stop lamp switch
• Tail/ stop lamp
• Tail/ turn lamp
• Tan
• Timing ckt
• Trailer tow connector
• Trailer tow relay (in power distribution center)
• Turn signal switch
• W/trailer tow pkg.
