Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Dodge SRT-4 2005

ЦЕНТРАЛЬНЫЙ ЗАМОК

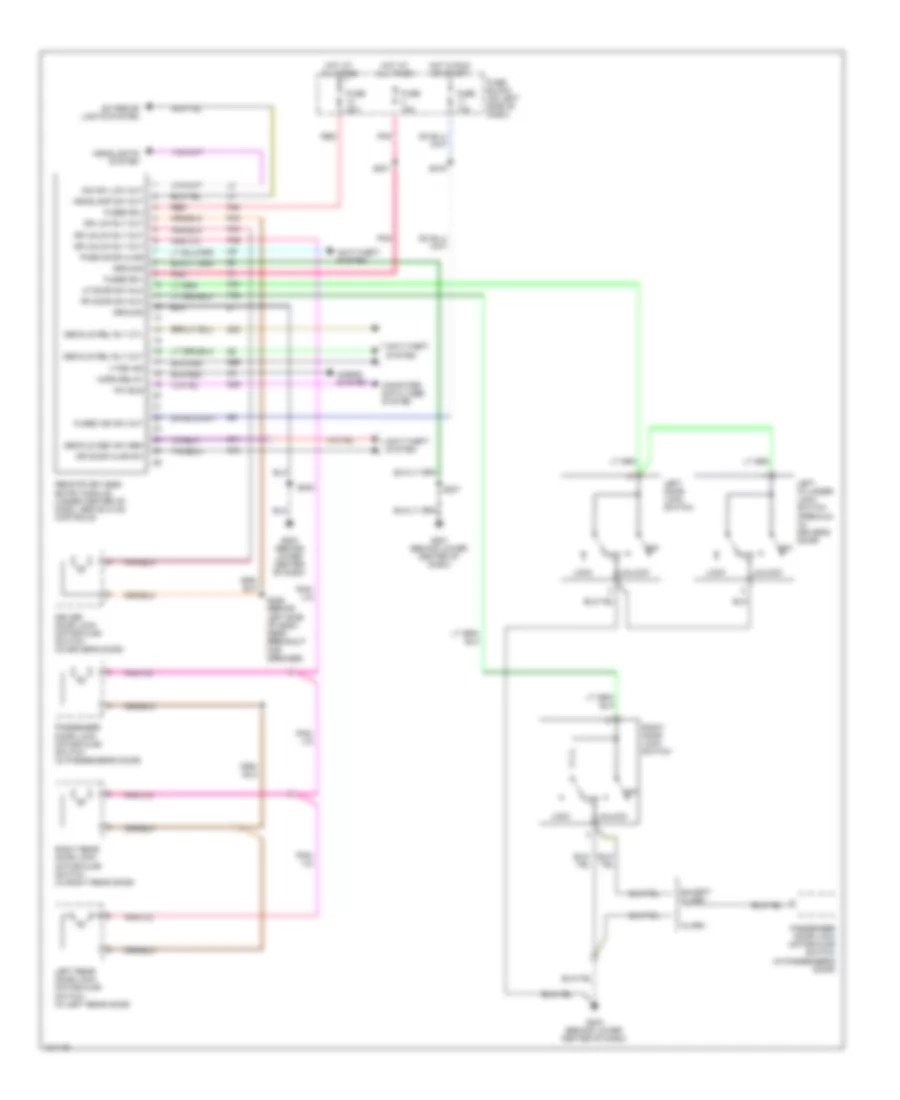

Электросхема центрального замка для Dodge SRT-4 2005

Электросхема центрального замка для Dodge SRT-4 2005 - Список элементов:

• Alarm
• Anti-theft system
• Computer data lines system
• D25
• Decklid rel rly ctl
• Decklid rel rly out
• Decklid sec sw sen
• Dim sw low out
• Dr door ajar sw
• Dr lck rly out
• Dr unlck rly out
• Driver door lock motor/ajar switch (in driver's door)
• Except alarm
• Exterior lights system
• F35
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse block (on left side of dash)
• Fused b(+)
• Fused ign sw out
• G201 (behind lower center of dash)
• G203 (behind lower center of dash)
• G69
• G71
• G75
• Ground
• Headlamp sw out
• Headlights system
• Horn relay
• Horns system
• Hot at all times
• Hot in run or start
• Left cylinder lock switch (premium) (in driver's door)
• Left door lock switch
• Left rear door lock motor/ajar switch (in left rear door)
• Lf door sw mux
• Lock
• Off
• P33
• P34
• P36
• P96
• P97
• Pass door ajar
• Passenger door lock motor/ajar switch (in passenger's door)
• Pci bus
• Pnk
• Q33
• Red
• Remote keyless entry module (under center of dash, above hvac controls)
• Rf door sw mux
• Right door lock switch
• Right rear door lock motor/ajar switch (in right rear door)
• S201
• S202
• S207
• S219
• S226 (behind left side of dash, near breakout for speaker)
• Unlock
• Vtss ind
