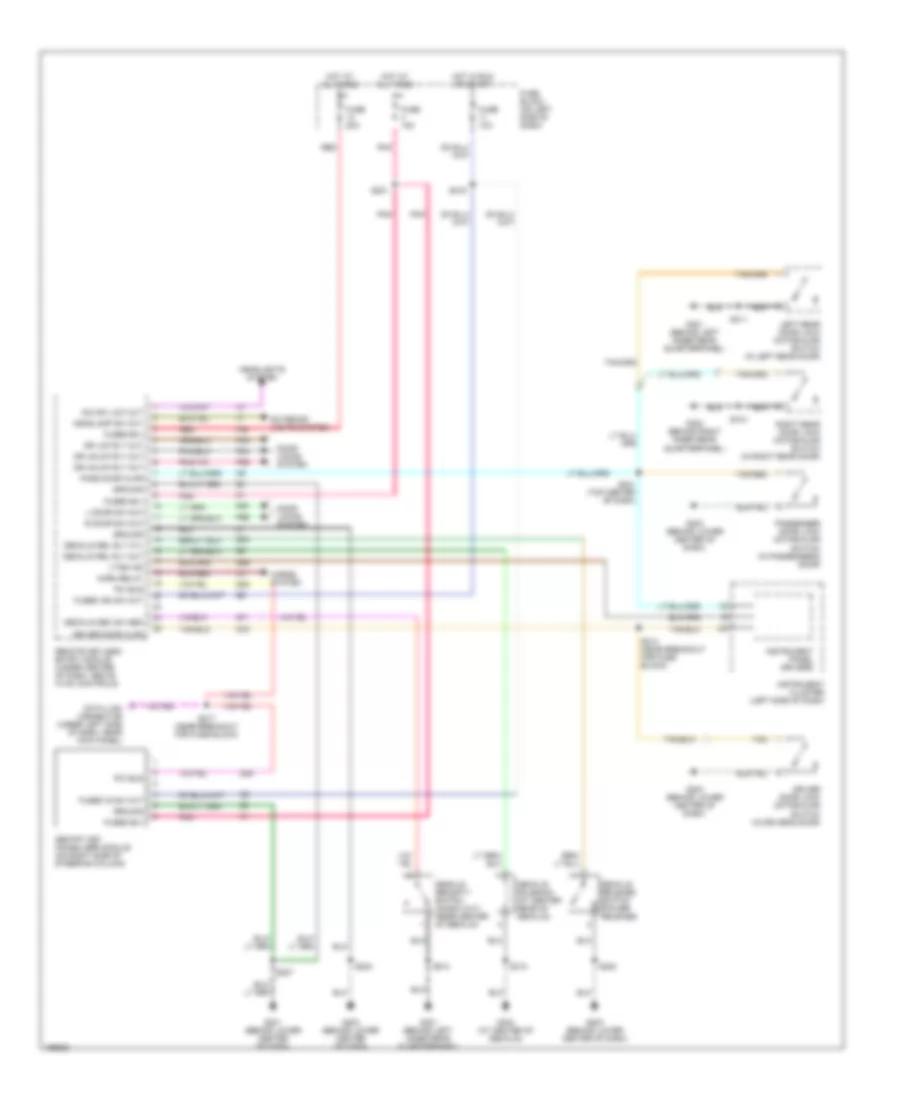

Электросхема противоугонной сигнализации для Dodge SRT-4 2005

Электросхема противоугонной сигнализации для Dodge SRT-4 2005 - Список элементов:

• D25
• Data link connector (under left side of dash, near kick panel)
• Decklid rel rly ctl
• Decklid rel rly out
• Decklid release switch (power release)
• Decklid sec sw sen
• Decklid security switch (knock out) (rear center of decklid)
• Decklid solenoid (at center rear of decklid)
• Dim sw low out
• Door locks system
• Dr lck rly out
• Dr unlck rly out
• Driver door ajar
• Driver door lock motor/ajar switch (in driver's door)
• Exterior lights system
• F35
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse block (on left side of dash)
• Fused b(+)
• Fused ig sw out
• Fused ign sw out
• G201 (behind lower center of dash)
• G203 (behind lower center of dash)
• G301 (behind left inner rear quarterpanel)
• G301 (behind left inner rear quarterpanel)
• G302 (behind right inner rear quarterpanel)
• G304 (at center of decklid)
• G69
• G71
• G75
• Ground
• Headlamp sw out
• Headlights system
• Horn relay
• Horns system
• Hot at all times
• Hot in run or start
• Instrument cluster (left side of dash)
• Instrument panel drivers
• L door sw mux
• Left rear door lock motor/ajar switch (in left rear door)
• P33
• P34
• P36
• P96
• P97
• Pass door ajar
• Passenger door lock motor/ajar switch (in passenger's door)
• Pci bus
• Pnk
• Q33
• R door sw mux
• Red
• Remote keyless entry module (under center of dash, above hvac controls)
• Right rear door lock motor/ajar switch (in right rear door)
• S201
• S202
• S207
• S214 (near breakout for fuse block)
• S217 (near breakout for fuse block)
• S219
• S221 (top center of dash)
• S310
• S311
• S312
• Sentry key immobilizer module (on right side of steering column)
• Tan
• Tan/red
• Vtss ind
