Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Dodge SRT-4 2005

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

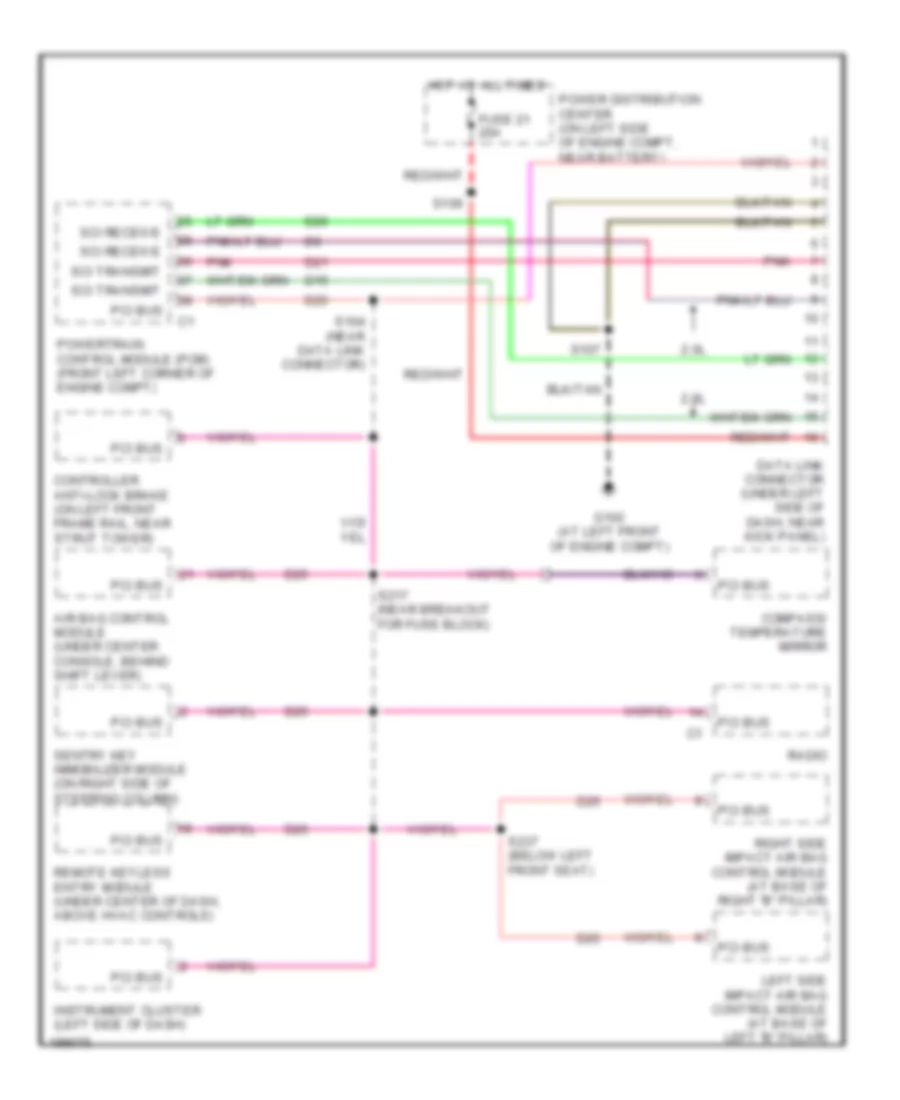

Электросхема линии передачи данных CAN для Dodge SRT-4 2005

Электросхема линии передачи данных CAN для Dodge SRT-4 2005 - Список элементов:

• 2.0l
• Air bag control module (under center console, behind shift lever)
• Compass/ temperature mirror
• Controller anti-lock brake (on left front frame rail, near strut tower)
• D15
• D20
• D21
• D25
• Data link connector (under left side of dash, near kick panel)
• Fuse 21 20a
• G102 (at left front of engine compt)
• Hot at all times
• Instrument cluster (left side of dash)
• Left side impact air bag control module (at base of left "b" pillar)
• Pci bus
• Pnk
• Power distribution center (on left side of engine compt, near battery)
• Powertrain control module (pcm) (front left corner of engine compt)
• Radio
• Remote keyless entry module (under center of dash, above hvac controls)
• Right side impact air bag control module (at base of right "b" pillar)
• S104 (near data link connector)
• S106
• S107
• S217 (near breakout for fuse block)
• S237 (below left front seat)
• Sci receive
• Sci transmit
• Sentry key immobilizer module (on right side of steering column)
