ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

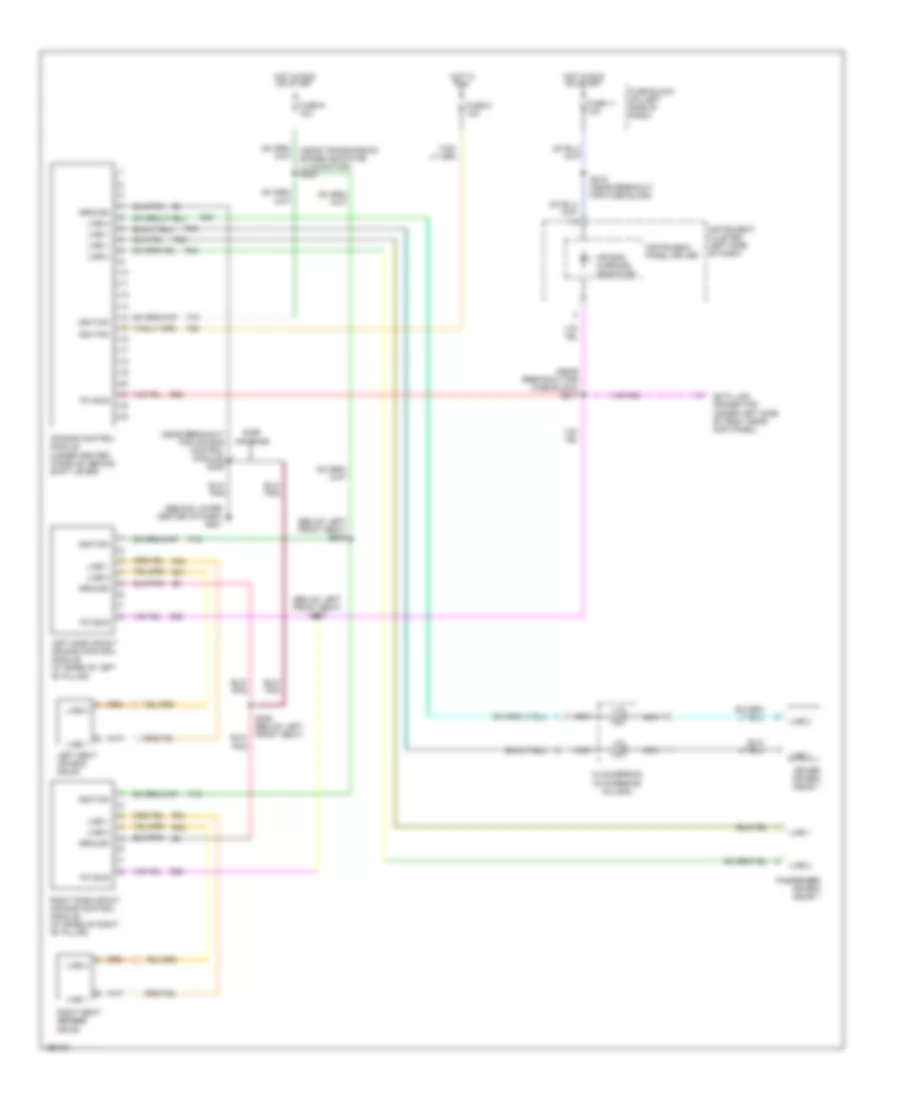

Электросхема подушек безопасности SRS AirBag для Dodge SRT-4 2005

Электросхема подушек безопасности SRS AirBag для Dodge SRT-4 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема подушек безопасности SRS AirBag для Dodge SRT-4 2005 - Список элементов:

  • (behind lower center of dash) g201
  • (below left front seat) s236
  • (below left front seat) s237
  • (near breakout for air bag control module) s229
  • (near breakout for fuse block) s217
  • Air bag control module (under center console, behind shift lever)
  • Air bag warning indicator
  • Clockspring (in steering column)
  • D25
  • Data link connector (under left side of dash, near kick panel)
  • Driver air bag squib 1
  • F15
  • F25
  • Fuse 11 10a
  • Fuse 5 10a
  • Fuse 9 10a
  • Fuse block (on left side of dash)
  • Ground
  • Hot in run
  • Hot in run or start
  • Ignition
  • Instrument cluster (left side of dash)
  • Instrument panel driver
  • Left seat air bag squib
  • Left side impact air bag control module (at base of left "b" pillar)
  • Line 1
  • Line 2
  • Nca
  • Passenger air bag squib 1
  • Pci bus
  • R31
  • R32
  • R33
  • R34
  • R42
  • R43
  • R44
  • R45
  • Right seat air bag air bag squib
  • Right side impact air bag control module (at base of right "b" pillar)
  • S219 (near breakout for fuse block)
  • Side air bags
