Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge SRT-4 2005

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

Электросхема подключение массы заземления (1 из 2) для Dodge SRT-4 2005

Электросхема подключение массы заземления (1 из 2) для Dodge SRT-4 2005 - Список элементов:

• (2.0l rt)
• (2.0l)
• (2.0l) left front fog lamp
• (2.0l) right front fog lamp
• (2.0l) windshield washer pump
• (2.4l turbo)
• (2.4l turbo) left front fog lamp
• (2.4l turbo) radiator fan control relay
• (2.4l turbo) right front fog lamp
• (2.4l turbo) wastegate solenoid
• (2.4l turbo) windshield washer pump
• (a/t) transmission control relay
• (at left front of engine compartment)
• (front left corner of engine compt) powertrain control module (pcm)
• (m/t) clutch interlock/ upstop switch
• (near breakout for engine oil pressure switch) s151
• (on left side of engine compt, near battery) power distribution center
• (premium) left cylinder lock switch
• (right)
• A/c compressor clutch
• A/c-heater control
• Alarm
• Base
• Base/ midline
• Battery
• Brake fluid level switch
• Brake lamp switch
• Controller anti-lock brake
• Data link connector (dlc)
• Driver door ajar switch
• Driver door lock motor/ajar switch
• Driver power window switch
• Except alarm
• G102
• G103 (at right front of engine compartment)
• G104 (near starter motor)
• G106 (2.0l) (at left front of engine compartment)
• Generator
• Highline
• Left door lock switch
• Left front side marker lamp
• Left headlamp
• Left park/ turn signal lamp
• Low note horn
• Manifold tuning valve relay
• Manifold tuning valve solenoid
• Midline
• Nca
• Oxygen sensor 1/1 upstream
• Oxygen sensor 1/2 downstream
• Passenger door ajar switch
• Passenger door lock motor/ajar switch
• Power mirror switch
• Power steering pressure switch
• Radiator fan motor
• Right door lock switch
• Right front side marker lamp
• Right headlamp
• Right park/ turn signal lamp
• S107 (near breakout for evap purge solenoid)
• S112 (near power distribution center)
• S117 (near breakout for a/c compressor clutch)
• S141 (at breakout for left front fog lamp)
• S218 (near breakout for fuse block)
• S240 (near breakout for driver power mirror)
• Side marker lamp)
• Speed control servo
• To g203 (diagram 2 of 2)

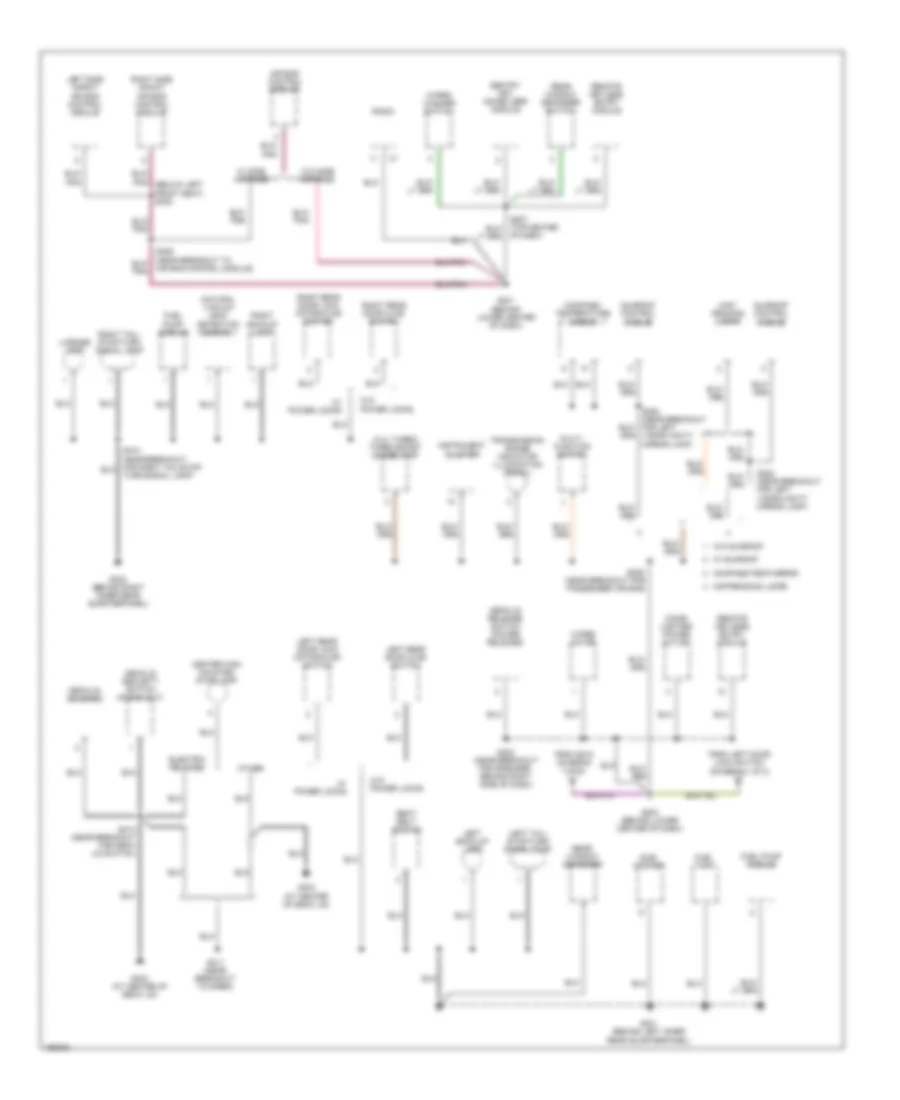

Электросхема подключение массы заземления (2 из 2) для Dodge SRT-4 2005

Электросхема подключение массы заземления (2 из 2) для Dodge SRT-4 2005 - Список элементов:

• (2.4l turbo) turbo boost gauge lamp
• Air bag control module
• Center high mounted stop lamp
• Cigar lighter/ power outlet
• Compass/ temperature mirror
• Compass/temp mirror
• Decklid release switch (power release)
• Decklid security switch (knock out)
• Decklid solenoid
• Electric release
• From left door lock switch (diagram 1 of 2)
• From s218 (diagram 1 of 2)
• Fuel pump module
• Fuel tank
• G201 (behind lower center of dash)
• G203 (behind lower center of dash)
• G301 (behind left inner rear quarterpanel)
• G302 (behind right inner rear quarterpanel)
• G304 (at center of deck lid)
• Instrument cluster
• Left back-up lamp
• Left rear door ajar switch
• Left rear door lock motor/ajar switch
• Left side impact air bag control module
• Left tail/ stop/turn signal lamp
• License lamp
• Map/ reading lamps
• Map/reading lamps
• Multi- function switch
• Natural vacuum leak detection assembly
• Of dash)
• Other
• Radio
• Rear window defogger
• Rear window defogger switch
• Remote keyless entry module
• Right backup lamp
• Right rear door ajar switch
• Right rear door lock motor/ajar switch
• Right side impact air bag control module
• Right tail/ stop/turn signal lamp
• S202 (near breakout for speaker, behind right side of dash)
• S205 (near breakout for passenger air bag)
• S229 (near breakout to air bag control module)
• S252 (near breakout for left visor/vanity mirror lamp)
• S311 (near breakout to siren)
• S312 (near breakout for deck lid switch)
• Seat belt switch
• Sentry key immobilizer module
• Sub- woofer
• Sunroof control module
• Transmission range indicator illumination (prndl)
• Turn signal lamp)
• W/ power locks
• W/ side air bags
• W/ sunroof
• W/o power locks
• W/o side air bags
• W/o sunroof
• Wiper motor
• Wiper/ washer switch
