СИСТЕМА ОХЛАЖДЕНИЯ

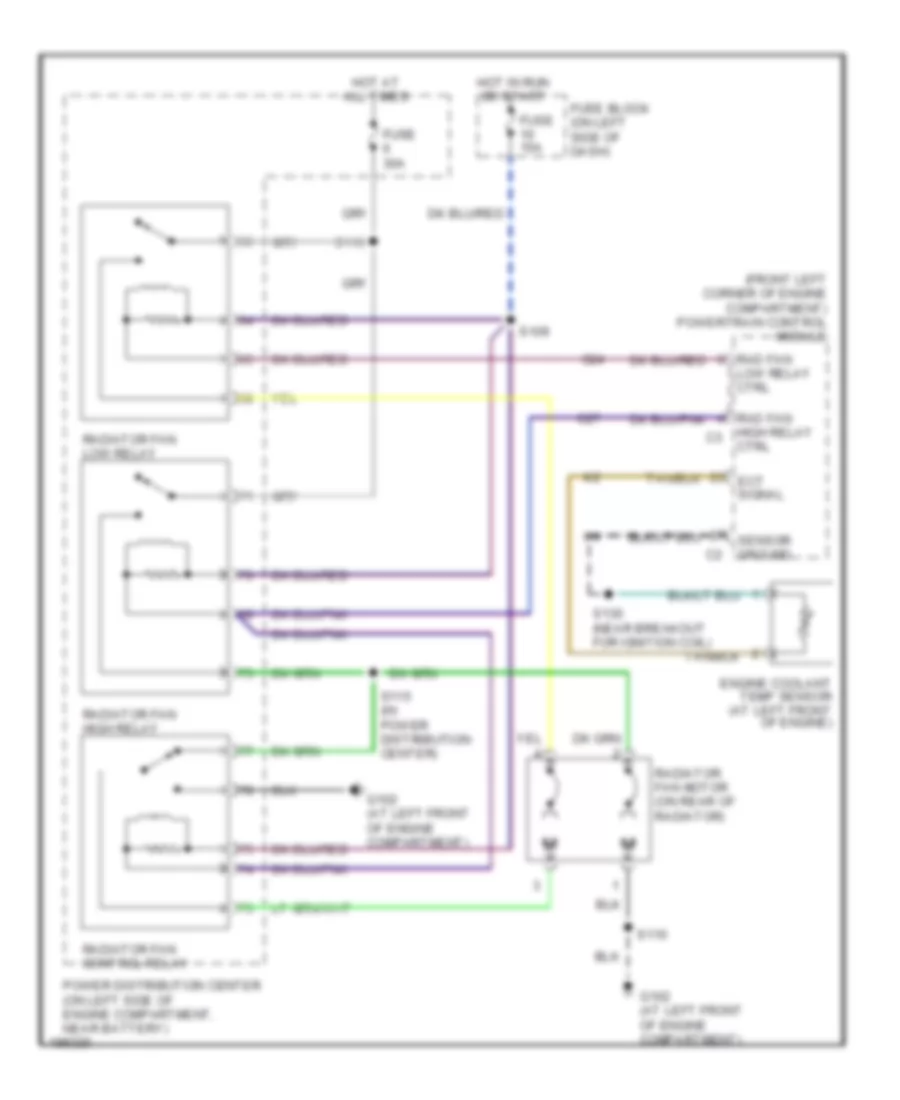

Электросхема системы охлаждения для Dodge SRT-4 2005

Электросхема системы охлаждения для Dodge SRT-4 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема системы охлаждения для Dodge SRT-4 2005 - Список элементов:

  • (front left corner of engine compartment) powertrain control module
  • C24
  • C27
  • Ect signal
  • Engine coolant temp sensor (at left front of engine)
  • Fuse 15a
  • Fuse 30a
  • Fuse block (on left side of dash)
  • G102 (at left front of engine compartment)
  • High relay ctrl
  • Hot at all times
  • Hot in run or start
  • Low relay ctrl
  • Power distribution center (on left side of engine compartment, near battery)
  • Rad fan
  • Radiator fan control relay
  • Radiator fan high relay
  • Radiator fan low relay
  • Radiator fan motor (on rear of radiator)
  • S109
  • S110
  • S115 (in power distribution center)
  • S116
  • S130 (near breakout for ignition coil)
  • Sensor ground
