Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Dodge SRT-4 2005

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

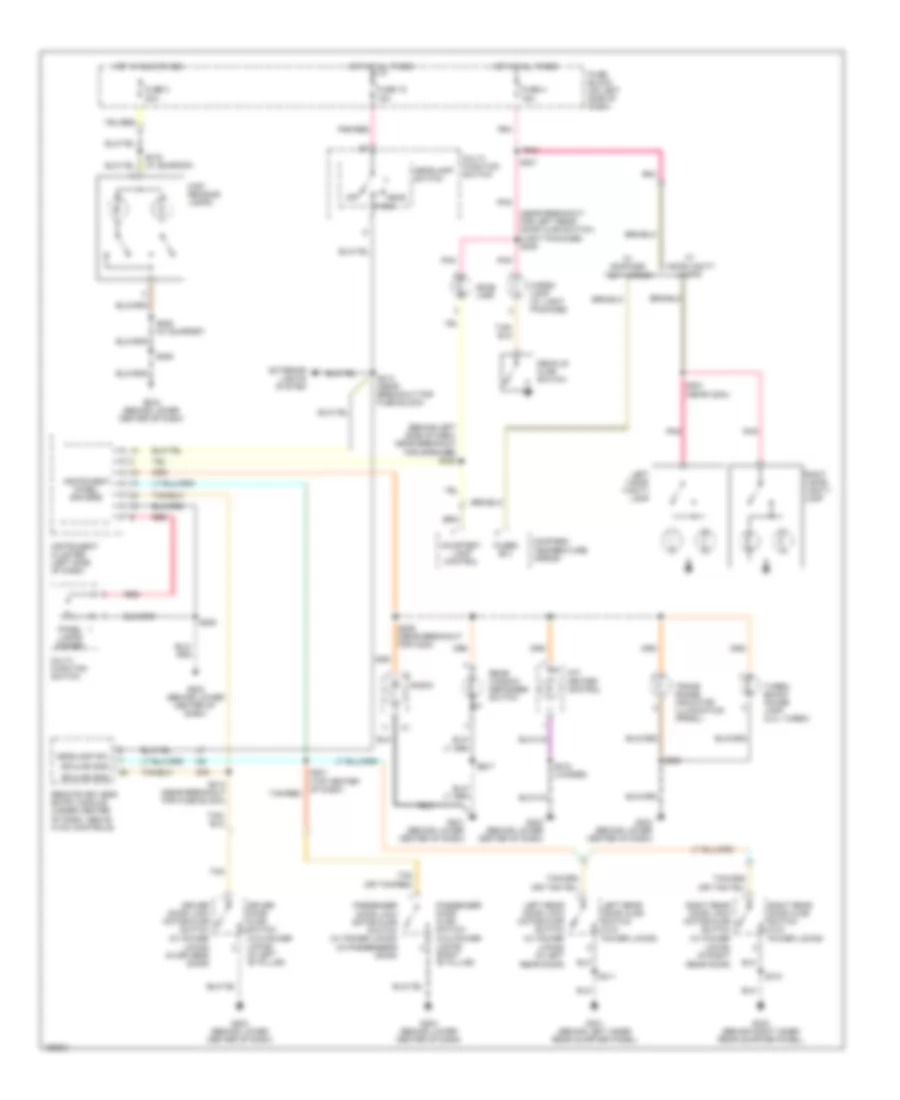

Электросхема освещения салона для Dodge SRT-4 2005

Электросхема освещения салона для Dodge SRT-4 2005 - Список элементов:

• (behind left side of dash, near breakout for speaker) s225
• (near breakout for left rear door ajar switch) (light package) s309
• A/c- heater control
• Cargo lamp (w/ light package)
• Compass/ temperature mirror
• Courtesy lamp control
• Decklid ajar switch
• Dome lamp
• Dr ajar sns
• Driver door ajar switch (w/o power locks) (in left "b" pillar)
• Driver door lock motor/ajar switch (w/ power locks) (in driver's door)
• Exterior lights system
• Fuse 15 15a
• Fuse 3 20a
• Fuse 4 15a
• Fuse block (on left side of dash)
• Fused b(+)
• G201 (behind lower center of dash)
• G203 (behind lower center of dash)
• G203 (behind lower center of dash)
• G301 (behind left inner rear quarter panel)
• G302 (behind right inner rear quarter panel)
• G75
• Head
• Headlamp sw
• Headlamp switch
• Hot at all times
• Hot in run or acc
• Instrument cluster (left side of dash)
• Instrument panel drivers
• Left rear door ajar switch (w/o power locks)
• Left rear door lock motor/ajar switch (w/ power locks) (in left rear door)
• Left visor/ vanity lamp
• Map/ reading lamps
• Multi- function switch
• Off
• Panel lamps dimmer
• Park
• Passenger door ajar switch (w/o power locks) (right "b" pillar)
• Passenger door lock motor/ajar switch (w/ power locks) (in passenger's door)
• Pnk
• Pnk/red
• Radio
• Rear window defogger switch
• Red
• Remote keyless entry module (under center of dash, above hvac controls)
• Right rear door ajar switch (w/o power locks)
• Right rear door lock motor/ajar switch (w/ power locks) (in right rear door)
• Right visor/ vanity lamp
• S201
• S205
• S206 (near breakout for c202)
• S207
• S213 (near breakout for fuse block)
• S214 (near breakout for fuse block)
• S218 (loaded)
• S221 (top center of dash)
• S251 (near c204)
• S252 (w/ sunroof)
• S310
• S311
• S315 (w/ sunroof)
• Tan
• Tan (or tan/red)
• Tan/red
• Trans range indicator illumination (prndl)
• Turbo boost gauge lamp (2.4l turbo)
• W/ compass/ temp mirror
• W/ visor/vanity lamps
