Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge SRT-4 2005

ВНЕШНЕЕ ОСВЕЩЕНИЕ

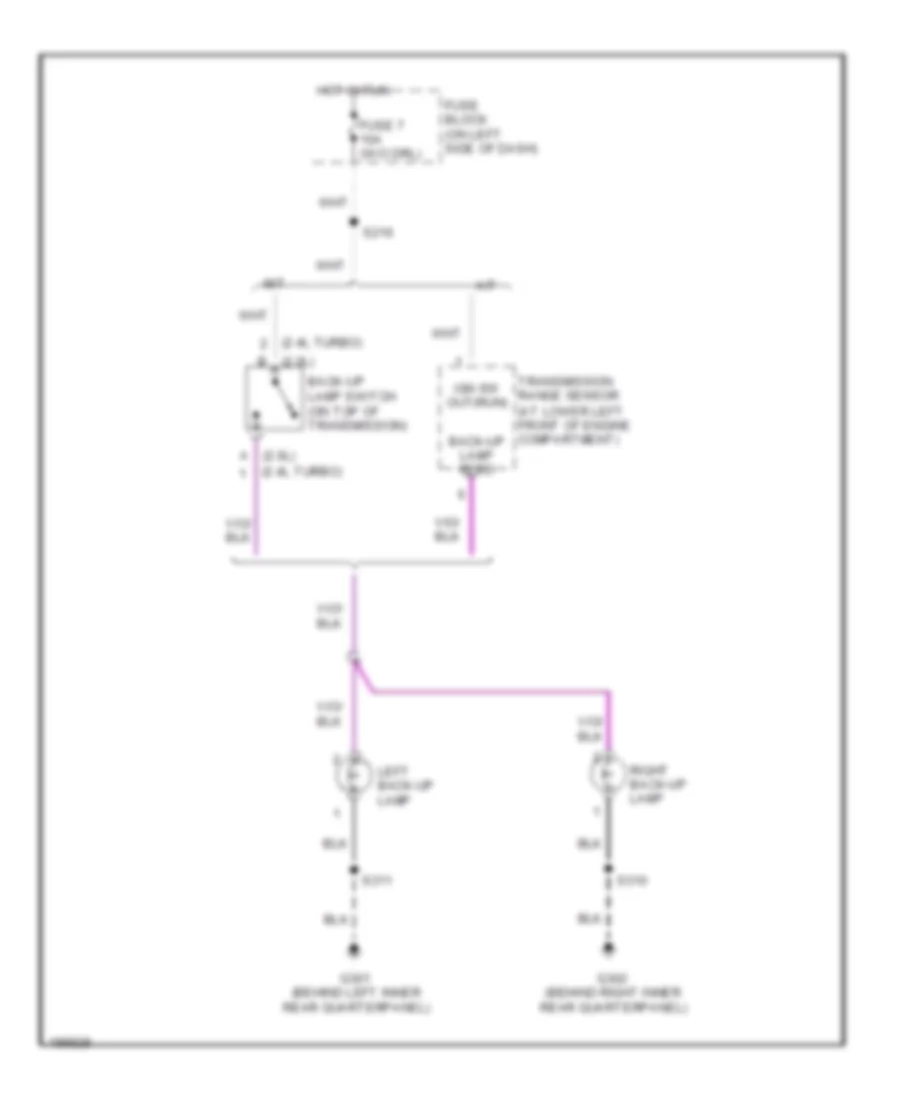

Электросхема заднего хода для Dodge SRT-4 2005

Электросхема заднего хода для Dodge SRT-4 2005 - Список элементов:

• (2.0l) a
• (2.4l turbo)
• A/t
• B (2.0l)
• Back-up lamp feed
• Back-up lamp switch (on top of transmission)
• Fuse 7 10a (w/o drl)
• Fuse block (on left side of dash)
• G301 (behind left inner rear quarterpanel)
• G302 (behind right inner rear quarterpanel)
• Hot in run
• Ign sw out(run)
• Left back-up lamp
• M/t
• Right back-up lamp
• S216
• S310
• S311
• Transmission range sensor (at lower left front of engine compartment)

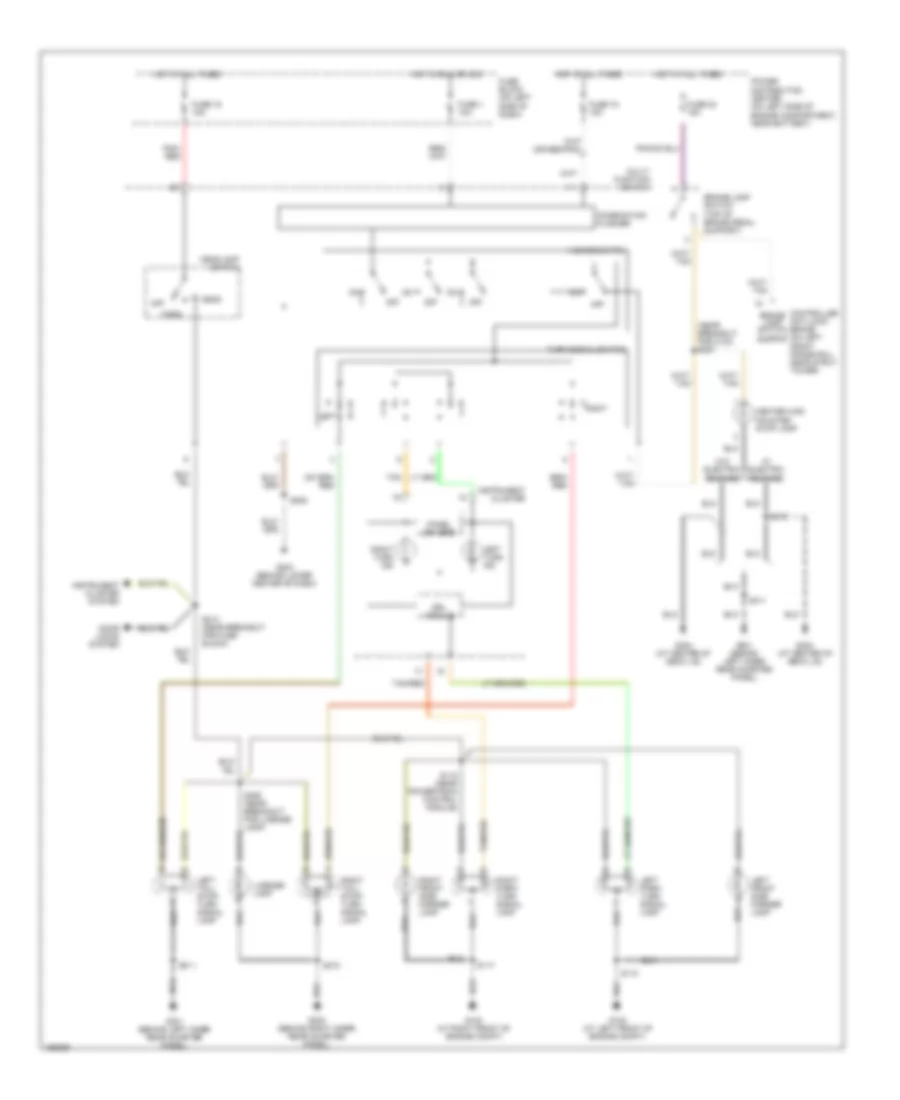

Электросхема внешнего освещения для Dodge SRT-4 2005

Электросхема внешнего освещения для Dodge SRT-4 2005 - Список элементов:

• (near breakout for c103) s227
• Brake lamp switch output
• Brake-lamp switch (top of brake pedal support)
• Center high mounted stop lamp
• Combination flasher
• Controller anti-lock brake (on left front frame rail, near strut tower)
• Door locks system
• Drl module
• Fuse 1 10a
• Fuse 15 15a
• Fuse 23 15a
• Fuse block (on left side of dash)
• G102 (at left front of engine compt)
• G103 (at right front of engine compt)
• G203 (behind lower center of dash)
• G301 (behind left inner rear quarter panel)
• G302 (behind right inner rear quarter panel)
• G304 (at center of deck lid)
• Hazard switch
• Head
• Headlamp switch
• Hot at all times
• Hot in run or acc
• Instrument cluster
• Instrument cluster system
• Left
• Left front side marker lamp
• Left park/ turn signal lamp
• Left tail/ stop/ turn signal lamp
• Left turn ind
• License lamp
• Multi- function switch
• Off
• Panel drivers
• Park
• Pnk/ red
• Power distribution center (on left side of engine compartment, near battery)
• Right
• Right front side marker lamp
• Right park/ turn signal lamp
• Right tail/ stop/ turn signal lamp
• Right turn ind
• S110
• S117
• S118 (near powertrain control module)
• S205
• S213 (near breakout for fuse block)
• S306 (near breakout for license lamp)
• S310
• S311
• S312
• Tan
• Tan/red
• Turn signal switch
• W/ electric release
• W/o electric release
