Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Dodge Durango 2000

ПРИБОРНАЯ ПАНЕЛЬ

Электросхема панели приборов для Dodge Durango 2000

Электросхема панели приборов для Dodge Durango 2000 - Список элементов:

• (behind right side of dash, near glove box) central timer module
• (front of left front fender)
• (in water jacket, front of intake manifold) engine coolant temperature sensor
• (near right headlight breakout)
• (on park brake pedal assembly) park brake switch
• (top rear of engine, near distributor) oil pressure sensor
• 4.7l only
• 4wd lock ind
• 4wd sen
• 4wd switch (on left side of transfer case)
• A/t trans temp ind
• A10
• A81
• Abs ind
• Air bag control module (under center of dash, on transmission tunnel)
• Air bag ind
• B10
• Base
• Brake warning ind
• C1 (conn a)
• C2 (conn b)
• Ccd (+)
• Ccd (-)
• Ccd buss (+)
• Ccd buss (-)
• Check engine ind
• Check gauges ind
• Chime ctrl
• Controller anti-lock brake (mounted on top of hydraulic control unit)
• Coolant temp gauge
• Cruise ind
• Ect
• Engine controls
• Exterior lights system
• Fuel gauge
• Fuel lvl
• Fuel pump module (top of fuel tank)
• Fuse 15a
• G10
• G100
• G101 (right front inner fender)
• G107
• G110 (left front of engine)
• G119 (right front of engine)
• G201 (lower left end of dash)
• G404 (left rear of body)
• G60
• G69
• Headlights system
• Hi beam ind
• Hot at all times
• Hot in run or start
• Ignition switch
• Instrument cluster
• Instrument illumination
• Interior lights system
• J/c 1 (in pdc)
• J/c 4 (behind left side of dash)
• Joint conn 3 (behind left side of dash)
• Junction block (left end of dash)
• Left turn ind
• Liftgate ajar switch (in liftgate)
• Low fuel ind
• Low wash fluid ind
• Odometer
• Oil press
• Oil press gauge
• Pnk
• Powertrain control module (right front inner fender)
• Premium
• Right turn ind
• S101 (engine harn, rear of engine)
• S105
• S108
• S131
• S132
• S170
• S204 (near clockspring breakout)
• Seatbelt switch (in buckle assembly)
• Sens rtn
• Solid state i/o processor
• Speedometer
• St-run-off
• Start- run- off
• Tachometer
• Tan
• Transmission control module (right rear of engine)
• Upshift ind
• Voltmeter
• Vss in
• Vss out
• Vtss ctrl
• Vtss ind
• Washer fluid level sensor (in washer reservoir)

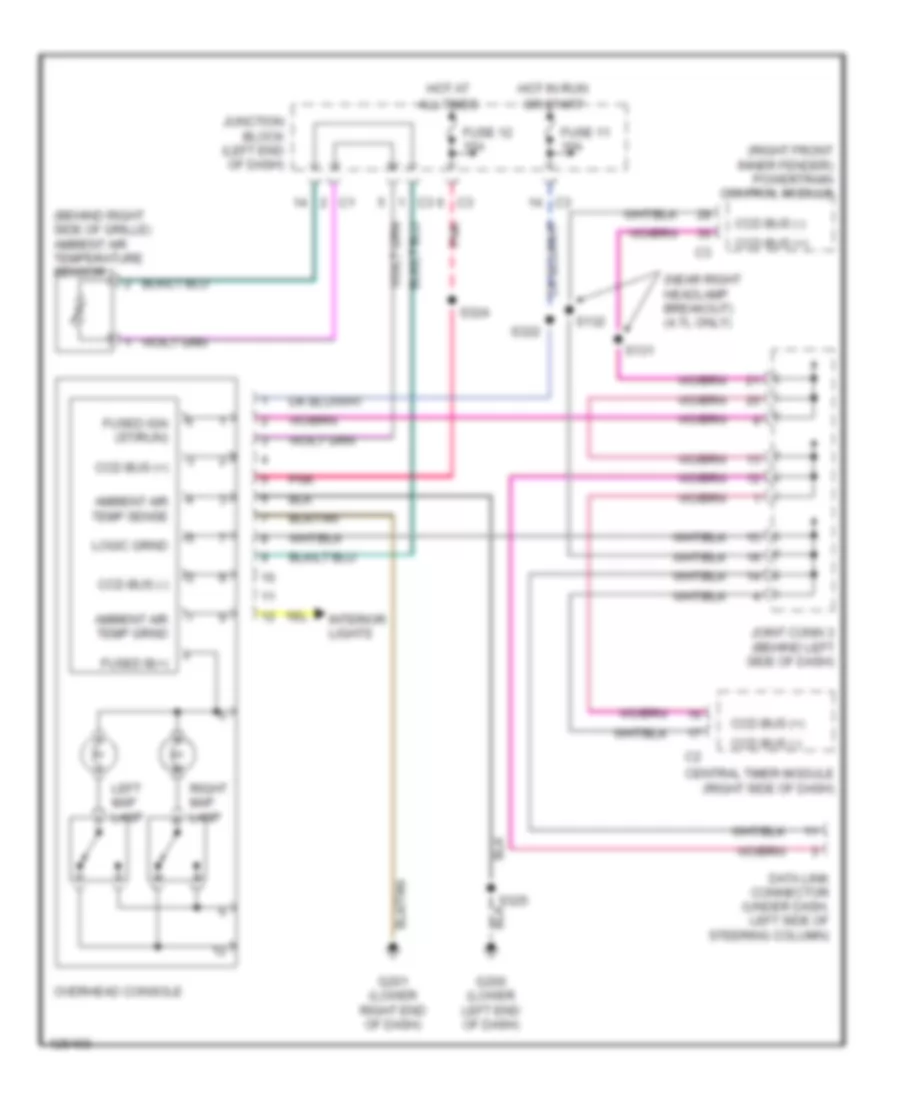

Электросхема верхней консоли управления для Dodge Durango 2000

Электросхема верхней консоли управления для Dodge Durango 2000 - Список элементов:

• (behind right side of grille) ambient air temperature sensor
• (near right headlamp breakout) (4.7l only)
• (right front inner fender) powertrain control module
• All times
• Ambient air temp sense
• Ccd bus (+)
• Ccd bus (-)
• Central timer module (right side of dash)
• Data link connector (under dash, left side of steering column)
• Fuse 11 10a
• Fuse 12 15a
• Fused b(+)
• Fused ign (st/run)
• G200 (lower left end of dash)
• G201 (lower right end of dash)
• Hot at
• Hot in run
• Interior lights
• Joint conn 3 (behind left side of dash)
• Junction block (left end of dash)
• Left map lamp
• Or start
• Overhead console
• Pnk
• Right map lamp
• S131
• S132
• S322
• S324
• S325
