СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

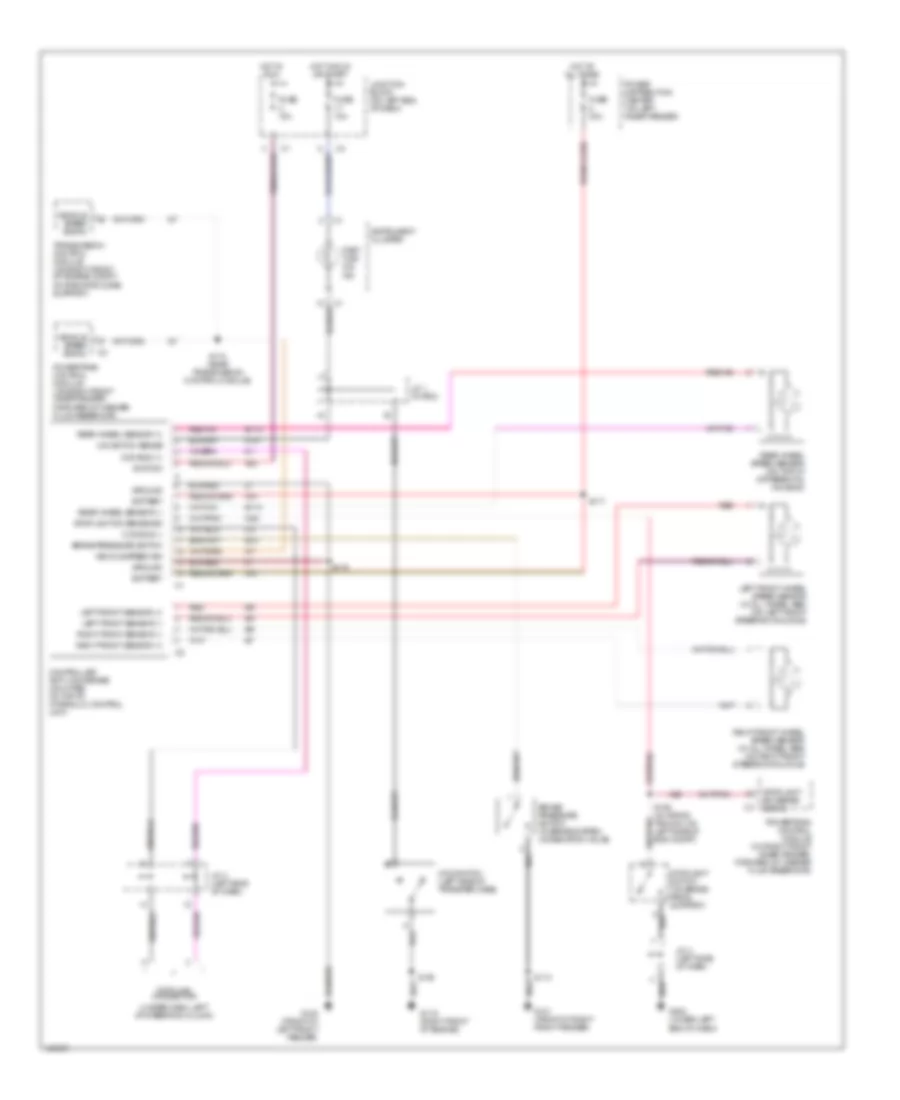

Электросхема антиблокировочной тормозной системы АБС (ABS) для Dodge Durango 2000

Электросхема антиблокировочной тормозной системы АБС (ABS) для Dodge Durango 2000 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема антиблокировочной тормозной системы АБС (ABS) для Dodge Durango 2000 - Список элементов:

  • (under dash, left of steering column)
  • 4wd switch (left side of transfer case)
  • 4x4 switch sense
  • A10
  • A20
  • B10
  • B113
  • B114
  • Battery
  • Brake pressure switch
  • Brake pressure switch (in brake system combination valve)
  • Ccd bus (+)
  • Ccd bus (-)
  • Controller anti-lock brake (mounted on top of hydraulic control unit)
  • Data link connector
  • Forward of washer fluid reservoir)
  • Fuse 10a
  • Fuse 40a
  • G100 (front of left front fender)
  • G101 (front of right front fender)
  • G107
  • G119 (right front of engine)
  • G202 (lower left end of dash)
  • Ground
  • Hot at all times
  • Hot in run
  • Hot in run or start
  • Ignition
  • Instrument cluster
  • J/c 1 (in pdc)
  • J/c 3 (left side of dash)
  • J/c 4 (left side of dash)
  • Junction block (on left end of dash)
  • K29
  • Left front sensor (+)
  • Left front sensor (-)
  • Left front wheel speed sensor (w/ all wheel abs) (on left front steering knuckle)
  • On radiator core support)
  • Part time 4x4 ind
  • Power distribution center (on left inner fender)
  • Powertrain control module (on right front inner fender,
  • Powertrain control module (on right front inner fender, forward of washer fluid reservoir)
  • Rear wheel sensor (+)
  • Rear wheel sensor (-)
  • Rear wheel speed sensor (on top of differential housing)
  • Red
  • Right front sensor (+)
  • Right front sensor (-)
  • Right front wheel speed sensor (w/ all wheel abs) (on right front steering knuckle)
  • S108
  • S113
  • S117
  • S119
  • S158 (in wiring trough, on left side of eng compt)
  • S174 (near transmission control module)
  • Stoplight sw sense sig
  • Stoplight sw sense signal
  • Stoplight switch (on brake pedal support)
  • Transmission control module (on right front of engine compt,
  • Vehicle speed sig
  • Vehicle speed signal
