Электросхемы Стартер Генератор Dodge Durango 2000

Стартер Генератор

Электросхема Генератора для Dodge Durango 2000

Электросхема Генератора для Dodge Durango 2000 - Список элементов:

• (near steering column) joint connector 4
• 4.7l
• Battery
• Battery temperature sensor (on battery tray)
• Canada
• Ccd bus (+)
• Ccd bus (-)
• Check gauges ind ctrl
• Check gauges indicator
• Computer data lines system
• Engine starter motor
• Ex. 4.7l
• Ex. canada
• Fuse 17 15a
• Fusible link 140a
• G100 (left front fender)
• G133 (on engine)
• G202 (left side of dash)
• Gen fld
• Gen source
• Generator
• Hot in run or start
• Instrument cluster
• Junction block
• K125
• K20
• Leak detection pump (under battery tray & power distribution center)
• Near battery positive connector breakout
• Power distribution center
• Powertrain control module (on right front inner fender)
• Red
• S120 (in wiring trough)
• S123 (4.7l-near injector 3 breakout, ex. 4.7l-right rear of engine)
• S133
• Sensor ground
• Sensor signal
• Transmission control relay (in power distribution center)
• Volts

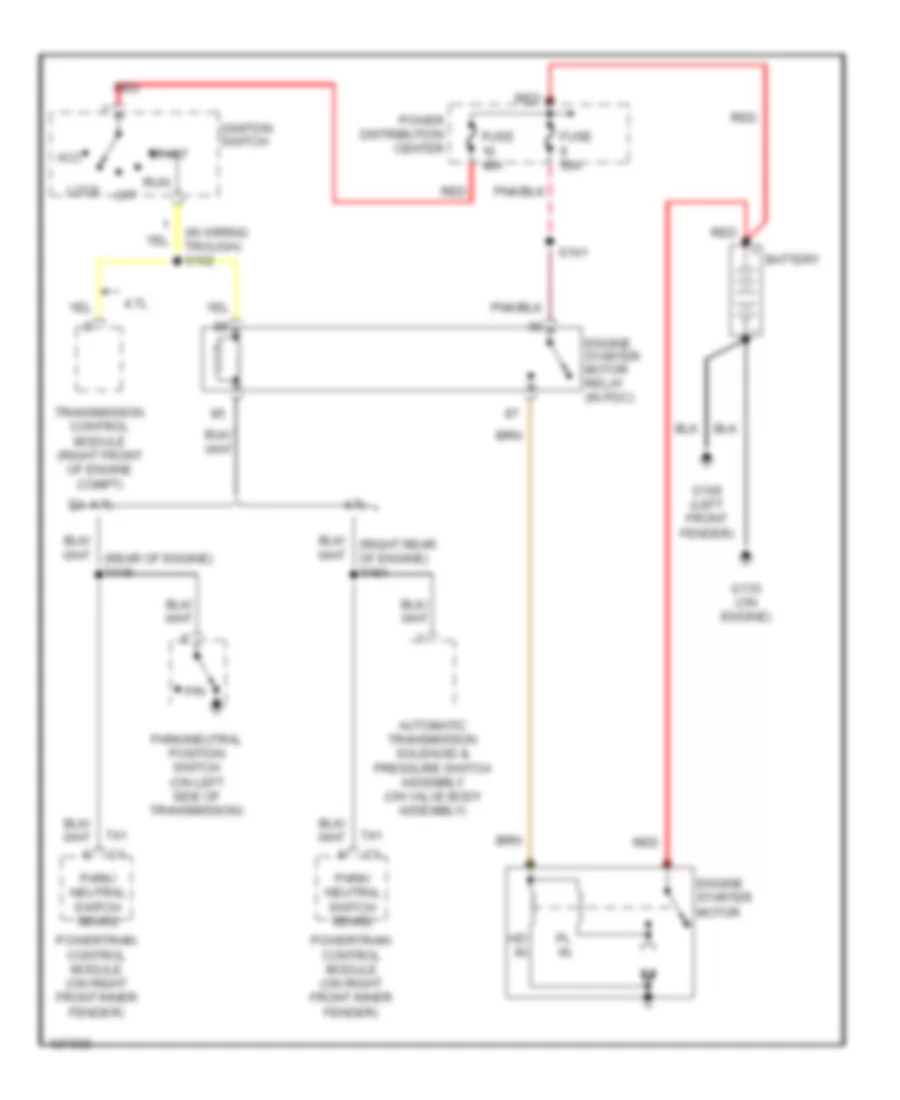

Электросхема стартера для Dodge Durango 2000

Электросхема стартера для Dodge Durango 2000 - Список элементов:

• (in wiring trough) s102
• 4.7l
• Acc
• Automatic transmission solenoid & pressure switch assembly (on valve body assembly)
• Battery
• Engine starter motor
• Engine starter motor relay (in pdc)
• Ex. 4.7l
• Fuse 40a
• Fuse 50a
• G100 (left front fender)
• G133 (on engine)
• Hd in
• Ignition switch
• Lock
• Off
• P/n
• Park/ neutral switch sense
• Park/neutral position switch (on left side of transmission)
• Pl in
• Power distribution center
• Powertrain control module (on right front inner fender)
• Red
• Run
• S161
• Start
• T41
• Transmission control module (right front of engine compt)
