Электросхемы БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ Audi Q5 TDI Premium Plus 2014

БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ

система комфорта центральная схема управляющего модуля для Audi Q5 TDI Premium Plus 2014

система комфорта центральная схема управляющего модуля для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• 10a
• 11a
• Anti-theft system
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Defogger system
• Door locks system
• Engine controls system
• Exterior lights system
• Fuse 20a
• Fuse 30a
• Fuse carrier 2
• G663 (right "c" pillar)
• G666 (right rear of roof)
• Hot at all times
• Interior lights system
• Power distribution system
• Rear window defogger w/ window antenna
• Relay/fuse panel sf (right side of luggage compt)
• Shift interlock system
• T17o
• T17p
• T1h
• T32c
• T32d
• T32e
• Transmissions system
• Trunk, tailgate, fuel doors system

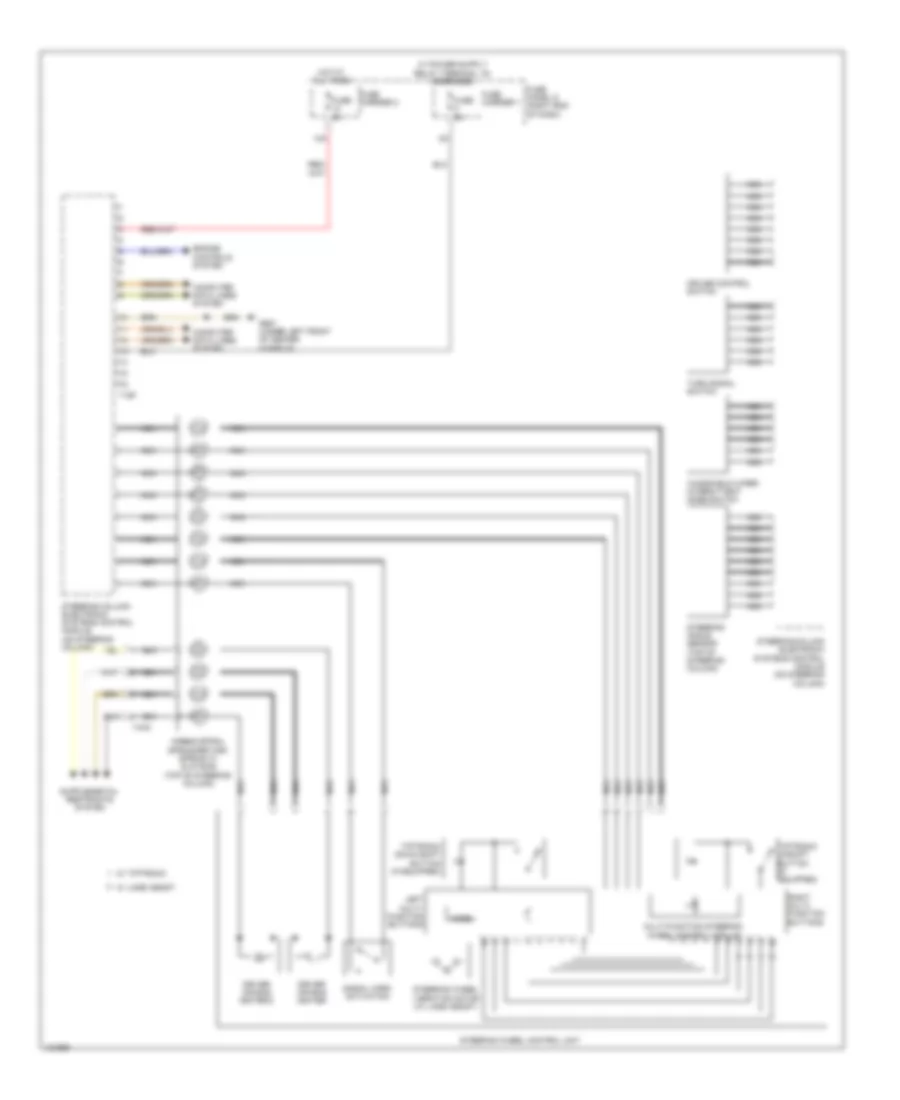

схема управляющего модуля электронных систем рулевой колонки для Audi Q5 TDI Premium Plus 2014

схема управляющего модуля электронных систем рулевой колонки для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• 12a
• Airbag spiral spring/return spring w/ slip ring (top of steering column)
• Computer data lines system
• Cruise control switch
• Driver air bag igniter
• Driver air bag igniter 2
• Engine controls system
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse panel d (right end of dash)
• G687 (under left front of center console)
• Hot at all times
• Left multi- function buttons
• Mode
• Multi-function steering wheel control module
• Nca
• Right multi- function buttons
• Signal horn activation
• Steering angle sensor (top of steering column)
• Steering column electronic systems control module (on steering column)
• Steering wheel control unit
• Steering wheel vibration motor (w/ lane assist)
• T16f
• T4ac
• Tiptronic down shift button (if equipped)
• Tiptronic upshift button (if equipped)
• Turn signal switch
• W/ lane assist
• W/ tiptronic
• Windshield wiper intermittent mode switch

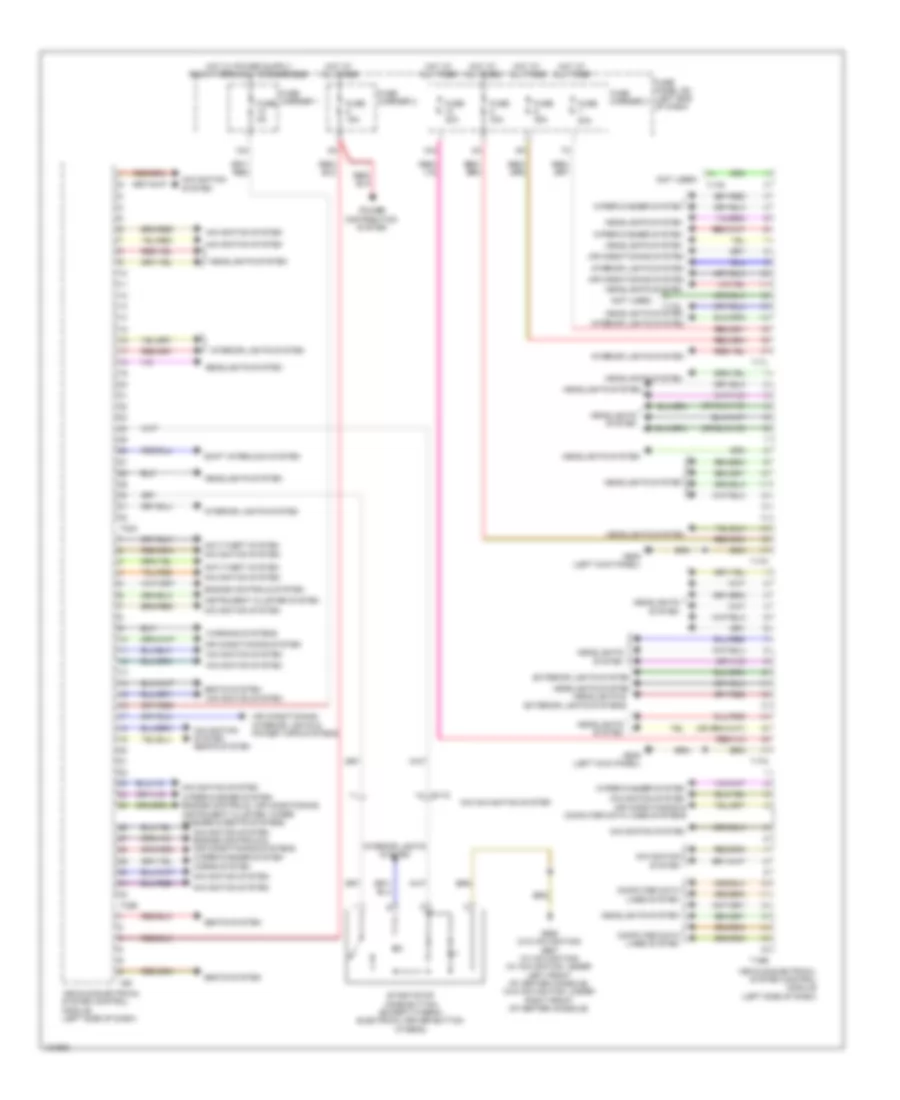

схема управляющего модуля электрической системы транспортного средства для Audi Q5 TDI Premium Plus 2014

схема управляющего модуля электрической системы транспортного средства для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (not used)
• 10a
• 12a
• Air conditioning & computer data lines systems
• Air conditioning system
• Air conditioning, interior lights & power tops systems
• Anti-theft system
• Computer data lines system
• Engine controls system
• Exterior lights system
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse 35a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse carrier 3
• Fuse panel sc (left end of dash)
• G639 (left kick panel)
• G688 (w/o navigation) g687 (w/ navigation) (w/ navigation: under left front of center console) (w/o navigation: under right front of center console)
• Headlights & exterior lights systems
• Headlights system
• Horns system
• Hot at all times
• Instrument cluster system
• Interior lights system
• Navigation system
• Navigation system engine controls & air conditioning systems wiper/washer system
• Navigation system seats system
• Power distribution system
• Seats system
• Shift interlock system
• Start/stop mode button (except hybrid) electrical driver button (hybrid)
• T16b
• T17c
• T17l
• T17m
• T17n
• T17q
• T17r
• T32a
• T32b
• T6f
• Vehicle electrical system control module (left side of dash)
• W/o navigation system
• Warning systems
• Wiper/washer system
• Wiper/washer system engine controls, air conditioning, instrument cluster, wiper/ washer & seats systems
