Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Audi Q5 TDI Premium Plus 2014

ВНЕШНЕЕ ОСВЕЩЕНИЕ

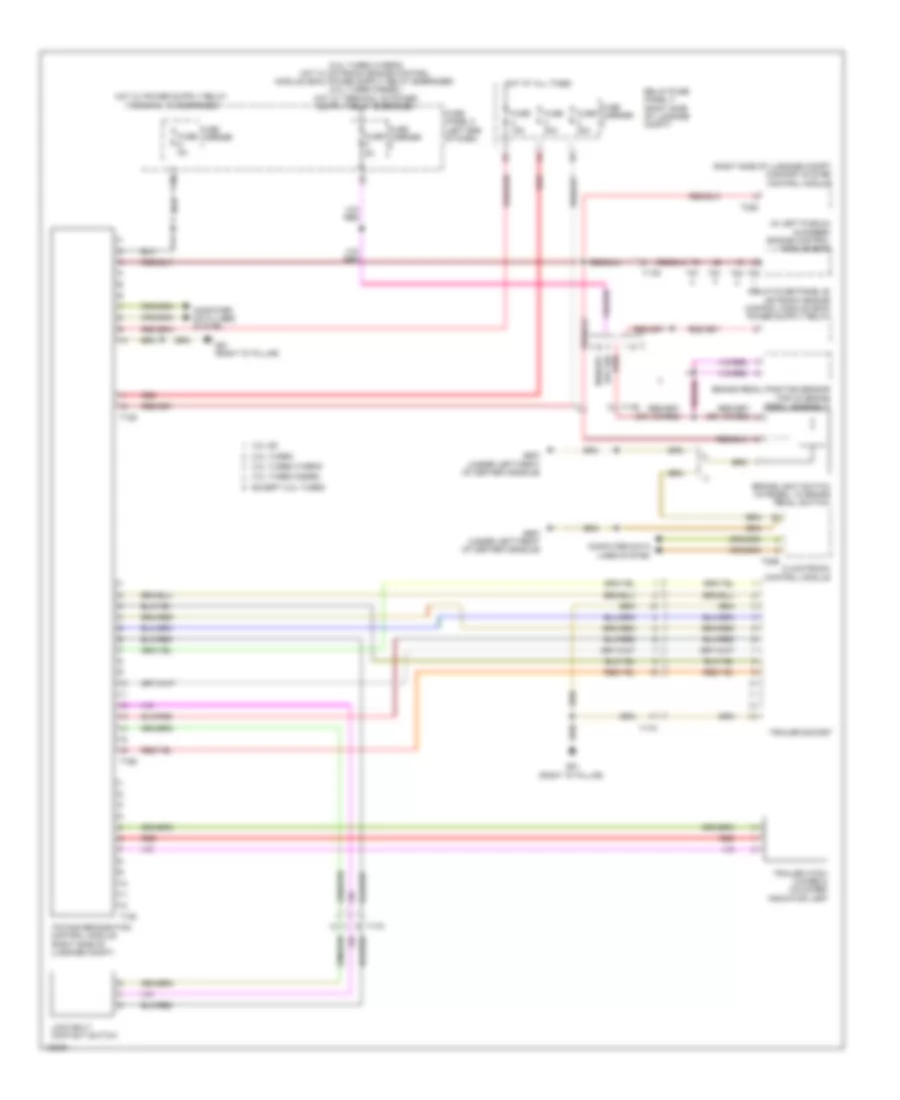

Электросхема заднего хода для Audi Q5 TDI Premium Plus 2014

Электросхема заднего хода для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (under right front of center console) g688
• 10a
• 11a
• Automatic day/ night interior mirror relay (w/o high beam assist) (on relay/fuse panel w/ vehicle electrical system control module)
• Backup lamp
• Comfort system central control module (right side luggage compt)
• Computer data lines system
• Fuse 20a
• Fuse 30a
• Fuse carrier 2
• G51 (right "d" pillar)
• Hot at all times
• Left taillamp assembly
• Prnds
• Relay/fuse panel f (right side of luggage compt)
• Right taillamp assembly
• Selector lever sensor system control module w/ tiptronic switch (bottom of gear selector lever assembly)
• T12v
• T17o
• T17p
• T17q
• T32c
• Transmission control module (tcm) (left side of transmission)

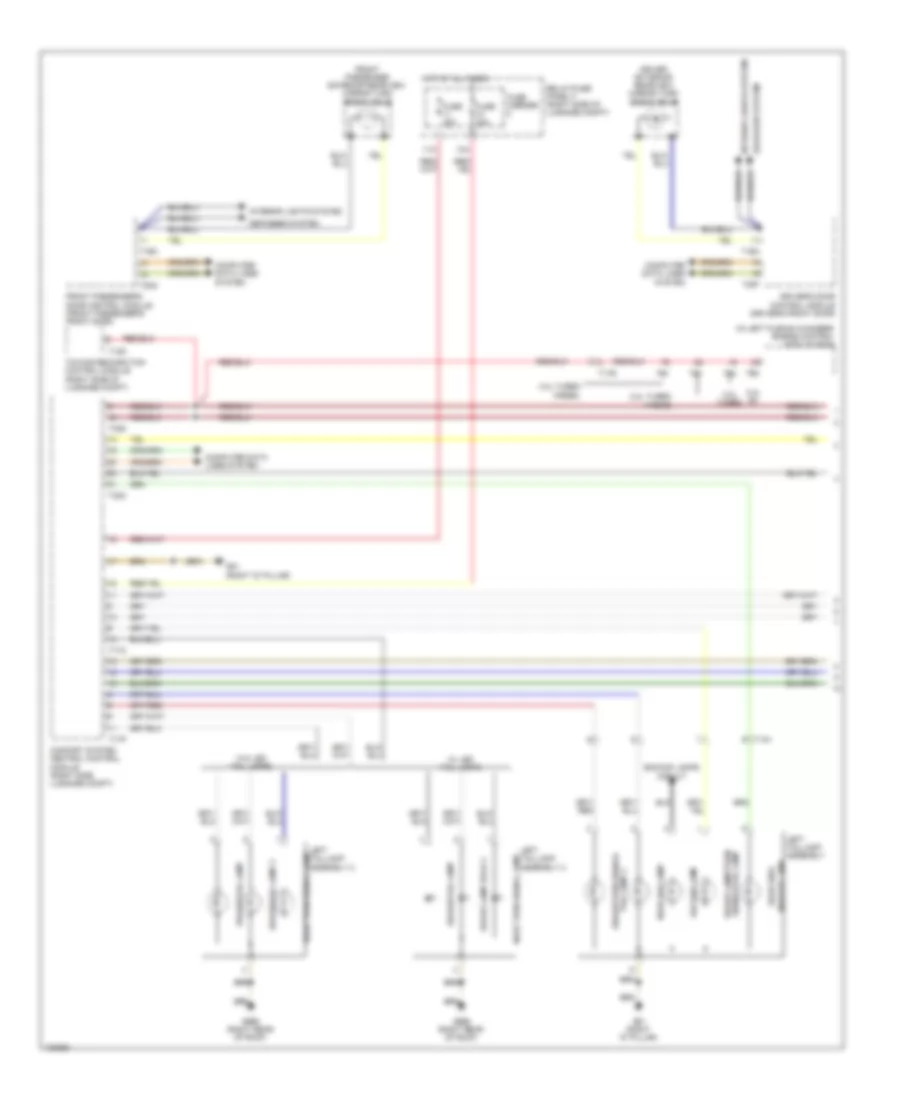

Электросхема внешнего освещения (1 из 4) для Audi Q5 TDI Premium Plus 2014

Электросхема внешнего освещения (1 из 4) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (in left plenum chamber) engine control module (ecm)
• 10a
• 11a
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l sc
• 3.0l turbo diesel
• Backup lamp
• Backup lamps circuit
• Brake lamp bulb 2
• Brake/tail lamp
• Brake/tail lamp 2
• Brake/turn signal/
• Comfort system central control module (right side luggage compt)
• Computer data lines system
• Defogger system
• Driver exterior rearview mirror turn signal bulb
• Driver's door control module (driver's front door)
• Front passenger exterior rearview mirror turn signal bulb
• Front passenger's door control module (front passenger's front door)
• Fuse 20a
• Fuse 30a
• Fuse carrier
• G51 (right "d" pillar)
• G666 (right rear of roof)
• Hot at all times
• Interior lights system
• Left taillamp assembly
• Left taillamp assembly 2
• Marker lamp
• Rear fog lamp
• Rear side
• Rear turn signal lamp
• Relay/fuse panel f (right side of luggage compt)
• Signal/tail lamp brake lamp/turn
• T12d
• T12v
• T16m
• T16n
• T17o
• T17p
• T17r
• T20f
• T20g
• T32c
• T32d
• T91
• T94
• Tail lamp 2
• Towing recognition control module (right side of luggage compt)
• W/ led tail lamps
• W/o led tail lamps

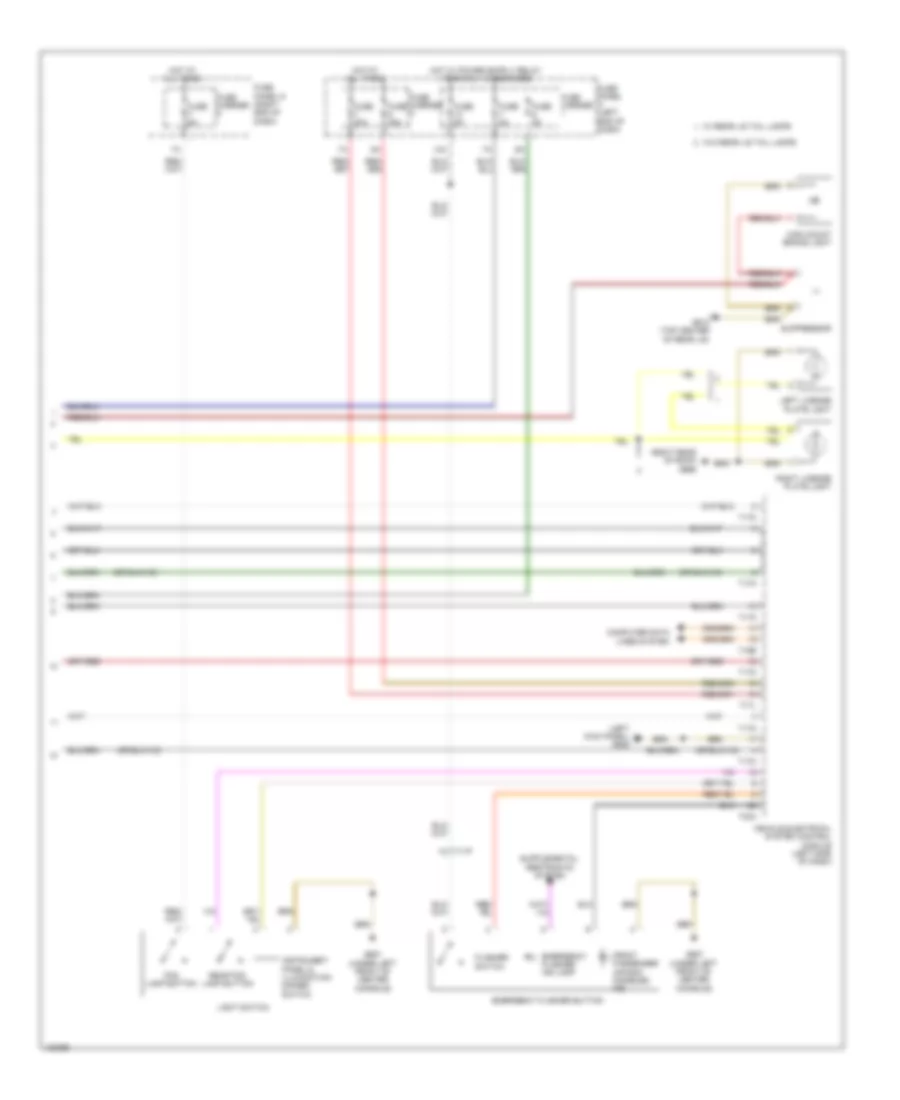

Электросхема внешнего освещения (2 из 4) для Audi Q5 TDI Premium Plus 2014

Электросхема внешнего освещения (2 из 4) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (integral to brake pedal switch) brake light switch
• (top of brake pedal assembly) brake pedal position sensor
• 12a
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l sc
• 3.0l turbo diesel
• Backup lamp
• Backup lamps circuit
• Brake/tail lamp
• Brake/turn signal/tail lamp 2
• Break lamp
• Climatronic control module
• Computer data lines system
• Except 2.0l turbo
• Fuse 5a
• Fuse carrier
• Fuse panel c (left end of dash)
• Fuse panel d (right end of dash)
• G51 (right "d" pillar)
• G666 (right rear of roof)
• G687 (under left front of center console)
• Hot at all times
• Lamp 2 brake/tail
• Marker lamp rear side
• Nca
• Rear fog lamp
• Right taillamp assembly
• Right taillamp assembly 2
• Signal lamp rear turn
• Signal/tail lamp brake/turn
• Steering column electronic systems control module (on steering column)
• T12v
• T17e
• Turn signal switch
• W/ led tail lamps
• W/o led tail lamps

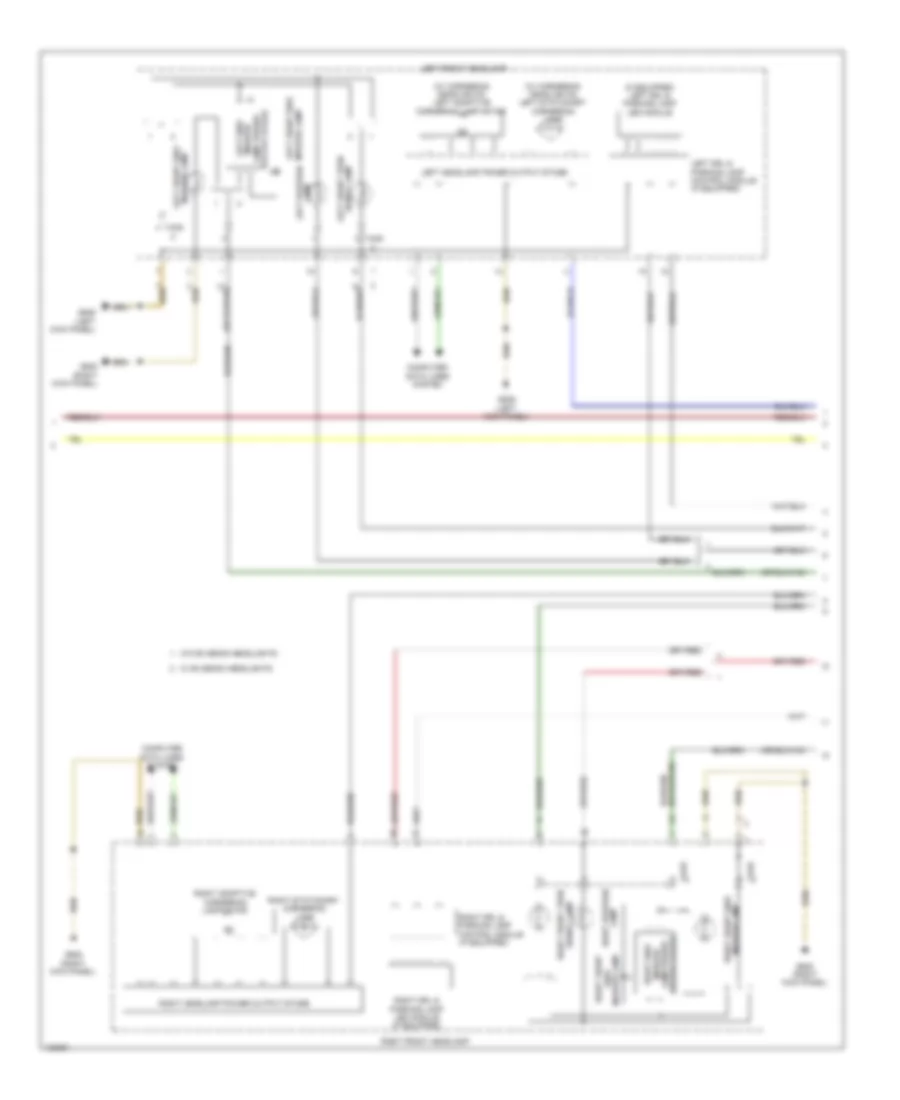

Электросхема внешнего освещения (3 из 4) для Audi Q5 TDI Premium Plus 2014

Электросхема внешнего освещения (3 из 4) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (if equipped) left drl & parking lamp led module
• (w/ cornering headlights) left adaptive cornering lamp motor
• (w/ cornering headlights) left stationary cornering lamp
• Computer data lines system
• G638 (right kick panel)
• G639 (left kick panel)
• Lamp power output stage
• Lamp right position
• Left drl & parking lamp control module (if equipped)
• Left front headlamp
• Left front side marker lamp
• Left front turn signal lamp
• Left headlamp power output stage
• Left position lamp
• Left side marker
• Marker lamp side
• Output stage lamp power marker right side
• Right adaptive cornering lamp motor
• Right drl & parking lamp control module (if equipped)
• Right drl & parking lamp led module (if equipped)
• Right front
• Right front headlamp
• Right front side marker lamp
• Right headlamp power output stage
• Right stationary cornering lamp
• Signal lamp right front turn
• T4ad
• T4ae
• W/ bi-xenon headlights
• W/o bi-xenon headlights

Электросхема внешнего освещения (4 из 4) для Audi Q5 TDI Premium Plus 2014

Электросхема внешнего освещения (4 из 4) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (left kick panel) g639
• (right rear of roof) g666
• 13a
• Computer data lines system
• Emergency flasher button
• Emergency flasher ind lamp
• Flasher switch
• Fog lamp button
• Front passenger air bag disabled ind
• Fuse 20a
• Fuse 35a
• Fuse 5a
• Fuse carrier
• Fuse panel c (left end of dash)
• Fuse panel d (right end of dash)
• G612 (top center of rear lid)
• G687 (under left front of center console)
• High mount brake light
• Hot at all times
• Instrument panel & illumination dimmer switch
• Left license plate light
• Light switch
• Rear fog lamp button
• Right license plate light
• Suppressor
• T16b
• T17f
• T17l
• T17m
• T17n
• T32a
• Vehicle electrical system control module (left side of dash)
• W/ rear lid tail lamps
• W/o rear lid tail lamps

Электросхема розетки подключения прицепа для Audi Q5 TDI Premium Plus 2014

Электросхема розетки подключения прицепа для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (in left plenum chamber) engine control module (ecm)
• (right side of luggage compt) comfort system control module
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l sc
• 3.0l turbo diesel
• Brake light switch (integral to brake pedal switch)
• Brake pedal position sensor (top of brake pedal assembly)
• Climatronic control module
• Computer data lines system
• Except 2.0l turbo
• Fuse 15a
• Fuse 20a
• Fuse 5a
• Fuse carrier
• Fuse panel c (left end of dash)
• G51 (right "d" pillar)
• G687 (under left front of center console)
• Hot at all times
• Lock bolt contact switch
• Red
• Red)
• Relay/fuse panel f (right side of luggage compt)
• T12d
• T12z
• T16d
• T17e
• T17k
• T17r
• T20e
• T32d
• T91
• T94
• Towing recognition control module (right side of luggage compt)
• Trailer hitch locked & unlocked indicator lamp
• Trailer socket
