Электросхемы СИСТЕМА КОНДИЦИОНЕРА Audi Q5 TDI Premium Plus 2014

СИСТЕМА КОНДИЦИОНЕРА

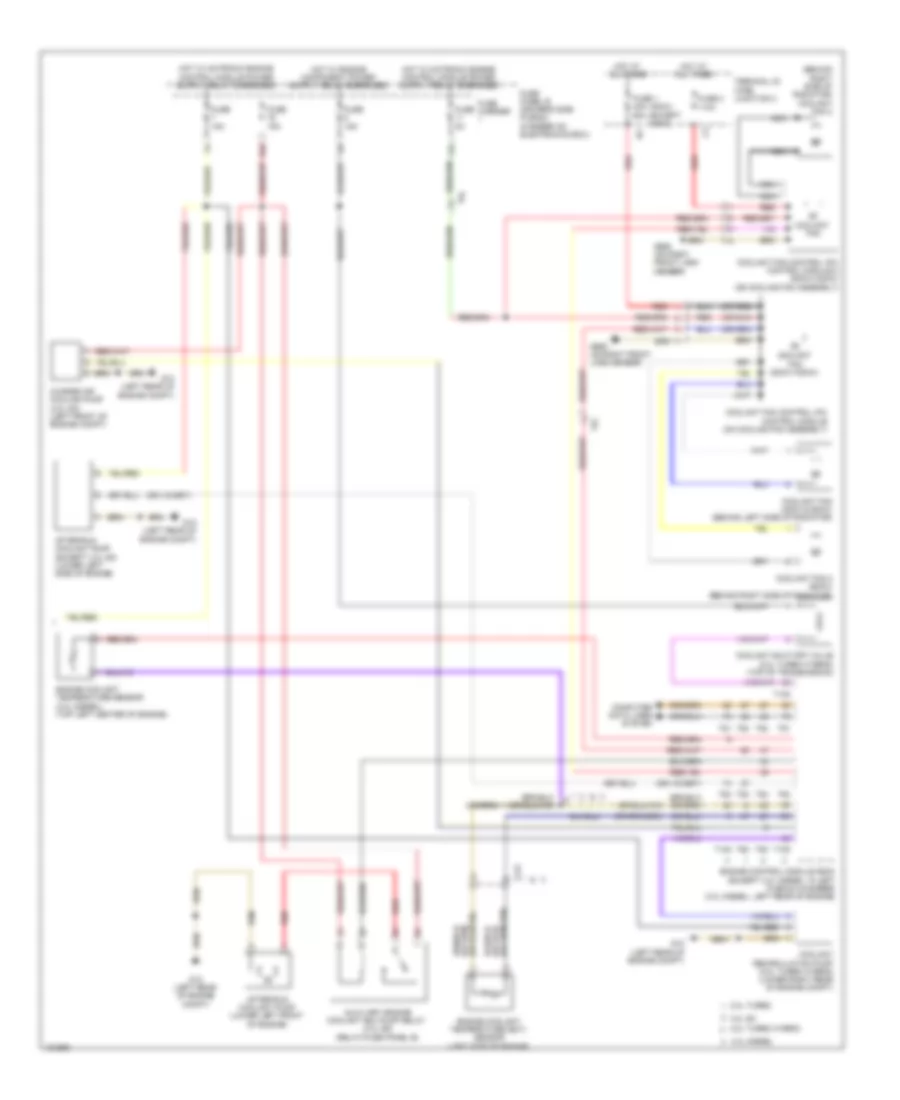

Электросхема кондиционера, Основная (1 из 2) для Audi Q5 TDI Premium Plus 2014

Электросхема кондиционера, Основная (1 из 2) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (left rear of engine compt) g12
• (under left front of center console) g687
• 10a
• 13a
• 17a
• 2.0l turbo
• 2.0l turbo hybrid
• Air flow door motor (left side of air intake housing)
• Center vent adjustment motor (right side of hvac unit)
• Center vent temperature sensor
• Climatronic control module
• Climatronic refrigerant shut-off valve (except 3.0l sc) (rear center of engine compt)
• Compressor magnetic clutch (2.0l turbo)
• Computer data
• Computer data lines system
• Coolant recirculation pump (except 2.0l turbo hybrid) (lower right rear of engine compt)
• Defroster door motor (left side of hvac unit)
• Electric drive power & control electronics (right plenum chamber)
• Electrical a/c compressor
• Electrical a/c compressor control module (on a/c compressor)
• Evaporator vent temperature sensor (right side of evaporator housing)
• Footwell door motor (left side of hvac unit)
• Footwell vent temperature sensor
• Fuse 10a
• Fuse 40a
• Fuse 5a
• Fuse carrier
• Fuse panel b (driver's side plenum chamber on electronics box)
• Fuse panel d (right end of dash)
• G12 (left rear of engine compt)
• Hot at all times
• Lines system
• Low temperature circuit coolant pump (2.0l turbo hybrid)
• Nca
• Recirculation door motor (left side of air intake housing)
• Red
• Sunlight photo sensor (top center of dash)
• T16i
• T17b
• T17e
• T17q
• T20e
• T28jx
• T4jx
• Temperature regulator door motor

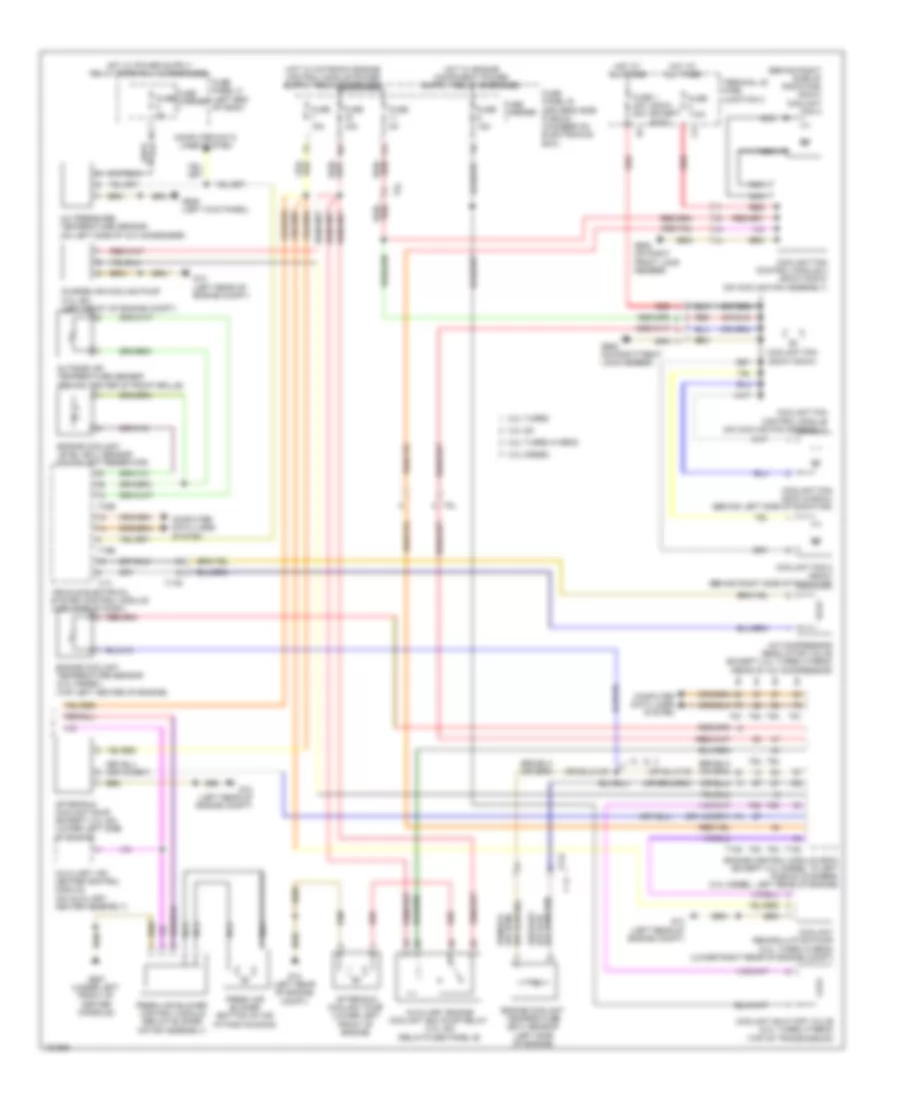

Электросхема кондиционера, Основная (2 из 2) для Audi Q5 TDI Premium Plus 2014

Электросхема кондиционера, Основная (2 из 2) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (400w) (except 400w)
• (behind right side of radiator) (800w) coolant fan 2
• (or red)
• 11a
• 16a
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l diesel
• 3.0l sc
• A/c compressor regulator valve (except 2.0l turbo hybrid) (rear of a/c compressor)
• A/c pressure/ temperature sensor (on left side of a/c condenser)
• After-run coolant pump (except 3.0l sc) (lower left side of engine)
• After-run coolant pump (lower left front of engine)
• Auxiliary air heater control module (on auxiliary heater assembly)
• Auxiliary engine coolant (ec) pump relay (3.0l sc) (relay/fuse panel b)
• Charge air cooling pump (3.0l sc) (left front of engine compt)
• Computer data lines system
• Coolant fan (400w & 600w) (behind left side of radiator)
• Coolant fan (800w/1000w)
• Coolant fan 2 (600w) (behind right side of radiator)
• Coolant fan control module (on cooling fan assembly)
• Coolant fan control module 2 (800w/1000w) (on cooling fan assembly)
• Coolant recirculation pump (2.0l turbo hybrid) (lower right rear of engine compt)
• Coolant shut-off valve (2.0l turbo hybrid) (top of transmission)
• Engine control module (ecm) (except 3.0l diesel: in left plenum chamber) (3.0l diesel: left rear of engine)
• Engine coolant level (ecl) sensor (in coolant reservoir)
• Engine coolant temperature (ect) sensor (left side of engine)
• Engine coolant temperature sensor (3.0l diesel) (top left center of engine)
• Fresh air blower (bottom of air intake housing)
• Fresh air blower control module (below blower motor assembly)
• Fuse 1 40a 60a
• Fuse 110a
• Fuse 15a
• Fuse 5a
• Fuse carrier
• Fuse panel b (driver's side plenum chamber on electronics box)
• Fuse panel c (left end of dash)
• G12 (left rear of engine compt)
• G639 (left kick panel)
• G685 (on right front long member)
• G687 (under left front of center console)
• Hot at all times
• Nca
• Outside air temperature sensor (behind center of front grille)
• Red
• T105
• T14f
• T16b
• T17i
• T17r
• T32b
• T5l
• T60
• T91
• T94
• Terminal 30 wire junction 2
• Vehicle electrical system control module (left side of dash)

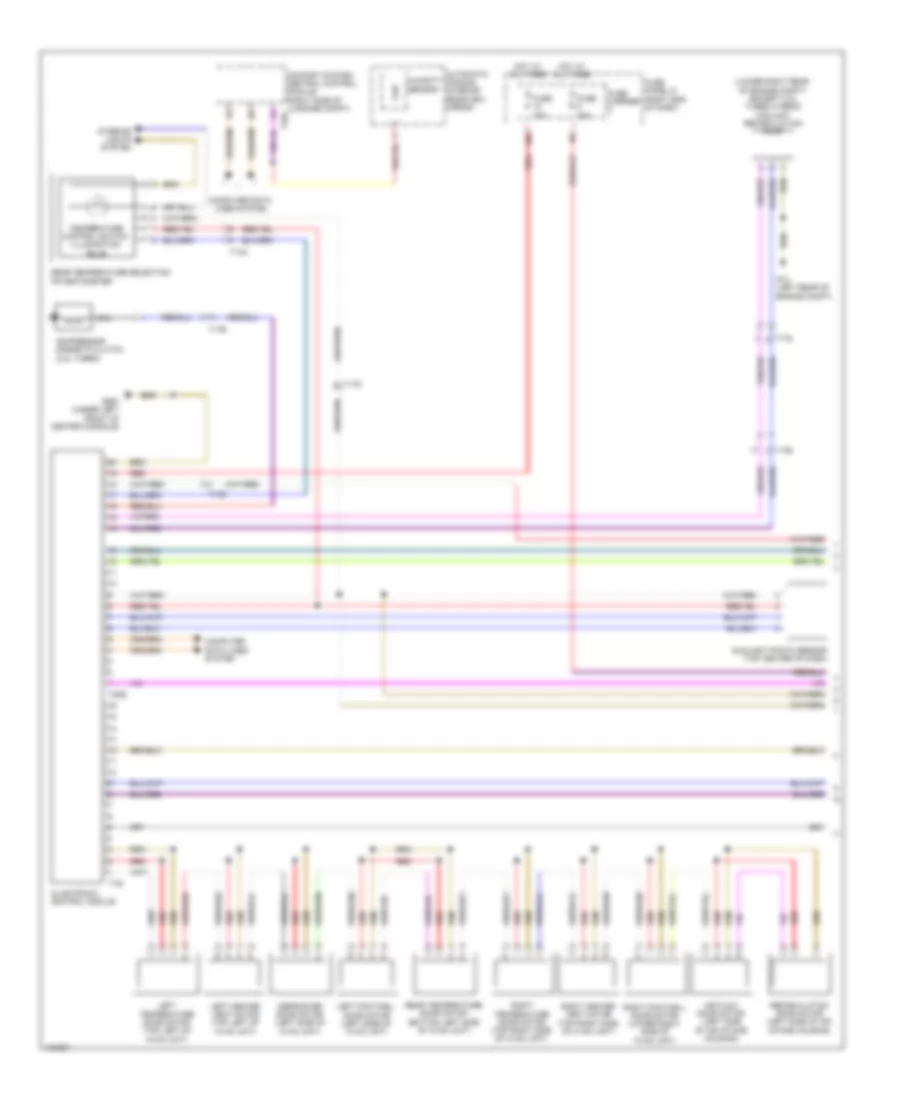

Электросхема кондиционера, Комфорт (1 из 3) для Audi Q5 TDI Premium Plus 2014

Электросхема кондиционера, Комфорт (1 из 3) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (lower right rear of engine compt) (except 2.0l turbo hybrid) coolant recirculation pump
• 10a
• Air flow door motor (left side of air intake housing)
• Automatic dimming interior rearview mirror
• Climatronic control module
• Comfort system central control module (right side of luggage compt) t32c
• Compressor magnetic clutch (2.0l turbo)
• Computer data lines system
• Defroster door motor (left side of hvac unit)
• Fuse 10a
• Fuse 40a
• Fuse carrier
• Fuse panel d (right end of dash)
• G12 (left rear of engine compt)
• G687 (under left front of center console)
• Hot at all times
• Humidity sensor
• Interior lights system
• Left center vent motor (top left of hvac unit)
• Left footwell door motor (left side of hvac unit)
• Left temperature door motor (top left of hvac unit)
• Nca
• Rear temperature door motor (bottom left side of hvac unit)
• Rear temperature selection potentiometer
• Recirculation door motor (left side of air intake housing)
• Red
• Right center vent motor (top right side of hvac unit)
• Right footwell door motor (lower right side of hvac unit)
• Right temperature door motor (top right side of hvac unit)
• Sunlight photo sensor (top center of dash)
• T16i
• T17b
• T17d
• T17q
• T20e
• Temperature control switch illumination bulb

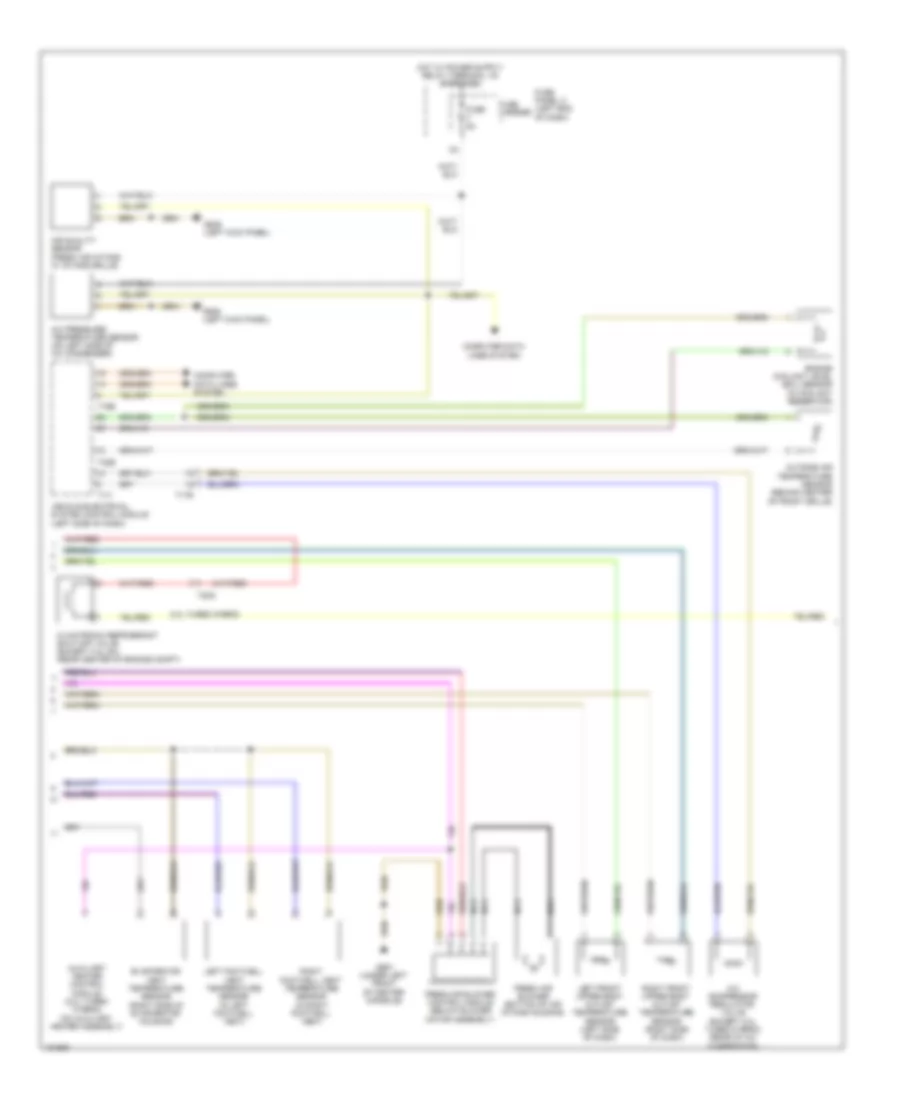

Электросхема кондиционера, Комфорт (2 из 3) для Audi Q5 TDI Premium Plus 2014

Электросхема кондиционера, Комфорт (2 из 3) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• 2.0l turbo hybrid
• A/c compressor regulator valve (except 2.0l turbo hybrid) (rear of a/c compressor)
• A/c pressure/ temperature sensor (on left side of a/c condenser)
• Air quality sensor (fresh air intake w/ intake grille)
• Auxiliary heater control module (2.0l turbo hybrid) (on auxiliary heater assembly)
• Climatronic refrigerant shut-off valve (except 3.0l sc) (rear center of engine compt)
• Computer data lines system
• Engine coolant level (ecl) sensor (in coolant reservoir)
• Evaporator vent temperature sensor (right side of evaporator housing)
• Fresh air blower (bottom of air intake housing)
• Fresh air blower control module (below blower motor assembly)
• Fuse 5a
• Fuse carrier
• Fuse panel c (left end of dash)
• G639 (left kick panel)
• G687 (under left front of center console)
• Left footwell vent temperature sensor (in left footwell vent)
• Left front upper body outlet temperature sensor (left side of dash)
• Nca
• Outside air temperature sensor (behind center of front grille)
• Right footwell vent temperature sensor (in right footwell vent)
• Right front upper body outlet temperature sensor (right side of dash)
• T16b
• T17i
• T17q
• T17r
• T32b
• Vehicle electrical system control module (left side of dash)

Электросхема кондиционера, Комфорт (3 из 3) для Audi Q5 TDI Premium Plus 2014

Электросхема кондиционера, Комфорт (3 из 3) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (400w) (except 400w)
• (behind right side of radiator) coolant fan 2
• (or red)
• 11a
• 16a
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l diesel
• 3.0l sc
• After-run coolant pump (except 3.0l sc) (lower left side of engine)
• After-run coolant pump (lower left front of engine)
• Auxiliary engine coolant (ec) pump relay (3.0l sc) (relay/fuse panel b)
• Charge air cooling pump (3.0l sc) (left front of engine compt)
• Computer data lines system
• Coolant fan
• Coolant fan (400w & 600w) (behind left side of radiator)
• Coolant fan (800w/1000w)
• Coolant fan 2 (600w) (behind right side of radiator)
• Coolant fan control (fc) control module (on cooling fan assembly)
• Coolant fan control (fc) control module 2 (800w/1000w) (on cooling fan assembly)
• Coolant recirculation pump (2.0l turbo hybrid) (lower right rear of engine compt)
• Coolant shut-off valve (2.0l turbo hybrid) (top of transmission)
• Engine control module (ecm) (except 3.0l diesel: in left plenum chamber) (3.0l diesel: left rear of engine)
• Engine coolant temperature (ect) sensor (left side of engine)
• Engine coolant temperature sensor (3.0l diesel) (top left center of engine)
• Fuse 1 40a 60a
• Fuse 15a
• Fuse 2 110a
• Fuse 5a
• Fuse carrier
• Fuse panel b (driver's side plenum chamber on electronics box)
• G12 (left rear of engine compt)
• G685 (on right front long member)
• Hot at all times
• Nca
• Red
• T105
• T14f
• T5l
• T60
• T91
• T94
• Terminal 30 wire junction 2

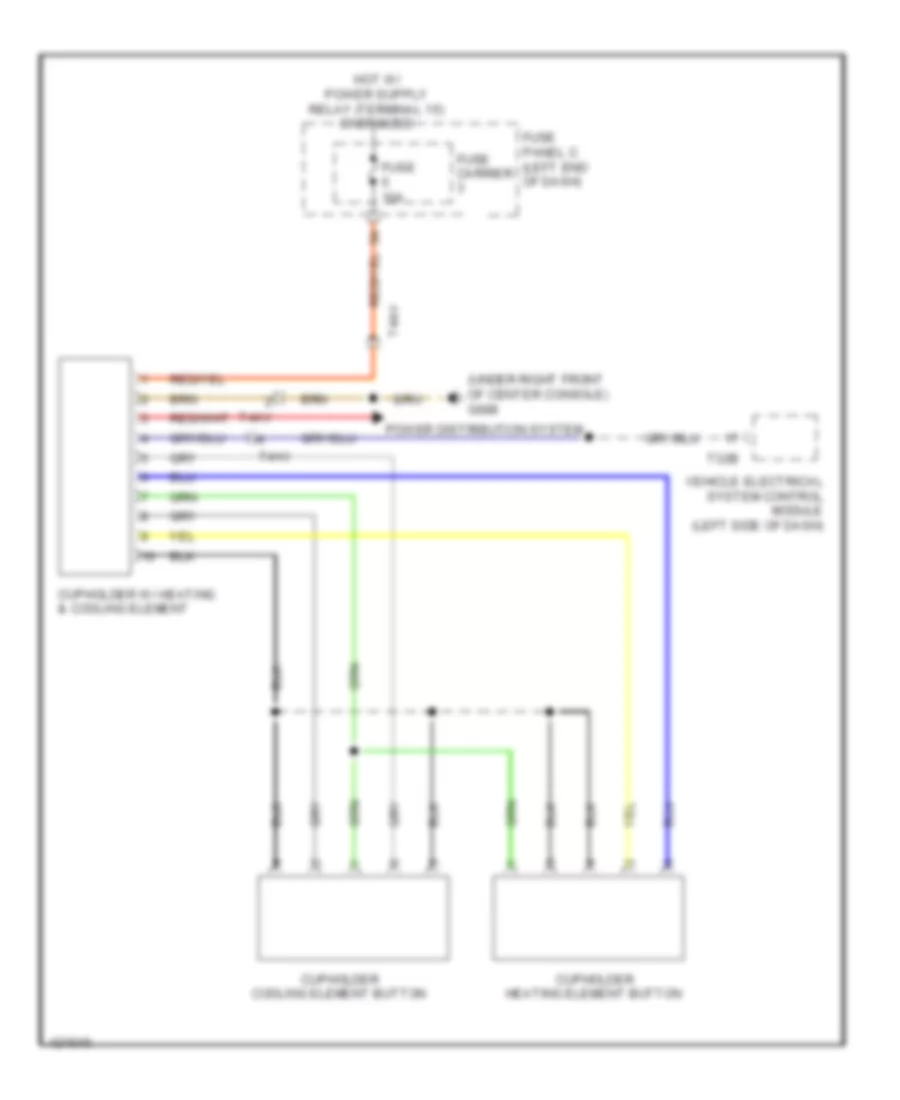

нагретая и охлажденная схема держателя Кубка для Audi Q5 TDI Premium Plus 2014

нагретая и охлажденная схема держателя Кубка для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (under right front of center console) g688
• Cupholder cooling element button
• Cupholder heating element button
• Cupholder w/ heating & cooling element
• Fuse 10a
• Fuse carrier
• Fuse panel c (left end of dash)
• Power distribution system
• T32b
• T4av
• Vehicle electrical system control module (left side of dash)
