Электросхемы БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Audi Q5 TDI Premium Plus 2014

БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ

Электросхема стояночного тормоза для Audi Q5 TDI Premium Plus 2014

Электросхема стояночного тормоза для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• Abs control module (integral to abs hydraulic unit)
• Auto hold switch
• Computer data lines system
• Electro- mechanical parking brake control module (right side of luggage compt)
• Electro-mechanical parking brake button
• Fuse 30a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse carrier 3
• Fuse panel sc (left end of dash)
• G51 (right "d" pillar)
• G688 (under right front of center console)
• Hot at all times
• Hot w/ power suply relay (terminal 15) energized
• Interior lights system
• Left parking brake motor
• Relay/fuse panel f (right side of luggage compt)
• Right parking brake motor

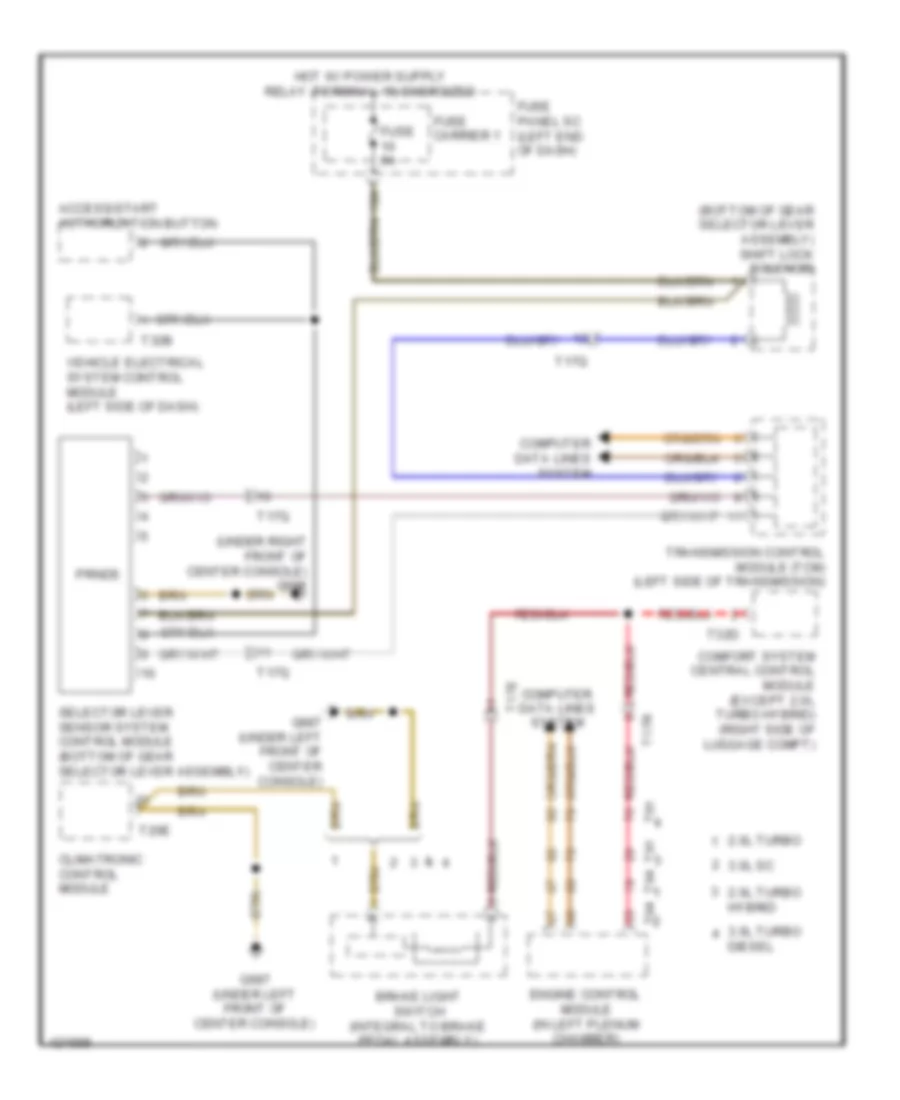

Электросхема блокировки селектора для Audi Q5 TDI Premium Plus 2014

Электросхема блокировки селектора для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (bottom of gear selector lever assembly) shift lock solenoid
• (under right front of center console) g688
• 10a
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l sc
• 3.0l turbo
• Access/start authorization button
• Brake light switch (integral to brake pedal assembly)
• Climatronic control module
• Comfort system central control module (except 2.0l turbo hybrid) (right side of luggage compt)
• Computer data lines system
• Diesel
• Engine control module (in left plenum chamber)
• Fuse 5a
• Fuse carrier 1
• Fuse panel sc (left end of dash)
• G687 (under left front of center console)
• Prnds
• Selector lever sensor system control module (bottom of gear selector lever assembly)
• T17e
• T17q
• T17r
• T20e
• T32b
• T32d
• T91
• T94
• Transmission control module (tcm) (left side of transmission)
• Vehicle electrical system control module (left side of dash)

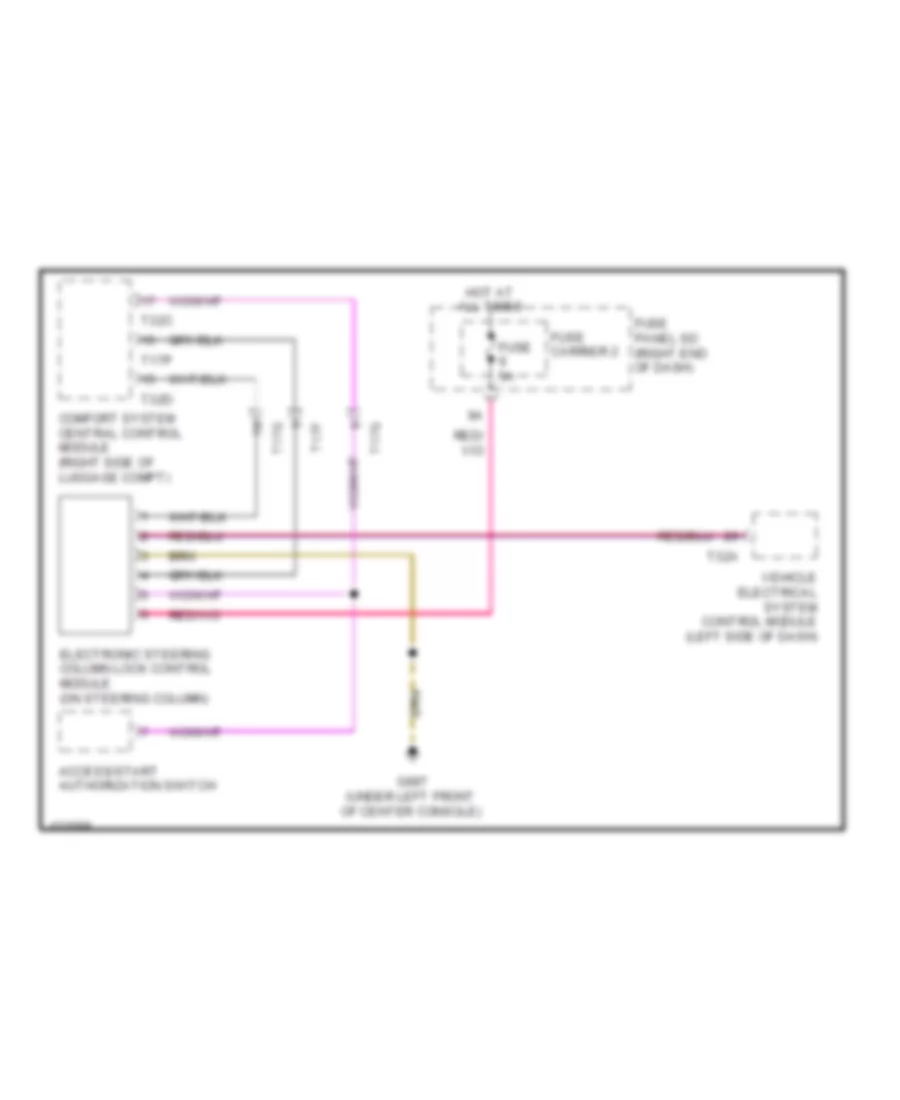

схема рулевой колонки для Audi Q5 TDI Premium Plus 2014

схема рулевой колонки для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• Access/start authorization switch
• Comfort system central control module (right side of luggage compt)
• Electronic steering column lock control module (on steering column)
• Fuse 5a
• Fuse carrier 2
• Fuse panel sd (right end of dash)
• G687 (under left front of center console)
• Hot at all times
• T17f
• T17g
• T17p
• T32a
• T32c
• T32d
• Vehicle electrical system control module (left side of dash)
