Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Audi Q5 TDI Premium Plus 2014

ЦЕНТРАЛЬНЫЙ ЗАМОК

Электросхема центрального замка (1 из 3) для Audi Q5 TDI Premium Plus 2014

Электросхема центрального замка (1 из 3) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (if equipped) left front exterior door handle touch sensor
• (if equipped) left rear exterior door handle touch sensor
• (if equipped) right front exterior door handle touch sensor
• (left kick panel) g639
• 11a
• Antenna amplifier (left center of rear lid)
• Central locking & anti-theft alarm system antenna
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Driver door central locking safe motor
• Driver door central locking system motor
• Driver door contact switch
• Driver lock cylinder contact switch
• Driver's door central locking lock unit
• Driver's door control module (driver's door)
• Fuel filler door unlock motor
• Fuse 20a
• Fuse 30a
• Fuse carrier 2
• Fuse panel c (left end of dash)
• G638 (right kick panel)
• G639 (left kick panel)
• G663 (right "c" pillar)
• G666 (right rear of roof)
• Ground distribution system
• Hot at all times
• Left front central locking system actuator & safe function actuator
• Rear lid lock alarm/central locking switch & rear lid central locking system motor (rear lid central locking system motor: integral to rear lid central locking unit)
• Rear lid lock cylinder unlock button
• Red
• Relay/fuse panel f (right side of luggage compt)
• T17o
• T1h
• T20f
• T20m
• T27a
• T27b
• T27d
• T2de
• T32c
• T32d
• T32e
• T32j
• W/ safe function

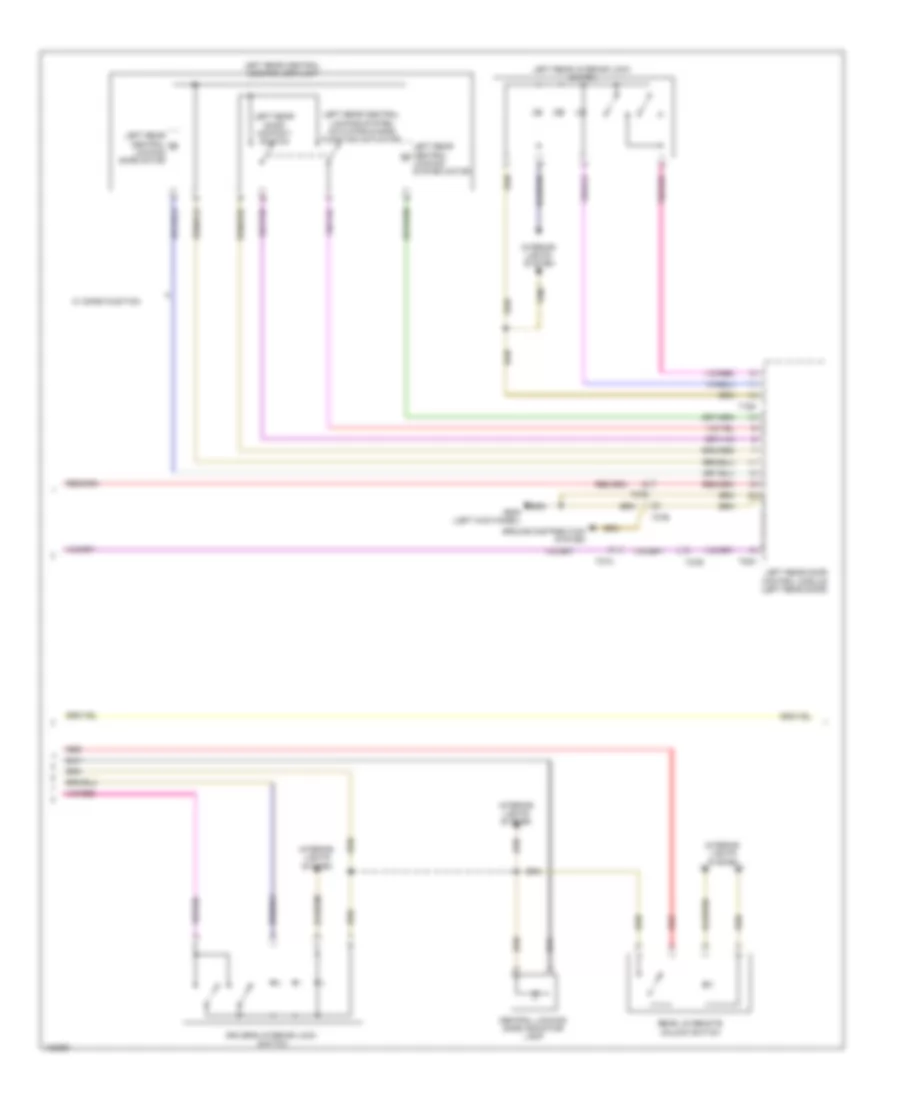

Электросхема центрального замка (2 из 3) для Audi Q5 TDI Premium Plus 2014

Электросхема центрального замка (2 из 3) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• Central locking safe indicator lamp
• Driver's interior lock switch
• G639 (left kick panel)
• Ground distribution system
• Interior lights system
• Left rear central locking lock unit
• Left rear central locking system actuator & safe function actuator
• Left rear central m
• Left rear door contact switch
• Left rear door control module (left rear door)
• Left rear interior lock switch
• Locking safe motor
• Locking system motor
• Rear lid remote unlock switch
• Red
• T16o
• T20h
• T27a
• T27b
• W/ safe function

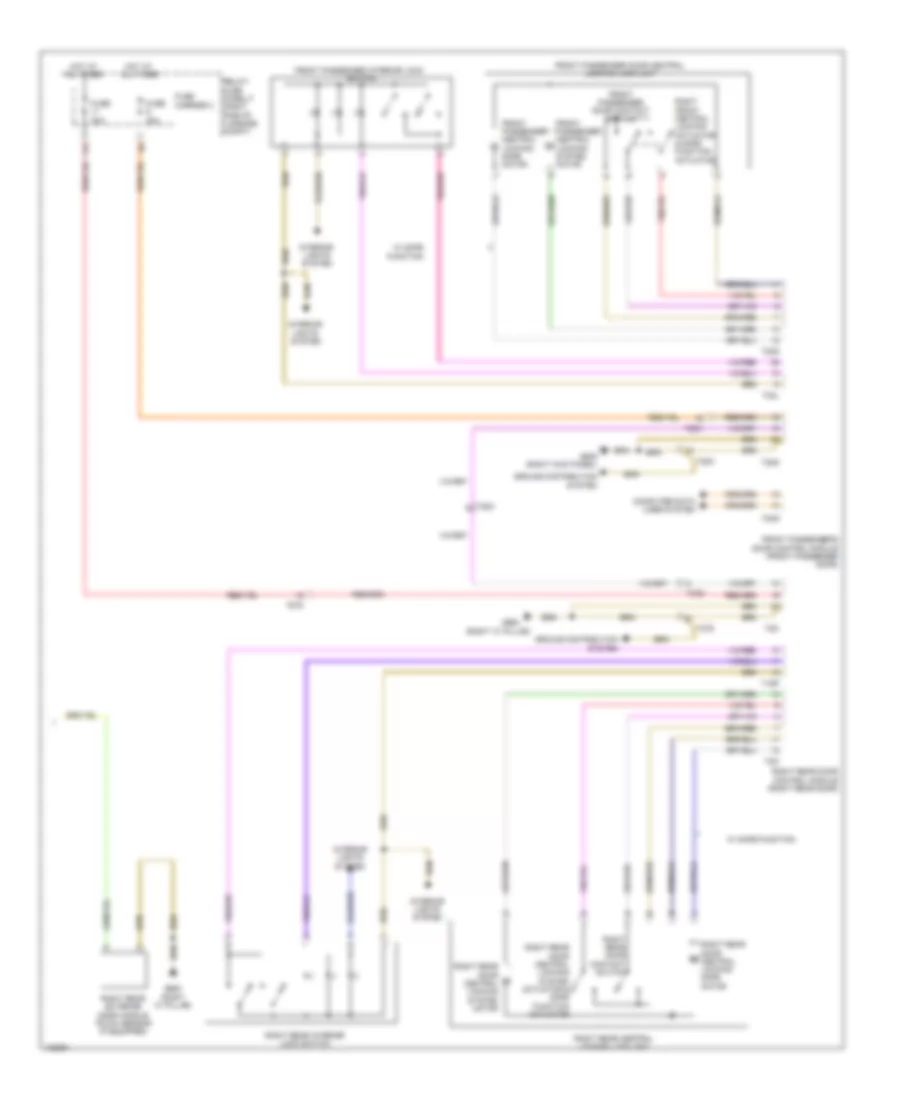

Электросхема центрального замка (3 из 3) для Audi Q5 TDI Premium Plus 2014

Электросхема центрального замка (3 из 3) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (right "c" pillar)
• 11a
• Computer data lines system
• Front passenger central locking safe motor
• Front passenger central m locking system motor
• Front passenger door central locking lock unit
• Front passenger door contact switch
• Front passenger interior lock switch
• Front passenger's door control module (front passenger door)
• Fuse 30a
• Fuse carrier 3
• G638 (right kick panel)
• G663
• G663 (right "c" pillar)
• Ground distribution system
• Hot at all times
• Interior lights system
• Relay/ fuse panel f (right side of luggage compt)
• Right front central locking actuator & safe function actuator
• Right rear central locking lock unit
• Right rear door central locking system actuator & safe function actuator
• Right rear door central locking system motor
• Right rear door contact switch
• Right rear door control module (right rear door)
• Right rear door m central locking safe motor
• Right rear exterior door handle touch sensor (if equipped)
• Right rear interior lock switch
• T16p
• T20g
• T20i
• T20m
• T27d
• T32l
• W/ safe function
