Электросхема предупреждения съезда с полосы движения для Audi Q5 TDI Premium Plus 2014

Электросхема предупреждения съезда с полосы движения для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• 11a
• Computer data lines system
• Directional stabilization assistance control module (integral to interior rearview mirror)
• Directional stabilization assistance windshield defogger
• Driver's exterior mirror assembly
• Front passenger's exterior mirror assembly
• Fuse 10a
• Fuse 5a
• Fuse carrier 1
• Fuse panel c (left end of dash)
• G51 (right "d" pillar)
• G639 (left kick panel)
• Interior lights system
• Lane change
• Lane change assistance button
• Lane change assistance control module (left side of rear bumper)
• Lane change assistance control module 2 (right side of rear bumper)
• Nca
• T16v
• T20m
• T27a

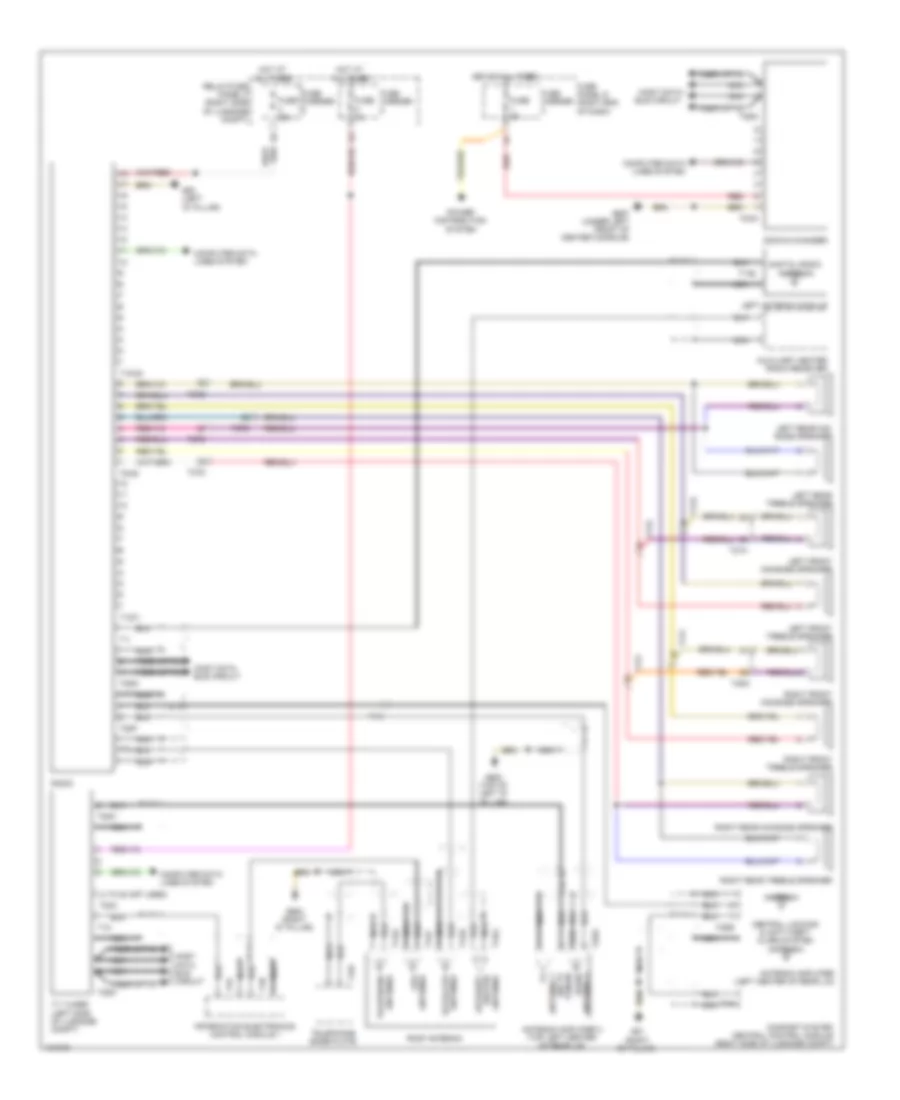

Электросхема навигации GPS, основной MMI для Audi Q5 TDI Premium Plus 2014

Электросхема навигации GPS, основной MMI для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (4 to 20 not used)
• Antenna
• Antenna 2 radio
• Antenna amplifier (left center of rear lid)
• Antenna amplifier 3 (top left center of rear lid)
• Antenna gps
• Antenna heater auxiliary
• Antenna satellite
• Antenna telephone
• Auxiliary heater radio receiver
• Cd/dvd changer
• Central locking & anti-theft alarm system antenna
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Digital radio antenna
• Fiber optic
• Fuse 30a
• Fuse 5a
• Fuse carrier
• Fuse panel d (right end of dash)
• G50 (left "d" pillar)
• G51 (right "d" pillar)
• G653 (top of left "d" pillar)
• G654 (right "d" pillar)
• G687 (under left front of center console)
• Hot at all times
• Information electronics control module 1
• Left antenna module
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid- bass speaker
• Left rear treble speaker
• Most data bus circuit
• Nca
• Power distribution system
• Radio
• Red
• Relay/fuse panel f (right side of luggage compt)
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid-bass speaker
• Right rear treble speaker
• Roof antenna
• T10ag
• T12w
• T17d
• T17f
• T1ac
• T1ae
• T1af
• T1ag
• T1ah
• T1h
• T1i
• T1l
• T1m
• T1n
• T1o
• T1w
• T1x
• T20c
• T20m
• T27a
• T27b
• T27d
• T2dd
• T2de
• T2df
• T2dg
• T2dh
• T2dm
• T2do
• T8aa
• T8ag
• Telephone base plate
• Tuner) (w/ tv antenna 1 tv
• Tv tuner (left side of luggage compt)

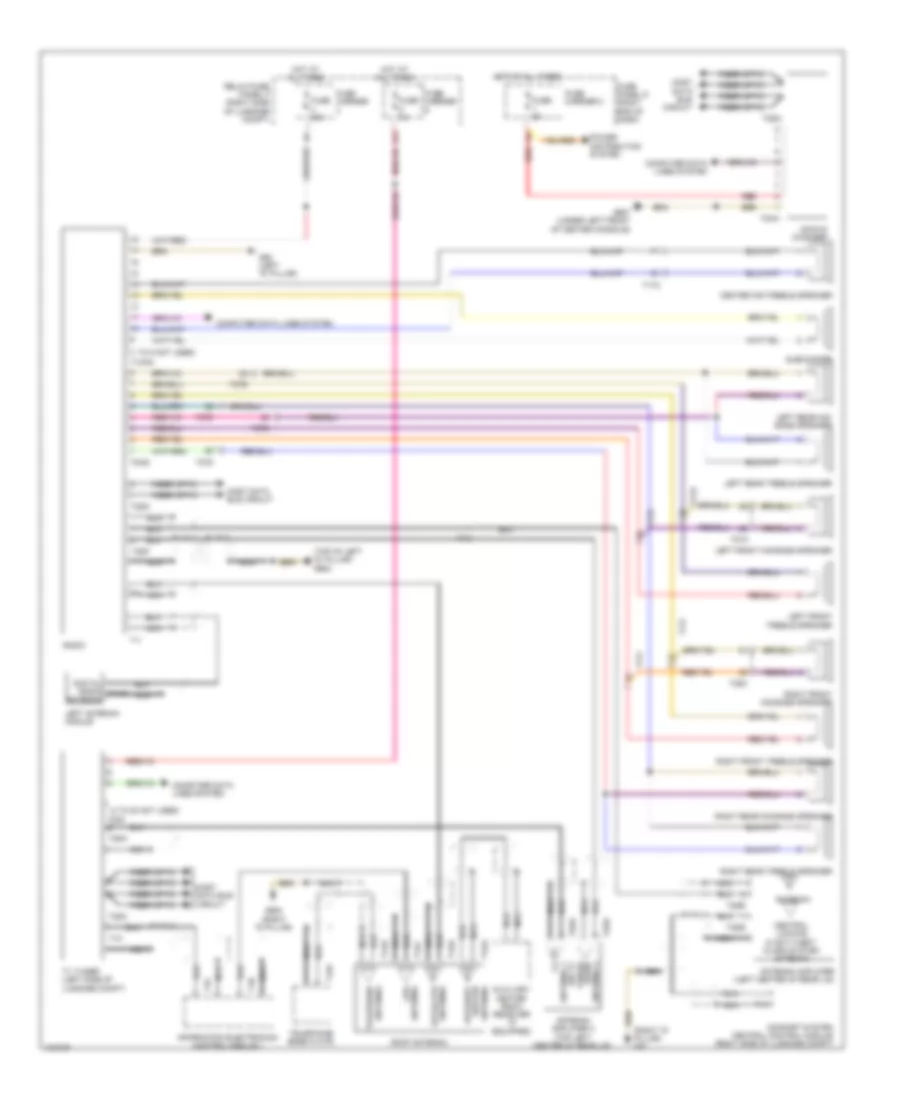

Электросхема навигации GPS, Премиум класс MMI (1 из 2) для Audi Q5 TDI Premium Plus 2014

Электросхема навигации GPS, Премиум класс MMI (1 из 2) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (4 to 20 not used)
• (left "d" pillar) g50
• (top of left "d" pillar) g653
• Antenna
• Antenna 2 radio
• Antenna amplifier (left center of rear lid)
• Antenna amplifier 3 (top left center of rear lid)
• Antenna heater auxiliary
• Antenna satellite
• Antenna system alarm anti-theft locking & central
• Auxiliary heater radio receiver (if equipped)
• Cd/dvd changer
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Digital radio antenna (if equipped)
• Fiber optic
• Fuse 5a
• Fuse carrier 2
• Fuse carrier 5
• Fuse panel d (right end of dash)
• G51 (right "d" pillar)
• G654 (right "d" pillar)
• G687 (under left front of center console)
• Gps antenna
• Hot at all times
• Information electronics control module 1
• Left antenna module
• Most data bus circuit
• Nca
• Power distribution system
• Radio
• Red
• Relay/fuse panel f (right side of luggage compt)
• Roof antenna
• T10ag
• T1ac
• T1ae
• T1af
• T1ag
• T1ah
• T1h
• T1i
• T1l
• T1m
• T1n
• T1o
• T1w
• T20c
• T2dd
• T2de
• T2df
• T2dg
• T2dh
• T2dm
• T2do
• T8aa
• Telephone antenna
• Telephone base plate
• Tuner) (w/ tv antenna 1 tv
• Tv tuner (left side of luggage compt)

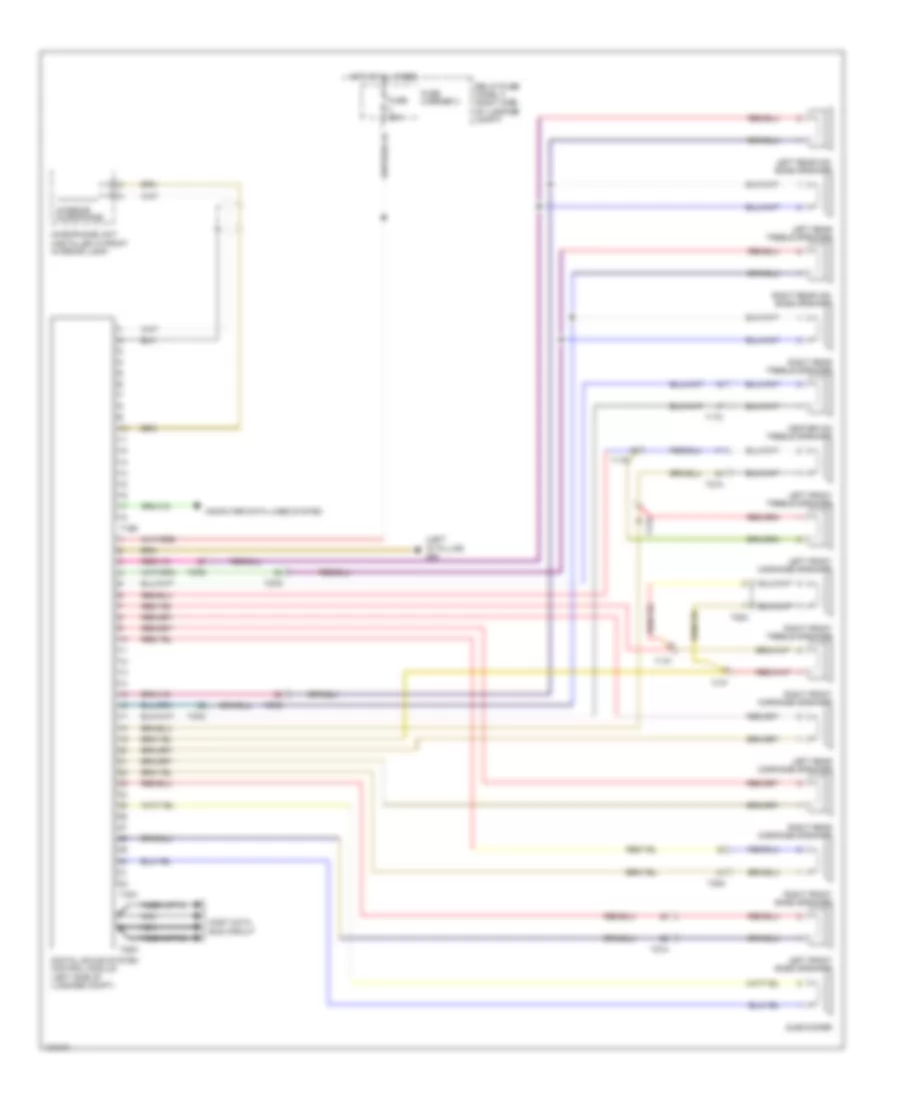

Электросхема навигации GPS, Премиум класс MMI (2 из 2) для Audi Q5 TDI Premium Plus 2014

Электросхема навигации GPS, Премиум класс MMI (2 из 2) для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (left "d" pillar) g50
• Center mid treble speaker
• Computer data lines system
• Digital sound system control module (left side of luggage compt)
• Fiber optic
• Fuse 30a
• Fuse carrier 3
• Hot at all times
• Interior microphone
• Left front bass speaker
• Left front midrange speaker
• Left front treble speaker
• Left rear mid- bass speaker
• Left rear midrange speaker
• Left rear treble speaker
• Microphone unit (installed in front interior lamp)
• Most data bus circuit
• Nca
• Relay/fuse panel f (right side of luggage compt)
• Right front bass speaker
• Right front midrange speaker
• Right front treble speaker
• Right rear mid- bass speaker
• Right rear midrange speaker
• Right rear treble speaker
• Subwoofer
• T17c
• T17d
• T17f
• T18b
• T20m
• T27a
• T27b
• T27d
• T2dk
• T32h

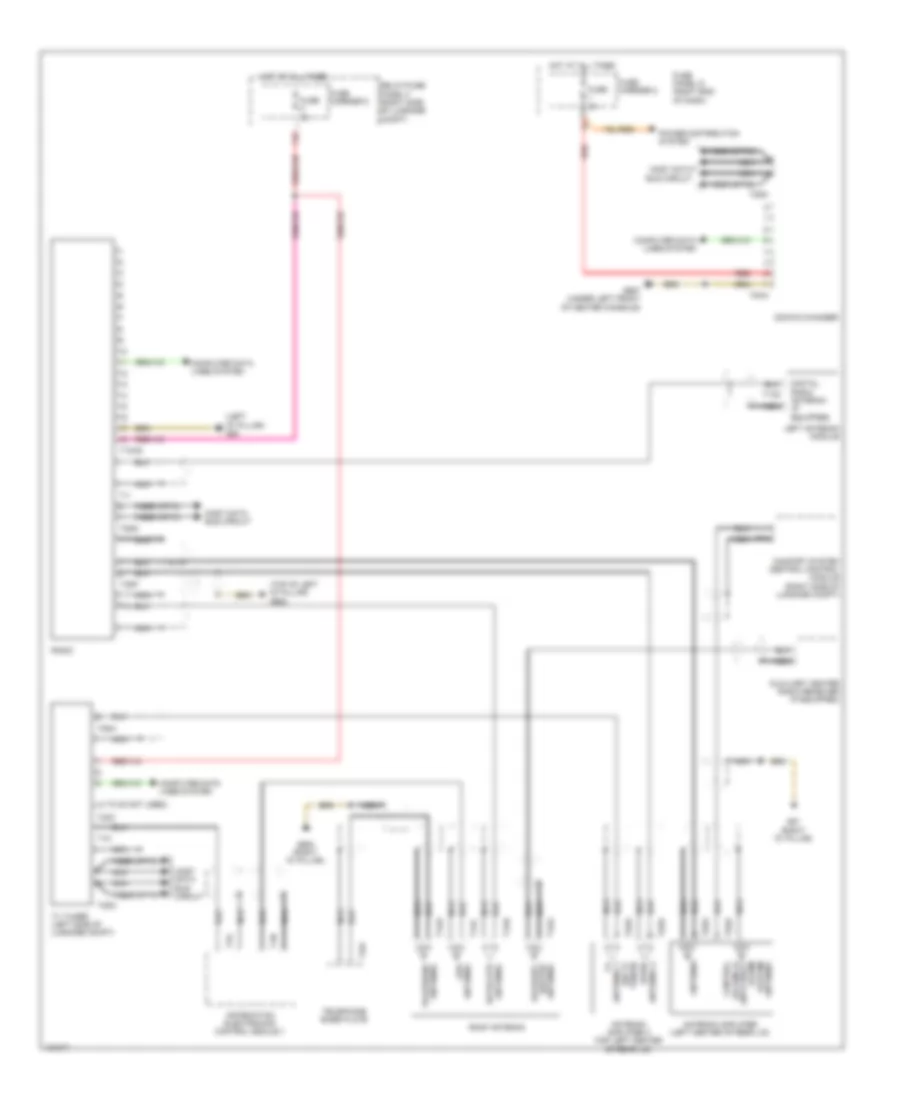

Электросхема навигации GPS, стандартный MMI для Audi Q5 TDI Premium Plus 2014

Электросхема навигации GPS, стандартный MMI для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (1 to 8 not used)
• (4 to 20 not used)
• (top of left "d" pillar) g653
• Antenna
• Antenna 2 radio
• Antenna amplifier (left center of rear lid)
• Antenna amplifier 3 (top left center of rear lid)
• Antenna gps
• Antenna heater auxiliary
• Auxiliary heater radio receiver (if equipped)
• Cd/dvd changer
• Center mid-treble speaker
• Central locking & anti-theft alarm system antenna
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Digital radio t1ac
• Fiber optic
• Fuse 30a
• Fuse 5a
• Fuse carrier
• Fuse carrier 2
• Fuse panel d (right end of dash)
• G50 (left "d" pillar)
• G654 (right "d" pillar)
• G687 (under left front of center console)
• Hot at all times
• Information electronics control module 1
• Left antenna module
• Left front mid-bass speaker
• Left front treble speaker
• Left rear mid- bass speaker
• Left rear treble speaker
• Most data bus circuit
• Nca
• Power distribution system
• Radio
• Red
• Relay/fuse panel f (right side of luggage compt)
• Right front mid-bass speaker
• Right front treble speaker
• Right rear mid-bass speaker
• Right rear treble speaker
• Roof antenna
• Satellite antenna
• Subwoofer
• T10ag
• T17c
• T17d
• T17f
• T1ae
• T1af
• T1ag
• T1ah
• T1h
• T1i
• T1l
• T1m
• T1n
• T1o
• T1w
• T1x
• T20c
• T20m
• T27a
• T27b
• T27d
• T2dd
• T2de
• T2df
• T2dg
• T2dh
• T2dm
• T2do
• T8aa
• T8ag
• Telephone antenna
• Telephone base plate
• Tuner) (w/ tv antenna 1 tv
• Tv tuner (left side of luggage compt)

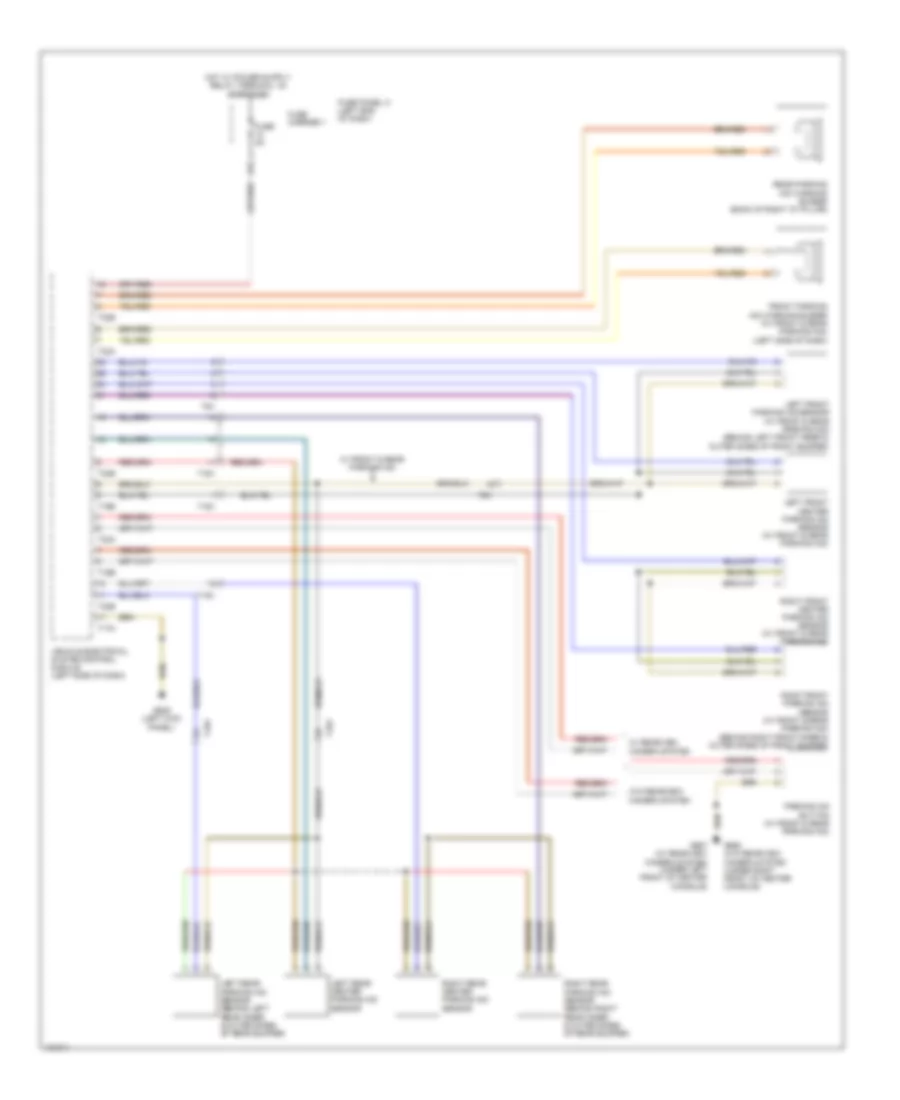

Электросхема парктроников для Audi Q5 TDI Premium Plus 2014

Электросхема парктроников для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• 12a
• Camera system
• Front parking aid warning buzzer (w/ front & rear parking aid) (left side of dash)
• Fuse 5a
• Fuse carrier 1
• Fuse panel c (left end of dash)
• G639 (left kick panel)
• G687 (w/ rearview camera system (under left front of center console)
• G688 (w/o rearview camera system (under right front of center console)
• Left front center parking aid sensor (w/ front & rear parking aid)
• Left front parking aid sensor (w/ front & rear parking aid) (behind left front inner & outer sides of front bumper)
• Left rear center parking aid sensor
• Left rear parking aid sensor (behind left rear inner & outer sides of rear bumper)
• Parking aid button (w/ front & rear parking aid)
• Rear parking aid warning buzzer (back of right "d" pillar)
• Right front center parking aid sensor (w/ front & rear parking aid)
• Right front parking aid sensor (w/ front & rear parking aid) (behind right front inner & outer sides of front bumper)
• Right rear center parking aid sensor
• Right rear parking aid sensor (behind right rear inner & outer sides of rear bumper)
• T16b
• T16v
• T17m
• T32a
• T32b
• T6v
• Vehicle electrical system control module (left side of dash)
• W/ front & rear parking aid
• W/ rearview
• W/o rearview

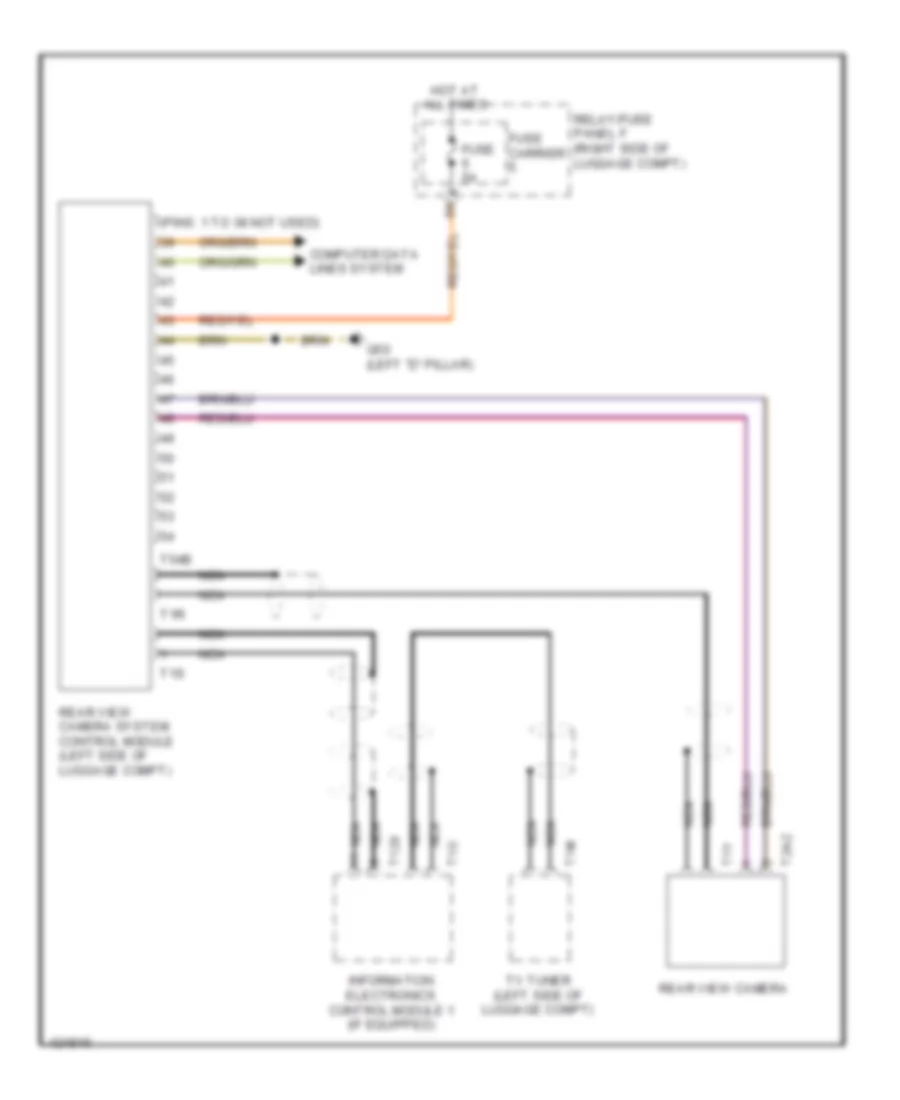

Электросхема камеры заднего вида для Audi Q5 TDI Premium Plus 2014

Электросхема камеры заднего вида для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• (pins: 1 to 38 not used)
• Computer data lines system
• Fuse 5a
• Fuse carrier
• G50 (left "d" pillar)
• Hot at all times
• Information electronics control module 1 (if equipped)
• Nca
• Rear view camera
• Rear view camera system control module (left side of luggage compt)
• Relay/fuse panel f (right side of luggage compt)
• T12x
• T1m
• T1o
• T1r
• T1s
• T1y
• T2az
• T54b
• Tv tuner (left side of luggage compt)

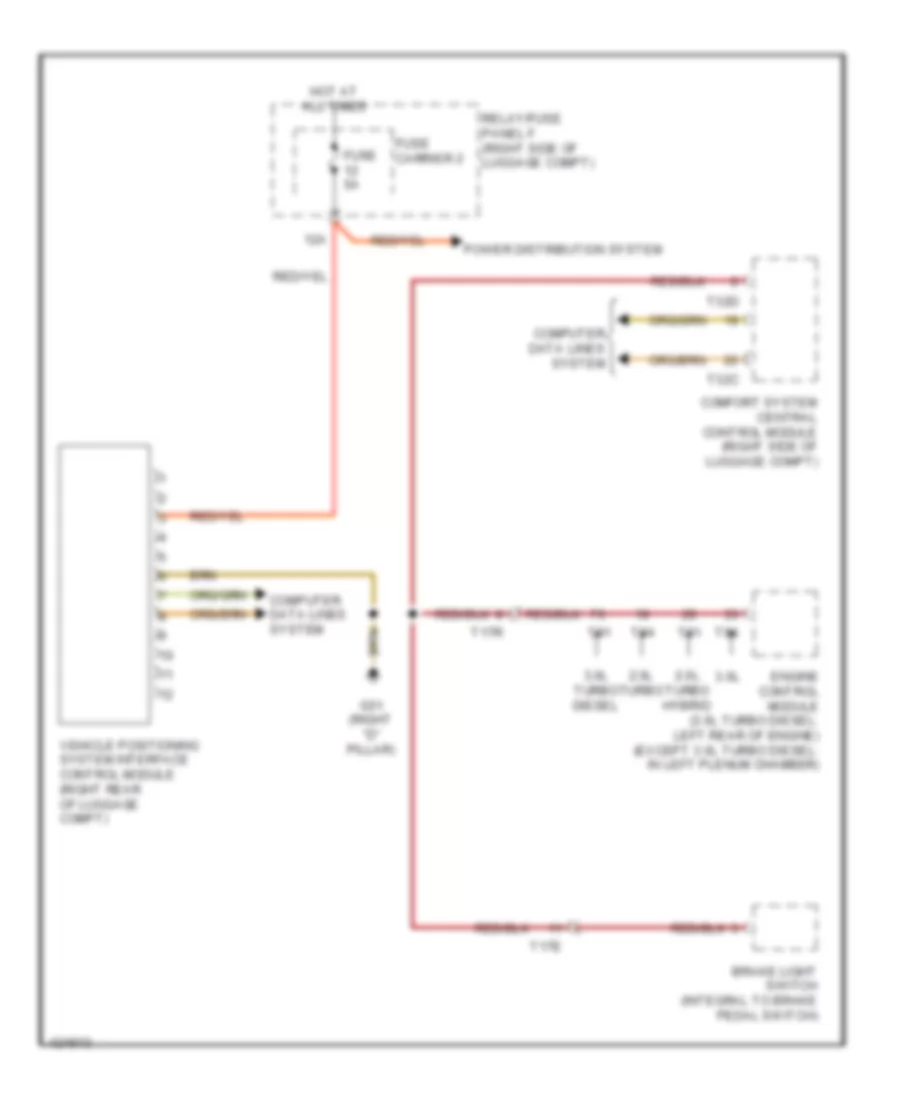

схема управляющего модуля интерфейса расположения транспортного средства для Audi Q5 TDI Premium Plus 2014

схема управляющего модуля интерфейса расположения транспортного средства для Audi Q5 TDI Premium Plus 2014 - Список элементов:

• 12a
• 2.0l turbo
• 2.0l turbo hybrid
• 3.0l
• 3.0l turbo diesel
• Brake light switch (integral to brake pedal switch)
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Engine control module (3.0l turbo diesel: left rear of engine) (except 3.0l turbo diesel: in left plenum chamber)
• Fuse 5a
• Fuse carrier 2
• G51 (right "d" pillar)
• Hot at all times
• Power distribution system
• Relay/fuse panel f (right side of luggage compt)
• T17e
• T17r
• T32c
• T32d
• T91
• T94
• Vehicle positioning system interface control module (right rear of luggage compt)
