Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Audi Q5 TDI Premium Plus 2014

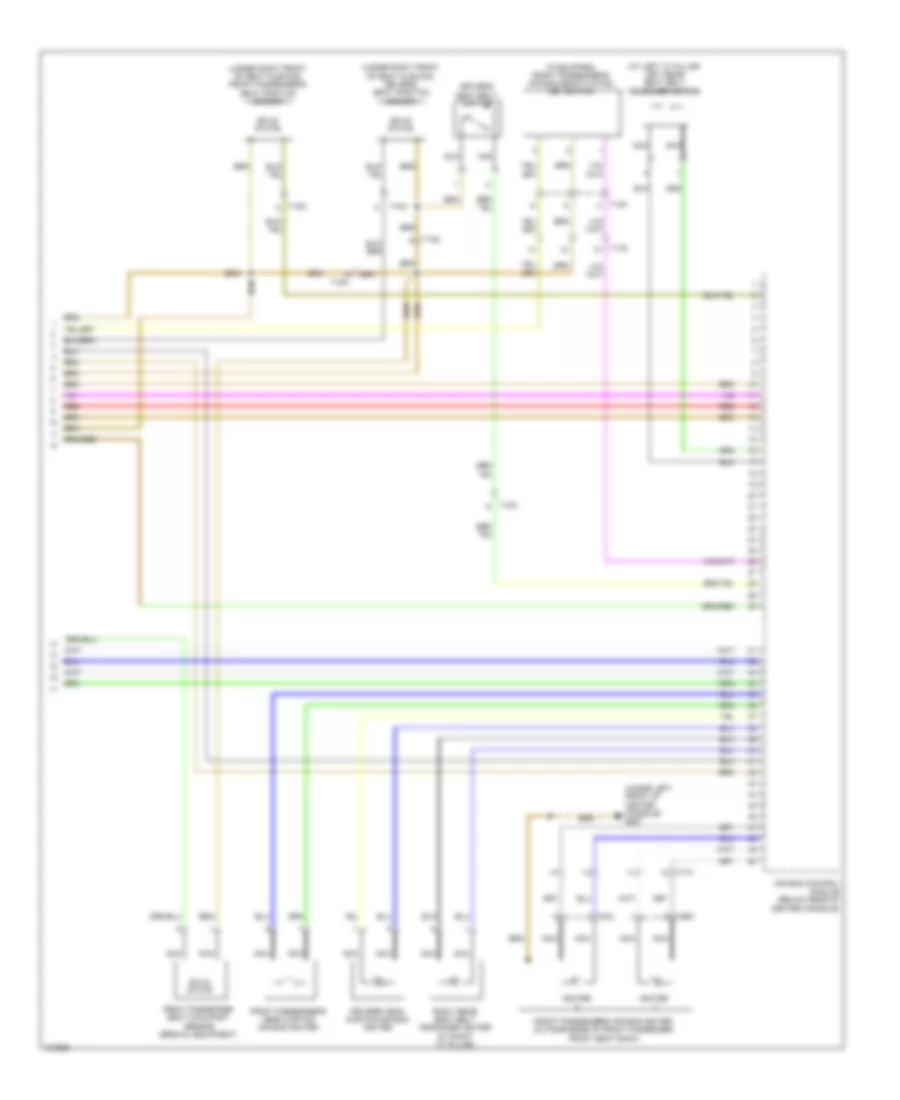

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

13a
Air bag control module (below rear of center console)
Air bag spiral spring/ return spring (w/ slip ring) (top of steering column)
Battery interrupt igniter
Computer data lines system
Driver air bag igniter
Driver air bag igniter 2
Driver side rear thorax air bag igniter
Driver's front air bag crash sensor (mounted to driver headlamp housing bracket)
Driver's side air bag crash sensor (in driver front door)
Driver's side rear air bag crash sensor (inside driver rear wheel housing, behind sill trim)
Front passenger's air bag disabled indicator lamp
Front passenger's front air bag crash sensor (mounted to front passenger headlamp housing bracket)
Front passenger's side air bag crash sensor (in passenger front door)
Front passenger's side rear air bag crash sensor (inside passenger rear wheel housing, behind sill trim)
Fuse 5a
Fuse carrier
Fuse panel a (on battery positive terminal)
Fuse panel c (left end of dash)
G50 (left "d" pillar)
G663 (right "c" pillar)
Hot at all times
Nca
Passenger side rear thorax air bag igniter
Power distribution system
Red
Solid state
Steering wheel control unit
T10n
T17f
T17x
T20m
T27a
T2y
T4ac

Air bag indicator lamp
Computer data lines system
Data bus on board diagnostic interface (right center of dash)
Driver thorax air bag igniter
Driver's seat belt tensioner & driver's belt force limiter (base of driver "b" pillar)
Force limiter
Front passenger thorax air bag igniter
Front passenger's seat belt switch & seat occupied recognition seat belt force sensor (special equipment) (integrated w/ front passenger seat belt switch)
Front passenger's seat belt tensioner & front passenger's belt force limiter (base of front passenger "b" pillar)
Fuse 5a
Fuse carrier
Fuse panel d (right end of dash)
G639 (left kick panel)
G663 (right "c" pillar)
G687 (under left front of center console)
Hot at all times
Igniter
Instrument cluster
Instrument cluster control module
Nca
Passenger occupant detection system control module (special equipment)
Passenger occupant detection system pressure sensor (special equipment)
Red
Solid state
T10n
T20d
T2ai
T2ca
T2cd
T2ce

(at left "c" pillar) left rear seat belt tensioner igniter
(if equipped) front passenger's air bag deactivation key switch
(under left front of center console) g687
(under right front of seat cushion) driver's seat position sensor
(under right front of seat cushion) front passenger's seat position sensor
Air bag control module (below rear of center console)
Driver's head curtain air bag igniter
Driver's seat belt switch
Front passenger seat occupant sensor (special equipment)
Front passenger's air bag igniter (outside edge of front passenger front seat back)
Front passenger's head curtain air bag igniter
Igniter
Nca
Red
Right rear seat belt tensioner igniter (at right "c" pillar)
Solid state
T10n
T10o
T12k
T17g
T17x
T2bh
T2cl
