Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Dodge Pickup R3500 2010

ЦЕНТРАЛЬНЫЙ ЗАМОК

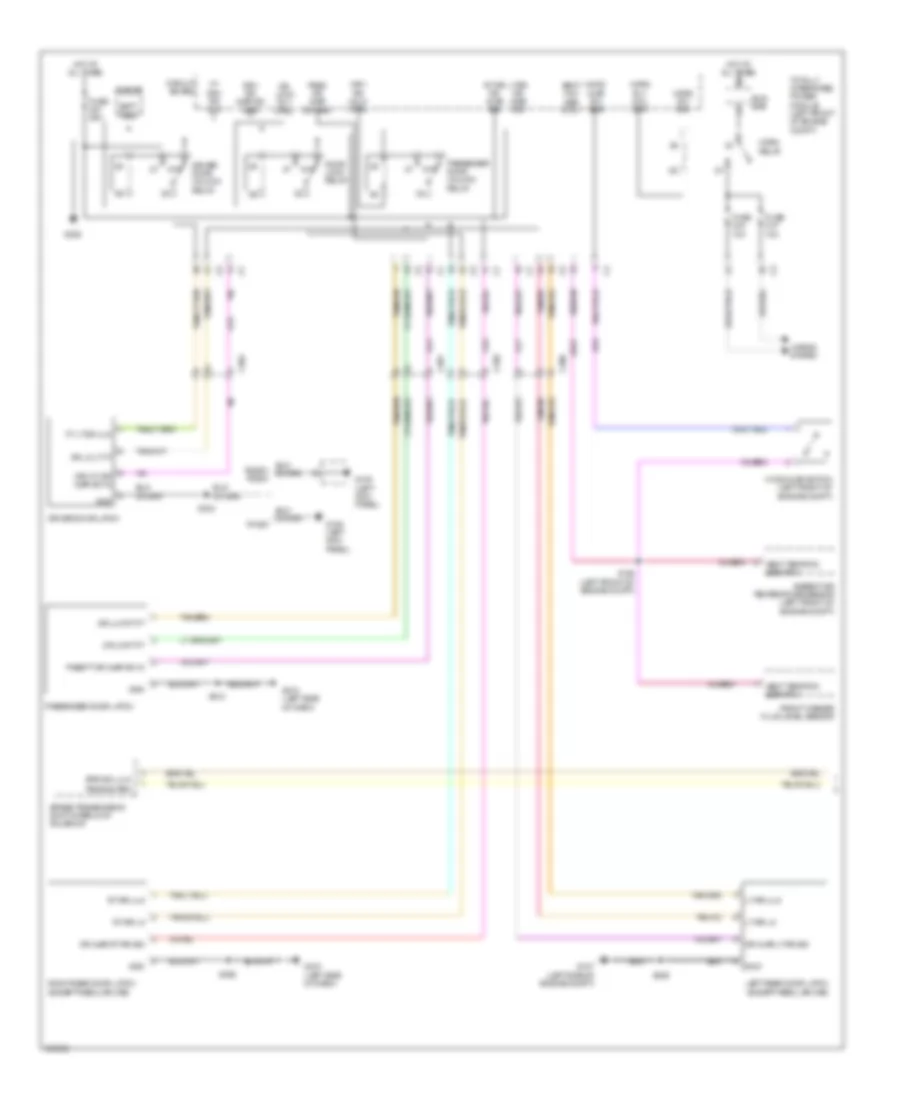

Электросхема центрального замка (1 из 2) для Dodge Pickup R3500 2010

Электросхема центрального замка (1 из 2) для Dodge Pickup R3500 2010 - Список элементов:

71

• 87a
• Abmt temp/fcm ssr rtn 1
• Abmt/ fcm ssr rtn 1
• Ambient air temperature sensor (left front of engine compt)
• Batt feed
• Brake transmission shift interlock solenoid
• Btsi sol ulk
• Bus bar
• C301
• C304
• C306
• C320
• Circuit board
• Diode
• Door lock relay
• Dr ajar lt rr sig
• Dr ajar rt rr sig
• Dr lk lt ft
• Dr lk rt ft
• Dr lock rly ctrl
• Dr ulk rt ft
• Driver door latch
• Driver door unlock relay
• Drv dr ajar sw sns
• Drv ft dr ajar sw in
• Drv rr unlk ctrl
• Front washer fluid level sensor
• Ft drv dr ulk
• Ft lt dr ulk
• Fuse m21 25a
• Fuse m37 10a
• Fuse m43 10a
• G105 (left kick panel)
• G107 (left side of engine compt)
• G210 (left side of dash)
• G306
• G70
• G74
• G75
• G76
• G77
• G931
• Gnd
• Hood ajar sw sns
• Hood ajar switch (left front of engine compt)
• Horn relay
• Horn rly coil drv
• Horn sw sig
• Horns system
• Hot at all times
• Left rear door latch (except regular cab)
• Lt rr dr ajar sig
• Lt rr lk
• Lt rr ulk
• Pass dr ajar sw sns
• Pass ft dr ajar sw in
• Passenger door latch
• Passenger door unlock relay
• R1500
• R2500/ r3500
• Right rear door latch (except regular cab)
• Rt rr dr ajar sig
• Rt rr lk
• Rt rr ulk
• S194 (left front of engine compt)
• S304
• S312
• S336
• S368
• Totally integrated power module (left front of engine compt)
• Trs rng prk

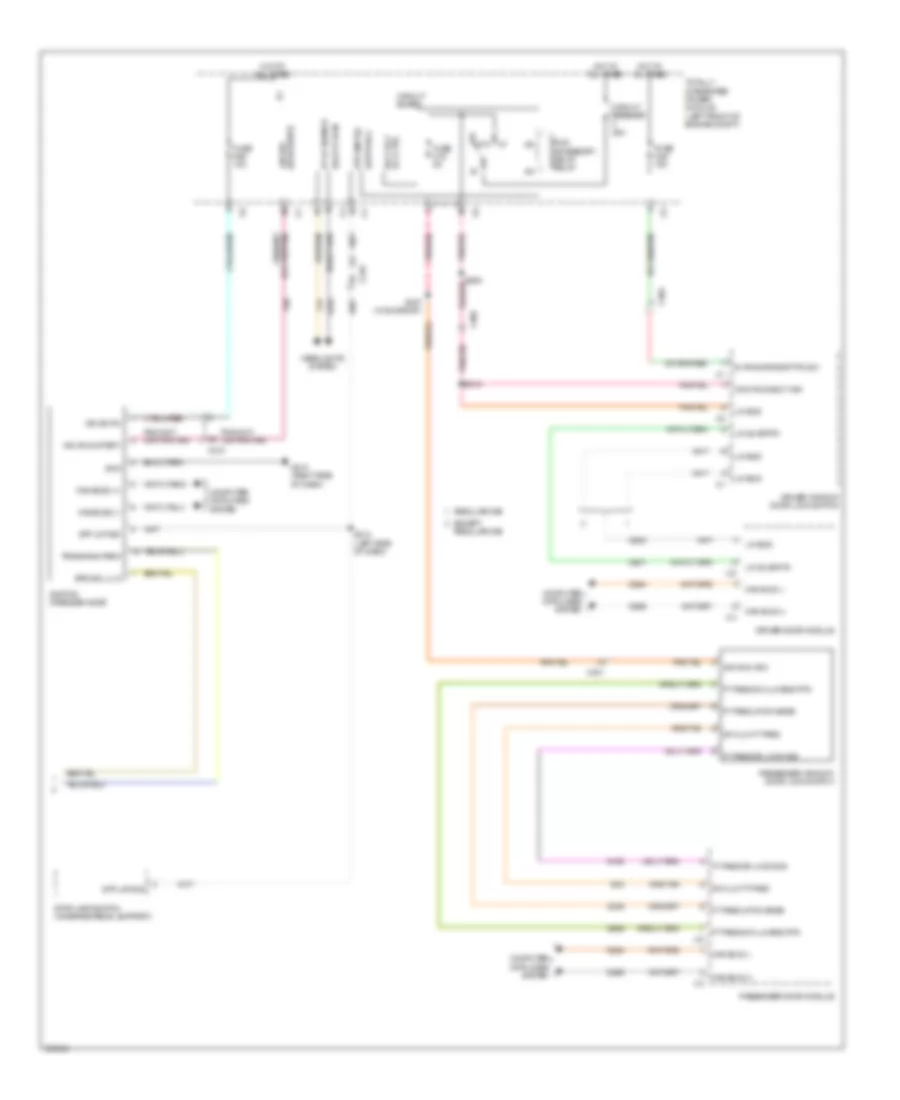

Электросхема центрального замка (2 из 2) для Dodge Pickup R3500 2010

Электросхема центрального замка (2 из 2) для Dodge Pickup R3500 2010 - Список элементов:

65

• 5v pwr mrr batt fd sw
• 87a
• Accy dly rly ctrl
• B +
• Batt pre 2
• Btsi sol ulk
• C210
• C301
• C304
• C305
• Can bus (+)
• Can bus (-)
• Can bus2 (+)
• Can bus2 (-)
• Circuit board
• Circuit breaker 25a
• Computer data lines system
• D264
• D265
• D500
• D501
• Driver door module
• Driver window/ door lock switch
• E34
• Except
• F20
• Ft pass dr lk sw sig
• Ft pass sw illm/sns rtn
• Ft pass up sw snse
• Fuse m19 5a
• Fuse m25 10a
• Fuse m26 10a
• G150
• G212 (right side of dash)
• Gnd
• Hdlp rt rtn
• Headlights system
• Hot at all times
• Ign (run-start)
• Ign run acc
• Ign sw (run-start)
• Ign sw fd
• Ignition wireless node
• L44
• L51
• L910
• Lin bus
• Lin slve rtn
• Passenger door module
• Passenger window/ door lock switch
• Q336
• Q936
• Regular cab
• Rt lo beam fd
• Run/ accessory delay relay
• S214 (left side of dash)
• S300
• S318
• S337 (w/ sunroof)
• Stop lamp switch (on brake pedal support)
• Stp lmp sig
• Sw illm ft pass
• Totally integrated power module (left front of engine compt)
• Trans rng park
• Wdw run/accy ign
