Электросхемы ПРИВОД ЗЕРКАЛ Dodge Pickup R3500 2010

ПРИВОД ЗЕРКАЛ

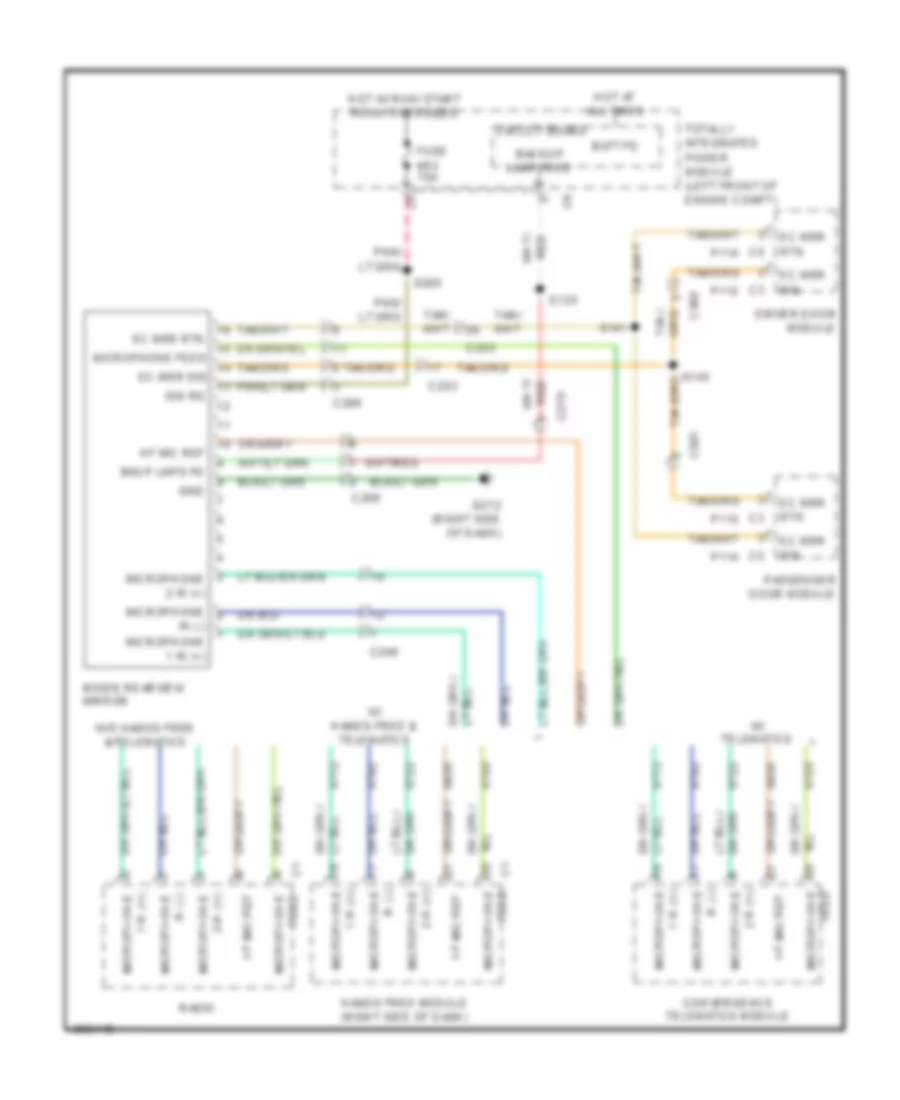

Электросхема автозатемнения зеркала заднего вида для Dodge Pickup R3500 2010

Электросхема автозатемнения зеркала заднего вида для Dodge Pickup R3500 2010 - Список элементов:

• 1 in (+)
• Backup lamp feed
• Batt fd
• Bkup lmps fd
• C203
• C206
• C210
• C301
• C305
• Circuit board
• Convergence telematics module
• Driver door module
• Ec mrr rtn
• Ec mrr sig
• Feed
• Feed microphone
• Fuse m53 15a
• G212 (right side of dash)
• Gnd
• Hands free module (right side of dash)
• Hf mic ref
• Hot at all times
• Hot w/ run/ start relay energized
• Ign rs
• In (-)
• Inside rearview mirror
• Microphone
• Microphone 1 in (+)
• Microphone 2 in (+)
• Microphone feed
• Microphone feed ec mrr sig
• Microphone in (-)
• P112
• P114
• Passenger door module
• Radio
• S120
• S140
• S141
• S205
• Totally integrated power module (left front of engine compt)
• W/ hands free & telematics
• W/ telematics
• W/o hands free & telematics
• X712
• X722
• X792
• X793
• X835

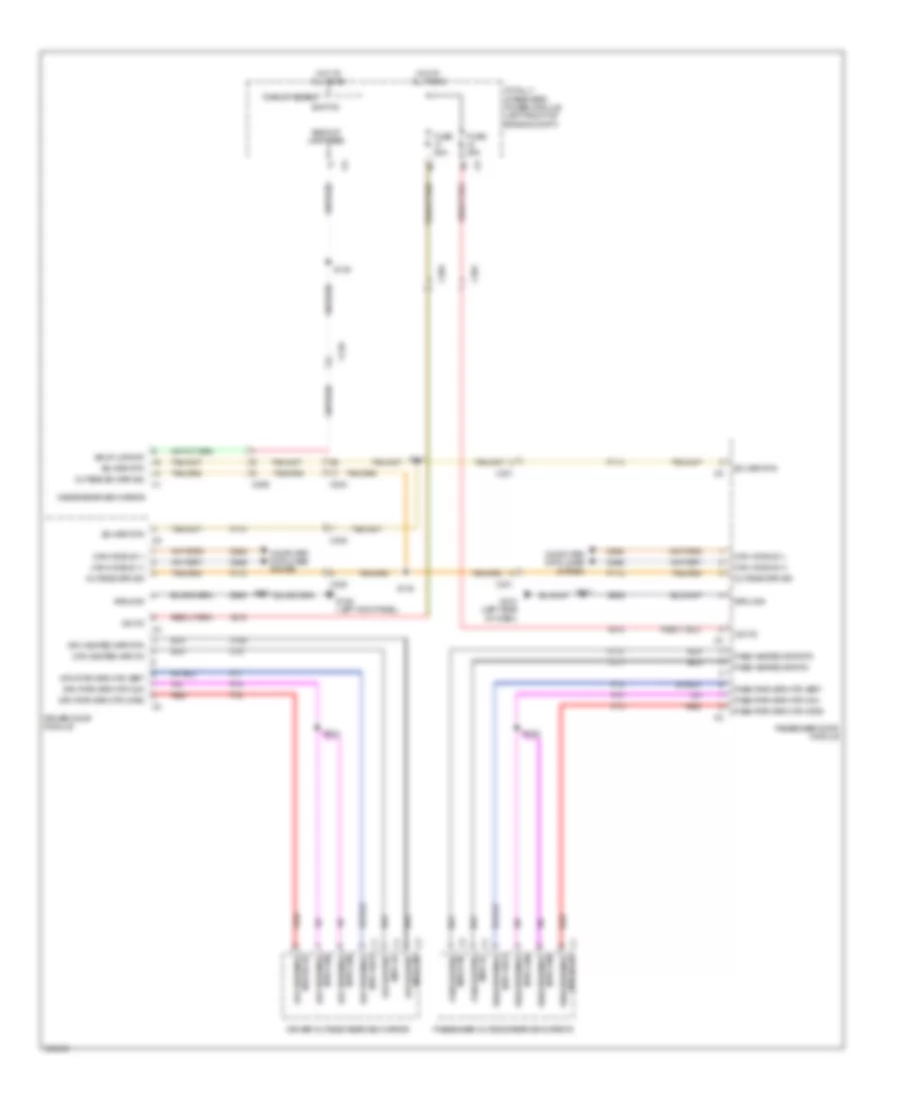

Электросхема привода зеркал для Dodge Pickup R3500 2010

Электросхема привода зеркал для Dodge Pickup R3500 2010 - Список элементов:

• A214
• A215
• Backup lamp feed
• Batt fd
• Bkup lmps fd
• C1 mtr horz
• C1 mtr vert drv pwr mrr
• C16
• C160
• C17
• C170
• C203
• C206
• C210
• C3 mrr rtn
• C301
• C304
• C305
• C4 mrr fd
• C4 mrr fd pass heated
• Can ihs bus (+)
• Can ihs bus (-)
• Circuit board
• Computer data lines system
• D264
• D265
• Driver door module
• Driver outside rearview mirror
• Drv heated
• Drv heated mrr fd
• Drv heated mrr rtn
• Drv pwr mrr
• Drv pwr mrr mtr com
• Drv pwr mrr mtr horz
• Drv pwr mrr mtr vert
• Ec mrr rtn
• Fuse j3 25a
• Fuse j7 25a
• G105 (left kick panel)
• G210 (left side of dash)
• Ground
• Hot at all times
• Inside rearview mirror
• Iod fd
• Mtr com
• Mtr horz
• Mtr vert
• Outsde ec mrr sig
• Outsde mrr sig
• P112
• P114
• P70
• P71
• P72
• P73
• P74
• P75
• Pass heated
• Pass heated mrr fd
• Pass heated mrr rtn
• Pass pwr mrr
• Pass pwr mrr mtr com
• Pass pwr mrr mtr horz
• Pass pwr mrr mtr vert
• Passenger door module
• Passenger outside rearview mirror
• Red
• S120
• S140
• S141
• S304
• S312
• S322
• S324
• Totally integrated power module (left front of engine compt)
• Z905
• Z909
