Электросхемы СИСТЕМЫ СИДЕНИЙ Dodge Pickup R3500 2010

СИСТЕМЫ СИДЕНИЙ

Электросхема регулировки положения педалей для Dodge Pickup R3500 2010

Электросхема регулировки положения педалей для Dodge Pickup R3500 2010 - Список элементов:

• Adjust pedals
• Adjust pedals motor forward
• Adjust pedals motor rearward
• Adjustable pedals motor (left side of steering column)
• Adjustable pedals motor driver
• Adjustable pedals switch
• B (+)
• C210
• Circuit board
• G211 (left side of dash)
• Ground
• Hot at all times
• Motor driver
• Totally integrated power module (left front of engine compt)

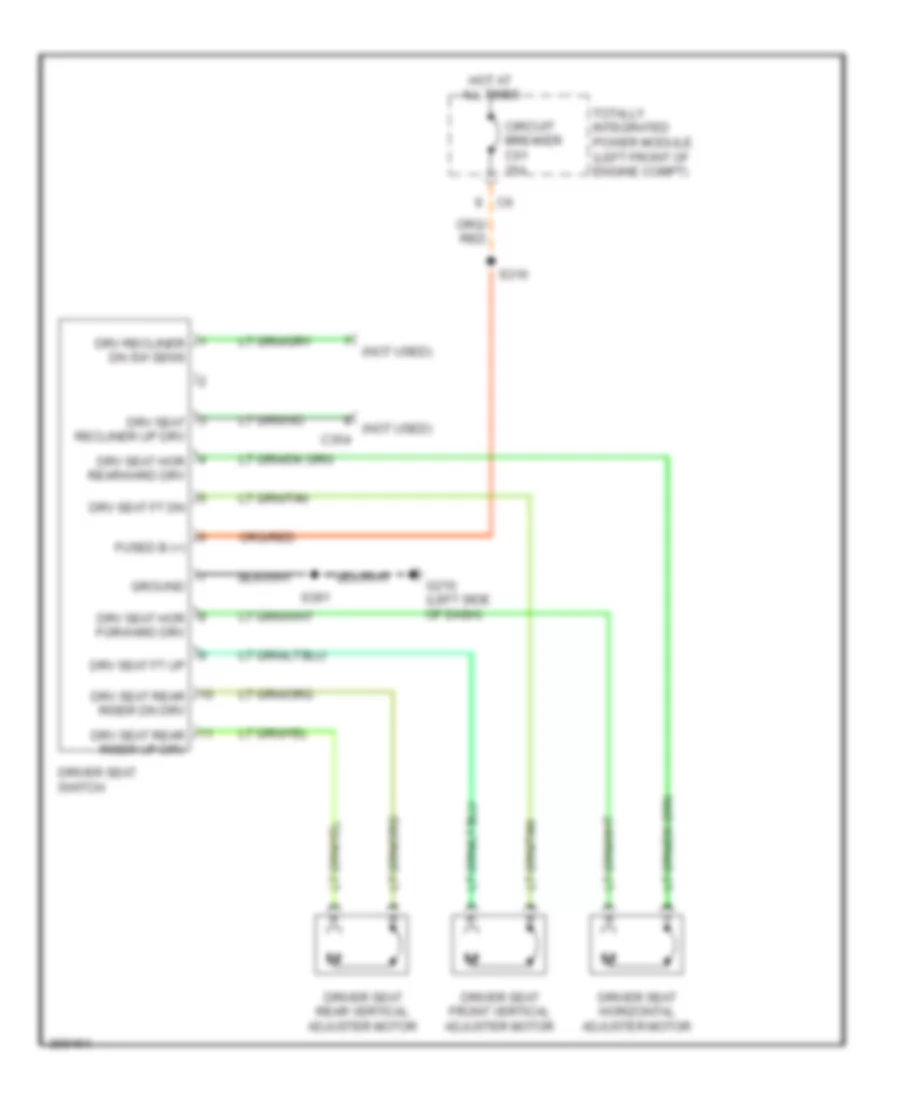

Электросхема привода водительского сиденья для Dodge Pickup R3500 2010

Электросхема привода водительского сиденья для Dodge Pickup R3500 2010 - Список элементов:

• (not used)
• C354
• Circuit breaker c01 25a
• Driver seat front vertical adjuster motor
• Driver seat horizontal adjuster motor
• Driver seat rear vertical adjuster motor
• Driver seat switch
• Drv recliner dn sw sens
• Drv seat ft dn
• Drv seat ft up
• Drv seat hor forward drv
• Drv seat hor rearward drv
• Drv seat rear riser dn drv
• Drv seat rear riser up drv
• Drv seat recliner up drv
• Fused b (+)
• G210 (left side of dash)
• Ground
• Hot at all times
• S316
• S391
• Totally integrated power module (left front of engine compt)

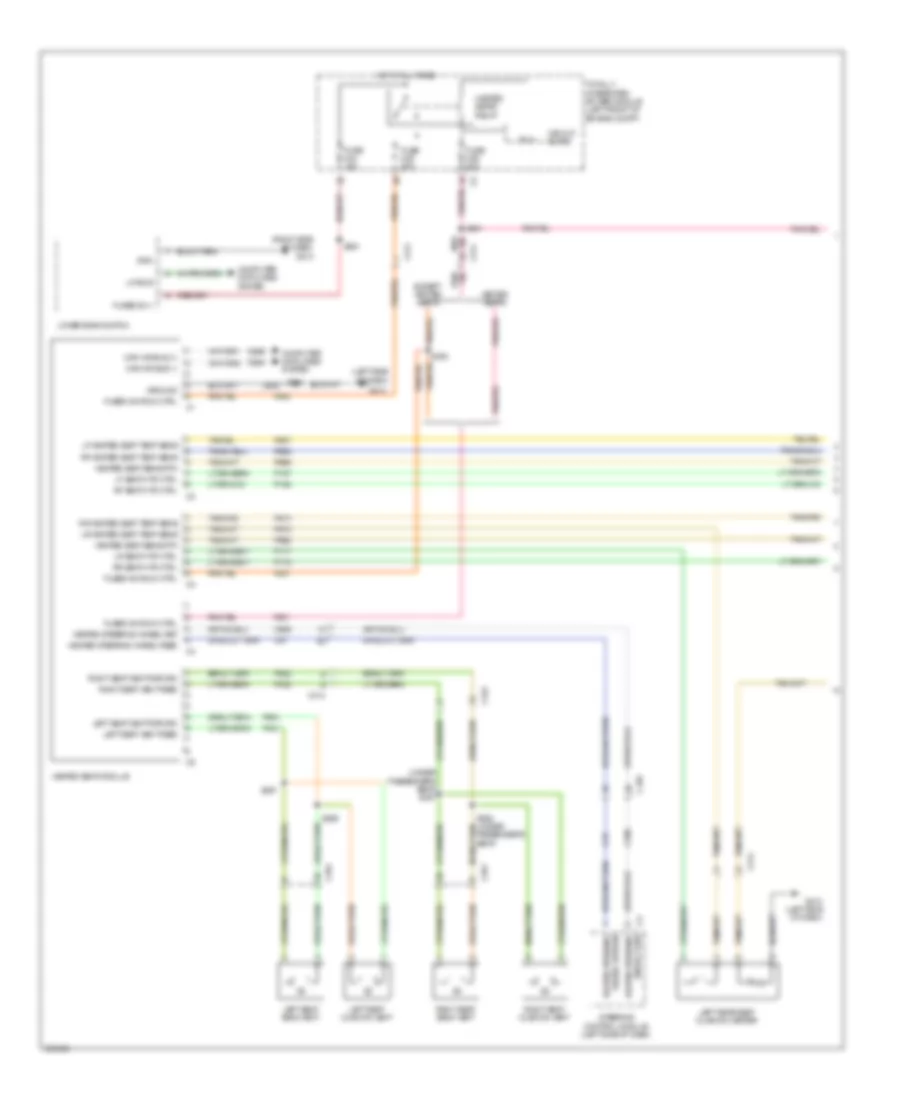

Электросхема подогрева сидений (1 из 2) для Dodge Pickup R3500 2010

Электросхема подогрева сидений (1 из 2) для Dodge Pickup R3500 2010 - Список элементов:

• (left side of dash)
• (right side of dash) g212
• B (+)
• C210
• C311
• C314
• C342
• C351
• C354
• C91
• C986
• Can ihs bus (+)
• Can ihs bus (-)
• Circuit board
• Computer data lines system
• D264
• D265
• Except vented seats
• F930
• F931
• Fuse m34 15a
• Fuse m35 20a
• Fuse m36 20a
• Fused b (+)
• Fused ign run ctrl
• G210
• G210 (left side of dash)
• Gnd
• Ground
• Heated seat module
• Heated seat sens rtn
• Heated seats relay
• Heated steering wheel feed
• Heated steering wheel ret
• Heated steering wheel retrun
• Hot at all times
• Left rear seat cushion heater
• Left seat back vent
• Left seat cushion vent
• Left seat vent feed
• Left seat vent return
• Lf heated seat temp sens
• Lf seat htr ctrl
• Lin bus
• Lower bank switch
• Lr heated seat temp sens
• Lr seat htr ctrl
• P177
• P178
• P187
• P188
• P421
• P422
• P672
• P673
• P687
• P688
• P921
• P922
• P968
• Rf heated seat temp sens
• Rf seat htr ctrl
• Right seat back vent
• Right seat cushion vent
• Right seat vent feed
• Right seat vent return
• Rr heated seat temp sens
• Rr seat htr ctrl
• S261
• S358 (under passenger's seat)
• S361
• S391
• S393
• S397
• S399
• Steering control module (left side of dash)
• Totally integrated power module (left front of engine compt)
• Vented seats
• Z909

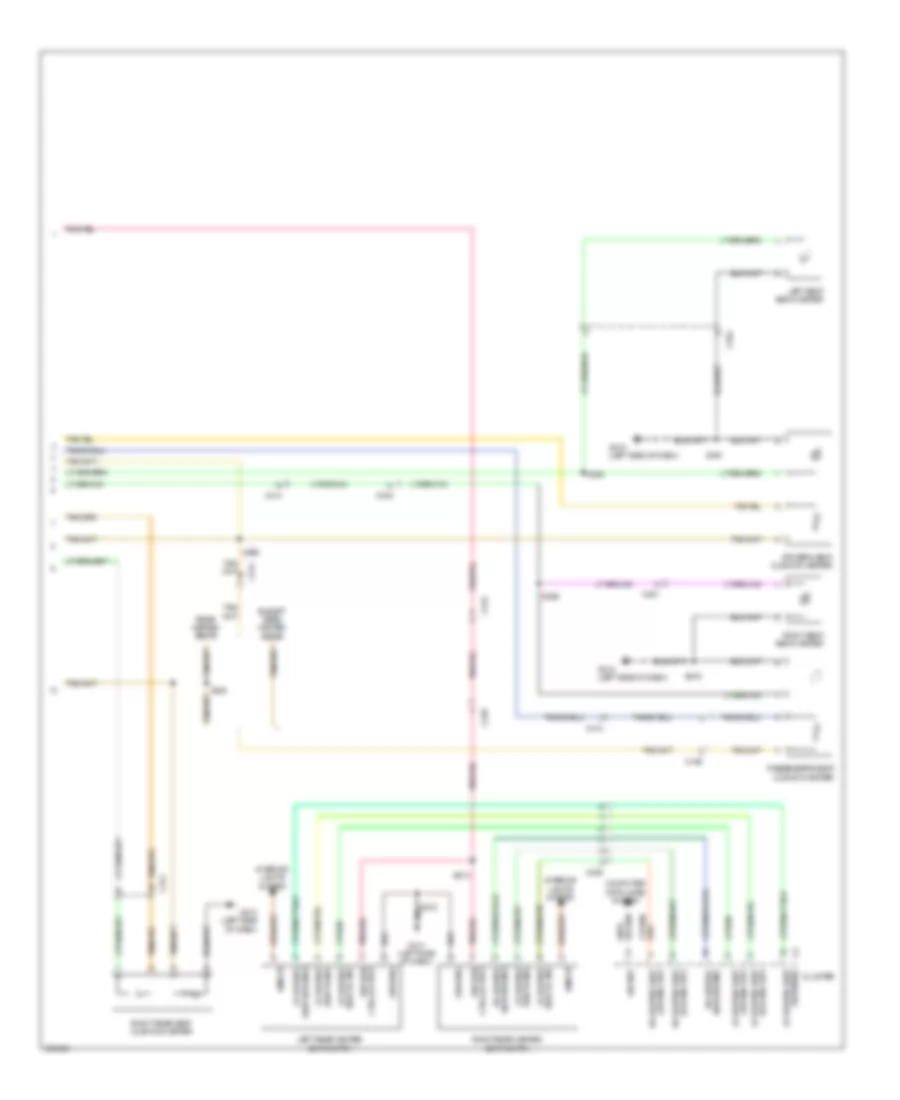

Электросхема подогрева сидений (2 из 2) для Dodge Pickup R3500 2010

Электросхема подогрева сидений (2 из 2) для Dodge Pickup R3500 2010 - Список элементов:

• C215
• C235
• C314
• C342
• C351
• C354
• Cluster
• Computer data lines system
• Ctrl output ign run
• Dim3 ip
• Driver's seat cushion heater
• Except rear heated seats
• G210 (left side of dash)
• G211 (left side of dash)
• Ground
• Interior lights system
• Left rear heated seat switch
• Left seat back heater
• Lin bus
• Low ind drv lr heated seat
• Low ind drv rr heated seat
• Lr heated seat hi ind
• Lr heated seat high ind drv
• Lr heated seat lo ind
• Passenger's seat cushion heater
• Rear heated seats
• Right rear heated seat switch
• Right rear seat cushion heater
• Right seat back heater
• Rr heated seat high ind drv
• Rr heated seat sw sns
• S320
• S356
• S372
• S374
• S379
• S391
• S394
• S395
• Seat hi ind lr heated
• Seat sw sens lr heated
• Seat sw sns rr heated
• Sw sense lr heated seat

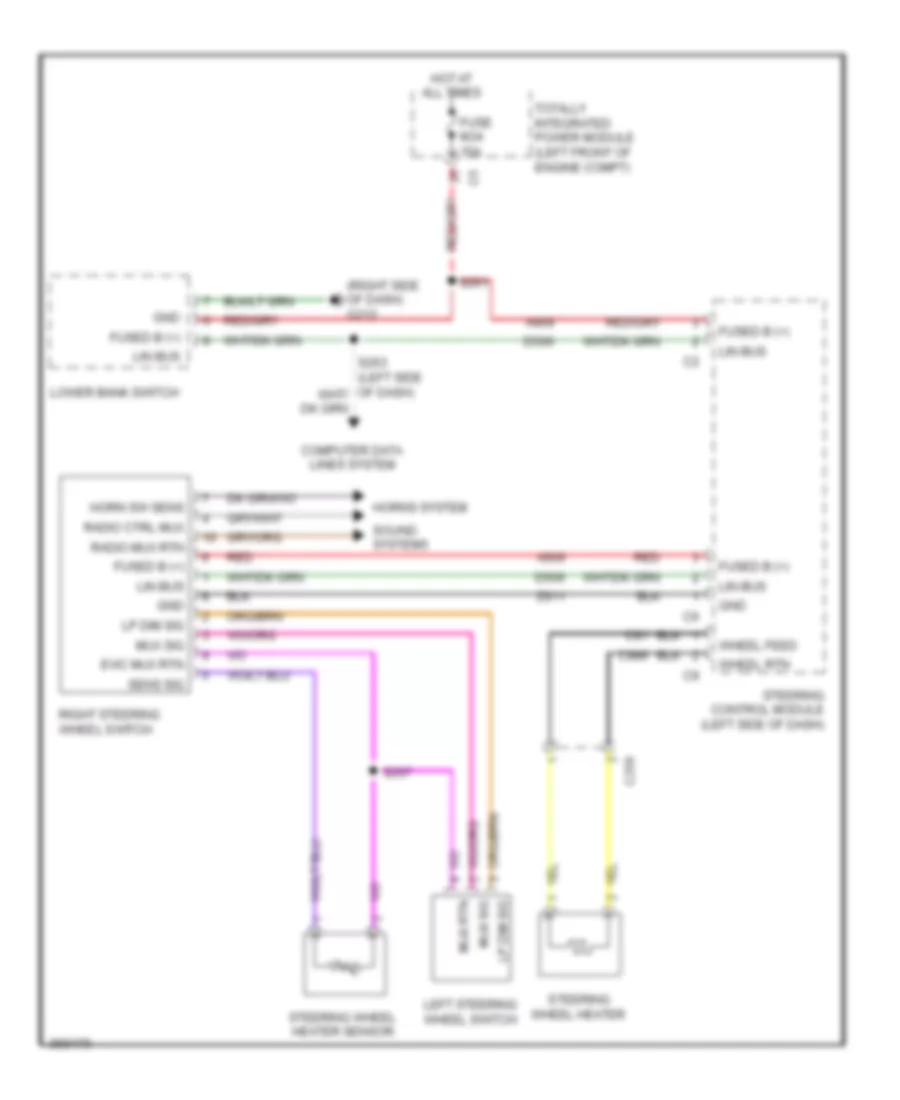

Электросхема подогрева руля для Dodge Pickup R3500 2010

Электросхема подогрева руля для Dodge Pickup R3500 2010 - Список элементов:

• (right side of dash) g212
• A909
• C256
• C91
• C986
• Computer data lines system
• D506
• Evic mux rtn
• Fuse m34 15a
• Fused b (+)
• Gnd
• Horn sw sens
• Horns system
• Hot at all times
• Left steering wheel switch
• Lin bus
• Lower bank switch
• Lp dim sig
• Mux rtn
• Mux sig
• Radio ctrl mux
• Radio mux rtn
• Red
• Right steering wheel switch
• S261
• S267
• Sens sig
• Sound systems
• Steering control module (left side of dash)
• Steering wheel heater
• Steering wheel heater sensor
• Totally integrated power module (left front of engine compt)
• Wheel feed
• Wheel rtn
• Z911

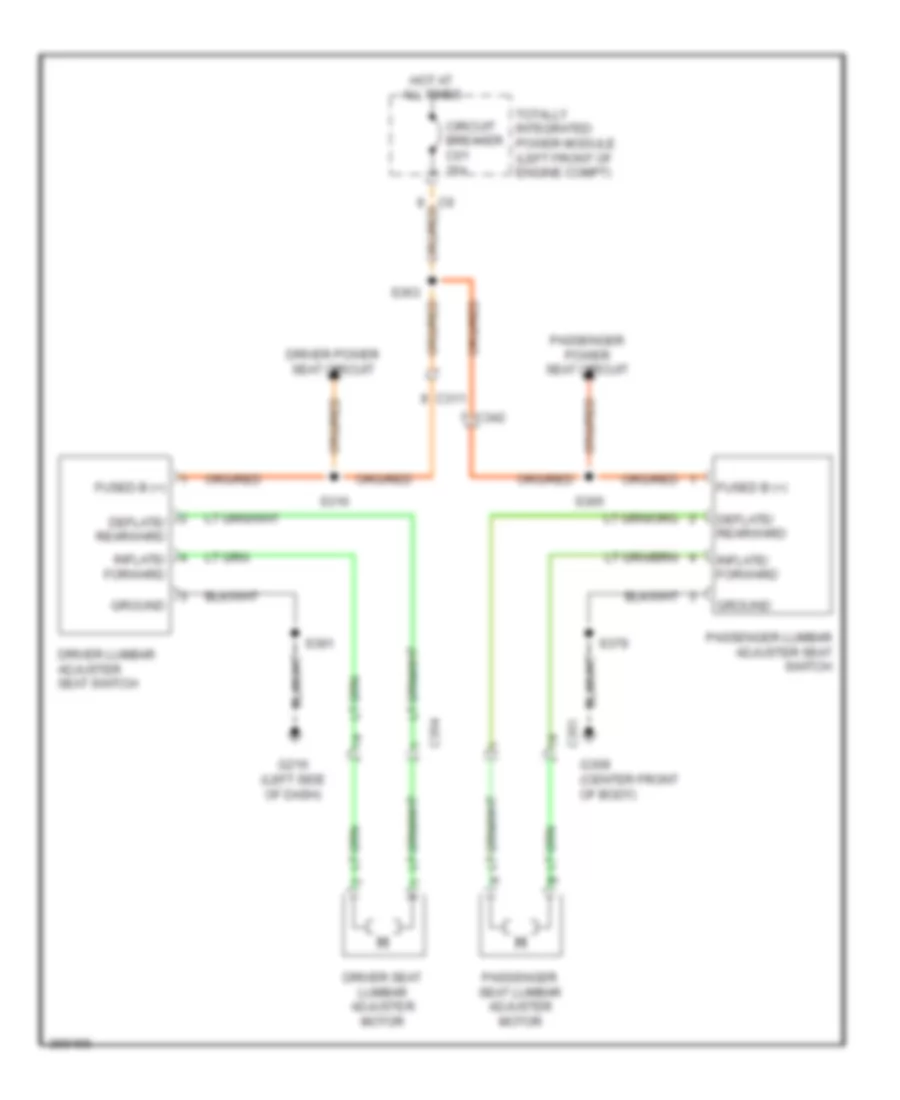

Электросхема регулировки поясницы для Dodge Pickup R3500 2010

Электросхема регулировки поясницы для Dodge Pickup R3500 2010 - Список элементов:

• C311
• C342
• C351
• C354
• Circuit breaker c01 25a
• Deflate/ rearward
• Driver lumbar adjuster seat switch
• Driver power seat circuit
• Driver seat lumbar adjuster motor
• Fused b (+)
• G210 (left side of dash)
• G309 (center front of body)
• Ground
• Hot at all times
• Inflate/ forward
• Passenger lumbar adjuster seat switch
• Passenger power seat circuit
• Passenger seat lumbar adjuster motor
• S316
• S363
• S365
• S379
• S391
• Totally integrated power module (left front of engine compt)

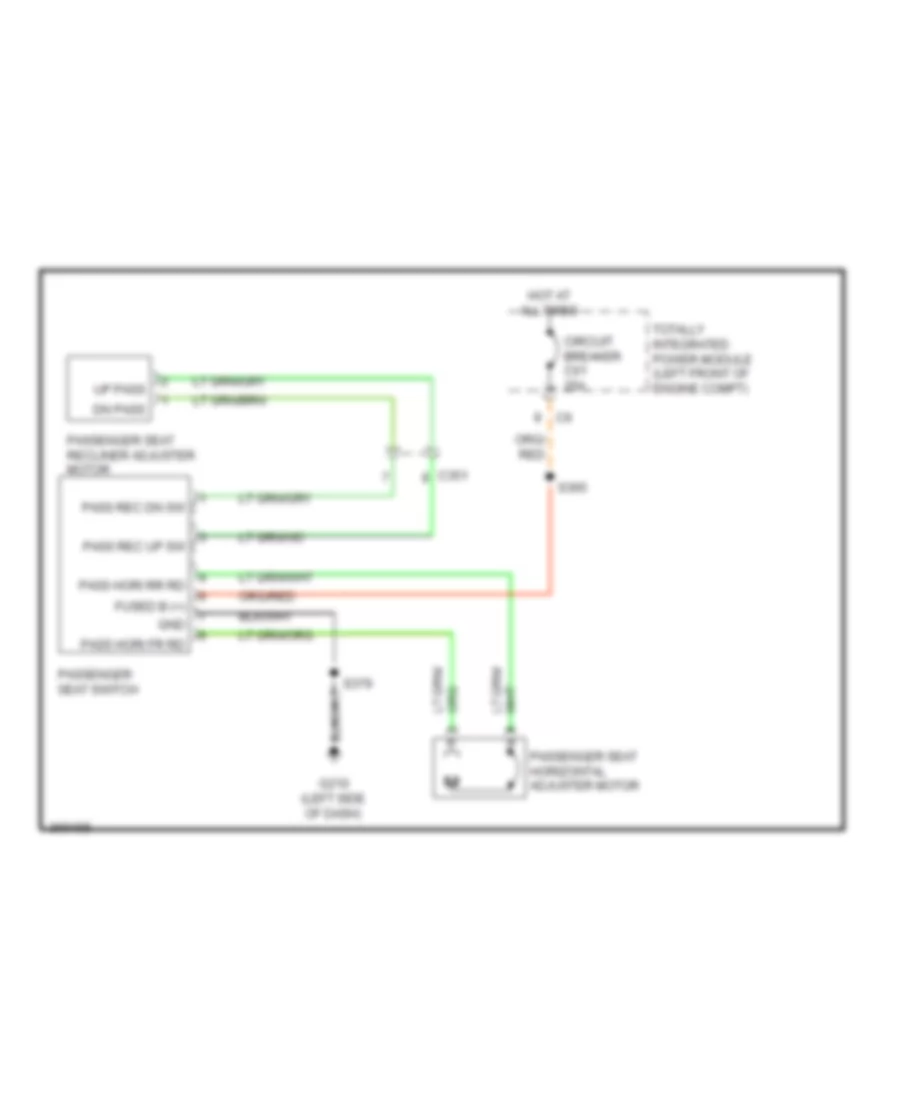

Электросхема привода пассажирского сиденья для Dodge Pickup R3500 2010

Электросхема привода пассажирского сиденья для Dodge Pickup R3500 2010 - Список элементов:

• C351
• Circuit breaker c01 25a
• Dn pass
• Fused b (+)
• G210 (left side of dash)
• Gnd
• Hot at all times
• Pass hori fr rd
• Pass hori rr rd
• Pass rec dn sw
• Pass rec up sw
• Passenger seat horizontal adjuster motor
• Passenger seat recliner adjuster motor
• Passenger seat switch
• S365
• S379
• Totally integrated power module (left front of engine compt)
• Up pass
