Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Dodge Pickup R3500 2010

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

Электросхема линии передачи данных CAN (1 из 2) для Dodge Pickup R3500 2010

Электросхема линии передачи данных CAN (1 из 2) для Dodge Pickup R3500 2010 - Список элементов:

• (6.7l) s167 (except 6.7l) s163
• (center front of body) s388
• (left kick panel) s380
• (left rear of engine compt) anti-lock brakes module
• (left side of dash)
• (left side of dash) (w/ steering angle sensor) s265
• (left side of dash) (w/ steering angle sensor) s266
• (left side of dash) data link connector
• (left side of engine compt)
• (right kick panel) s386
• (under center console)
• (w/ memory) s376
• A901
• B(+)
• Bus (+) can ihs
• Bus (-) can ihs
• C123
• C130
• C203
• C210
• C301
• C304
• C311
• Can bus (+)
• Can bus (-)
• Can bus2 (+)
• Can bus2 (-)
• Can c (+) diagnostic
• Can c (-) diagnostic
• Can ihs bus (+)
• Can ihs bus (-)
• Circuit board
• D264
• D265
• D51
• D52
• D64
• D65
• D71
• D72
• Diagnostic junction block (connector 1 & 2: left side of dash) (connector 3 & 4: right kick panel) (connector 5 & 6: left kick panel)
• Driver door module
• Except 6.7l
• Fuse m25 10a
• G211
• G212 (right side of dash)
• Heated seats module
• Hot at all times
• Memory seat module
• Occupant restraint controller module (center front of body)
• Passenger door module
• Radio amplifier (if equipped)
• Red/pnk
• S130
• S131
• S162 (except 6.7l) s166 (6.7l)
• S375 (w/ memory)
• S381 (left kick panel)
• S382
• S383
• S387 (right kick panel)
• S389
• Steering angle sensor (if equipped)
• Totally integrated power module (left front of engine compt)
• Trailer tow module
• W/ heated seats & memory
• W/o heated seats & memory
• Wireless ignition node
• Z910
• Z911

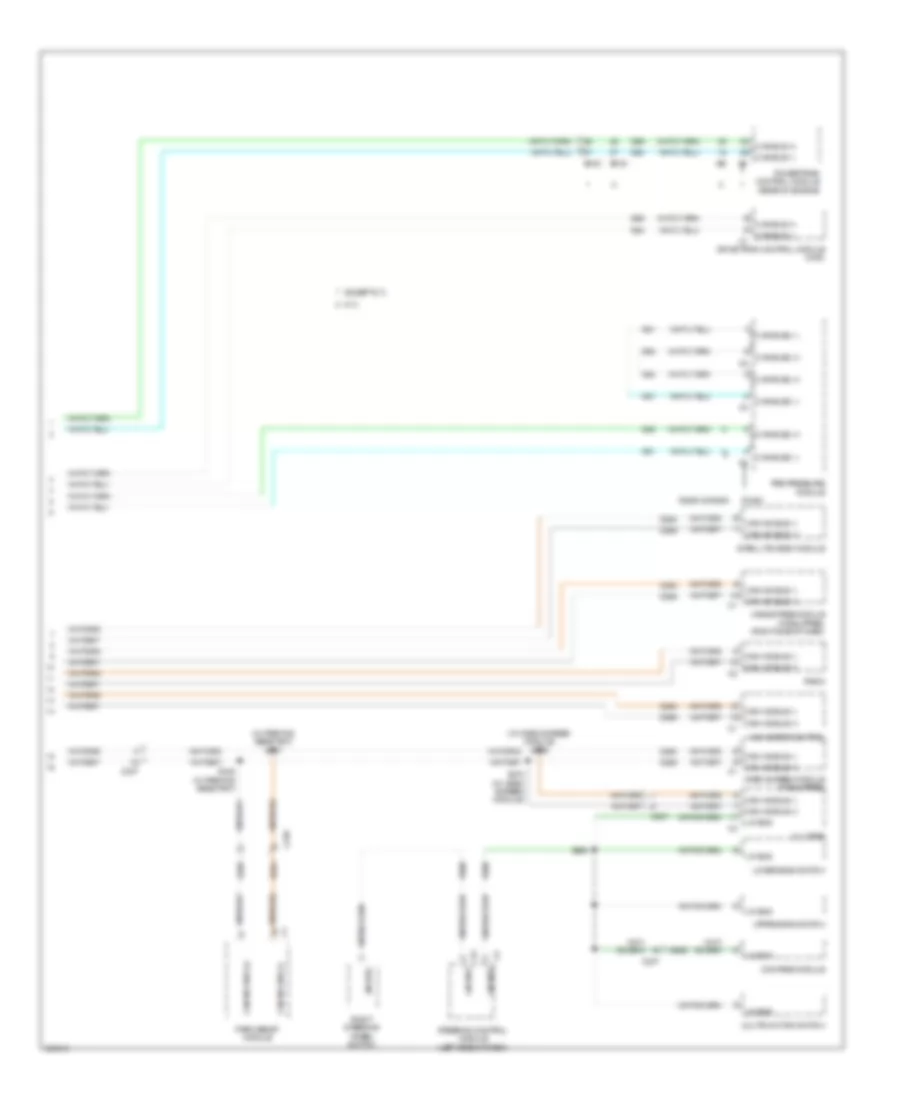

Электросхема линии передачи данных CAN (2 из 2) для Dodge Pickup R3500 2010

Электросхема линии передачи данных CAN (2 из 2) для Dodge Pickup R3500 2010 - Список элементов:

• (w/ parking assistant) s347
• (w/ video screen module) s369
• 6.7l
• A/c heater control
• C123
• C130
• C237
• C349
• Can bus (+)
• Can bus (-)
• Can bus2 (+)
• Can bus2 (-)
• Can ihs bus (+)
• Can ihs bus (-)
• Cluster
• Compass module
• D264
• D265
• D506
• D51
• D52
• D64
• D65
• Drive train control module (4wd)
• Except 6.7l
• Hands free module (if equipped) (right side of dash)
• Lin bus
• Lower bank switch
• Multifunction switch
• Park assist module
• Powertrain control module (rear of engine)
• R1500
• R2500 & r3500
• Radio
• Right steering wheel switch
• S263
• S348 (w/ parking assistant)
• S370 (w/ video screen module)
• Satellite video module
• Steering control module (left side of dash)
• Tire pressure module
• Upper bank switch
• Video screen module (if equipped)
