Электросхемы СИСТЕМЫ ПАМЯТИ Dodge Pickup R3500 2010

СИСТЕМЫ ПАМЯТИ

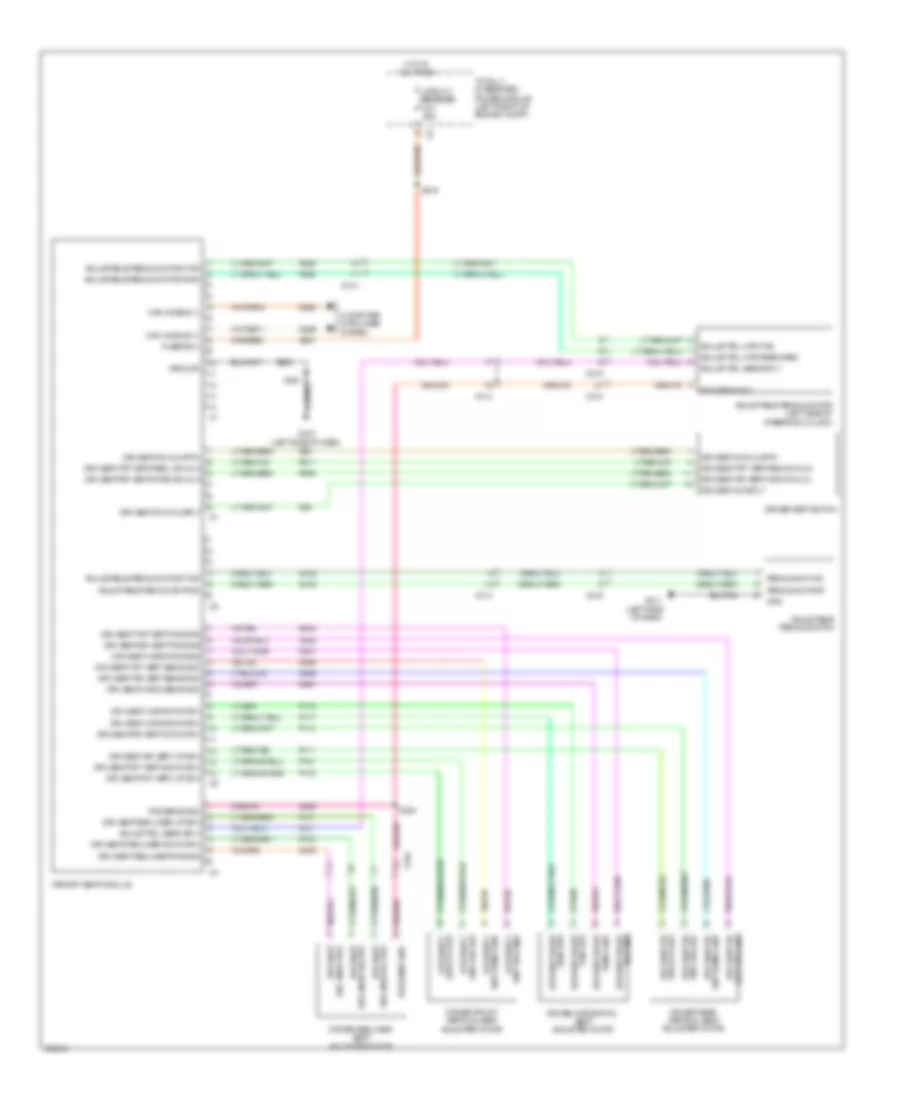

Электросхем памяти регулировки зеркал заднего вида (1 из 2) для Dodge Pickup R3500 2010

Электросхем памяти регулировки зеркал заднего вида (1 из 2) для Dodge Pickup R3500 2010 - Список элементов:

93

• A215
• A856
• C1 vert snse
• C16
• C160
• C203
• C206
• C3 mrr rtn driv heatd
• C304
• C305
• C311
• Can ihs bus (+)
• Can ihs bus (-)
• Computer data lines system
• D264
• D265
• D500
• D501
• Driv heatd mrr fd
• Driv heatd mrr rtn
• Driver door module
• Driver outside rearview mirror
• Driver window dn
• Driver window motor
• Driver window up
• Drv hall sens rtn
• Drv hall sens sig
• Drv mem mrr
• Drv mem mrr horz snse
• Drv mem mrr vert snse drv mem mrr snse com
• Drv mrr mem horz snse
• Drv pwr mrr
• Drv pwr mrr mtr com
• Drv pwr mrr mtr horz
• Drv pwr mrr mtr vert
• Drv sens sply
• Drv window dn
• Drv window up
• Ec mrr rtn
• Fuse j3 25a
• Fuse j7 25a
• G105 (left kick panel)
• G200
• G920
• Gnd
• Hot at all times
• Inside rearview mirror
• Iod fd to dr node-drv c3
• Lin bus
• Lin bus rtn
• M41
• Mem sel mux
• Mem sel snse rtn
• Memory set switch (if equipped)
• Mrr pddle lmp drv
• Mrr sig
• Mrr turn
• Mrr turn puddle rtn driv
• Mrr turn sig driv
• Mtr com
• Mtr horz
• Mtr vert
• Outsde ec
• Outsde ec mrr sig
• P112
• P114
• P501
• P591
• P65
• P67
• P69
• P71
• P73
• P75
• Q11
• Q21
• Q301
• Q305
• Q991
• Red
• S140
• S141
• S304
• S323
• S324
• Sens rtn drv window
• Sens sig drv window
• Sens sply drv window
• Sig driv
• Snse com
• Sw 5v pwr mrr batt fd driv
• Totally integrated power module (left front of engine compt)
• Z905

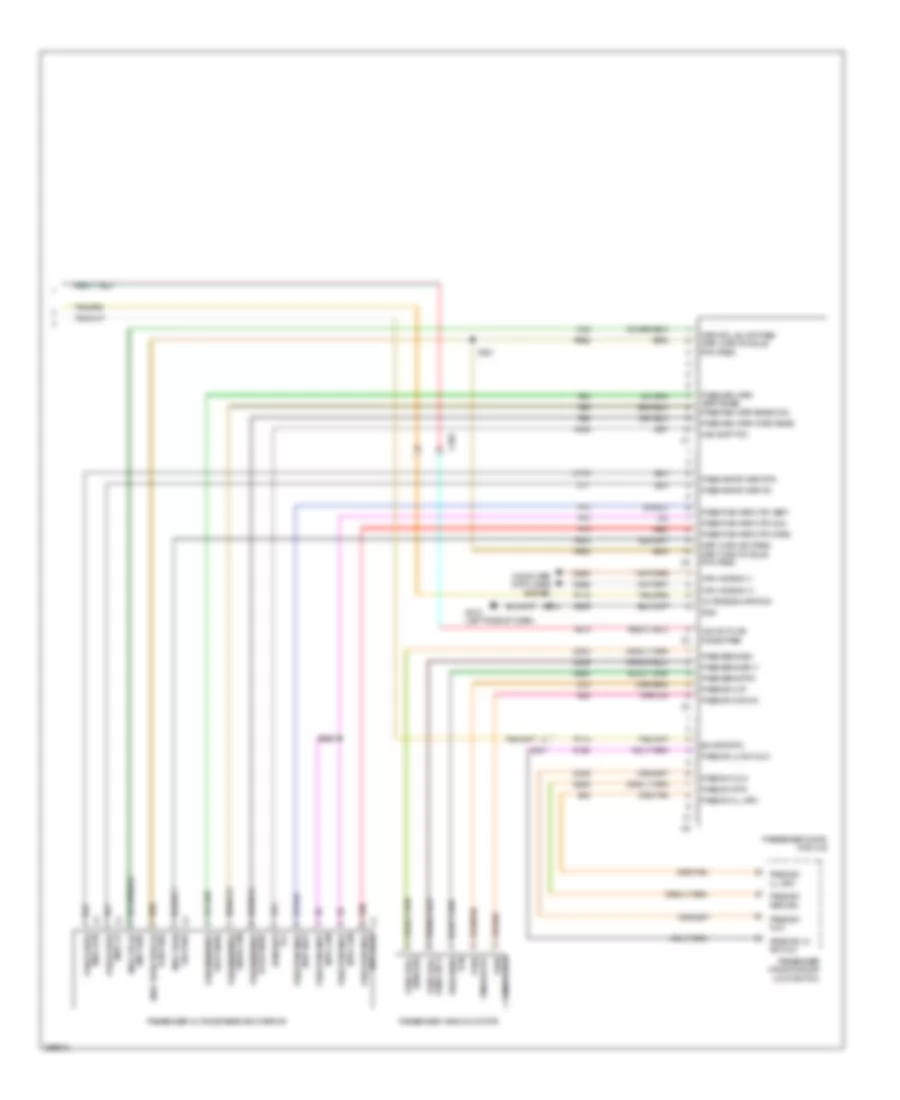

Электросхем памяти регулировки зеркал заднего вида (2 из 2) для Dodge Pickup R3500 2010

Электросхем памяти регулировки зеркал заднего вида (2 из 2) для Dodge Pickup R3500 2010 - Список элементов:

82

• A214
• A785
• C1 mtr horz
• C17
• C170
• C2 sig pass mrr turn
• C3 mrr rtn
• C301
• C4 mrr fd
• Can ihs bus (+)
• Can ihs bus (-)
• Computer data lines system
• D264
• D265
• E34
• Ec mrr rtn
• G160
• G210 (left side of dash)
• Gnd
• Hgm batt fd1
• Iod fd to dr node-pass
• M42
• Mrr pdlle lmp pass
• Mrr pdlle lmp pass mrr turn puddle rtn pass
• Mrr turn puddle
• Mrr turn sig pass mrr turn puddle rtn pass
• Mtr vert
• Outsde ec mrr sig
• P112
• P114
• P502
• P592
• P64
• P66
• P68
• P70
• P72
• P74
• Pass dr lk sw mux
• Pass drv down
• Pass drv up
• Pass hall sens sply
• Pass heatd
• Pass heatd mrr fd
• Pass heatd mrr rtn
• Pass mem mrr
• Pass mem mrr horz snse
• Pass mem mrr snse com
• Pass mem mrr vert snse
• Pass pwr mrr
• Pass pwr mrr mtr com
• Pass pwr mrr mtr horz
• Pass pwr mrr mtr vert
• Pass sens rtn
• Pass sens sig
• Pass sens sply
• Pass sw ill drv
• Pass sw mux
• Pass sw return
• Pass sw rtn
• Pass window dn
• Pass window up
• Passenger door module
• Passenger outside rearview mirror
• Passenger window motor
• Passenger window/door lock switch
• Q12
• Q22
• Q302
• Q306
• Q336
• Q936
• Q990
• Red
• Rtn pass
• Rtn pass sens
• S312
• S321
• S322
• Sens sig pass hall
• Snse com
• Z909

Электросхема памяти сидений для Dodge Pickup R3500 2010

Электросхема памяти сидений для Dodge Pickup R3500 2010 - Список элементов:

97

• A907
• Adjust pdl mtr fwd
• Adjust pdl mtr rearward
• Adjust pdl sens sply
• Adjustable pedals motor (left side of steering column)
• Adjustable pedals motor fwd
• Adjustable pedals motor rwd
• Adjustable pedals sw rwd
• Adjustable pedals switch
• C210
• C215
• C314
• C354
• Can ihs bus (+)
• Can ihs bus (-)
• Circuit breaker c01 25a
• Computer data lines system
• D264
• D265
• Driver front vertical seat adjuster motor
• Driver horizontal seat adjuster motor
• Driver rear vertical seat adjuster motor
• Driver recliner seat adjuster motor
• Driver seat switch
• Drv seat f vert dn drv
• Drv seat f vert up drv
• Drv seat frt vert down drv
• Drv seat frt vert pos sns
• Drv seat frt vert sens gnd
• Drv seat frt vert up drv
• Drv seat frt vert/rec sw mux
• Drv seat frt vert/recl sw mux
• Drv seat horiz fwd drv
• Drv seat horiz pos sns
• Drv seat horiz rwd drv
• Drv seat horiz sens gnd
• Drv seat recliner dn drv
• Drv seat recliner down drv
• Drv seat recliner pos
• Drv seat recliner pos sns
• Drv seat recliner up drv
• Drv seat rr vert down drv
• Drv seat rr vert pos sns
• Drv seat rr vert sens gnd
• Drv seat rr vert up drv
• Drv seat rr vert/hor sw mux
• Drv seat rr vert/horiz sw mux
• Drv seat sw mux rtn
• Drv seat sw mux sply
• Drv seat sw sply
• Fused b(+)
• G13
• G210 (left side of dash)
• G211 (left side of dash)
• G401
• G402
• G403
• G404
• G491
• G492
• G493
• G494
• Gnd
• Ground
• Hot at all times
• Memory seat module
• P111
• P113
• P115
• P117
• P119
• P121
• P141
• P143
• P205
• P206
• P28
• P29
• P309
• P311
• Pedals sw fwd
• Pedals sw rwd
• Pos sens gnd
• Pos sns drv seat horiz
• Q102
• Q103
• Recliner up drv drv seat
• S316
• S354
• Sens gnd drv seat horiz
• Totally integrated power module (left front of engine compt)
• Vert dn drv drv seat rr
• Vert pos gnd drv seat rr
• Vert pos sns drv seat f
• Vert sens gnd drv seat f
• Vert sens gnd drv seat rr
• Z909
