Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Porsche 911 Carrera S 2009

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

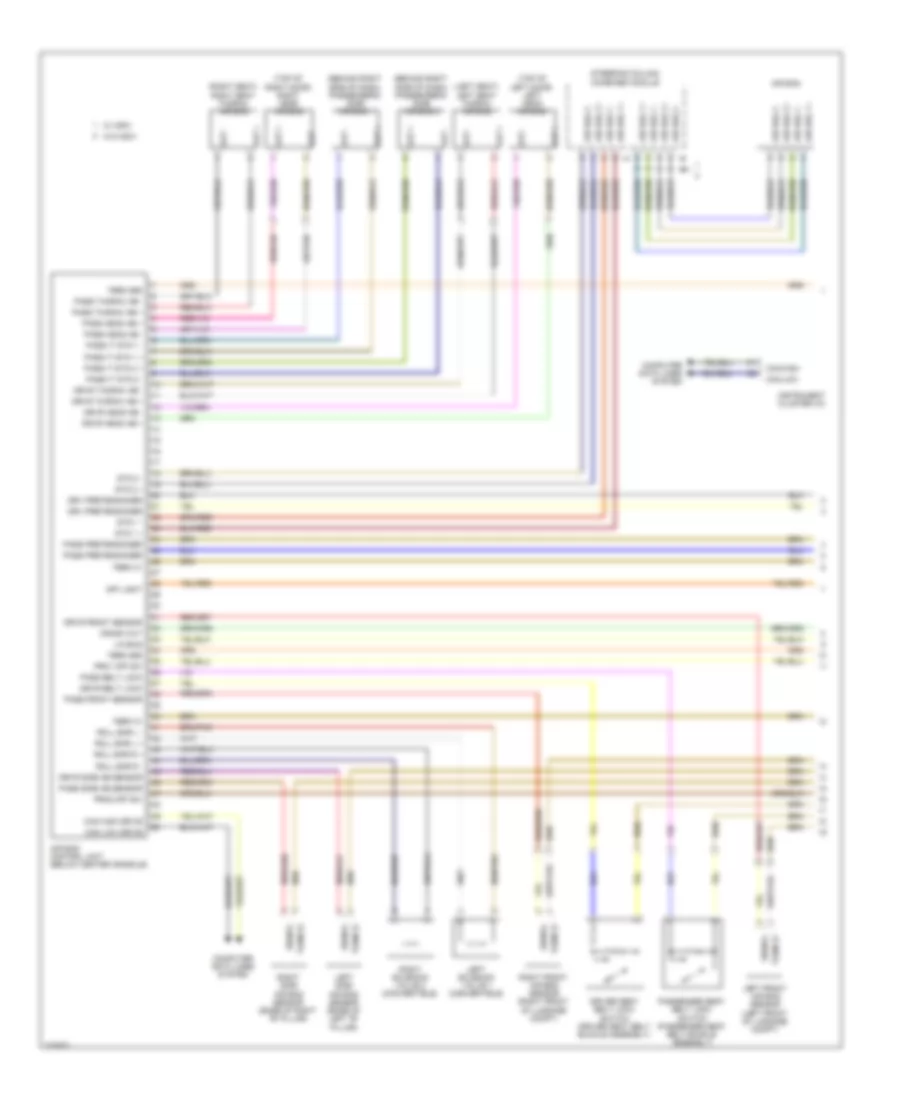

Электросхема подушек безопасности SRS AirBag (1 из 2) для Porsche 911 Carrera S 2009

Электросхема подушек безопасности SRS AirBag (1 из 2) для Porsche 911 Carrera S 2009 - Список элементов:

• (behind right side of dash) passenger's side air bag 1
• (behind right side of dash) passenger's side air bag 2
• (left seat) left seat thorax air bag
• (right seat) right seat thorax air bag
• (top of left door) left head air bag
• (top of right door) right head air bag
• Air bag
• Air bag 1 +
• Air bag 1 -
• Air bag 2 +
• Air bag 2 -
• Air bag control unit (below center console)
• Can high
• Can high drive
• Can low
• Can low drive
• Computer data lines system
• Crash out
• Driver seat belt lock switch (driver seat belt buckle assembly)
• Drv pretensioner
• Drvr belt lock
• Drvr front sensor
• Drvr head ab +
• Drvr head ab -
• Drvr side ab sensor
• Drvr thorax ab +
• Drvr thorax ab -
• Instrument cluster (ic)
• Left front air bag sensor (left front of luggage compt)
• Left side air bag sensor (base of left "b" pillar)
• Left solenoid valve 1 (convertible)
• Lin bus
• Off light
• Out +
• Out -
• Pass belt lock
• Pass front sensor
• Pass head ab +
• Pass head ab -
• Pass it stg 1 +
• Pass it stg 1 -
• Pass it stg 2 +
• Pass it stg 2 -
• Pass pretensioner
• Pass side ab sensor
• Pass thorax ab +
• Pass thorax ab -
• Passenger seat belt lock switch (passenger seat belt buckle assembly)
• Pro1 off sw
• Pro2 off sw
• Right front air bag sensor (right front of luggage compt)
• Right side air bag sensor (base of right "b" pillar)
• Right solenoid valve 2 (convertible)
• Roll bar l +
• Roll bar l -
• Roll bar r +
• Roll bar r -
• Signal
• Steering column combined module
• Stg 1 +
• Stg 1 -
• Stg 2 +
• Stg 2 -
• Term 31
• Term 86s
• W/ msw
• W/o msw

Электросхема подушек безопасности SRS AirBag (2 из 2) для Porsche 911 Carrera S 2009

Электросхема подушек безопасности SRS AirBag (2 из 2) для Porsche 911 Carrera S 2009 - Список элементов:

• (behind right side of dash) pasm control unit
• (left front of engine compt) dme control unit
• (relay support 1) terminal 86s relay
• Air bag off display
• Can comfort high
• Can comfort low
• Computer data lines system
• Current distributor (behind right side of dash)
• Driver seat belt pretensioner
• Extent cable pre-installation seat
• Fuse f1 15a
• Fuse f7 80a
• Fuse holder b
• Gp air bag (under center console)
• Hot at all times
• Left front weight sensor
• Left rear weight sensor
• Lin
• Lin bus
• Nca
• Out +
• Out -
• Passenger air bag off switch
• Passenger's seat belt pretensioner
• Power distribution system
• Red
• Right front weight sensor
• Right rear weight sensor
• S0 sensor +
• S0 sensor -
• S1 sensor +
• S1 sensor -
• S2 sensor +
• S2 sensor -
• S3 sensor +
• S3 sensor -
• Sensor +
• Sensor -
• Term 30
• Term 31
• Term 86s
• Weight recognition control unit
