ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

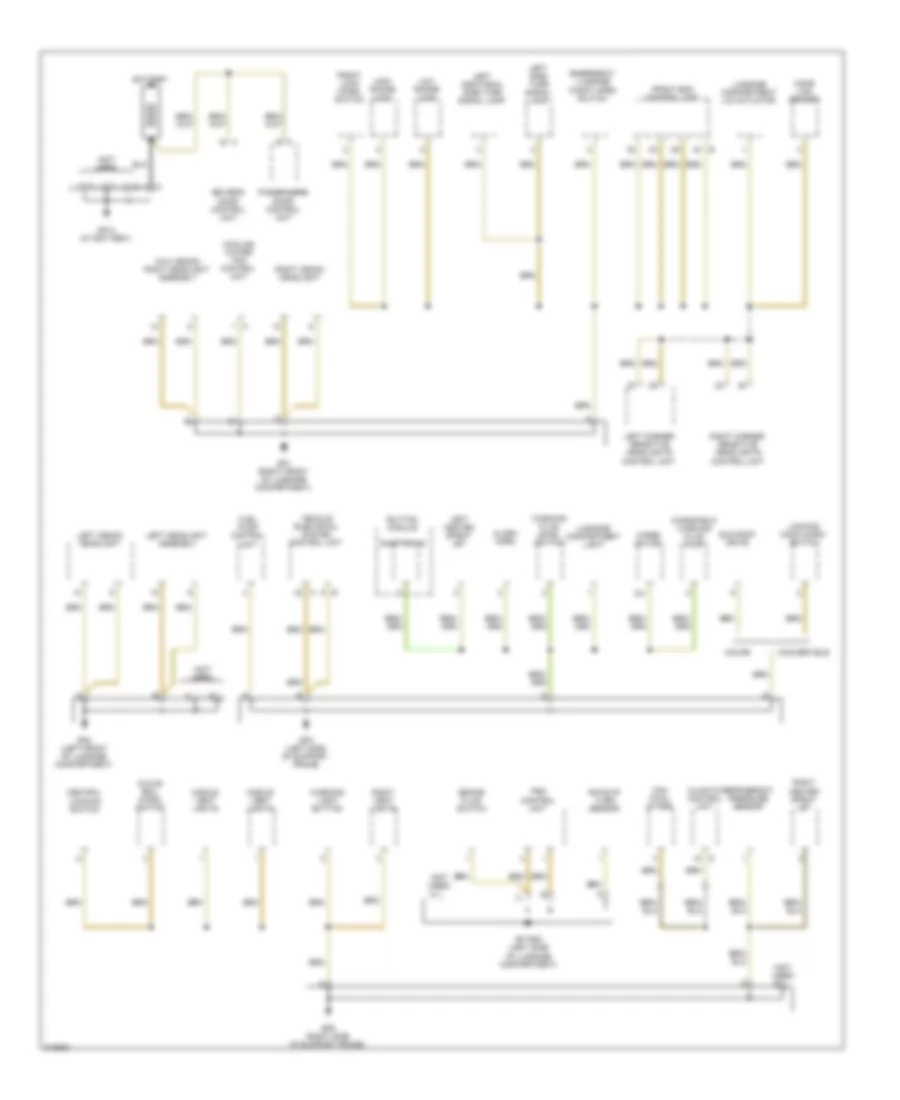

Электросхема подключение массы заземления (1 из 4) для Porsche 911 Carrera S 2009

Электросхема подключение массы заземления (1 из 4) для Porsche 911 Carrera S 2009 - Список элементов:

• (not used)
• (w/o xenon) right headlight assembly
• Alarm horn
• Battery
• Brake fluid switch
• Button module
• Central locking switch
• Climatic control unit
• Compt open switch
• Convertible
• Cooling water fan control unit
• Coupe
• Damptronic
• Driver's door control unit
• Emergency luggage
• Fan final stage
• Front end control unit
• Front lock micro switch
• Fuel pump control unit
• Glove box micro switch
• Gp psm (left side of luggage compartment)
• Gp1 (right front of luggage compartment)
• Gp13 (at battery)
• Gp2 (left front of luggage compartment)
• Gp3 (left side of support frame)
• Gp5 (right side of support frame)
• High range horn
• Home link sender
• Left additional side turn signal lamp
• Left corner sensitive headlights control unit
• Left headlight assembly
• Left heated spray jet
• Left side turn signal lamp
• Left xenon headlight
• Locking hook micro- switch
• Low range horn
• Luggage compartment lid actuator
• Luggage compartment light
• Middle vent lights
• Passenger's door control unit
• Psm control unit
• Rate of turn sensor
• Refrigerant pressure sensor
• Right corner sensitive headlights control unit
• Right heated spray jet
• Right vent lights
• Right xenon headlight
• Sun roof drive
• Vehicle electrical system control unit
• Warning light button
• Washing fluid level switch
• Windshield washing fluid pump
• Wiper motor

Электросхема подключение массы заземления (2 из 4) для Porsche 911 Carrera S 2009

Электросхема подключение массы заземления (2 из 4) для Porsche 911 Carrera S 2009 - Список элементов:

• (convertible) convertible top/glass roof switch
• (coupe) back window heater
• (not used)
• Ashtray lighting
• Bridge plug (relay support 1)
• Cigars lighters
• Clutch interlock switch
• Combined steering column module
• Diagnostic plug socket
• Dme control unit
• Electronic ignition lock
• Engine compartment fan
• Extended spoiler
• Gateway control unit
• Gp4 (center of support frame)
• Gp9 (right rear of engine compt)
• Headlight washing fluid pump
• Headlight washing relay
• Homelink button 1
• Homelink button 2
• Ignition coil 1
• Ignition coil 2
• Ignition coil 3
• Ignition coil 4
• Ignition coil 5
• Ignition coil 6
• Instrument cluster
• Interior sensor
• Left vents light
• Light switch
• Package tray socket
• Parking brake contact switch
• Pas control unit
• Rdk control unit
• Rear window heater relay
• Rfl switch
• Right taillight assembly
• Socket 2
• Spoiler switch
• Sport- chrono
• Vehicle electrical system control unit

Электросхема подключение массы заземления (3 из 4) для Porsche 911 Carrera S 2009

Электросхема подключение массы заземления (3 из 4) для Porsche 911 Carrera S 2009 - Список элементов:

• (not used)
• (w/ memory seat) right memory seat control unit
• Air bag control unit
• Alarm siren
• Ask amplifier
• Bose amplifier
• Diagnostic plug socket
• Driver seat belt buckle switch
• Driver's side air bag sensor
• Electrical static discharge
• Gp air bag (under center console)
• Gp electronics (left side of support bracket)
• Gp6 (under front passenger's seat)
• Left front sensor
• Left seat side pad heating element
• Mobile phone
• Nca
• Pasm control unit
• Passenger air bag off switch
• Passenger seat belt buckle switch
• Passenger's side air bag sensor
• Pcm
• Right front brake pad wear contact/speed sensor
• Right front sensor
• Right power seat switch
• Seat cushions side heating element
• Subwoofer
• Telephone handset
• Television tuner
• Television tuner shield
• To left door
• To left seat
• To right door
• To right seat
• W/ bose & coupe
• W/o bose
• Weight recognition control unit

Электросхема подключение массы заземления (4 из 4) для Porsche 911 Carrera S 2009

Электросхема подключение массы заземления (4 из 4) для Porsche 911 Carrera S 2009 - Список элементов:

• (convertible soft top) rear window defogger
• (not used)
• Convertible hard top
• Convertible top
• Convertible top compartment lid micro switch
• Convertible top control unit
• Convertible top micro switch
• Cooling water level switch
• Gp7 (under driver's seat)
• Gp8 (left rear of engine compt)
• Left front brake pad wear contact/speed sensor
• Left license plate light
• Left power seat adjustment switch
• Left power seat switch
• Left rear brake pad wear contact/speed sensor
• Left rear power window
• Left rear side flap
• Left seat memory control unit
• Left seat side pad heating element
• Left taillight assembly
• Nca
• Parking assistant control unit
• Pump motor
• Rear control unit
• Rear window defogger
• Rear window wiper
• Right license plate light
• Right power seat switch
• Right rear brake pad wear contact/speed sensor
• Right rear power window
• Right rear side flap
• Seat cushions side heating element
• Selector level control unit
• Sill button module
• Tailgate actuator
• Tailgate switch
• Tilt sensor
• Valve block
