Электросхемы Стеклоочистители и Стеклоомыватели Дворники Porsche 911 Carrera S 2009

Стеклоочистители и Стеклоомыватели Дворники

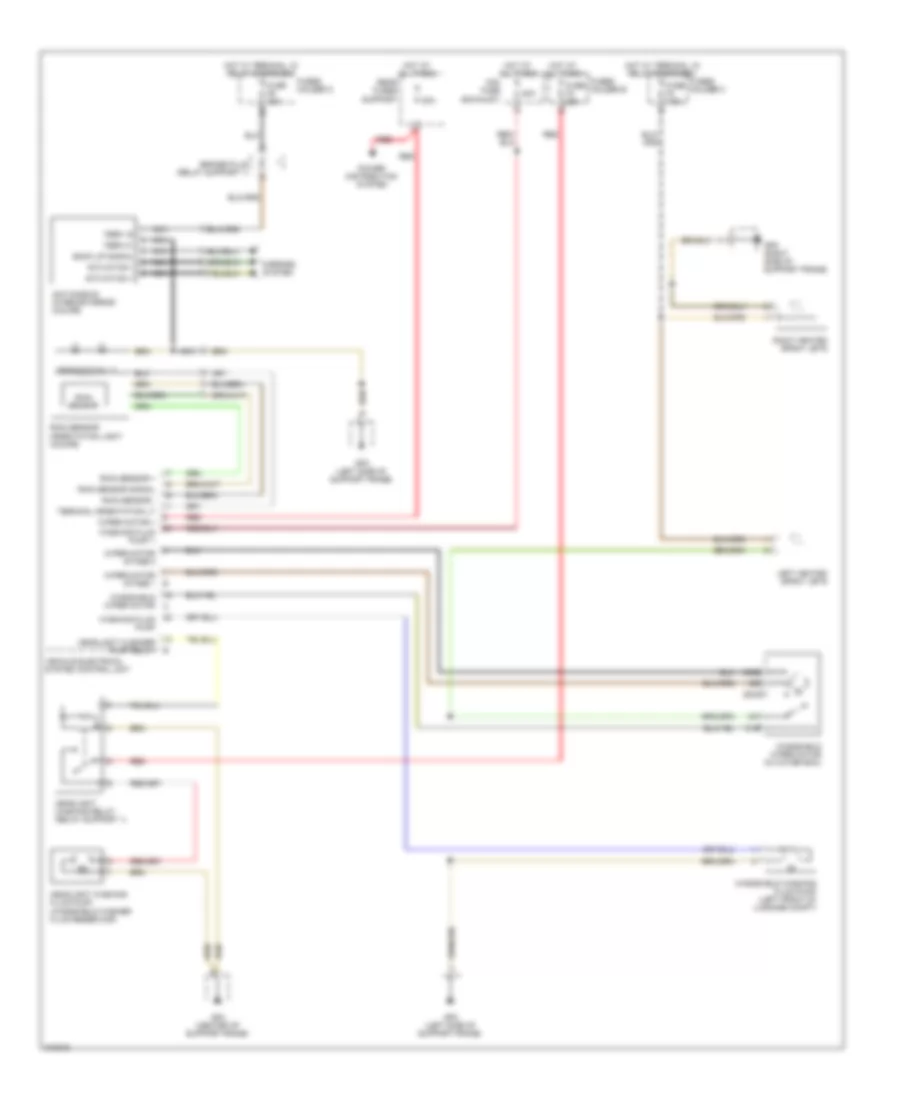

Электросхема передних стеклоочистителей дворников и омывателя лобового стекла, С Датчик дождя для Porsche 911 Carrera S 2009

Электросхема передних стеклоочистителей дворников и омывателя лобового стекла, С Датчик дождя для Porsche 911 Carrera S 2009 - Список элементов:

• 131b
• 253a
• 553b
• 80a
• Actuation +
• Actuation -
• Anti-dazzle interior mirror (coupe)
• Back up signal
• Bridge plug (relay support 1)
• Fuse f2 7.5a
• Fuse f4 25a
• Fuse f6 15a
• Fuses holder b
• Fuses holder c
• Gp3 (left side of support frame)
• Gp4 (center of support frame)
• Gp5 (right side of support frame)
• Headlight cleaner pump relay b
• Headlight washing fluid pump (windshield washer fluid reservoir)
• Headlight washing relay (relay support 1)
• Hot at all times
• Hot w/ terminal 15 relay energized
• Left heated spray jets
• Midi fuse (exhaust)
• Mirrors system
• Nca
• Orientation lt
• Power distribution system
• Rain sensor
• Rain sensor +
• Rain sensor -
• Rain sensor orientation light (coupe)
• Rain sensor signal
• Rear fuses support
• Red
• Right heated spray jets
• Term 15
• Term 31
• Terminal orientation lt
• Vehicle electrical system control unit
• Washing fluid pump
• Washing fluid pump +
• Windshield washing fluid pump (left front of luggage compt)
• Windshield wiper motor (in water box)
• Windshield wiper motor a
• Wiper motor +
• Wiper motor stage 1 b
• Wiper motor stage 2

Электросхема передних стеклоочистителей дворников и омывателя лобового стекла, без Датчик дождя для Porsche 911 Carrera S 2009

Электросхема передних стеклоочистителей дворников и омывателя лобового стекла, без Датчик дождя для Porsche 911 Carrera S 2009 - Список элементов:

• 131b
• 253a
• 553b
• Current distributor (behind right side of dash)
• Fuse f2 7.5a
• Fuse f2 80a
• Fuse f4 25a
• Fuses holder b
• Fuses holder c
• Gp3 (left side of support frame)
• Gp4 (center of support frame)
• Gp5 (right side of support frame)
• Headlight cleaner pump relay b
• Headlight washing fluid pump (windshield washer fluid reservoir)
• Headlight washing relay (relay support 1)
• Hot at all times
• Hot w/ terminal 15 relay energized
• Left heated spray jets
• Midi fuse 80a
• Power distribution system
• Rear fuses support
• Red
• Right heated spray jets
• Vehicle electrical system control unit
• Washing fluid pump
• Washing fluid pump +
• Windshield washing fluid pump (left front of luggage compt)
• Windshield wiper motor (in water box)
• Windshield wiper motor a
• Wiper motor +
• Wiper motor stage 1 b
• Wiper motor stage 2

задняя схема дворника для Porsche 911 Carrera S 2009

задняя схема дворника для Porsche 911 Carrera S 2009 - Список элементов:

• (left rear of engine compt) gp8
• Bridge plug (relay support 1)
• Fuse f6 15a
• Fuse holder c
• Hot w/ terminal 15 relay energized
• Input
• Rear control unit (under driver's seat)
• Rear window wiper
• Tail wiper module
• Term 15
• Term 31
