Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Porsche 911 Carrera S 2009

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

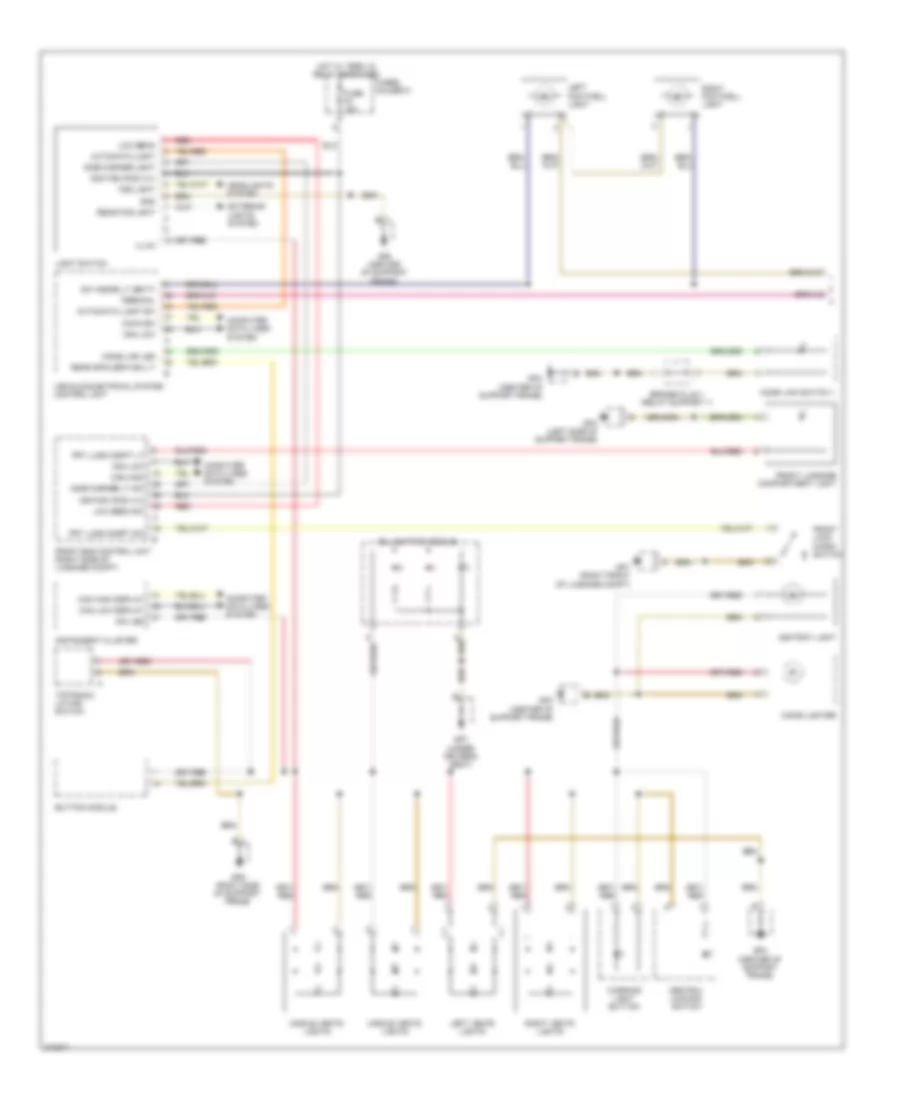

Электросхема освещения салона (1 из 2) для Porsche 911 Carrera S 2009

Электросхема освещения салона (1 из 2) для Porsche 911 Carrera S 2009 - Список элементов:

• Ashtray light
• Automatic light
• Automatic light sw
• Bridge plug 1 (relay support 1)
• Button module
• Can high
• Can high display
• Can low
• Can low display
• Central locking switch
• Cigar lighter
• Computer data lines system
• Dim led
• Exterior lights system
• Fog light
• Front end control unit (right side of luggage compt)
• Front lock micro- switch
• Front luggage compartment light
• Frt lugg compt lt
• Frt lugg compt sw
• Fuse f3 10a
• Fuses holder c
• Gnd
• Gp1 (right front of luggage compt)
• Gp3 (left side of support frame)
• Gp4 (center of support frame)
• Gp5 (right side of support frame)
• Gp7 (under driver's seat)
• Headlights system
• Home link led
• Home link switch 1
• Hot w/ term 15 relay energized
• Ignition (pos ii/iii)
• Illum
• Instrument cluster
• Left footwell light
• Left vents lights
• Light switch
• Low beam
• Low beam sw
• Middle vents lights
• Rear fog light
• Rear spoiler func lt
• Red
• Right footwell light
• Right vents lights
• Side marker light
• Side marker lt sw
• Sill button module
• Sw inside lt (batt)
• Terminal
• Tiptronic lifting switch
• Vehicle electrical system control unit
• Warning light button

Электросхема освещения салона (2 из 2) для Porsche 911 Carrera S 2009

Электросхема освещения салона (2 из 2) для Porsche 911 Carrera S 2009 - Список элементов:

• (not used)
• Can high
• Can high comfort
• Can low
• Can low comfort
• Computer data lines system
• Door lock lt
• Door lock lt gnd
• Driver's door control unit
• Driver's power window switch
• Engine compartment light
• Engine compt lt
• Extended spoiler
• Glove box micro sw
• Glove box micro switch
• Gnd
• Gp3 (left side of support frame)
• Gp5 (right side of support frame)
• Gp8 (left rear of engine compt)
• Inside door handle lt
• Interior light (coupe)
• Left door lock light
• Left outside door handle micro switch
• Memory switch
• Mirror adjustment switch
• Operation gnd sw
• Outside cls door handle
• Passenger's door control unit
• Passenger's power window switch
• Rear control unit (under driver's seat)
• Rear lock micro sw
• Rear lock micro switch
• Right door lock light
• Right outside door handle micro switch
• Tl sw position i & ii
