Электросхемы СИСТЕМЫ ПАМЯТИ Porsche 911 Carrera S 2009

СИСТЕМЫ ПАМЯТИ

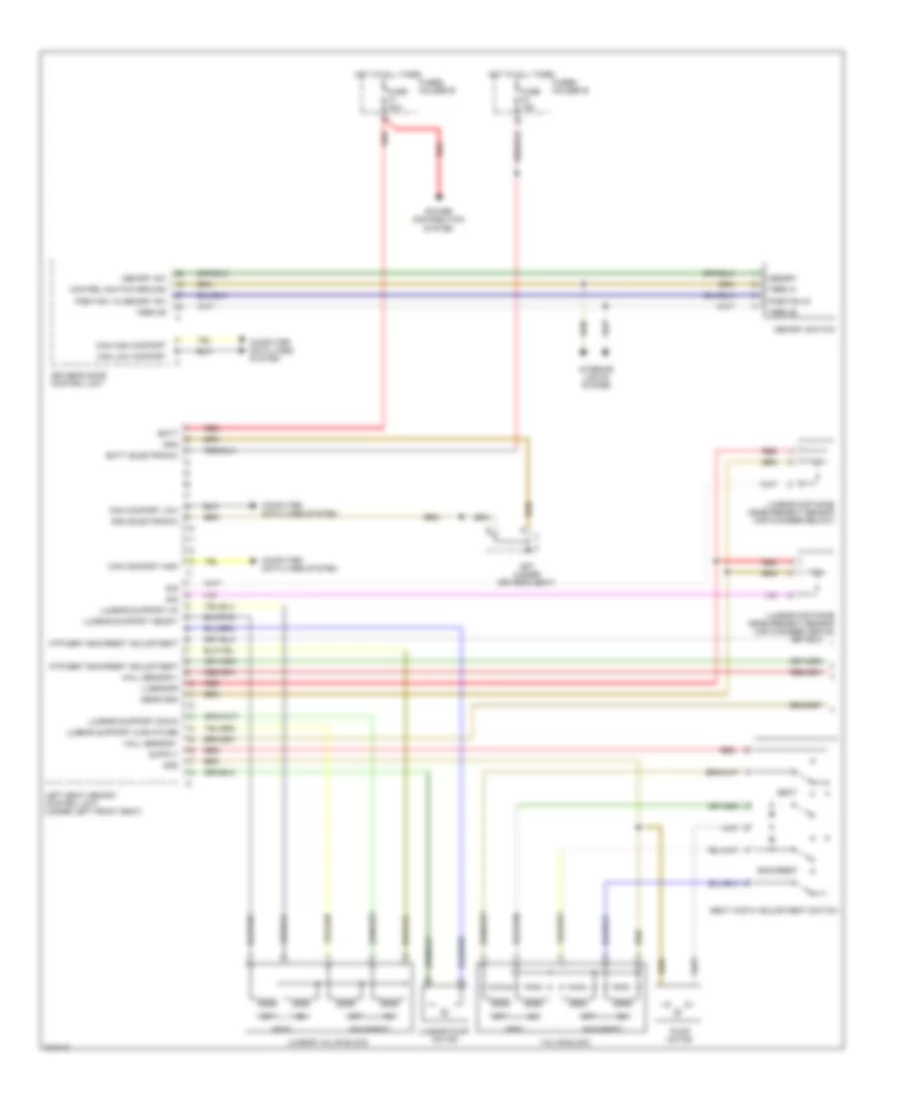

Электросхема памяти водительского сиденья (1 из 2) для Porsche 911 Carrera S 2009

Электросхема памяти водительского сиденья (1 из 2) для Porsche 911 Carrera S 2009 - Список элементов:

• Backrest
• Batt
• Batt (electronic)
• Can comfort high
• Can comfort low
• Can high comfort
• Can low comfort
• Computer data lines system
• Control switch ground
• Driver's door control unit
• Fuse f1 30a
• Fuse f3 15a
• Fuses holder b
• Fuses holder e
• Gnd
• Gnd (electronic)
• Gp7 (under driver's seat)
• Hall sensor +
• Hall sensor -
• Hot at all times
• Interior lights system
• Left seat memory control unit (under left front seat)
• Lumbar distance measurement sensor (air chamber above)
• Lumbar distance measurement sensor (air chamber below)
• Lumbar pump motor
• Lumbar support curvature
• Lumbar support down
• Lumbar support height
• Lumbar support up
• Lumbar valve block
• Memory
• Memory sw
• Memory switch
• Mtr seat backrest adjustment
• Off
• Position 1/2 memory sw
• Position id
• Power distribution system
• Pump motor
• Red
• Seat
• Seat width adjustment switch
• Sens gnd
• Sig
• Term 31
• Term 58
• U sensor
• Valve block

Электросхема памяти водительского сиденья (2 из 2) для Porsche 911 Carrera S 2009

Электросхема памяти водительского сиденья (2 из 2) для Porsche 911 Carrera S 2009 - Список элементов:

• Back motors +
• Back seat fore-and-aft adjustment
• Front seat cushion height control motor
• Front seat height adjustment
• Front seat height adjustment motor
• Hall sensor +
• Hall sensor -
• In front of motors +
• Left seat memory control unit (under left front seat)
• Lumbar support down
• Lumbar support up
• Motor seat fore-and -aft adjustment
• Motor seat fore-and-aft adjustment
• Power seat switch
• Rear seat cushion height control motor
• Rear seat height adjustment
• Rear seat height adjustment motor
• Seat back forward control motor
• Seat backrest adjustment
• Seat backrest control motor
• Seat lumbar 4-way switch

Электросхем памяти регулировки зеркал заднего вида для Porsche 911 Carrera S 2009

Электросхем памяти регулировки зеркал заднего вида для Porsche 911 Carrera S 2009 - Список элементов:

• Adjusting motor
• Adjustment
• Anti-dazzle +
• Anti-dazzle -
• Battery
• Control switch ground
• Driver's door control unit
• Driver's mirror
• Driver's mirror adjustment switch
• Fuse f4 30a
• Fuses holder a
• Gp13 (at battery)
• Ground
• Heating
• Heating ground
• Hot at all times
• Interior lights system
• Memory
• Memory sw
• Memory switch
• Mirror adjustment
• Mirror changeover sw
• Mirror heater +
• Mirror heating gnd
• Mirror motor control y
• Mirror motor x
• Mirror motor x/y
• Mirror poti
• Mirror poti +
• Mirror poti 5v
• Mirror poti pos x
• Mirror poti pos y
• Mirror poti term 31
• Mirror poti x
• Mirror poti y
• Mirrors system
• Passenger's door control unit
• Passenger's mirror
• Position 1/2 memory sw
• Position id
• Term 30 power window
• Term 31
• Term 58
