Электросхемы Магнитола Мультимедия Dodge Journey Crew 2010

Магнитола Мультимедия

Электросхема Hands Free Bluetooth подключение телефона для Dodge Journey Crew 2010

Электросхема Hands Free Bluetooth подключение телефона для Dodge Journey Crew 2010 - Список элементов:

• (i.o.d) fused b (+)
• (not used)
• A413
• C201
• C201 d
• C212
• C318
• Can bus (+)
• Can bus (-)
• Common audio out
• Computer data lines system
• D264
• D265
• Fuse m10 20a
• G107
• Ground
• Hands free module (left end of dash)
• Hot at all times
• Inside rearview mirror
• Lh audio out
• Media port (uci)
• Mic ref
• Microphone 2 in (+)
• Microphone feed
• Microphone in (+)
• Microphone in (-)
• Nca
• Radio
• Red
• Rh audio out
• Rh audio out common audio out c1
• S220
• S221 (center of dash)
• S223
• S225
• Tan
• Totally integrated power module (left rear of engine compt)
• Uci audio lh in
• Uci audio ref
• Uci audio rh in
• Uci device det
• Uci ext receive
• Uci ext trans
• Uci id
• Uci pwr feed
• Uci shield
• Uvi device det
• X430
• X431
• X435
• X436
• X437
• X439
• X440
• X441
• X703
• X704
• X712
• X722
• X792
• X793
• X795
• X835
• Z433
• Z907

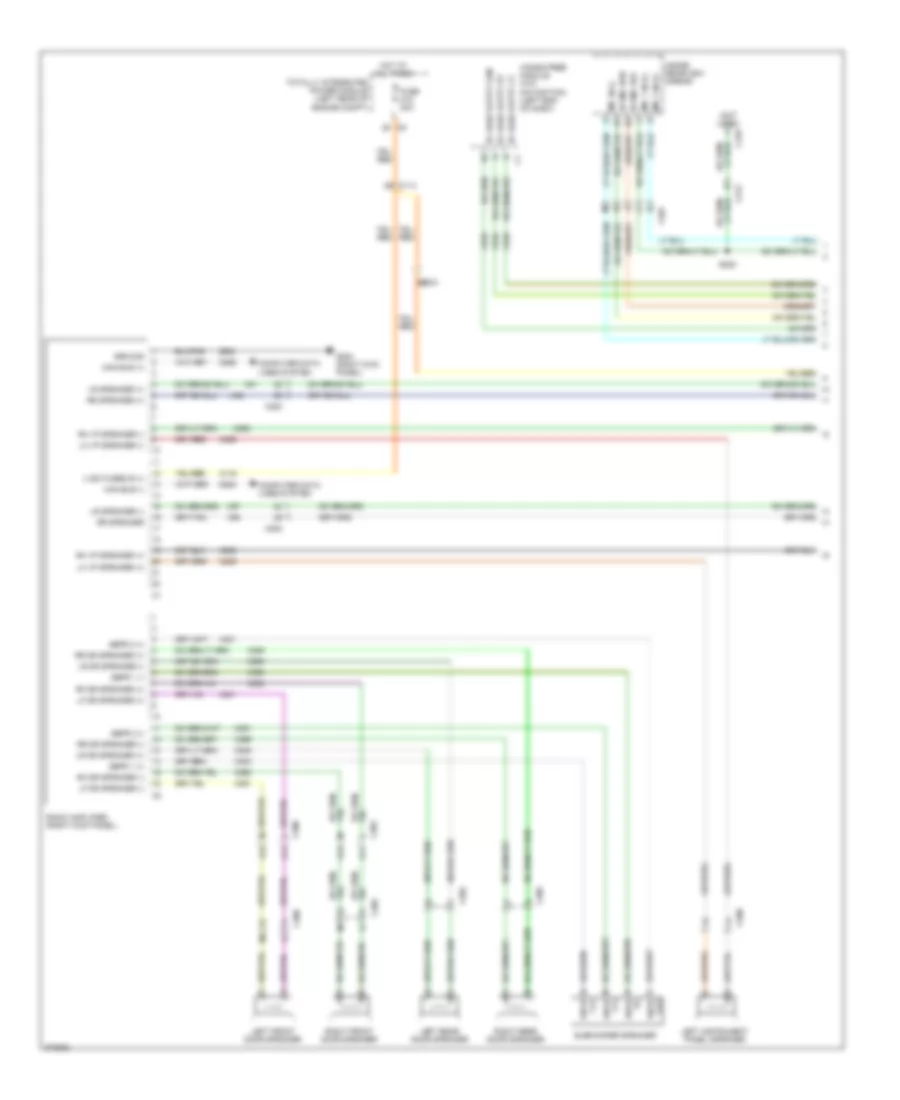

Электросхема магнитолы, стандартная комплектация для Dodge Journey Crew 2010

Электросхема магнитолы, стандартная комплектация для Dodge Journey Crew 2010 - Список элементов:

• A11 l
• A116
• A12 m
• C144
• C200
• C203
• C300
• C302
• C304
• C305
• Can interior bus (+)
• Can interior bus (-)
• Computer data lines system
• D108
• D264
• D265
• Fuse m12 30a
• G107
• Gps ant shield
• Gps ant shld
• Gps ant sig
• Gps radio antenna
• Ground
• Hot at all times
• Iod fd
• Left front door speaker
• Left instrument panel speaker
• Left rear door speaker
• Lf dr speaker 1 (+)
• Lf dr speaker 1 (-)
• Lr dr speaker (+)
• Lr dr speaker (-)
• Rad to aux aud comp fd
• Rad to aux aud comp fd c2
• Radio
• Radio antenna (rear of overhead rail)
• Rf dr speaker 1 (+)
• Rf dr speaker 1 (-)
• Right front door speaker
• Right instrument panel speaker
• Right rear door speaker
• Rr dr speaker (+)
• Rr dr speaker (-)
• Totally integrated power module (left rear of engine compt)
• X201
• X202
• X205
• X206
• X291
• X292
• X295
• X296
• X62
• Z907

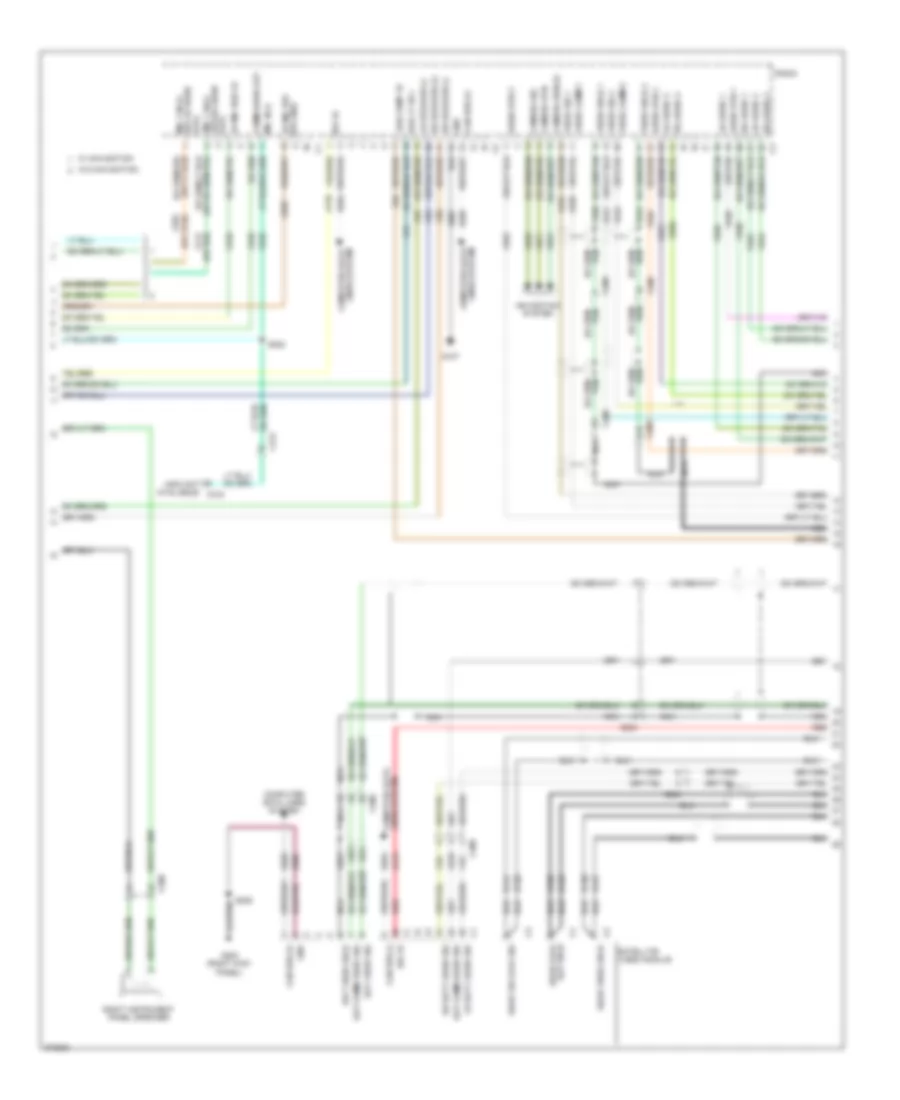

Электросхема магнитолы, Премиум класс (1 из 4) для Dodge Journey Crew 2010

Электросхема магнитолы, Премиум класс (1 из 4) для Dodge Journey Crew 2010 - Список элементов:

• (i.od) fused b (+)
• (not used)
• 1(-)
• A116
• C114
• C200
• C201
• C212
• C300
• C302
• C304
• C305
• C318
• Can bus (+)
• Can bus (-)
• Computer data lines system
• D264
• D265
• Fuse m12 30a
• G300 (right kick panel)
• Ground
• Hands free module (w/o navigation) (left end of dash)
• Hf audo outpt com
• Hf audo outpt lt
• Hf audo outpt rt
• Hf mic hsd
• Hf mic ref
• Hot at all times
• Inside rearview mirror
• L a11
• Left front door speaker
• Left instrument panel speaker
• Left rear door speaker
• Lf dr speaker (+)
• Lf dr speaker (-)
• Lh i/p speaker (+)
• Lh i/p speaker (-)
• Lr dr speaker (+)
• Lr dr speaker (-)
• Lr speaker (+)
• Lr speaker (-)
• M a12
• Mic 1 in (+)
• Mic 2 in (+)
• Mic in (-)
• Radio amplifier (right kick panel)
• Rf dr speaker (+)
• Rh dr speaker (-)
• Rh i/p speaker (+)
• Rh i/p speaker (-)
• Right front door speaker
• Right rear door speaker
• Rr dr speaker (+)
• Rr dr speaker (-)
• Rr speaker
• Rr speaker (+)
• S220
• Sbfr
• Sbfr 1 (+)
• Sbfr 1 (-)
• Sbfr 2 (+)
• Sbfr 2 (-)
• Subwoofer speaker
• Totally integrated power module (left rear of engine compt)
• X201
• X202
• X205
• X206
• X208
• X209
• X291
• X292
• X295
• X296
• X298
• X299
• X300
• X301
• X390
• X391
• X51
• X52
• X57
• X58
• X703
• X704
• X795
• Z908

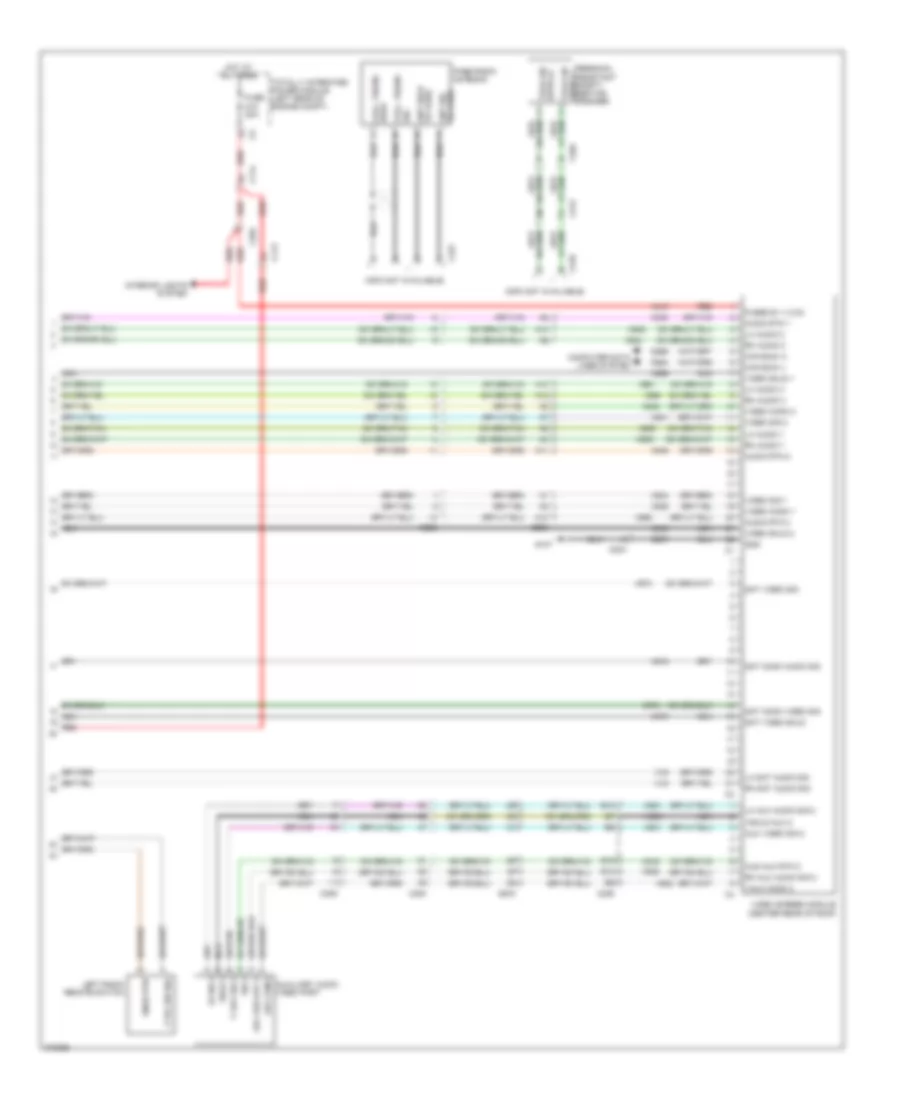

Электросхема магнитолы, Премиум класс (2 из 4) для Dodge Journey Crew 2010

Электросхема магнитолы, Премиум класс (2 из 4) для Dodge Journey Crew 2010 - Список элементов:

• (or rh audio mic 1 in (+)
• (or x722) x703
• A116
• A15
• A413
• Aud comp fd
• Audio rtn 1
• Audio rtn 2
• Audio rtn 3
• C200
• C204
• C206
• C212
• Camera rtn
• Camera shield
• Camera sig
• Can bus (+)
• Can bus (-)
• Comm audio out
• Computer data lines system
• D106
• D126
• D127
• D128
• D140
• D141
• D264
• D265
• G107
• G300 (right kick panel)
• Gnd
• Hf mic hsd fd
• Hf mic ref (or gnd)
• Iod fd
• K (info not available) c318
• Lh audio 1
• Lh audio 2
• Lh audio 3
• Lh satt audio sig
• Lines system computer data
• Lr speaker (-)
• Mic 2 in (+) (or lh audio out)
• Mic in (-)
• Navigation system
• Nca
• Out)
• Rad lt rr +
• Radio
• Red
• Rh audio 1
• Rh audio 2
• Rh audio 3
• Rh satt audio sig
• Right instrument panel speaker
• Rr speaker (+)
• Rr speaker (-)
• S223
• S309
• Sat comm audio sig
• Sat comm video sig
• Sat shld
• Sat video shld
• Sat video sig
• Satellite video module
• Sdar coax
• Sdar vid coax sig
• Sdar video shld
• Video comm 1
• Video comm 2
• Video shld 1
• Video shld 2
• Video sig 1
• Video sig 2
• W/ navigation
• W/o navigation
• X18
• X19
• X51
• X52
• X534
• X535
• X536
• X538
• X539
• X540
• X541
• X542
• X543
• X544
• X545
• X546
• X550
• X551
• X552
• X57
• X58
• X62
• X712 (or 704)
• X792
• X793
• X795
• X835
• X918
• X970
• X971
• X972
• X973
• X974
• X975
• Z907
• Z908

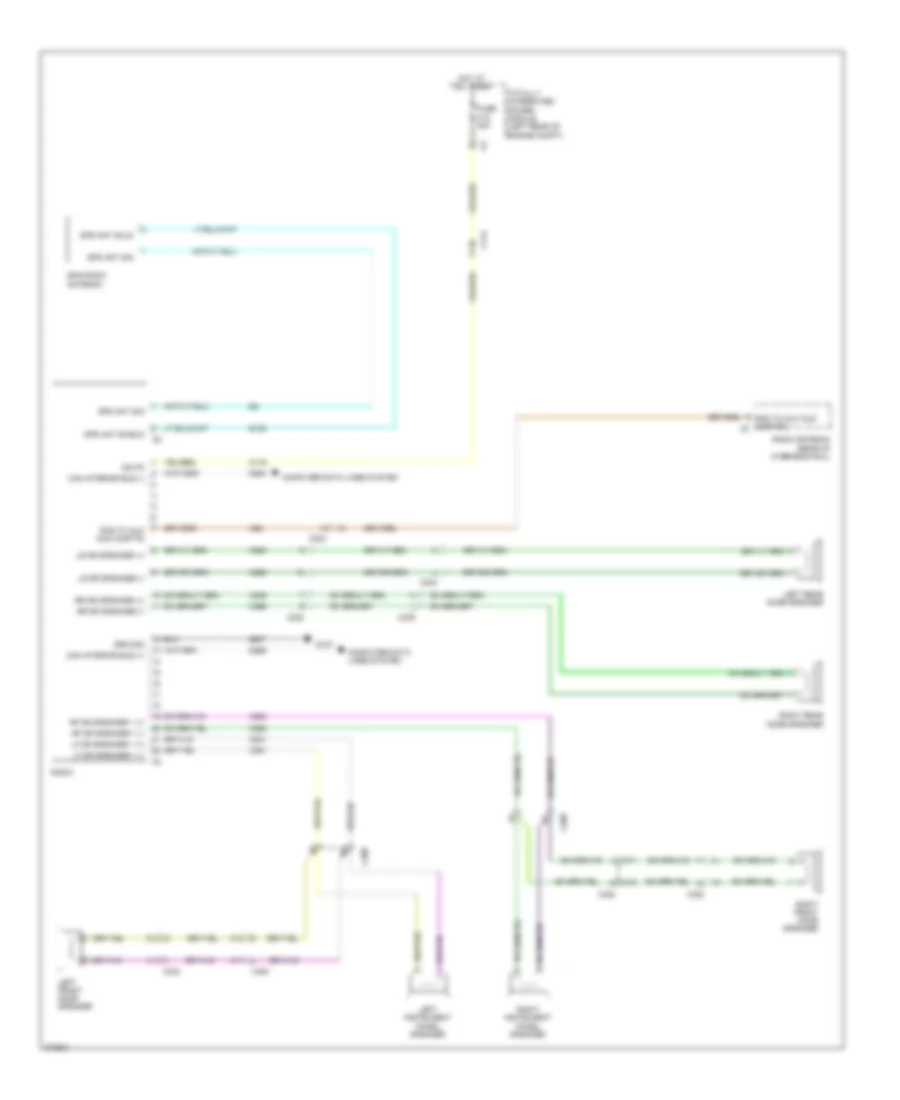

Электросхема магнитолы, Премиум класс (3 из 4) для Dodge Journey Crew 2010

Электросхема магнитолы, Премиум класс (3 из 4) для Dodge Journey Crew 2010 - Список элементов:

• Am/fm coax
• Ant shid
• Ant sig
• C202
• C203
• C208
• Coat sat shld
• Coat sat sig (or sdar coax sig)
• Coax shld
• Coax shld) (or sdar
• Coax sig
• Computer data lines system
• Ctrl sw sig
• D108
• D931
• Gps ant shld
• Gps ant sig
• Grs radio antenna
• Lin bus
• Nca
• Rad snse rtn horn switch (under steering wheel pad)
• Rad to aux aud comp fd
• Radio
• Radio antenna (rear of overhead rail)
• Red
• Right radio remote switch
• Right steering whell switch
• Sat video ant shld
• Sat video ant sig
• Satellite redio antenna (if equipped)
• Satellite video antenna
• Shld am/fm coax
• Snse rtn

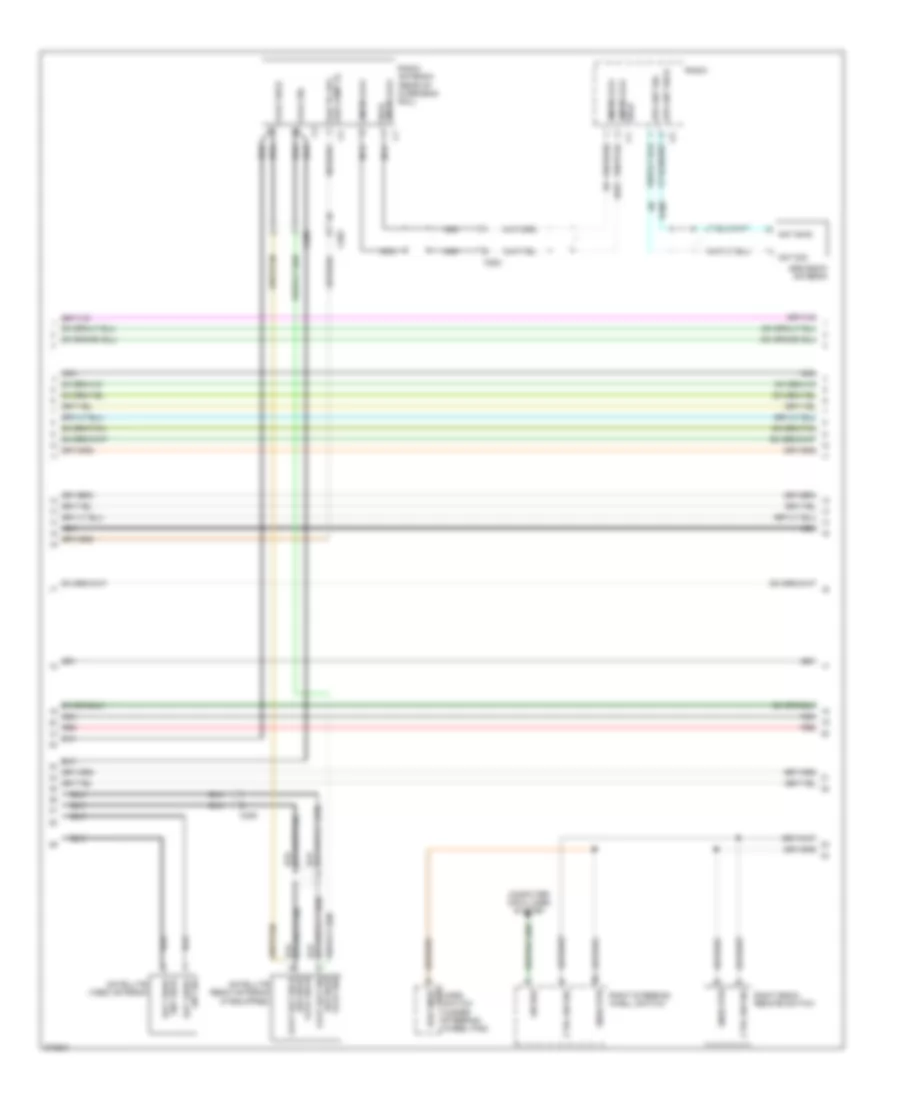

Электросхема магнитолы, Премиум класс (4 из 4) для Dodge Journey Crew 2010

Электросхема магнитолы, Премиум класс (4 из 4) для Dodge Journey Crew 2010 - Список элементов:

• (info not available)
• A10
• A11
• A12
• A13
• A14
• A413
• Ant shld to pass
• Ant sig to pass
• Aud aux rtn 2
• Audio rtn 1
• Audio rtn 2
• Audio rtn 3
• Aux aud ort 2
• Aux com 2
• Aux video sig 2
• Auxiliary audio video port
• B12
• B13
• B14
• C113
• C114
• C200
• C204
• C206
• C212
• C306
• C318
• C321
• Can bus (+)
• Can bus (-)
• Cell phone shld
• Cell phone sig
• Computer data lines system
• Ctrl sw sig
• D264
• D265
• Fuse m10 20a
• Fused b + (i.o.d)
• G107
• Gnd
• Hot at all times
• Interior lights system
• Left radio remote switch
• Lh audio 1
• Lh audio 2
• Lh audio 3
• Lh aux audio sig 2
• Lh sat audio sig
• Lh sig 2
• Nca
• Pass radio antenna
• Personal assistant safety service speaker spkr (-) tele aid
• Red
• Rh audio 1
• Rh audio 2
• Rh audio 3
• Rh aux audio sig 2
• Rh sat audio sig
• Sat comm audio sig
• Sat comm video sig
• Sat video shld
• Sat video sig
• Shld 2
• Sig 2
• Snse rtn
• Tele aid spkr (+)
• Totally interated power module (left rear of engine compt)
• V aux sig 2
• Vaux comm 2
• Video comm 1
• Video comm 2
• Video screen module (center rear of roof)
• Video shld 1
• Video shld 2
• Video sig 1
• Video sig 2
• Vshld aux 2
• X18
• X19
• X519
• X521
• X522
• X531
• X532
• X533
• X534
• X535
• X536
• X538
• X539
• X540
• X541
• X542
• X543
• X544
• X545
• X546
• X550
• X551
• X552
• X918
• X973
• X974
• X975
• Z907
