Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Dodge Journey Crew 2010

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

Электросхема подключение массы заземления (1 из 3) для Dodge Journey Crew 2010

Электросхема подключение массы заземления (1 из 3) для Dodge Journey Crew 2010 - Список элементов:

• (2.4l) powertrain control module
• (3.5l) egr valve assembly
• (3.5l) manifold tuning valve solenoid
• (3.5l) oxygen 2/1 sensor
• (3.5l) oxygen 2/2 sensor
• (3.5l) powertrain control module
• (automatic a/c) a/c compressor clutch
• (if equipped) driver seat switch
• (if equipped) inverter module
• (if equipped) left front headrest solenoid
• (if equipped) radio amplifier
• (if equipped) satellite video module
• (left kick panel)
• (left rear of engine compt)
• (manual a/c) a/c compressor solenoid
• 2.4l
• 3.5l
• 87a
• All wheel drive control module
• Battery
• C100
• C105
• C106
• C116
• C306
• C309
• C312
• C313
• Cigar lighter
• Circuit board
• Door lock relay
• Driver door unlock relay
• Driver seat belt switch
• Fuel pump module
• G100 (left rear of engine)
• G101 (left rear of engine compt)
• G102 (left rear of engine compt)
• G300 (right kick panel)
• Headlamp washer relay
• Instrument panel power outlet
• Left front fog lamp
• Left front lamp assembly
• Oxygen 1/1 sensor
• Oxygen 1/2 sensor
• Panel)
• Passenger secondary door unlock relay
• Prndl lamp
• Rear console power outlet
• Rear wiper relay
• S108 (2.4l: left rear of engine) (3.5l: rear of engine)
• Shifter lever assembly
• Stop lamp switch
• Totally integrated power module
• Washer pump relay
• Winshield wiper motor
• Wiper on/off relay

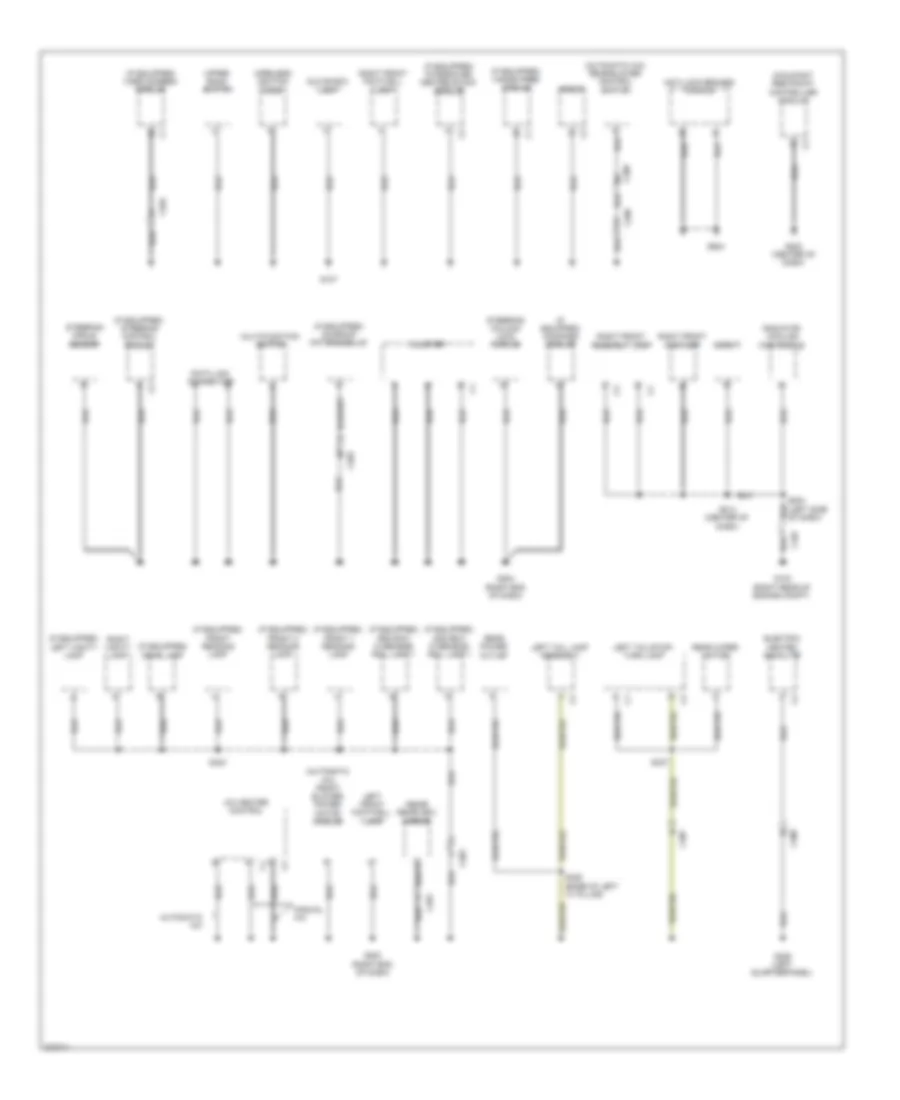

Электросхема подключение массы заземления (2 из 3) для Dodge Journey Crew 2010

Электросхема подключение массы заземления (2 из 3) для Dodge Journey Crew 2010 - Список элементов:

• (automatic a/c) front blower power motor module
• (automatic a/c) rear blower control switch
• (if equipped) 2nd row overhead rail lamp 1
• (if equipped) 3rd row overhead rail lamp 1
• (if equipped) compass module
• (if equipped) dome lamp
• (if equipped) front 1 reading lamp
• (if equipped) front 2 reading lamp
• (if equipped) front reading lamp
• (if equipped) hands free module
• (if equipped) integrated center stack module
• (if equipped) left vanity lamp
• (if equipped) steering control module
• (if equipped) sunroof motor/module
• (if equipped) video screen module
• A/c heater control
• Anti-lock brakes module
• Automatic a/c
• C107
• C201
• C203
• C204
• C206
• C307
• C308
• Cluster
• Data link connector
• Electric heated backlite
• G103 (right rear of engine compt)
• G107
• G200 (right end of dash)
• G203 (center of dash)
• G204 (right end of dash)
• G306 (left quarterpanel)
• G924
• Glove box lamp
• Horn 1
• Inside rearview mirror
• Left front footwell lamp
• Left tail lamp assembly
• Left tail/stop/ turn lamp
• Manual a/c
• Multi-function switch
• Occupant restraint controller module
• Radiator cooling fan module
• Radio
• Rear power outlet
• Rear wiper motor
• Right front assembly lamp
• Right front fog lamp
• Right front footwell lamp
• Right vanity lamp
• S204 (left side of dash)
• S214 (center of dash)
• S306 (base of left "c" pillar)
• S337
• S403
• Steering angle sensor
• Steering column lock module
• Upper bank switch
• Wireless ignition node

Электросхема подключение массы заземления (3 из 3) для Dodge Journey Crew 2010

Электросхема подключение массы заземления (3 из 3) для Dodge Journey Crew 2010 - Список элементов:

• (automatic a/c) rear blower power motor module
• (if equipped) driver door module
• (if equipped) driver outside rearview mirror
• (if equipped) driver seat heater assembly
• (if equipped) heated seats module
• (if equipped) passenger door module
• (if equipped) passenger pad cushion heater
• (if equipped) rear video camera
• (if equipped) right seat back heater
• (if equipped) right turn/tail/ stop lamp
• (not used)
• C300
• C302
• C304
• C305
• C306
• C307
• C309
• C312
• C314
• C315
• C317
• Center high mounted stop lamp
• Cupholder lamp
• Driver door latch
• Driver window door lock switch
• Evap system monitor switch
• Flashlight lamp
• G302 (left end of dash)
• G303 (right quarterpanel)
• G304 (under driver's seat)
• G305 (under front passenger's seat)
• Left license lamp
• Left rear
• Left rear door latch
• Liftgate door latch
• Liftgate lamp
• Passenger door latch
• Passenger outside rearview mirror
• Power window switch
• Right front headrest solenoid
• Right license lamp
• Right rear door latch
• Right rear power window switch
• Right tail lamp assembly
• S334 (in liftagate)
• S523
