Электросхемы СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Dodge Journey Crew 2010

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

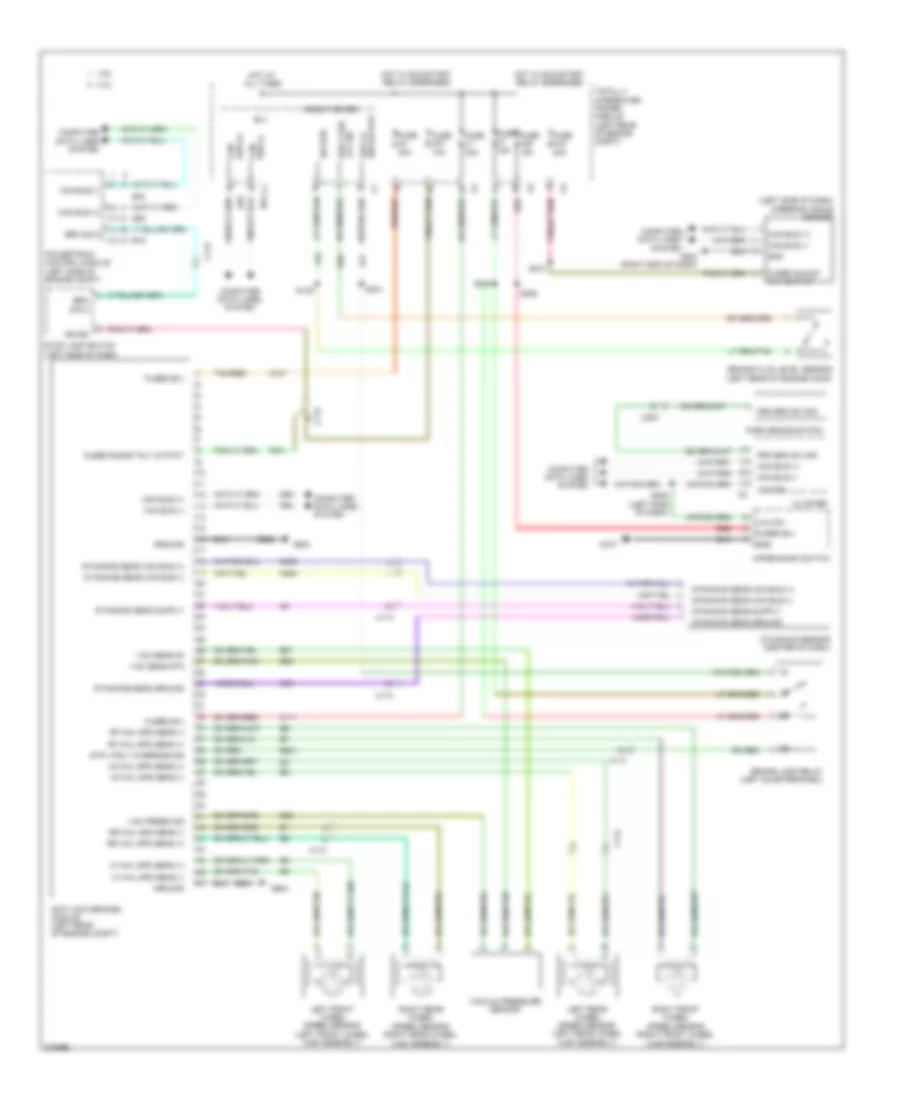

Электросхема антиблокировочной тормозной системы АБС (ABS) для Dodge Journey Crew 2010

Электросхема антиблокировочной тормозной системы АБС (ABS) для Dodge Journey Crew 2010 - Список элементов:

• (left side of dash) steering angle sensor
• 2.4l
• 3.5l
• A107
• A111
• Anti-lock brakes module (left rear of engine compt)
• B(+)
• B16
• B20
• B221
• B31
• B32
• B33
• Brake fluid level sensor (left rear of engine comp)
• Brake lamp relay (left quarterpanel)
• Brk fluid lvl sig
• Brk sig 2
• Bus (+) can
• Bus (-) can
• C113
• C200
• Can bus (+)
• Can bus (-)
• Circuit board
• Cluster
• Computer data lines system
• D464
• D465
• D64
• D65
• Dynamics sens can bus (+)
• Dynamics sens can bus (-)
• Dynamics sens ground
• Dynamics sensor (center of dash)
• F941
• Fuse j6 40a
• Fuse j7 30a
• Fuse m1 15a
• Fuse m15 20a
• Fuse m20 15a
• Fuse m37 10a
• Fused b(+)
• Fused run/st rly output
• G107
• G204 (right end of dash)
• G924
• G94
• Gnd
• Ground
• Hot at all times
• Hot w/ run/start relay energized
• Ign rs
• L51
• Left front wheel speed sensor (left front wheel hub assembly)
• Left rear wheel speed sensor (left rear wheel hub assembly)
• Lf whl spd sens (+)
• Lf whl spd sens (-)
• Lin ccn
• Lr whl spd sens (+)
• Lr whl spd sens (-)
• P37
• Park brake switch
• Powertrain control module (left side of engine compt)
• Prk brk sw sig
• Red
• Rf whl spd sens (+)
• Rf whl spd sens (-)
• Right front wheel speed sensor (right front wheel hub assembly)
• Right rear wheel speed sensor (right rear wheel hub assembly)
• Rr whl spd sens (+)
• Rr whl spd sens (-)
• S149
• S205 (left side of dash)
• S206
• S213
• S301
• S311
• Stop lamp switch (left side of dash)
• Stp lp rly override sig
• Sw output brk lp
• Sw rtn
• Tan/red
• Totally integrated power module (left rear of engine compt)
• Upper bank switch
• Vac press sig
• Vac sens fd
• Vac sens rtn
• Vacuum pressure sensor
• Z924
