СИСТЕМА ОХЛАЖДЕНИЯ

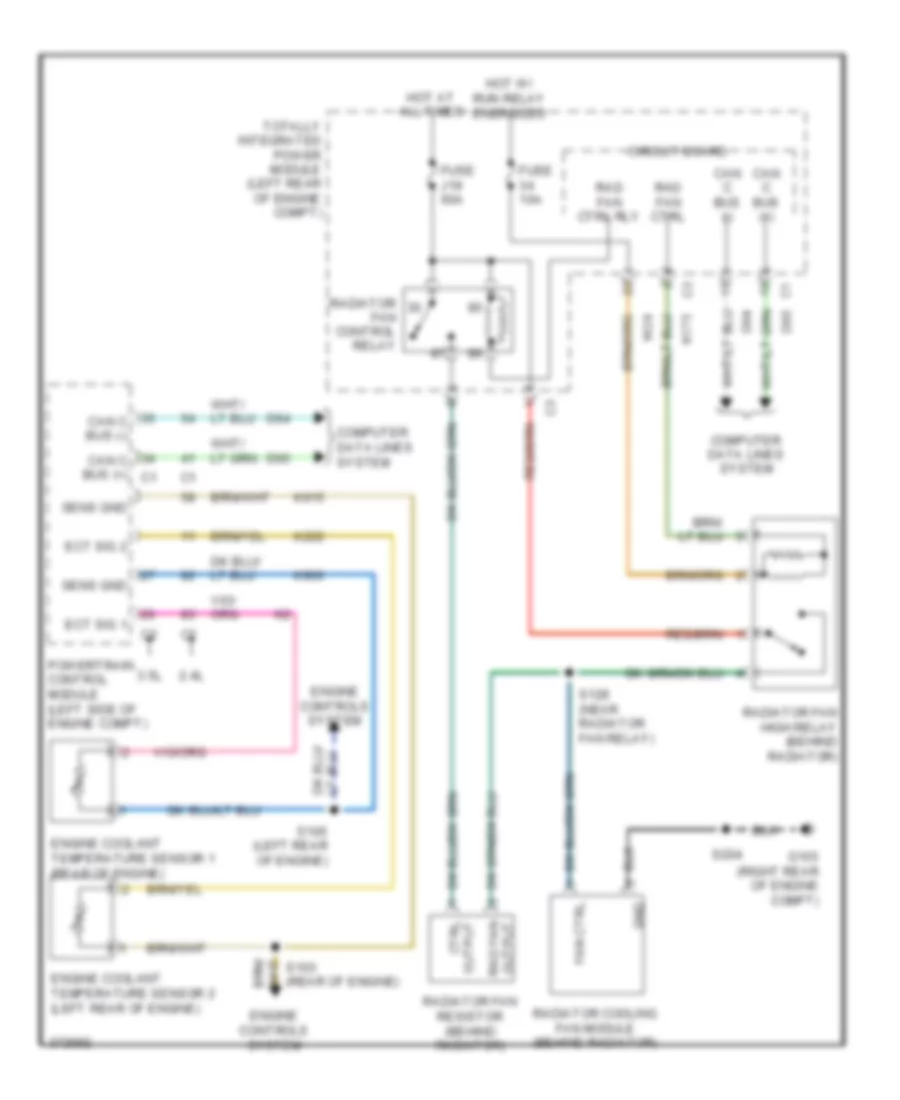

Электросхема системы охлаждения для Dodge Journey Crew 2010

Электросхема системы охлаждения для Dodge Journey Crew 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема системы охлаждения для Dodge Journey Crew 2010 - Список элементов:

  • 2.4l
  • 3.5l
  • Can c bus (+)
  • Can c bus (+) c1
  • Can c bus (-)
  • Circuit board
  • Computer data lines system
  • D64
  • D65
  • Ect sig 1
  • Ect sig 2
  • Engine controls system
  • Engine coolant temperature sensor 1 (rear of engine)
  • Engine coolant temperature sensor 2 (left rear of engine)
  • Fan ctrl
  • Fuse 10a
  • Fuse j19 60a
  • G103 (right rear of engine compt)
  • Gnd
  • Hot at all times
  • Hot w/ run relay energized
  • K175
  • K222
  • K900
  • K915
  • Output ctrl
  • Output rad fan
  • Powertrain control module (left side of engine compt)
  • Rad fan ctrl
  • Rad fan ctrl rly
  • Radiator cooling fan module (behind radiator)
  • Radiator fan control relay
  • Radiator fan high relay (behind radiator)
  • Radiator fan resistor (behind radiator)
  • S103 (rear of engine)
  • S105 (left rear of engine)
  • S128 (near radiator fan relay)
  • S204
  • Sens gnd
  • Totally integrated power module (left rear of engine compt)
  • W24
