Стеклоочистители и Стеклоомыватели Дворники

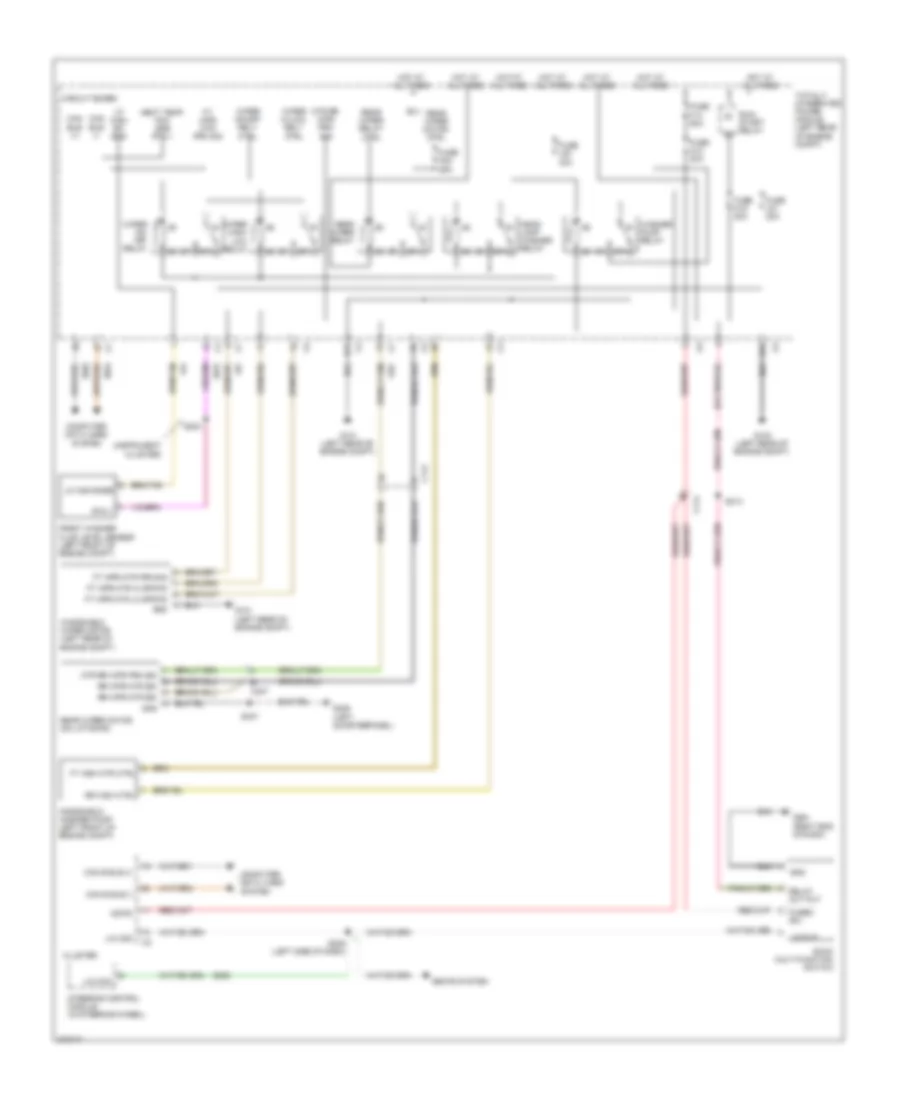

Электросхема стеклоочистителя, дворников и омывателя для Dodge Journey Crew 2010

Электросхема стеклоочистителя, дворников и омывателя для Dodge Journey Crew 2010 - Список элементов:

• (instrument cluster)
• 87a
• Abmt temp/ fcm ssr rtn 1
• B(+)
• B17
• C112
• C114
• C307
• Can b bus (+)
• Can b bus (-)
• Can bus (+)
• Can bus (-)
• Circuit board
• Cluster
• Computer data lines system
• D264
• D265
• D506
• E14
• Front washer fluid level sensor (left front of engine compt)
• Ft wpr mtr hi spd fd
• Ft wpr mtr lo spd fd
• Ft wpr mtr prk sig
• Ft wsh mtr ctrl
• Fuse f13 60a
• Fuse j20 30a
• Fuse j21 20a
• Fuse m13 20a
• Fuse m15 20a
• Fuse m24 25a
• Fused (b+)
• G101 (left rear of engine compt)
• G102 (left rear of engine compt)
• G204 (right end of dash)
• G306 (left quarterpanel)
• G931
• Gnd
• Head- lamp washer relay
• Hot at all times
• Iod fd
• Lin bus
• Lin ccn
• Lo wsh snse
• Lo wsh sw sns
• Mtr rr wpr prk sig
• Rear wiper motor (on liftgate)
• Rear wiper motor ctrl
• Rear wiper relay
• Rear wiper relay ctrl
• Relay out put
• Rr wpr mtr sig
• Rr wsh ctrl
• Rtn 1
• Run/ start relay
• S203
• S205 (left side of dash)
• S213
• S337
• Sccm multi-function switch
• Seats system
• Steering control module (in steering wheel)
• Totally integrated power module (left rear of engine compt)
• W17
• Washer pump relay
• Windshield washer pump (left front of engine compt)
• Windshield wiper motor (left rear of engine compt)
• Wiper hi/low rely ctrl
• Wiper high/ low relay
• Wiper on/ off relay
• Wiper on/off rely ctrl
