Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Dodge Journey Crew 2010

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

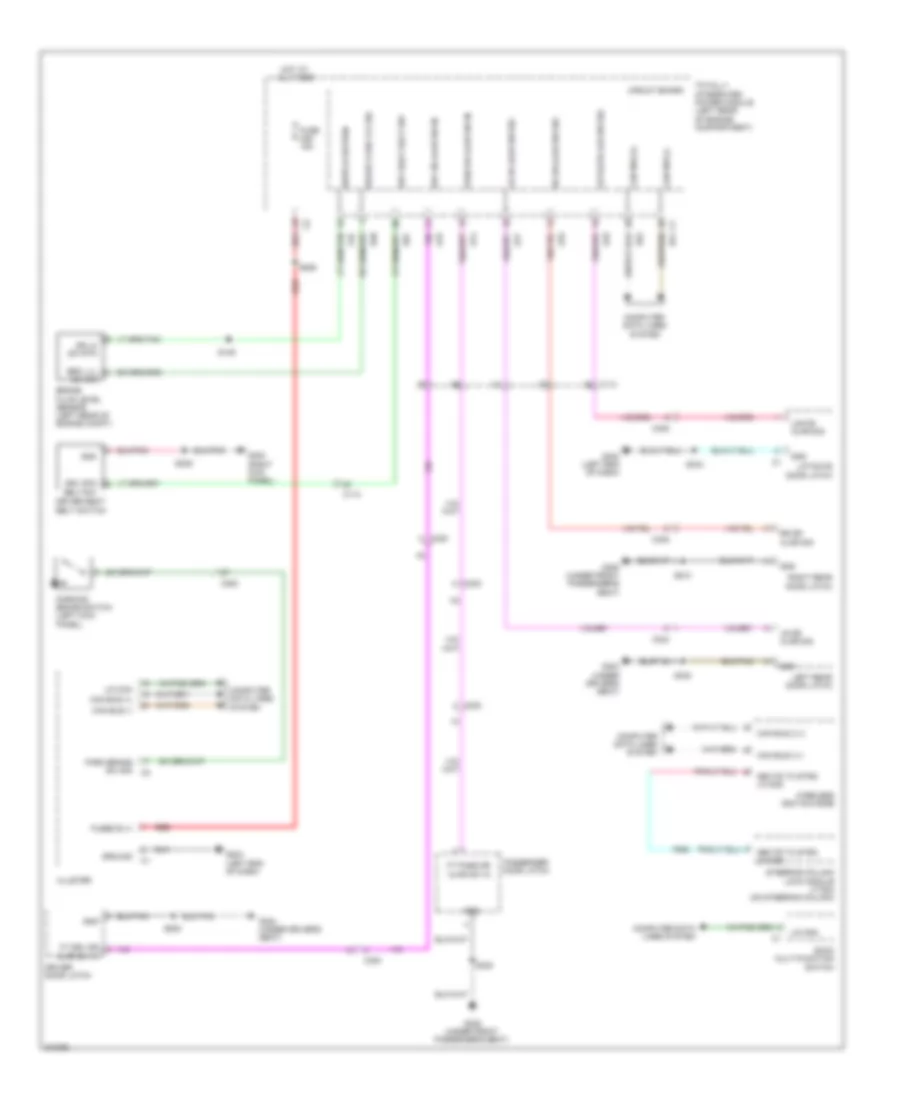

Электросхема предупреждающей системы для Dodge Journey Crew 2010

Электросхема предупреждающей системы для Dodge Journey Crew 2010 - Список элементов:

• B20
• Brake fluid level sensor (left rear of engine compt)
• Brake fluid lvl sig
• Brk lvl sw sig
• C112
• C113
• C200
• C300
• C300 c
• C302
• C302 c
• C304
• C305
• C308
• Can bus (+)
• Can bus (-)
• Can bus 2 (+)
• Can bus 2 (-)
• Circuit board
• Cluster
• Computer data lines system
• D51
• D52
• Dr lk sw rtn
• Driver door latch
• Driver seat belt switch
• Drv dr ajar sw in
• Drv seat belt sw
• Drv sts belt sw
• F892
• Ft drv dr ajar sw in
• Ft pass dr ajar sw in
• Fuse m20 15a
• Fused b (+)
• G204 (left end of dash)
• G300 (right kick panel)
• G302 (left end of dash)
• G304 (under driver's seat)
• G305 (under front passenger's seat)
• G74
• G75
• G76
• G77
• G78
• Gnd
• Ground
• Hot at all times
• Left rear door latch
• Lgate ajar sig
• Liftgate ajr sw sig
• Liftgate door latch
• Lin ccn
• Lin cnn
• Lr dr ajar sig
• Lr dr ajar sw sig
• P37
• Park brake sw sig
• Parking brake switch (left kick panel)
• Pass dr ajar sw in
• Passenger door latch
• R57
• Red
• Right rear door latch
• Rr dr ajar sig
• Rr dr ajar sw sig
• S149
• S206
• S309
• S330
• S332
• S334
• S510
• S523
• Sccm multi-function switch
• Sec fd to strg lk mod
• Steering column lock module (vtsa) (on steering column)
• Switch return
• Totally integrated power module (left rear of engine compartment)
• Wireless ignition node
