Электросхемы Стартер Генератор Dodge Journey Crew 2010

Стартер Генератор

Электросхема Генератора для Dodge Journey Crew 2010

Электросхема Генератора для Dodge Journey Crew 2010 - Список элементов:

• 2.4l
• 3.5l
• A804
• B(+)
• Battery
• C116
• C116 r
• Can bus (+)
• Can bus (-)
• Cluster
• Computer data lines system
• Fusible link
• G100 (left rear of engine)
• Gen field ctrl
• Gen sens
• Generator
• K20
• Positive remote jump post
• Power distribution system
• Powertrain control module (left side of engine compt)
• Red
• Starter

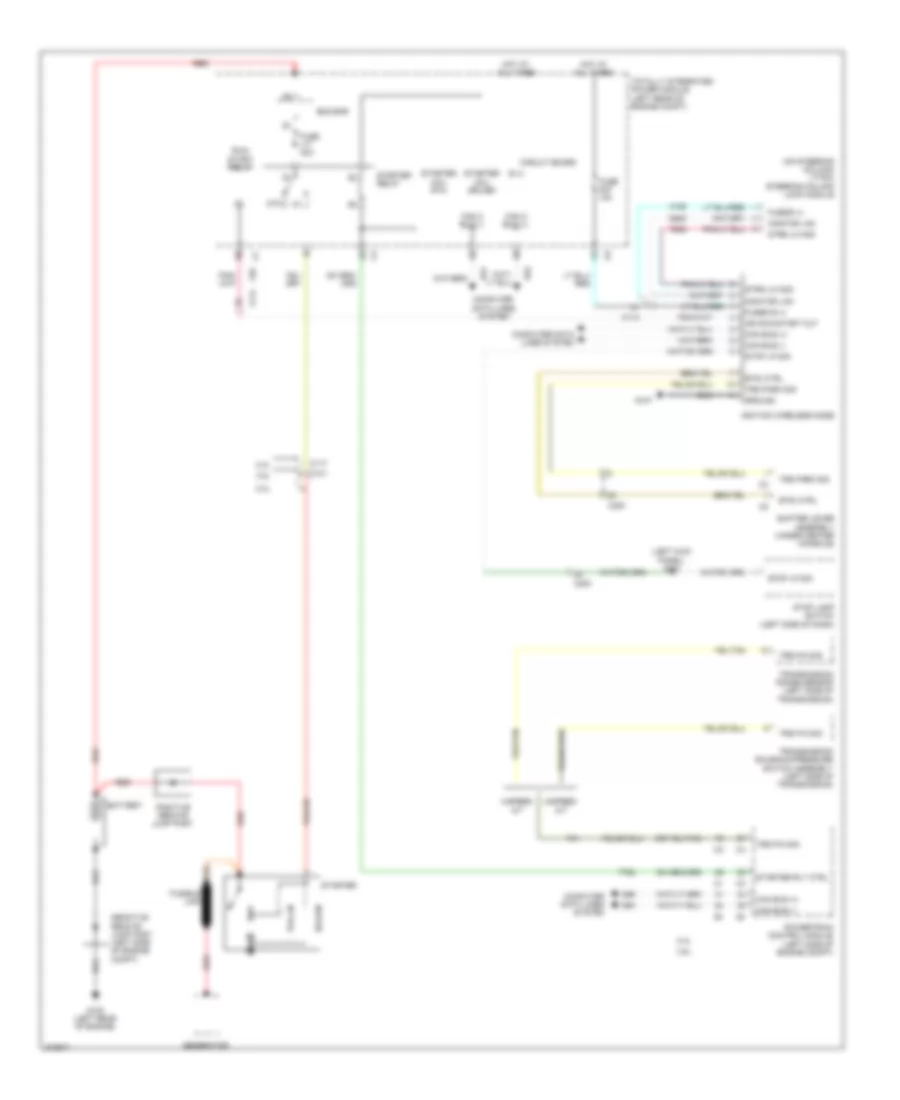

Электросхема стартера для Dodge Journey Crew 2010

Электросхема стартера для Dodge Journey Crew 2010 - Список элементов:

• (left kick panel) s301
• (on steering column) (vtsa) steering column lock module
• 2.4l
• 3.5l
• 4-speed a/t
• 6-speed a/t
• 87a
• A106
• B (+)
• Battery
• Btsi ctrl
• Bus bar
• C101
• C114
• C117
• C200
• Can bus (+)
• Can bus (-)
• Can c bus (+)
• Can c bus (-)
• Circuit board
• Computer data lines system
• D508
• D51
• D52
• D64
• D65
• F20
• F892
• Fuse b (+)
• Fuse j17 40a
• Fuse m27 10a
• Fused b (+)
• Fusible link
• G100 (left rear of engine)
• G107
• Generator
• Ground
• Hold-in
• Hot at all times
• Ign run-start out
• Ignition wireless node
• Monitor lan
• Positive remote jump post
• Powertrain control module (left side of engine compt)
• Pull-in
• Red
• Run/ start relay
• Shifter lever assembly (under center console)
• Starter
• Starter coil driver
• Starter coil rtn
• Starter relay
• Starter rly ctrl
• Stop lamp switch (left side of dash)
• Stop lp sig
• Strg lk mod
• T41
• T752
• Totally integrated power module (left rear of engine compt)
• Transmission range sensor (left side of transmission)
• Transmission solenoid/pressure switch assembly (left side of transmission)
• Trs p/n sig
• Trs park sig
