Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Audi A6 Premium Plus 2013

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

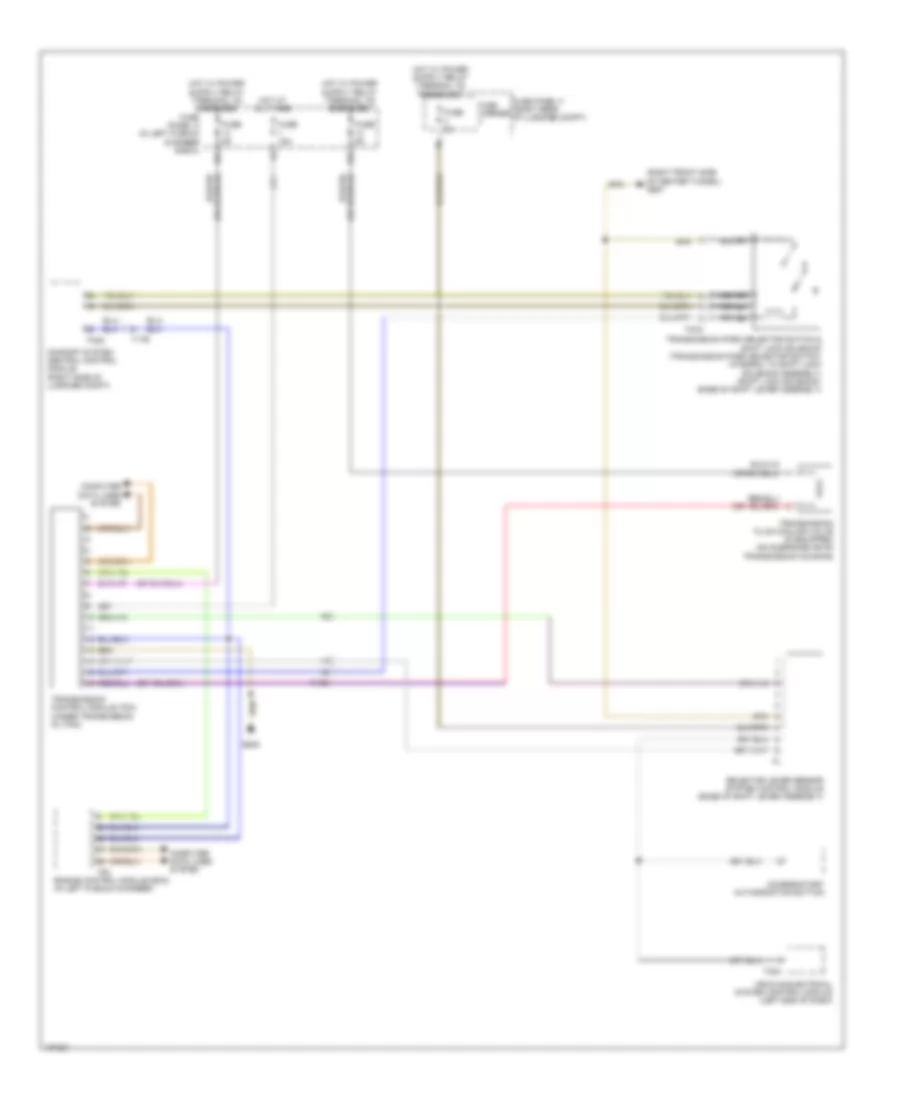

Электросхема автоматической коробки передач АКПП, 8 Скоростей A/T (1 из 2) для Audi A6 Premium Plus 2013

Электросхема автоматической коробки передач АКПП, 8 Скоростей A/T (1 из 2) для Audi A6 Premium Plus 2013 - Список элементов:

• 12a
• 13a
• Automatic transmission pressure regulating valve 1
• Automatic transmission pressure regulating valve 2
• Automatic transmission pressure regulating valve 3
• Automatic transmission pressure regulating valve 4
• Automatic transmission pressure regulating valve 5
• Automatic transmission pressure regulating valve 6
• Automatic transmission pressure regulating valve 7
• Computer data lines system
• Drive position sensor
• Fuse 15a
• Fuse 5a
• Fuse carrier 4
• Fuse panel a (in left plenum chamber e-box)
• Fuse panel f (right rear of luggage compt)
• G645
• G687 (right front side of center tunnel)
• Hot at all times
• Selector lever sensor system control module (base of shift lever assembly)
• Solenoid valve 1
• T17b
• T32a
• Transmission control module (tcm) (under transmission oil pan)
• Transmission fluid temperature sensor
• Transmission input speed sensor
• Transmission output speed sensor
• Vehicle electrical system control module (left end of dash)

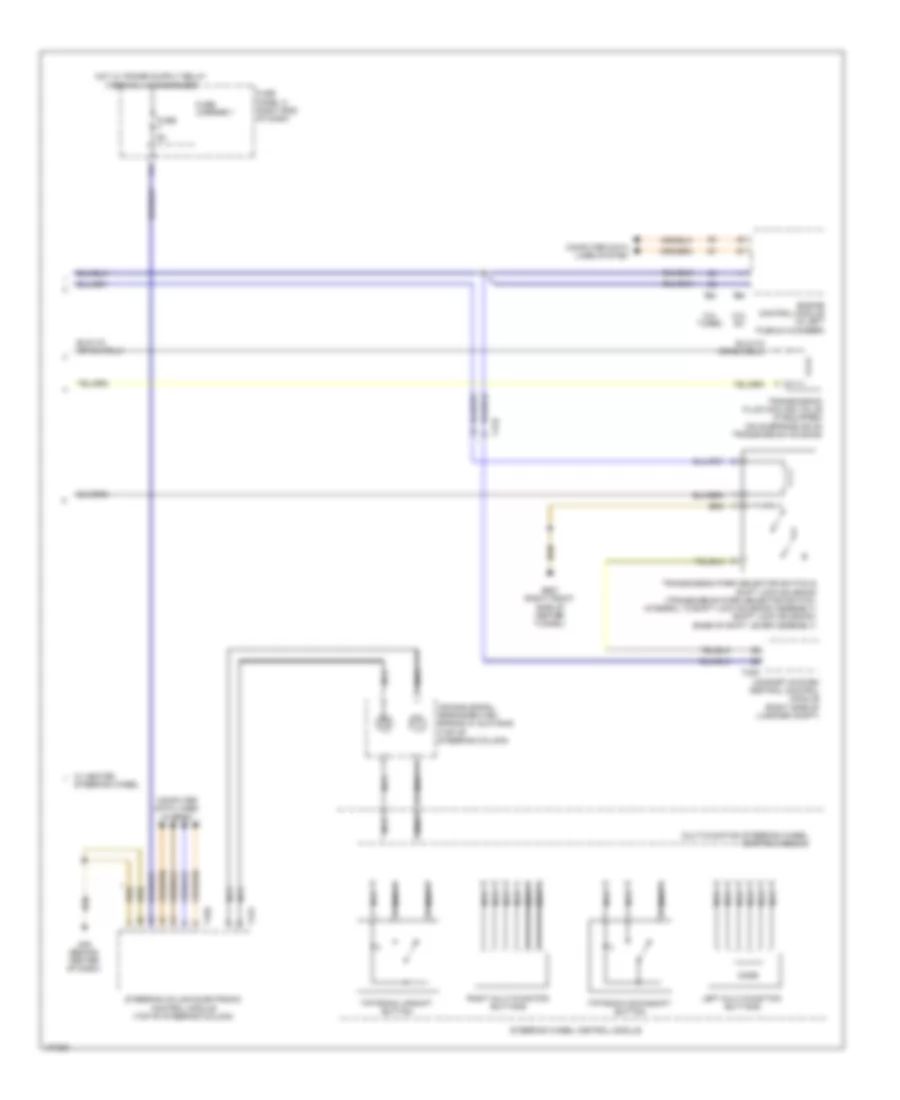

Электросхема автоматической коробки передач АКПП, 8 Скоростей A/T (2 из 2) для Audi A6 Premium Plus 2013

Электросхема автоматической коробки передач АКПП, 8 Скоростей A/T (2 из 2) для Audi A6 Premium Plus 2013 - Список элементов:

• 2.0l turbo
• 3.0l sc
• Air bag spiral spring/return spring w/ slip ring (top of steering column)
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Engine control module (in left plenum chamber)
• Fuse 5a
• Fuse carrier 1
• Fuse panel c (right end of dash)
• G45 (behind center of dash)
• G687 (right front side of center tunnel)
• Left multi-function buttons
• Mode
• Multi-function steering wheel control module
• Nca
• Right multi-function buttons
• Steering column electronic control module (top of steering column)
• Steering wheel
• Steering wheel control module
• T12v
• T16e
• T17b
• T32g
• T94
• Tiptronic downshift button
• Tiptronic upshift button
• Transmission fluid cooling valve (if equipped) (on subframe or on transmission housing)
• Transmission park selector switch & shift lock solenoid (transmission park selector switch: integral to shift lock solenoid assembly) (shift lock solenoid: base of shift lever assembly)
• W/ heated

Электросхема автоматической коробки передач АКПП, CVT для Audi A6 Premium Plus 2013

Электросхема автоматической коробки передач АКПП, CVT для Audi A6 Premium Plus 2013 - Список элементов:

• (right front side of center tunnel) g687
• 12a
• 13a
• Access/start authorization button
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Engine control module (ecm) (in left plenum chamber)
• Fuse 15a
• Fuse 5a
• Fuse carrier
• Fuse panel a (in left plenum chamber e-box)
• Fuse panel f (right rear of luggage compt)
• G645
• Hot at all times
• Nca
• Selector lever sensor system control module (base of shift lever assembly)
• T17b
• T32a
• T32g
• T4ca
• T94
• Transmission control module (tcm) (under transmission oil pan)
• Transmission fluid cooling valve (if equipped) (on subframe or on transmission housing)
• Transmission park selector switch & shift lock solenoid (transmission park selector switch: integral to shift lock solenoid assembly) (shift lock solenoid: base of shift lever assembly)
• Vehicle electrical system control module (left end of dash)

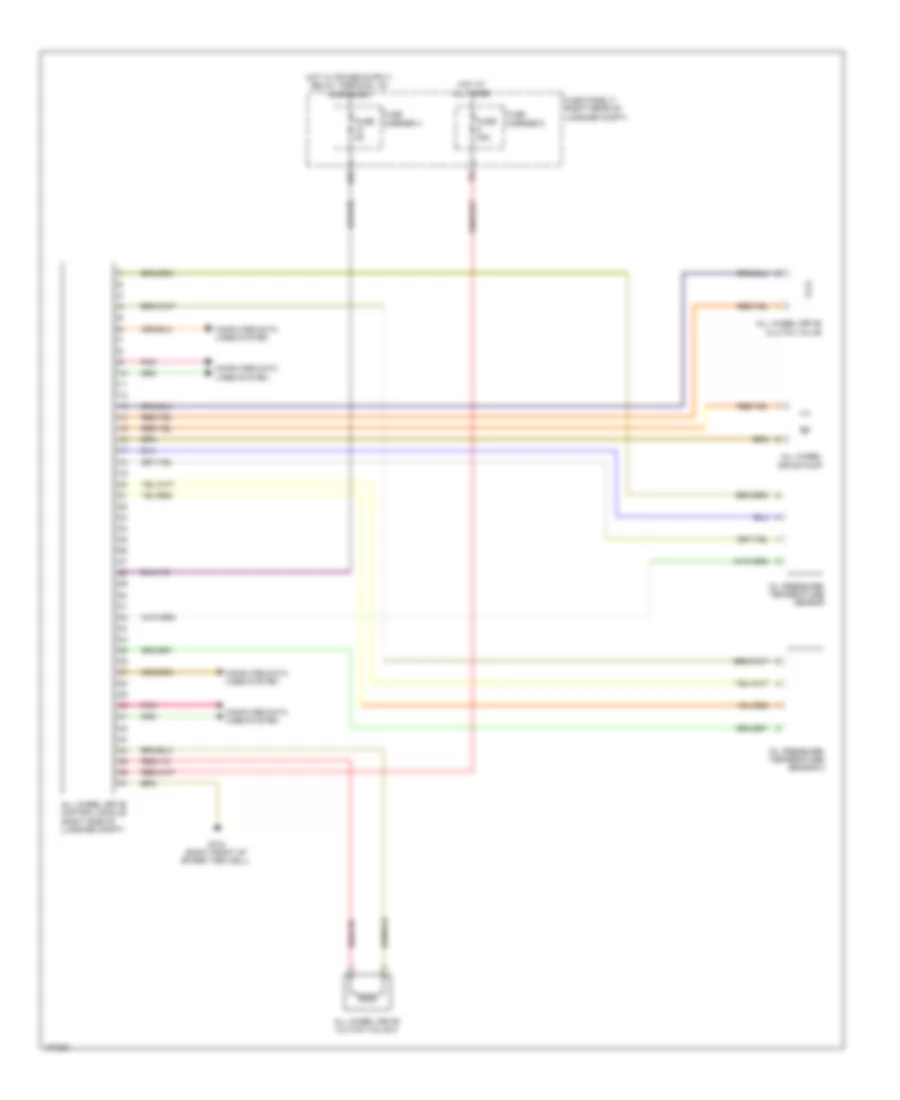

Электросхема полного привода AWD для Audi A6 Premium Plus 2013

Электросхема полного привода AWD для Audi A6 Premium Plus 2013 - Список элементов:

• 10a
• All wheel drive clutch valve
• All wheel drive clutch valve 2
• All wheel drive control module (right side of luggage compt)
• All wheel drive pump
• Computer data lines system
• Fuse 35a
• Fuse 5a
• Fuse carrier 4
• Fuse carrier 5
• Fuse panel f (right rear of luggage compt)
• G744 (right front of spare tire well)
• Hot at all times
• Oil pressure/ temperature sensor
• Oil pressure/ temperature sensor 2
• Pnk
