Электросхемы СИСТЕМЫ ПОДВЕСКИ Audi A6 Premium Plus 2013

СИСТЕМЫ ПОДВЕСКИ

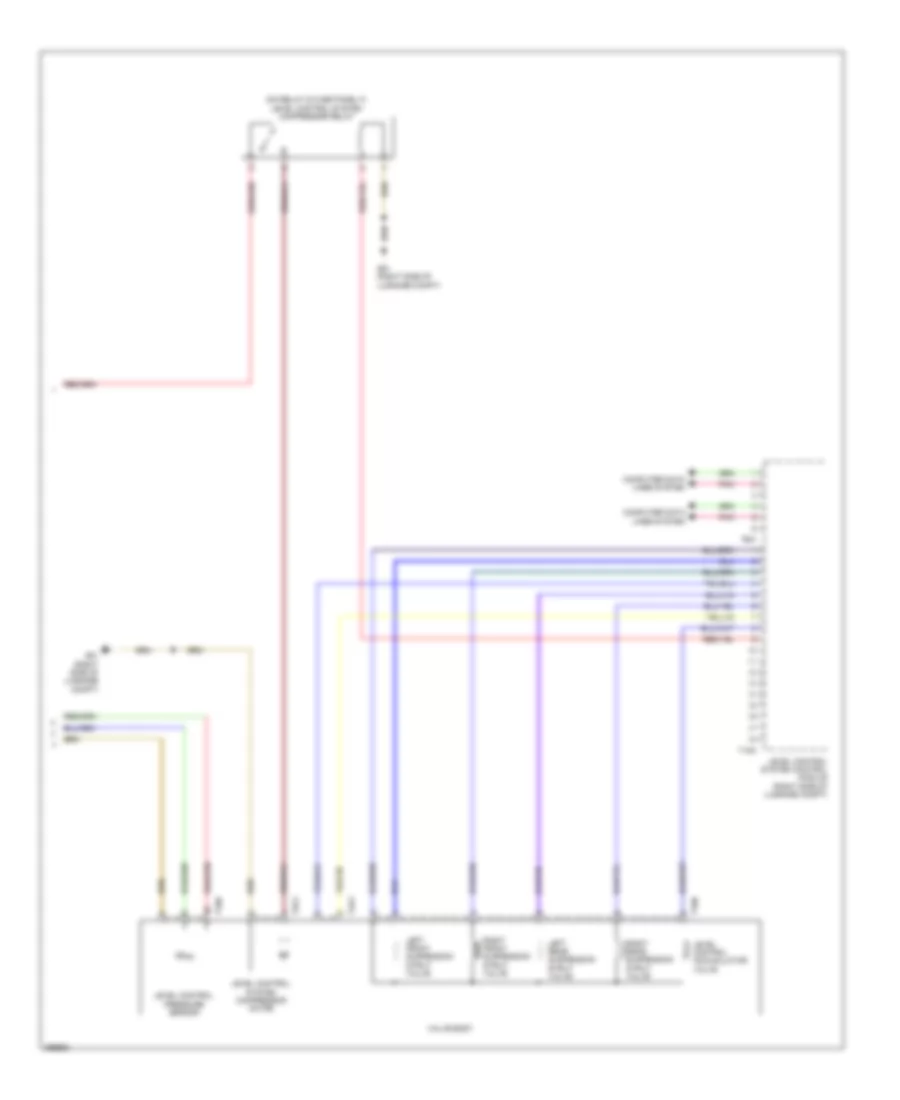

Электросхема электроники подвески (1 из 2) для Audi A6 Premium Plus 2013

Электросхема электроники подвески (1 из 2) для Audi A6 Premium Plus 2013 - Список элементов:

• Carrier 2
• Carrier 4
• Carrier 5
• Energized
• Fuse
• Fuse 15a
• Fuse 40a
• Fuse 5a
• Fuse panel f (right rear of luggage compt)
• G51 (right side of luggage compt)
• Hot at all times
• Left front damping adjustment valve (on left front shock tower)
• Left front level control system sensor
• Left rear damping adjustment valve (on left rear air spring assembly)
• Left rear level control system sensor (in left rear wheelwell)
• Level control system control module (right side of luggage compt)
• Right front damping adjustment valve (on right front shock tower)
• Right front level control system sensor
• Right rear damping adjustment valve (on right rear air spring assembly)
• Right rear level control system sensor (in right rear wheelwell)
• T12r
• T15a
• T9a

Электросхема электроники подвески (2 из 2) для Audi A6 Premium Plus 2013

Электросхема электроники подвески (2 из 2) для Audi A6 Premium Plus 2013 - Список элементов:

• (on relay & fuse panel f) level control system compressor relay
• Computer data lines system
• G51 (right side of luggage compt)
• Left front suspension strut valve
• Left rear suspension strut valve
• Level control accumulator valve
• Level control pressure sensor
• Level control system compressor motor
• Level control system control module (right side of luggage compt)
• Pnk
• Right front suspension strut valve
• Right rear suspension strut valve
• T10h
• T18a
• T2cz
• T4ay
• T6w
• Valve body
