Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Audi A6 Premium Plus 2013

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

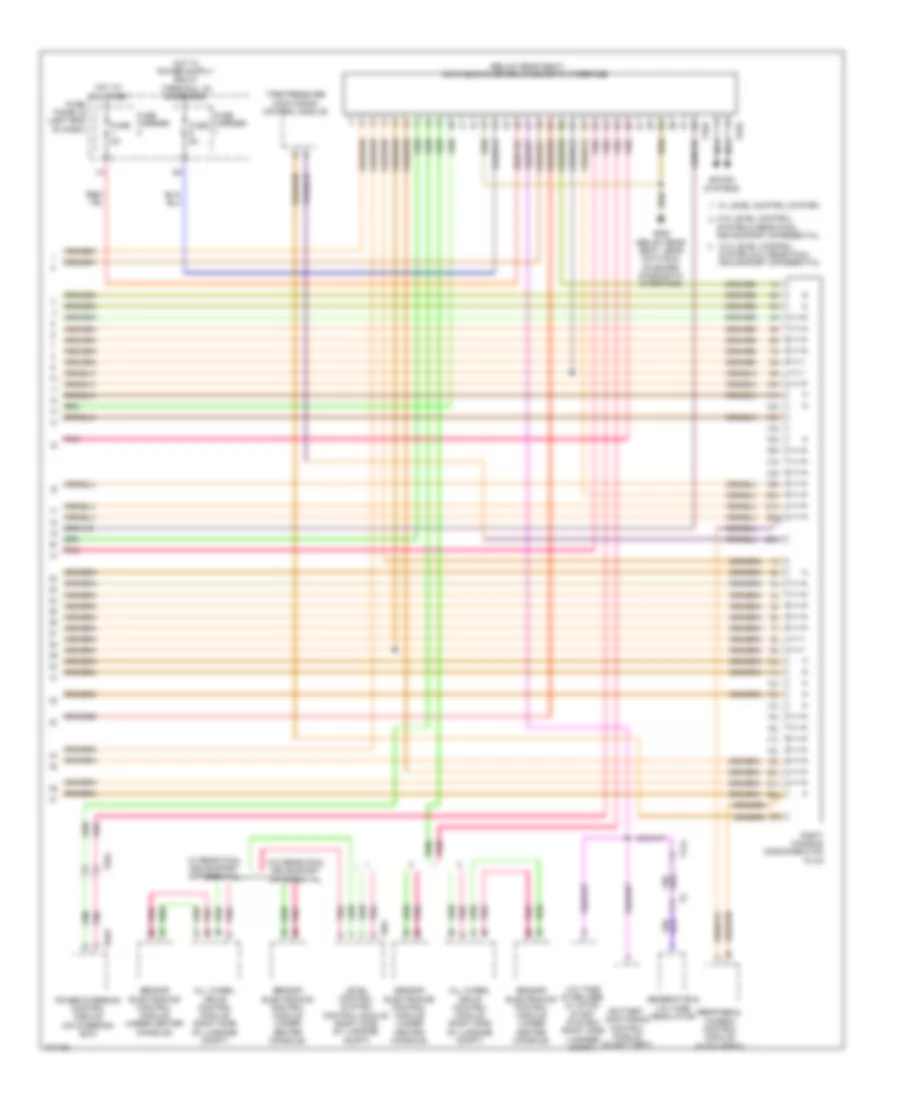

Электросхема линии передачи данных CAN (1 из 4) для Audi A6 Premium Plus 2013

Электросхема линии передачи данных CAN (1 из 4) для Audi A6 Premium Plus 2013 - Список элементов:

• (base of automatic night day/ interior mirror assembly) camera control module
• (if equipped) left front seat ventilation control module
• (in left plenum chamber) engine control module
• (left rear of luggage compt) digital sound system control module
• (left side of engine compt) abs control module
• (on a/c high pressure line) a/c pressure temperature sensor
• (on automatic day/night interior mirror assembly) (w/ high beam assist) automatic dimming interior rearview mirror/ high beam assist control module
• (top of steering column) steering column electronics control module
• (under right plenum chamber cover) humidity sensor in fresh air intake duct
• (under transmission oil pan) transmission control module
• (w/ long wheelbase) passenger side rear multicontour seat control module
• 10h
• 10l
• 11h
• 11l
• 12h
• 12l
• 13h
• 13l
• 14h
• 14l
• 15h
• 15l
• 16h
• 16l
• 17h
• 17l
• 18h
• 18l
• 19h
• 19l
• 20h
• 20l
• 21h
• 21l
• 22h
• 22l
• 23h
• 23l
• Active steering control module (under driver's seat)
• Bose
• Driver door control module (in driver front door)
• Driver multicontour seat control module
• Driver side rear multicontour seat control module (w/ long wheelbase)
• Dvd & cd changer (if equipped)
• Garage door opener control module (if equipped) (behind center of front bumper cover)
• Information electronics control module 1
• Information electronics control module 2
• Left can-bus disconnection plug
• Memory seat/ steering column adjustment control module
• Nca
• Night vision system control module
• Radio
• T10c
• T10i
• T12a
• T12af
• T12d
• T12y
• T16c
• T16e
• T17a
• T17g
• T17i
• T17m
• T17u
• T17v
• T17w
• T20e
• T23a
• T32e
• T32m
• T38
• T6az
• T6bu
• T6bv
• T6h
• T8al
• T8h
• T8q
• T94
• Tv & digital tv tuner (if equipped) (tv tuner: left side of luggage compt)
• Vehicle electrical system control module (left end of dash)
• W/ bang & olufson sound
• W/ sound system
• W/o sound system

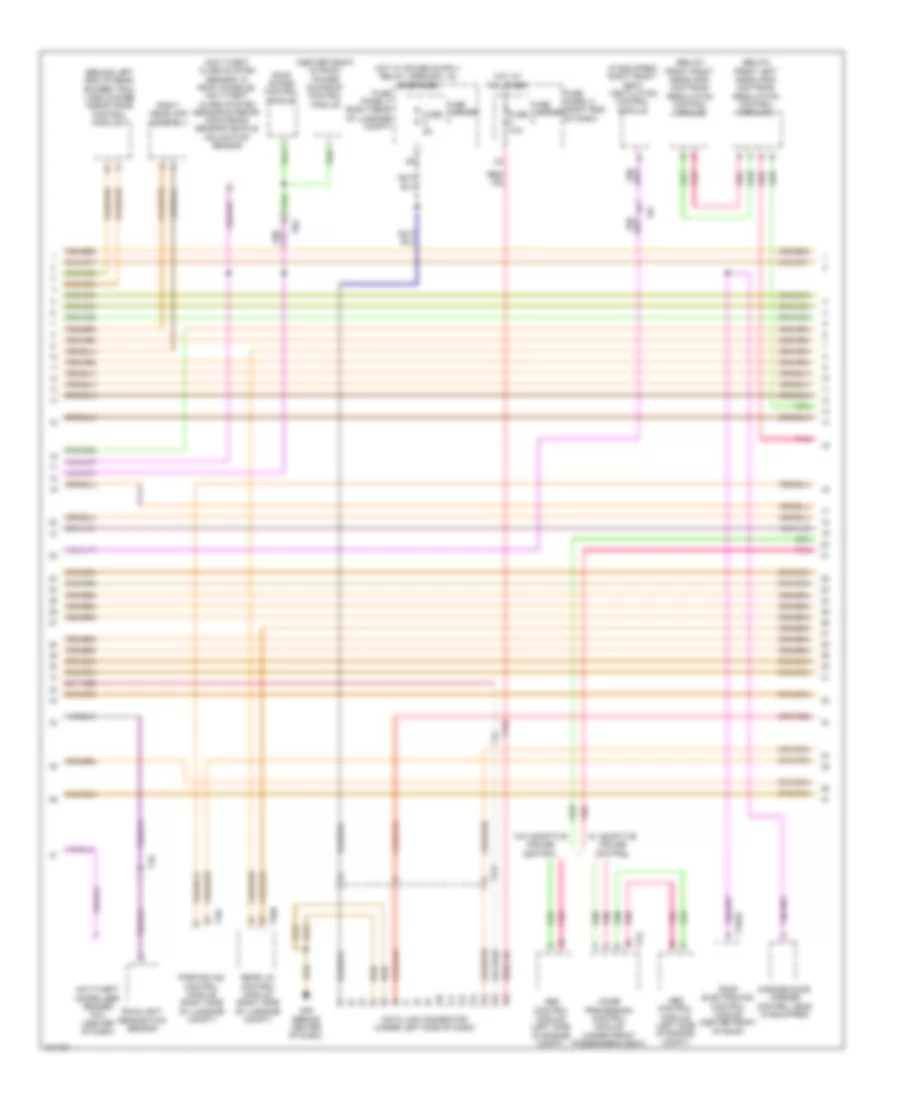

Электросхема линии передачи данных CAN (2 из 4) для Audi A6 Premium Plus 2013

Электросхема линии передачи данных CAN (2 из 4) для Audi A6 Premium Plus 2013 - Список элементов:

• (behind right end of rear bumper trim) (if equipped) lane change assistance control module
• (behind right front wheel housing liner) (4.0l) subframe mount control module
• (in driver's seat belt retractor assembly)
• (in front passenger's seat belt retractor assembly)
• (in left plenum chamber) wiper motor control module
• (left end of dash) (w/ dynamic cornering lamp) headlamp range/ cornering lamp control module
• (left end of dash) headlamp range control module
• (right side of luggage compt) all wheel drive control module
• (right side of luggage compt) electro- mechanical parking brake control module
• (under rear of center console) air bag control module
• (w/ hybrid drive) electrical a/c compressor
• (w/ seat belt warning system) left front seat belt tensioner control module
• (w/ seat belt warning system) right front seat belt tensioner control module
• (w/ special interface functions) 12 pin connector
• Auxiliary heater control module (if equipped) (on auxiliary heater assembly)
• Climatronic control module
• Comfort system central control module (right side of luggage compt)
• Electronic steering column lock control module (in steering column)
• Front passenger door control module (in passenger's front door)
• Front passenger memory seat control module
• Front passenger multicontour seat control module
• Instrument cluster control module
• Left headlamp assembly
• Nca
• Rear a/c display control head (if equipped)
• Rear view camera system control module (if equipped) (right side of luggage compt)
• Special purpose vehicle control module (w/ special purpose vehicles)
• T12ab
• T12o
• T16t
• T17h
• T17n
• T17o
• T20a
• T20c
• T20f
• T23b
• T2db
• T32
• T32i
• T32n
• T54a
• T6ba
• T6k
• Towing recognition control module (w/ trailer setup) (right side of luggage compt)
• Windshield projection head up display control module (if equipped) (top left side of dash)

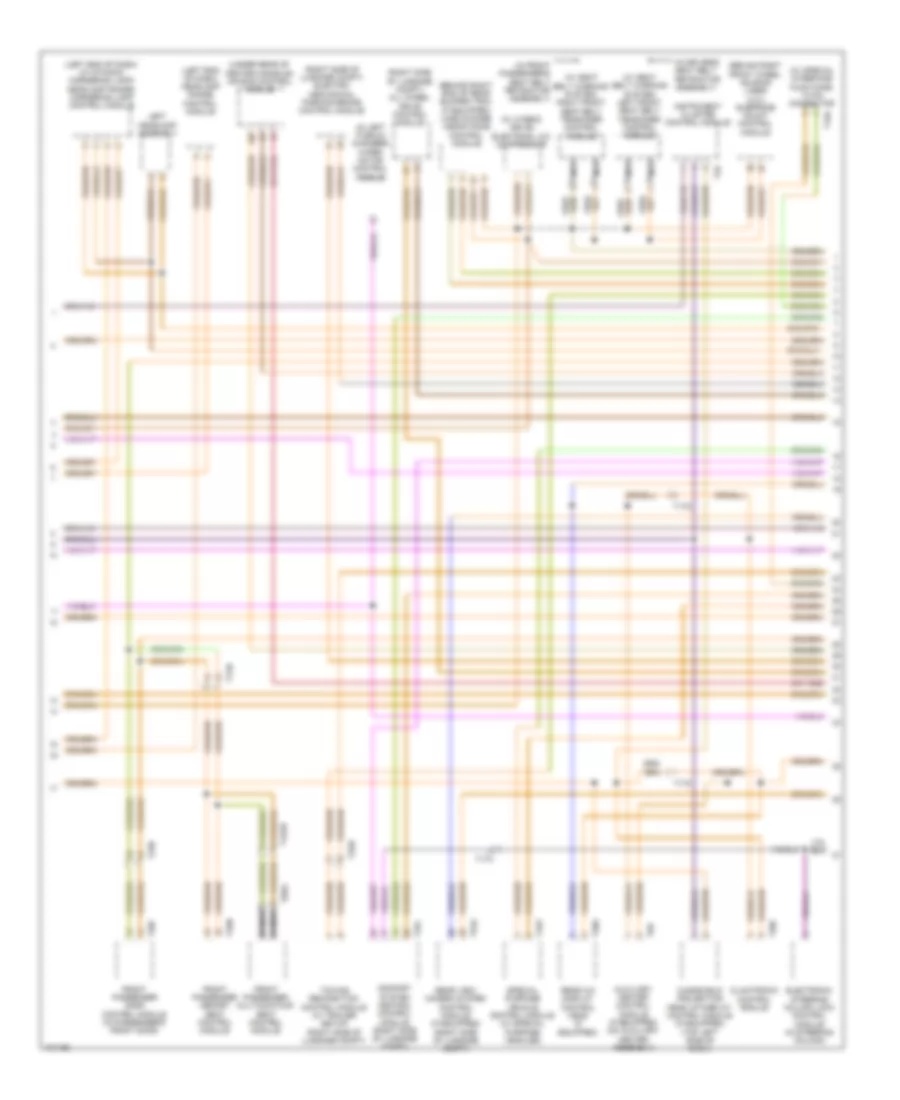

Электросхема линии передачи данных CAN (3 из 4) для Audi A6 Premium Plus 2013

Электросхема линии передачи данных CAN (3 из 4) для Audi A6 Premium Plus 2013 - Список элементов:

• (anti-theft alarm system sensor: in roof console) anti-theft alarm system sensor/interior monitoring sensor/vehicle inclination sensor
• (behind left end of rear bumper trim) lane change assistance control module 2
• (below front left headlamp) distance regulation control module 2
• (below front right headlamp) distance regulation control module
• (center front of roof) power sun-roof control module
• (if equipped) right front seat ventilation control module
• Abs control module (left side of engine compt)
• Anti-theft immobilizer reader coil (center of dash)
• Data link connector (under left side of dash)
• Fuse 10a
• Fuse 5a
• Fuse carrier
• Fuse panel c (right end of dash)
• Fuse panel f (right rear of luggage compt)
• G45 (behind center of dash)
• Garage door opener control head (if equipped)
• Hot at all times
• Image processing control module (under front passenger's seat)
• Parking aid control module (right side of luggage compt)
• Pnk
• Rain/light recognition sensor
• Rear lid control module (right side of luggage compt)
• Right headlamp assembly
• Roof electronics control module (center front of roof)
• Roof shade control module
• T10ab
• T12i
• T16i
• T17i
• T17o
• T26b
• T4u
• T6g
• T6i
• W/ adaptive cruise control
• W/o adaptive cruise control

Электросхема линии передачи данных CAN (4 из 4) для Audi A6 Premium Plus 2013

Электросхема линии передачи данных CAN (4 из 4) для Audi A6 Premium Plus 2013 - Список элементов:

• (below rear seat) data bus on board diagnostic interface
• 10h
• 10l
• 11h
• 11l
• 12h
• 12l
• 13h
• 13l
• 14h
• 14l
• 15h
• 15l
• 16h
• 16l
• 17h
• 17l
• 18h
• 18l
• 19h
• 19l
• 20h
• 20l
• 21h
• 21l
• 22h
• 22l
• 23h
• 23l
• All wheel drive control module (right side of luggage compt)
• Battery monitoring control module (on battery)
• Fuse 5a
• Fuse carrier
• Fuse panel b (left end of dash)
• G688 (below rear seat, near data bus on board diagnostic interface)
• Generator & voltage regulator
• Hot at all times
• Level control system control module (right side of luggage compt)
• Nca
• Peripheral camera control module (if equipped)
• Pnk
• Power steering control module (on steering box)
• Right can-bus disconnection plug
• Sensor electronics control module (under center console)
• Sound systems
• System & rear final drive-sport differential
• System & w/ rear final drive-sport differential
• T17a
• T2aq
• T32b
• T6ak
• T6al
• T6w
• Tire pressure monitoring control module
• Voltage stabilizer (w/ stop/ start system) (right side luggage compt)
• W/ level control system
• W/ rear final drive-sport differential
• W/o level control
• W/o rear final drive-sport differential
