Электросхемы БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ Audi A6 Premium Plus 2013

БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ

система комфорта центральная схема управляющего модуля для Audi A6 Premium Plus 2013

система комфорта центральная схема управляющего модуля для Audi A6 Premium Plus 2013 - Список элементов:

• Anti-theft system
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Defogger system
• Door locks & anti-theft systems
• Door locks & transmissions system
• Door locks system
• Engine controls & transmissions systems
• Engine controls system
• Exterior lights & mirrors systems
• Exterior lights system
• Fuse 20a
• Fuse 30a
• Fuse carrier 1
• Fuse carrier 2
• Fuse panel f (right rear of luggage compt)
• G50 (left side of luggage compt)
• G51 (right side of luggage compt)
• Hot at all times
• Left rear window breakage sensor
• Nca
• Power distribution system
• Power tops system
• Power windows system
• Rear window defogger/ rear window breakage sensor
• Right rear window breakage sensor
• T17r
• T17s
• T2co
• T32g
• T32h
• T32i
• Transmissions system
• Trunk, tailgate, fuel doors system
• Trunk, tailgate,fuel doors & interior lights systems

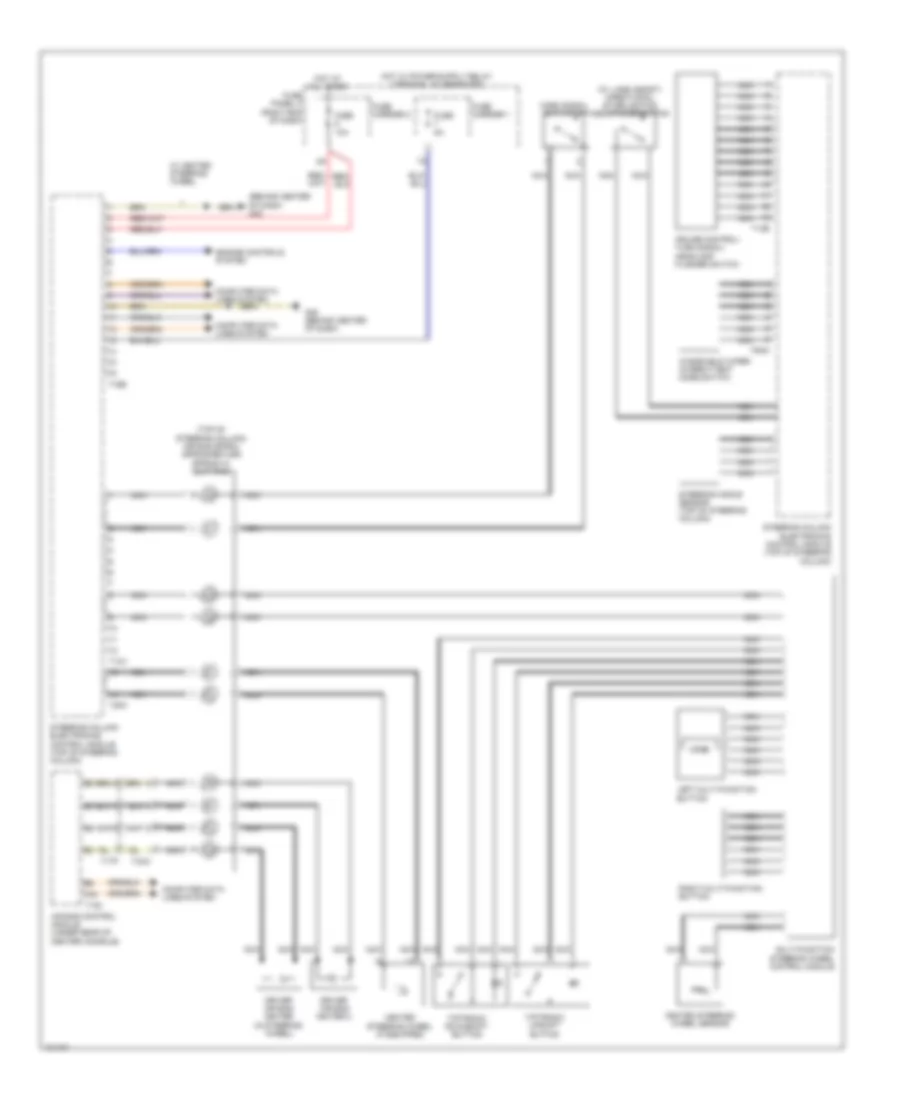

схема управляющего модуля электронных систем рулевой колонки для Audi A6 Premium Plus 2013

схема управляющего модуля электронных систем рулевой колонки для Audi A6 Premium Plus 2013 - Список элементов:

• (behind center of dash) g45
• (top of steering column) air bag spiral spring/return spring w/ slip ring
• (w/ lane assist) directional stabilization assistance button
• Air bag control module (under rear of center console)
• Computer data lines system
• Cruise control/ turn signal/ headlamp flasher switch
• Driver air bag igniter (in steering wheel)
• Driver air bag igniter 2
• Engine controls system
• Fuse 10a
• Fuse 5a
• Fuse carrier 1
• Fuse carrier 2
• Fuse panel c (right end of dash)
• G45 (behind center of dash)
• Heated steering wheel (if equipped)
• Heated steering wheel sensor
• Horn signal activation
• Hot at all times
• Left multi-function button
• Mode
• Multi-function steering wheel control module
• Nca
• Right multi-function button
• Steering angle sensor (top of steering column)
• Steering column electronics control module (top of steering column)
• T100
• T12v
• T13b
• T16e
• T17p
• T2fk
• T4ah
• T6am
• Tiptronic downshift button
• Tiptronic upshift button
• W/ heated steering wheel
• Windshield wiper intermittent mode switch

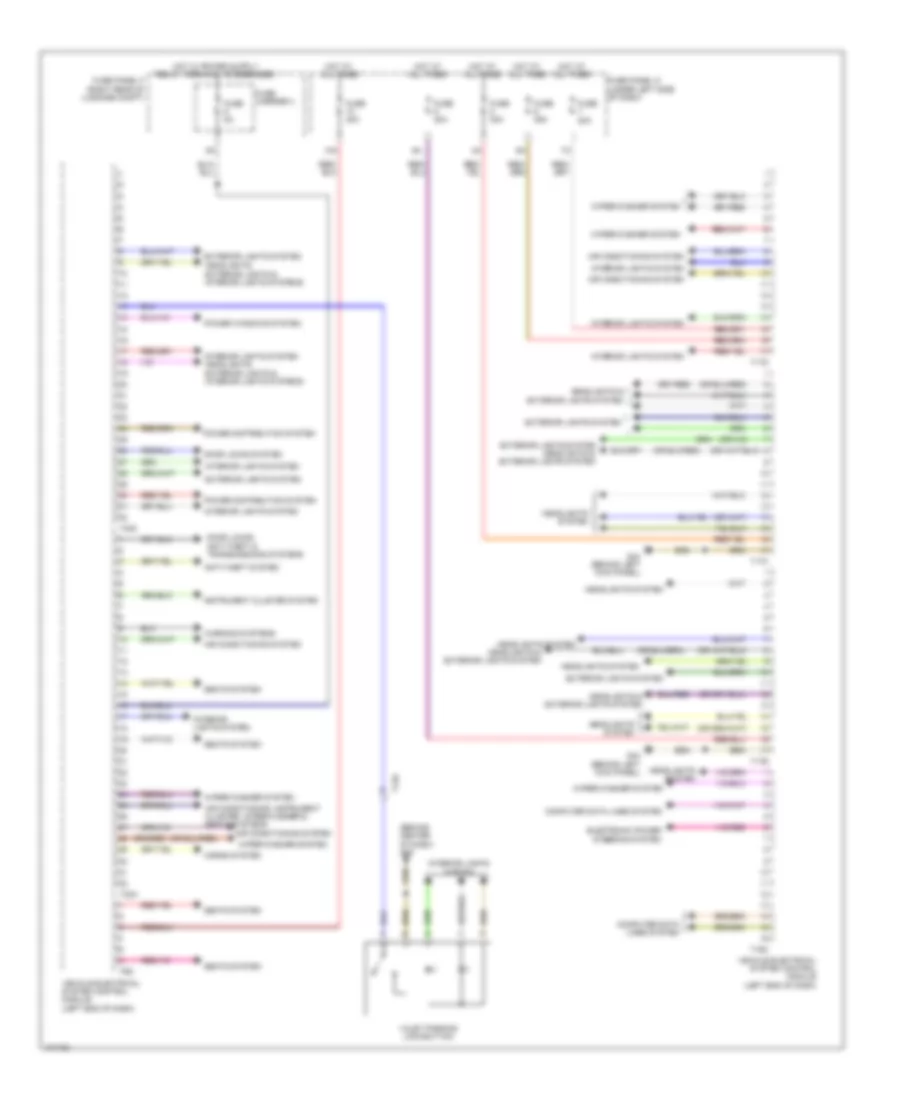

схема управляющего модуля электрической системы транспортного средства для Audi A6 Premium Plus 2013

схема управляющего модуля электрической системы транспортного средства для Audi A6 Premium Plus 2013 - Список элементов:

• (behind center of dash) g45
• 10a
• Air conditioning system
• Air conditioning, instrument cluster, wiper/washer & seats systems
• Anti-theft system
• Computer data lines system
• Door locks system
• Door locks, anti-theft & transmissions systems
• Electronic power steering system
• Exterior lights system
• Exterior lights system headlights & exterior lights system
• Fuse 20a
• Fuse 30a
• Fuse 35a
• Fuse 5a
• Fuse carrier 4
• Fuse panel d (under left side of dash)
• Fuse panel f (right rear of luggage compt)
• G44 (behind left kick panel)
• Headlights & exterior lights system
• Headlights system
• Headlights, exterior lights & interior lights systems
• Horns system
• Hot at all times
• Instrument cluster system
• Interior lights system
• Interior lights system headlights, exterior lights & interior lights systems
• Power distribution system
• Power windows system
• Seats system
• T12k
• T16c
• T17c
• T17d
• T17e
• T32a
• T32c
• T6d
• Valet parking lock button
• Vehicle electrical system control module (left end of dash)
• Warning systems
• Wiper/washer system
