Электросхемы СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Audi A6 Premium Plus 2013

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

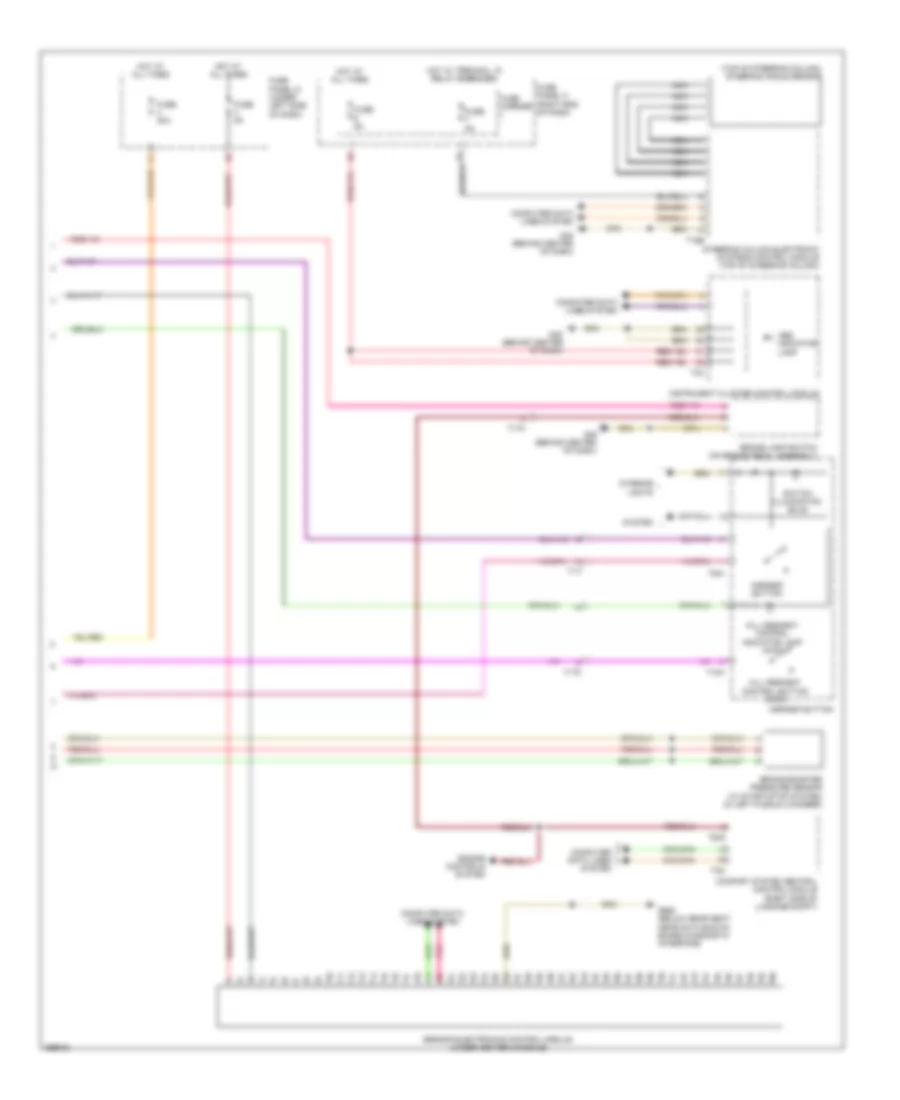

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Audi A6 Premium Plus 2013

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Audi A6 Premium Plus 2013 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Audi A6 Premium Plus 2013 - Список элементов:

  • 40a
  • Abs control module (left side of engine compt)
  • Abs control module fuse 1
  • Abs hydraulic pump
  • Abs hydraulic unit
  • Auto hold button
  • Computer data lines system
  • Driver central locking lock unit
  • Driver door control module (in driver front door)
  • Driving dynamics regulation high pressure switch valve 1
  • Driving dynamics regulation high pressure switch valve 2
  • Driving dynamics regulation switch valve 1
  • Driving dynamics regulation switch valve 2
  • Electro-mechanical parking brake button
  • Front end fuse carrier
  • Fuse 10a
  • Fuse 5a
  • Fuse carrier
  • Fuse panel b (left end of dash)
  • G55 (near abs control module)
  • Hot at all times
  • Hot w/ terminal 15 relay energized
  • Left front abs inlet valve
  • Left front abs outlet valve
  • Left front abs wheel speed sensor (on left front wheel hub)
  • Left rear abs inlet valve
  • Left rear abs outlet valve
  • Left rear abs wheel speed sensor (on left rear wheel hub)
  • Pnk
  • Red
  • Right front abs inlet valve
  • Right front abs outlet valve
  • Right front abs wheel speed sensor (on right front wheel hub)
  • Right rear abs inlet valve
  • Right rear abs outlet valve
  • Right rear abs wheel speed sensor (on right rear wheel hub)
  • Safety fuse 150a
  • T17i
  • T23a

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Audi A6 Premium Plus 2013

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Audi A6 Premium Plus 2013 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Audi A6 Premium Plus 2013 - Список элементов:

  • (top of steering column) steering angle sensor
  • Abs indicator lamp
  • Asr/esp button
  • Brake booster pressure sensor (w/ start/stop system) (in left plenum chamber)
  • Brake lamp switch (on brake pedal assembly)
  • Comfort system central control module (right side of luggage compt)
  • Computer data lines system
  • Engine controls system
  • Fuse 20a
  • Fuse 5a
  • Fuse carrier
  • Fuse panel c (right end of dash)
  • Fuse panel d (under left side of dash)
  • G45 (behind center of dash)
  • G688 (below rear seat, near data bus on board diagnostic interface)
  • Hill descent control button (awd)
  • Hill descent control indicator lamp (awd)
  • Hot at all times
  • Hot w/ terminal 15 relay energized
  • Instrument cluster control module
  • Interior lights
  • Nca
  • Pnk
  • Sensor electronics control module (under center console)
  • Steering column electronic systems control module (top of steering column)
  • Switch illumination bulb
  • System
  • T10k
  • T16e
  • T17i
  • T17o
  • T32
  • T32g
  • T32i
  • T6ai
