Электросхемы Противоугонная система Сигнализация Audi A6 Premium Plus 2013

Противоугонная система Сигнализация

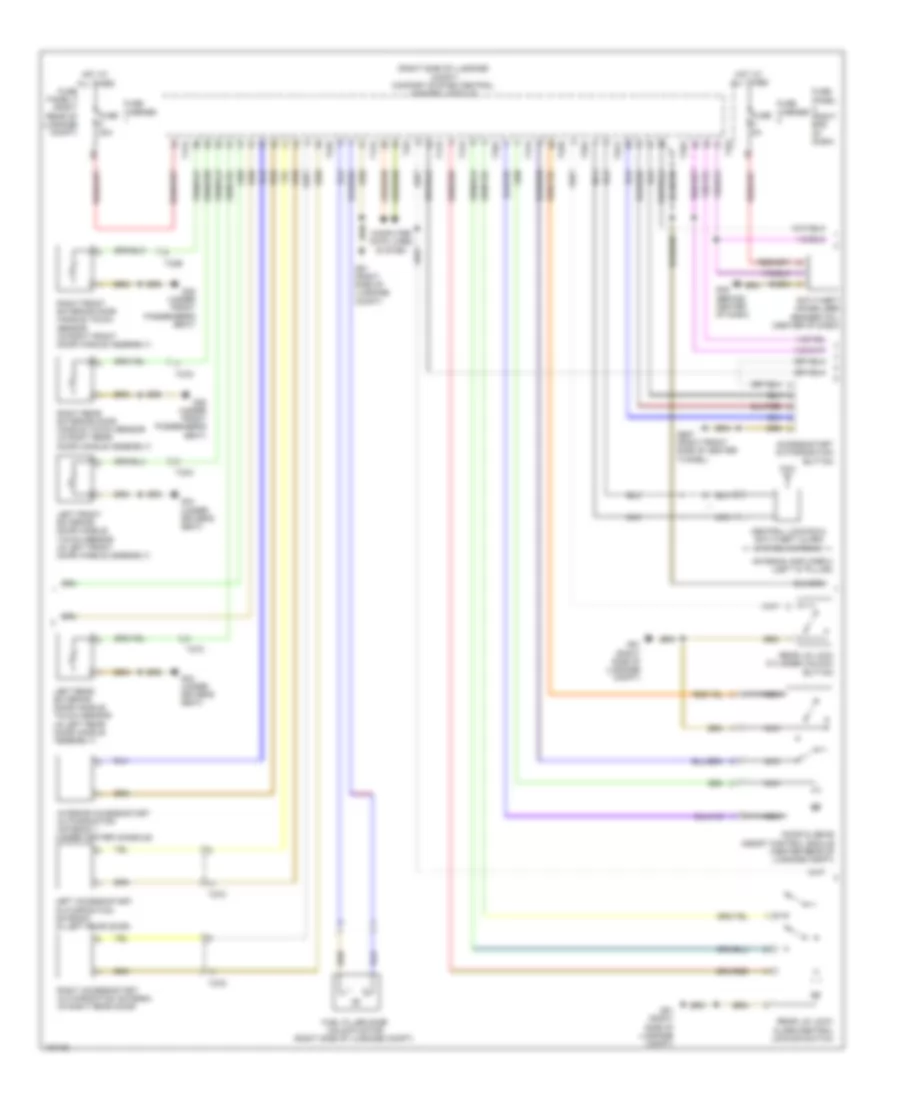

Электросхема противоугонной сигнализации (1 из 6) для Audi A6 Premium Plus 2013

Электросхема противоугонной сигнализации (1 из 6) для Audi A6 Premium Plus 2013 - Список элементов:

• (w/ anti-theft alarm system & interior monitoring & towing prevention) alarm system deactivation switch
• Anti-lock brakes system
• Central locking safe indicator lamp
• Computer data lines system
• Driver central locking lock unit (w/ door closing aid)
• Driver central locking lock unit (w/o door closing aid)
• Driver door closing assist motor
• Driver door contact switch
• Driver interior locking switch
• Driver lock cylinder contact switch
• Driver's door control module (in driver front door)
• Fuse 30a
• Fuse carrier
• Fuse panel b (left end of dash)
• G34 (under driver's seat)
• Hot at all times
• Interior lights system
• Left front central locking system actuator
• T10w
• T20e
• T23a
• T27c
• T32k
• T3au
• W/ door closing aid
• W/o door closing aid

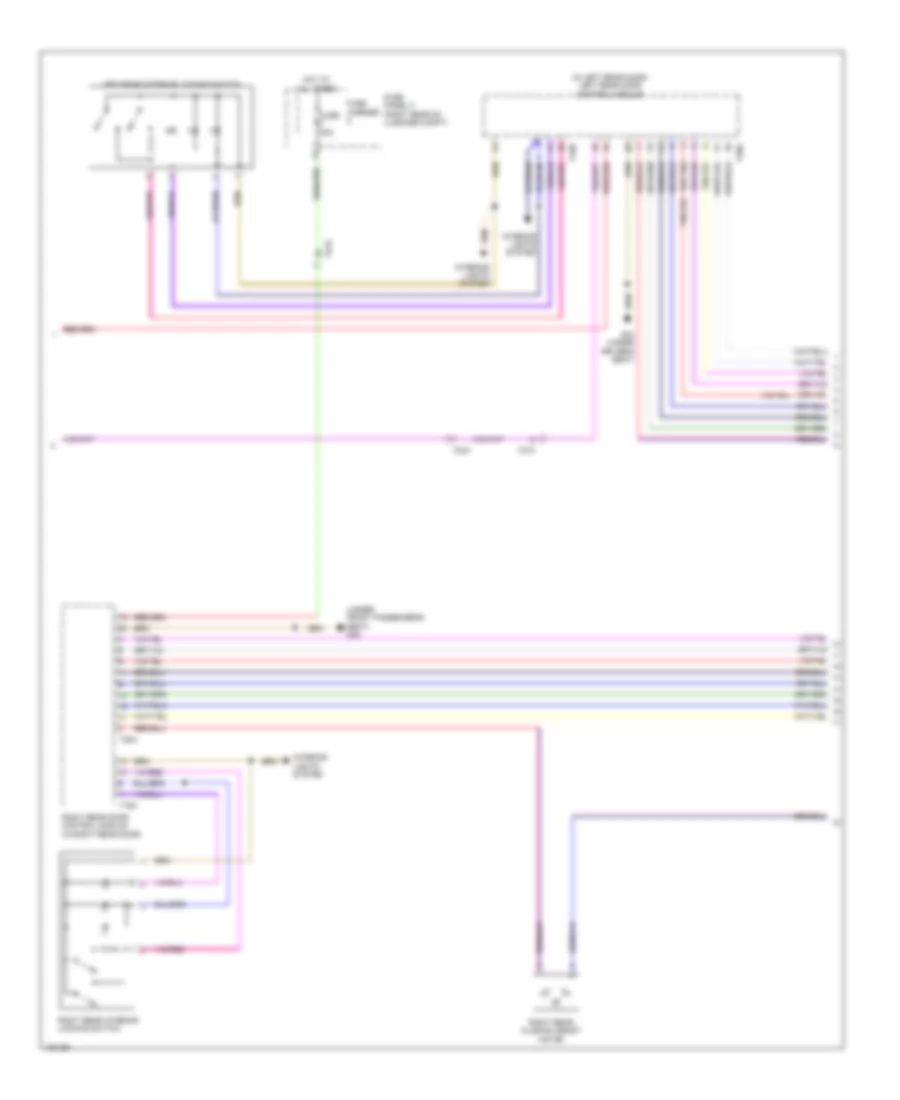

Электросхема противоугонной сигнализации (2 из 6) для Audi A6 Premium Plus 2013

Электросхема противоугонной сигнализации (2 из 6) для Audi A6 Premium Plus 2013 - Список элементов:

• (in left rear door) left rear door control module
• (under front passenger's seat) g35
• Fuse 30a
• Fuse carrier
• Fuse panel f (right rear of luggage compt)
• G34 (under driver's seat)
• Hot at all times
• Interior lights system
• Left rear interior locking switch
• Right rear closing assist motor
• Right rear door control module (in right rear door)
• Right rear interior locking switch
• T16n
• T16o
• T20g
• T20h
• T23a
• T27c
• T27d

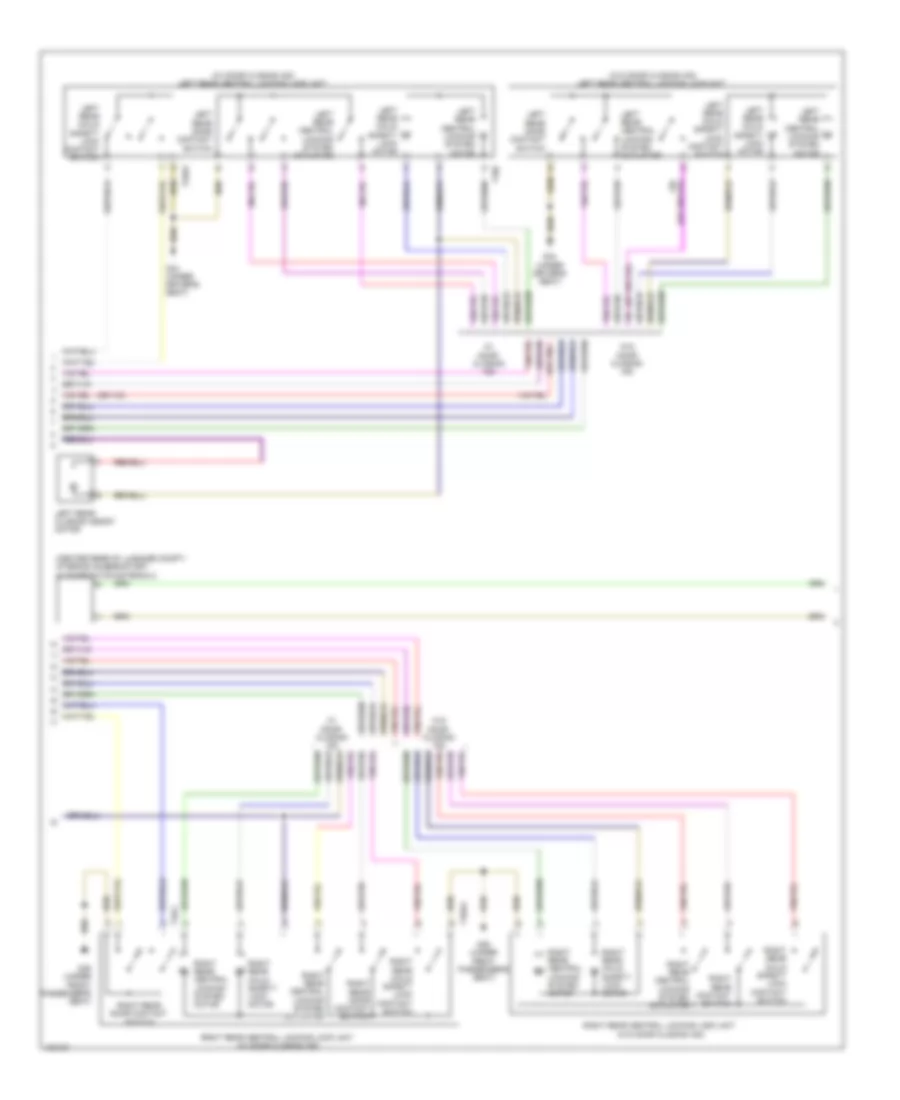

Электросхема противоугонной сигнализации (3 из 6) для Audi A6 Premium Plus 2013

Электросхема противоугонной сигнализации (3 из 6) для Audi A6 Premium Plus 2013 - Список элементов:

• (center rear of luggage compt) interior access/start authorization antenna 2
• (w/ door closing aid) left rear central locking lock unit
• (w/o door closing aid) left rear central locking lock unit
• G34 (under driver's seat)
• G35 (under front passenger's seat)
• Left rear central locking system actuator
• Left rear central locking system motor
• Left rear child safety lock contact switch
• Left rear child safety lock motor
• Left rear closing assist motor
• Left rear door contact switch
• Right rear central locking lock unit (w/ door closing aid)
• Right rear central locking lock unit (w/o door closing aid)
• Right rear central locking system actuator
• Right rear central locking system motor
• Right rear child m
• Right rear child safety lock contact switch
• Right rear child safety lock motor
• Right rear contact switch
• Right rear door contact switch
• Safety lock motor
• T10aa
• T10z
• T3aw
• T3ax
• W/ door closing aid
• W/o door closing aid

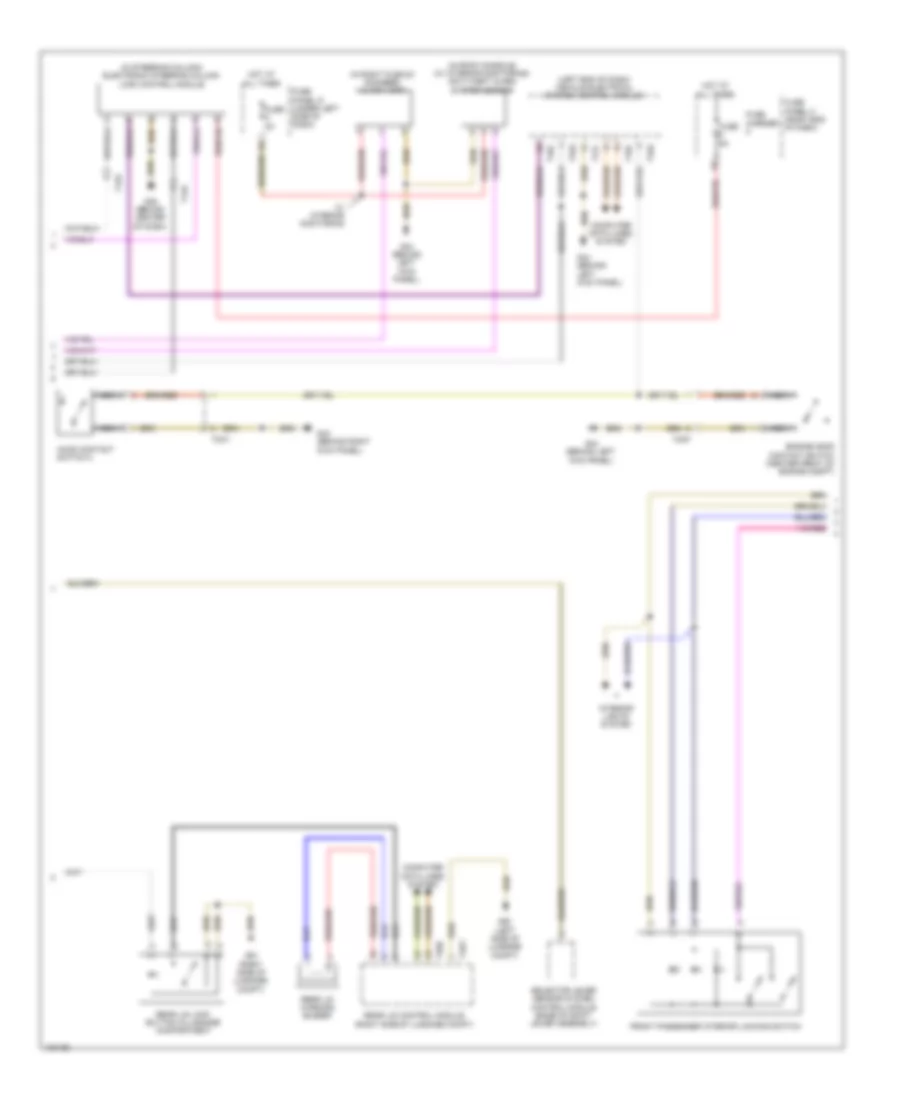

Электросхема противоугонной сигнализации (4 из 6) для Audi A6 Premium Plus 2013

Электросхема противоугонной сигнализации (4 из 6) для Audi A6 Premium Plus 2013 - Список элементов:

• (right side of luggage compt) comfort system central control module
• Access/start authorization button
• Antenna amplifier 2 (left "d" pillar)
• Anti-theft immobilizer reader coil (center of dash)
• Central locking & anti-theft alarm system antenna
• Computer data lines system
• Door closing assist control module (center rear of luggage compt)
• Fuel filler door unlock motor (right side of luggage compt)
• Fuse 20a
• Fuse 5a
• Fuse carrier
• Fuse panel c (right end of dash)
• Fuse panel f (right rear of luggage compt)
• G34 (under driver's seat)
• G35 (under front passenger's seat)
• G45 (behind center of dash)
• G51 (right side of luggage compt)
• G687 (right front side of center tunnel)
• Hot at all times
• Interior access/start authorization antenna 1 (under center console)
• Left access/start authorization antenna (in left rear door)
• Left front exterior door handle touch sensor (in left front door handle assembly)
• Left rear exterior door handle touch sensor (in left rear door handle assembly)
• Nca
• Rear lid lock cylinder unlock button
• Rear lid lock/ alarm/central locking switch
• Right access/start authorization antenna (in right rear door)
• Right front exterior door handle touch sensor (in right front door handle assembly)
• Right rear exterior door handle touch sensor (in right rear door handle assembly)
• T17r
• T17s
• T23a
• T23b
• T27c
• T27d
• T2co
• T32g
• T32h
• T32i

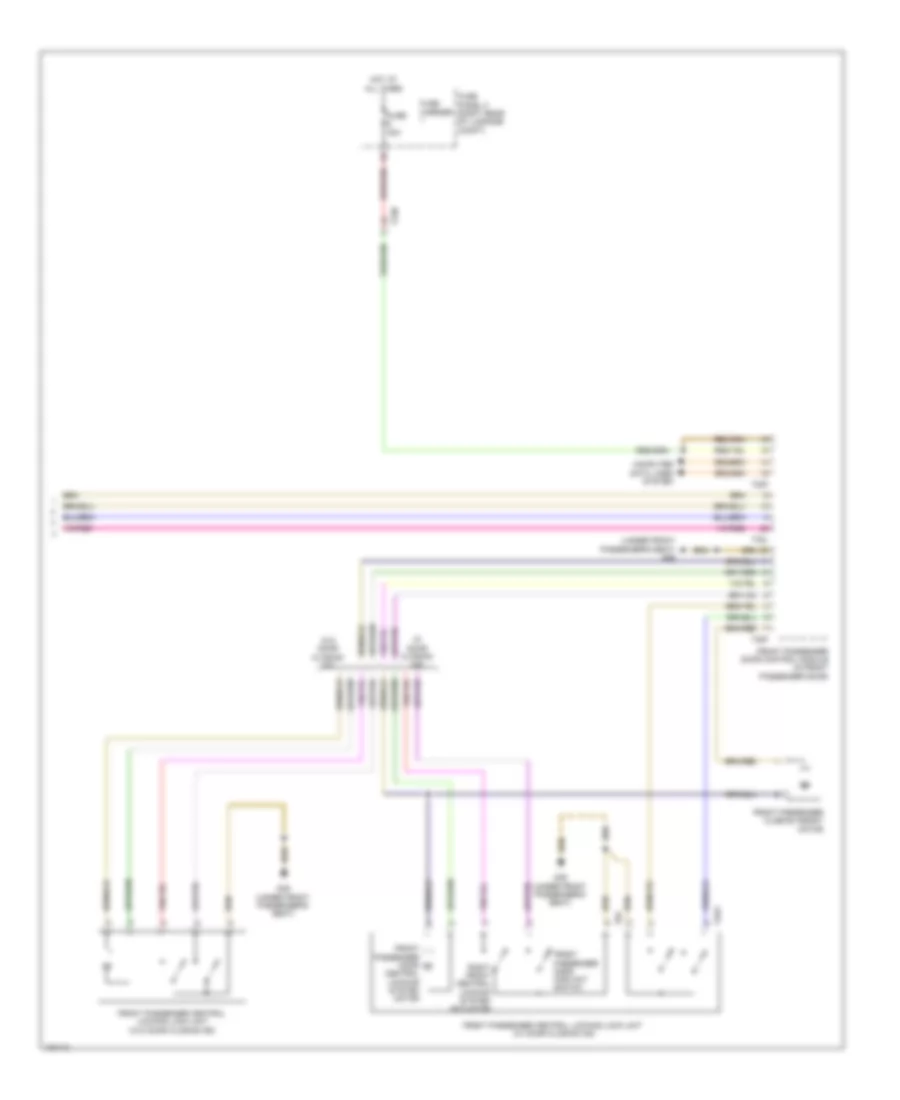

Электросхема противоугонной сигнализации (5 из 6) для Audi A6 Premium Plus 2013

Электросхема противоугонной сигнализации (5 из 6) для Audi A6 Premium Plus 2013 - Список элементов:

• (in right plenum chamber) alarm horn
• (in roof console) (w/ interior monitoring) anti-theft alarm system sensor
• (in steering column) electronic steering column lock control module
• (left end of dash) vehicle electrical system control module
• Computer data lines system
• Engine hood contact switch (center front of engine compt)
• Front passenger interior locking switch
• Fuse 5a
• Fuse carrier
• Fuse panel c (right end of dash)
• Fuse panel d (under left side of dash)
• G43 (behind right kick panel)
• G44 (behind left kick panel)
• G45 (behind center of dash)
• G50 (left side of luggage compt)
• G51 (right side of luggage compt)
• Hood contact switch 2
• Hot at all times
• Interior lights system
• Nca
• Rear lid control module (right side of luggage compt)
• Rear lid lock button in luggage compartment
• Rear lid warning buzzer
• Selector lever sensor system control module (base of shift lever assembly)
• T16c
• T170
• T17c
• T26b
• T2af
• T2ay
• T32a
• T32c
• T4bx
• W/ interior monitoring

Электросхема противоугонной сигнализации (6 из 6) для Audi A6 Premium Plus 2013

Электросхема противоугонной сигнализации (6 из 6) для Audi A6 Premium Plus 2013 - Список элементов:

• (under front passenger's seat) g35
• Computer data lines system
• Front passenger central locking lock unit (w/ door closing aid)
• Front passenger central locking lock unit (w/o door closing aid)
• Front passenger closing assist motor
• Front passenger door central locking system motor
• Front passenger door contact switch
• Front passenger door control module (in front passenger door)
• Fuse 30a
• Fuse carrier
• Fuse panel f (right rear of luggage compt)
• G35 (under front passenger's seat)
• Hot at all times
• Right front central locking system actuator
• T20f
• T23b
• T32l
• T3av
• T8x
• W/ door closing aid
• W/o door closing aid
