Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Audi A6 Premium Plus 2013

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

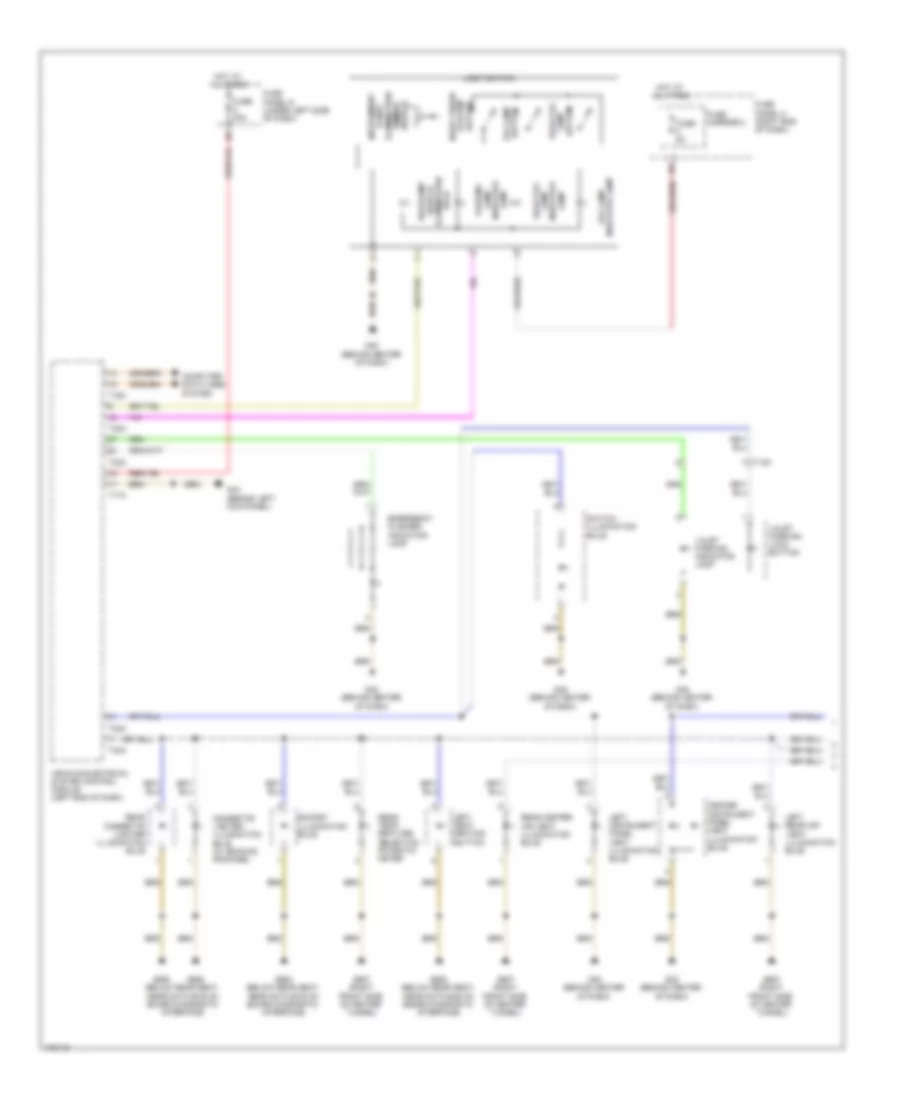

Электросхема подсветки (1 из 3) для Audi A6 Premium Plus 2013

Электросхема подсветки (1 из 3) для Audi A6 Premium Plus 2013 - Список элементов:

• (below rear seat, near data bus on board diagnostic interface) g688
• 11a
• Computer data lines system
• Driver reading lamp
• Driver reading lamp button
• Fiber optic cable for right rear sill panel ambient lighting (w/ auxiliary lamps)
• Front interior lamp
• Front interior light
• Front passenger reading lamp
• Front passenger reading lamp button
• Fuse 30a
• Fuse 5a
• Fuse carrier
• Fuse panel d (under left side of dash)
• Fuse panel f (right rear of luggage compt)
• G35 (under front passenger's seat)
• G43 (behind right kick panel)
• G44 (behind left kick panel)
• G45 (behind center of dash)
• G51 (right side of luggage compt)
• G688 (below rear seat, near data bus on board diagnostic interface)
• Glove compartment lamp switch
• Glove compartment light
• Hot at all times
• Interior lighting switch
• Left center armrest illumination bulb
• Left front footwell illumination bulb
• Left rear footwell light
• Mirrors system
• Nca
• Rear center console ambient lighting bulb 1 (w/ auxiliary lamps)
• Rear center console ambient lighting bulb 2 (w/ auxiliary lamps)
• Rear center console ambient lighting contact switch
• Rear interior light assembly
• Right center armrest illumination bulb
• Right front footwell illumination bulb
• Right rear door ambient lighting bulb
• Right rear door control module (in right rear door)
• Right rear door opener illumination
• Right rear door storage compartment illumination bulb
• Right rear door warning lamp
• Right rear entry lamp
• Right rear footwell light
• T10ab
• T10ac
• T12k
• T16c
• T16o
• T17c
• T17d
• T17f
• T17h
• T17i
• T17m
• T17n
• T20h
• T27d
• T32a
• T32c
• T5ad
• Vehicle electrical system control module (left end of dash)

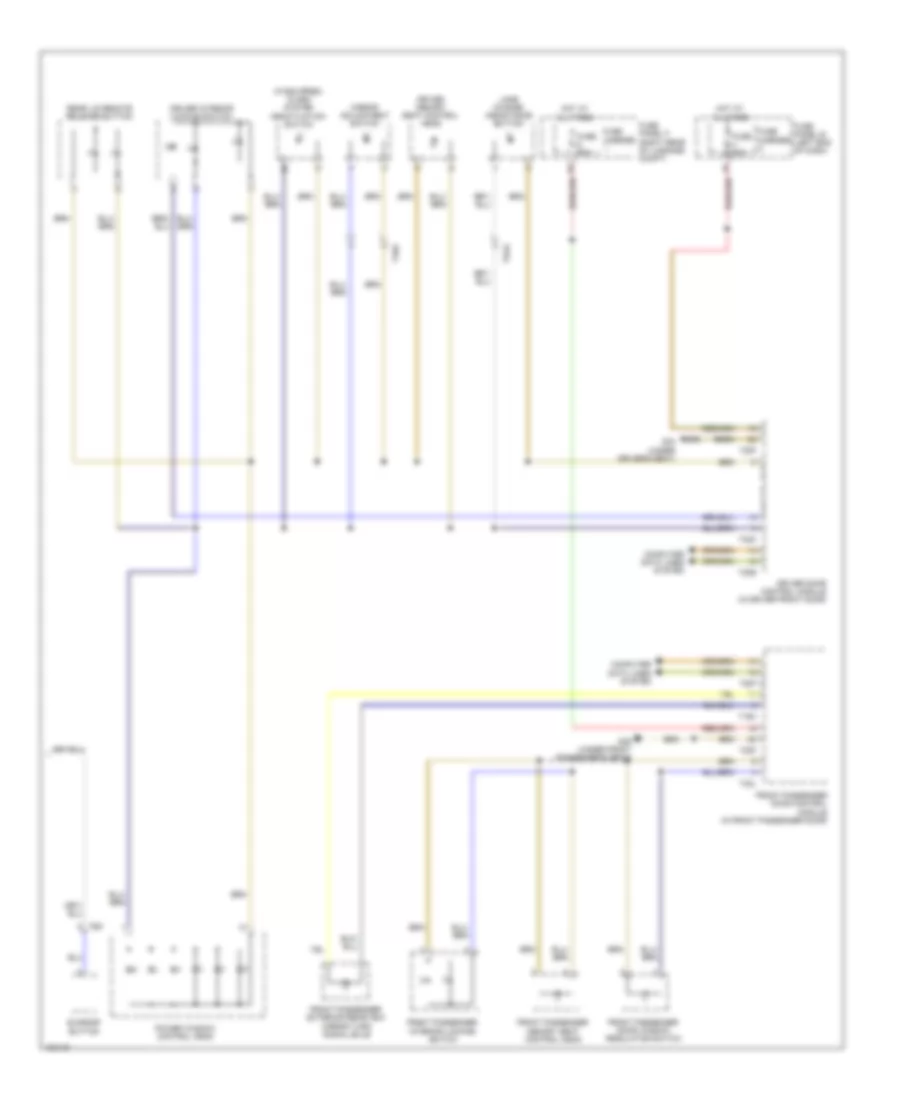

Электросхема подсветки (2 из 3) для Audi A6 Premium Plus 2013

Электросхема подсветки (2 из 3) для Audi A6 Premium Plus 2013 - Список элементов:

• Computer data lines system
• Front passenger door ambient lighting bulb
• Front passenger door control module (in front passenger's door)
• Front passenger door opener illumination bulb
• Front passenger door storage compartment illumination bulb
• Front passenger door warning lamp
• Fuse 30a
• Fuse carrier
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G34 (under driver's seat)
• G35 (under front passenger's seat)
• G688 (below rear seat, near data bus on board diagnostic interface)
• Hot at all times
• Left rear door ambient lighting bulb
• Left rear door control module (in left rear door)
• Left rear door opener illumination
• Left rear door storage compartment illumination bulb
• Left rear door warning lamp
• Left rear entry lamp
• Left rear exterior door handle illumination
• Left rear sill panel ambient lighting
• Nca
• Right front entry lamp
• Right front exterior door handle illumination bulb
• Right front sill panel ambient lighting/fiber optic cable (w/ auxiliary lamps)
• T16n
• T20f
• T20g
• T23b
• T27c
• T32l
• T5ab
• T5ac
• T6at
• W/ auxiliary lamps

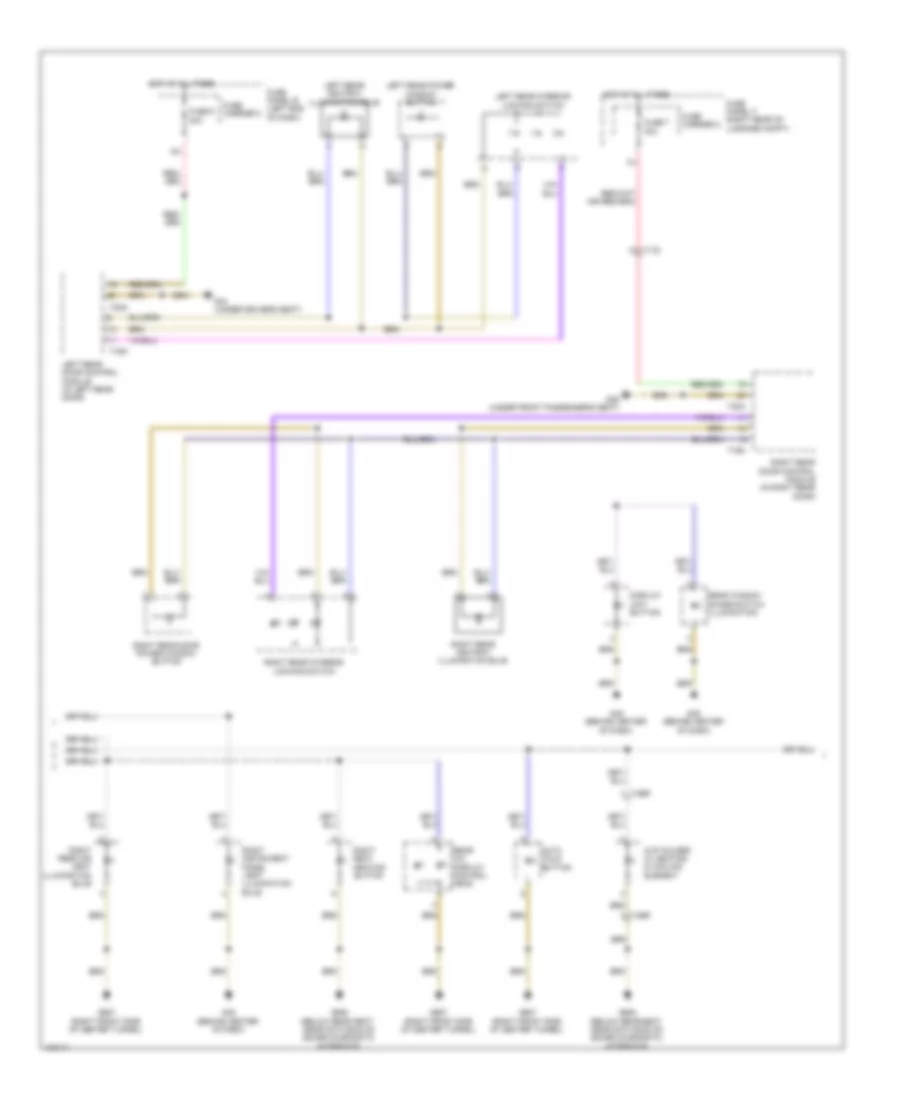

Электросхема подсветки (3 из 3) для Audi A6 Premium Plus 2013

Электросхема подсветки (3 из 3) для Audi A6 Premium Plus 2013 - Список элементов:

• (center front of roof)
• (under driver's seat) g34
• (w/ auxiliary lamps) driver door storage compartment illumination bulb
• (w/o auxiliary lamps) left front entry lamp
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Driver door ambient lighting bulb
• Driver door opener illumination bulb
• Driver door warning lamp
• Driver vanity mirror lamp
• Driver vanity mirror lamp contact switch
• Driver's door control module (in driver's front door)
• Front interior lamp
• Front interior lamp button
• Front passenger vanity mirror lamp
• Front passenger vanity mirror lamp contact switch
• Fuse 20a
• Fuse 30a
• Fuse carrier
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G44 (behind left kick panel)
• G50 (left side of luggage compt)
• G51 (right side of luggage compt)
• Garage door opener button 1
• Garage door opener button 2
• Garage door opener button 3
• Hot at all times
• Left front entry lamp
• Left front reading lamp
• Left front reading lamp button
• Left front sill panel ambient lighting
• Left rear interior lamp
• Left rear reading lamp switch
• Luggage compartment lamp
• Mirrors system
• Nca
• Rear interior light
• Rear reading lamp front button
• Right front reading lamp
• Right rear interior lamp
• Right rear reading lamp switch 1
• Roof electronics control module (w/ highline equipment)
• T10ab
• T10ac
• T17r
• T17s
• T20e
• T23a
• T32i
• T32k
• W/ auxiliary lamps

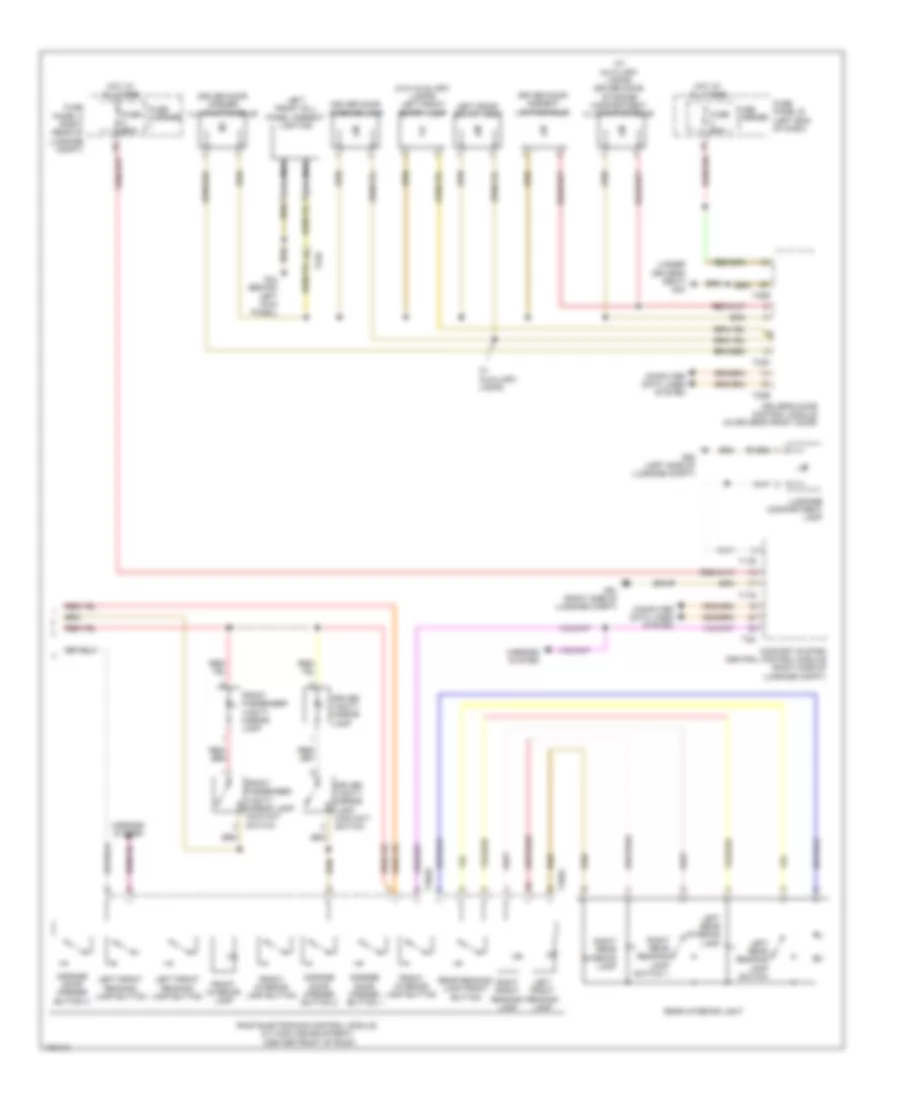

Электросхема подсветки приборов (1 из 3) для Audi A6 Premium Plus 2013

Электросхема подсветки приборов (1 из 3) для Audi A6 Premium Plus 2013 - Список элементов:

• (below rear seat, near data bus on board diagnostic interface)
• Button fog lamp
• Button lamp
• Center instrument panel vent illumination bulb
• Cigarette lighter illumination bulb (w/ smoking package)
• Computer data lines system
• Emergency flasher indicator lamp
• Fuse 30a
• Fuse 5a
• Fuse carrier 2
• Fuse panel c (right end of dash)
• Fuse panel d (under left side of dash)
• G44 (behind left kick panel)
• G45 (behind center of dash)
• G687 (right front side of center tunnel)
• G688
• G688 (below rear seat, near data bus on board diagnostic interface)
• Headlamp switch
• Hot at all times
• Illumination bulb
• Illumination dimmer
• Indicator lamp
• Indicator lamp fog lamp
• Instrument panel
• Lamp indicator lamp rear fog
• Left instrument panel vent illumination bulb
• Left rear air vent illumination bulb
• Left seat heating button
• Light switch
• Night vision
• Parking lamp
• Rear center air vent illumination bulb
• Rear cigarette lighter illumination bulb
• Rear fog
• Rear temp- erature selection potentio- meter
• Socket illumination bulb
• Switch
• Switch illumination bulb
• System button
• T12k
• T16c
• T17c
• T32a
• T32c
• Valet parking indicator lamp
• Valet parking lock button
• Vehicle electrical system control module (left end of dash)

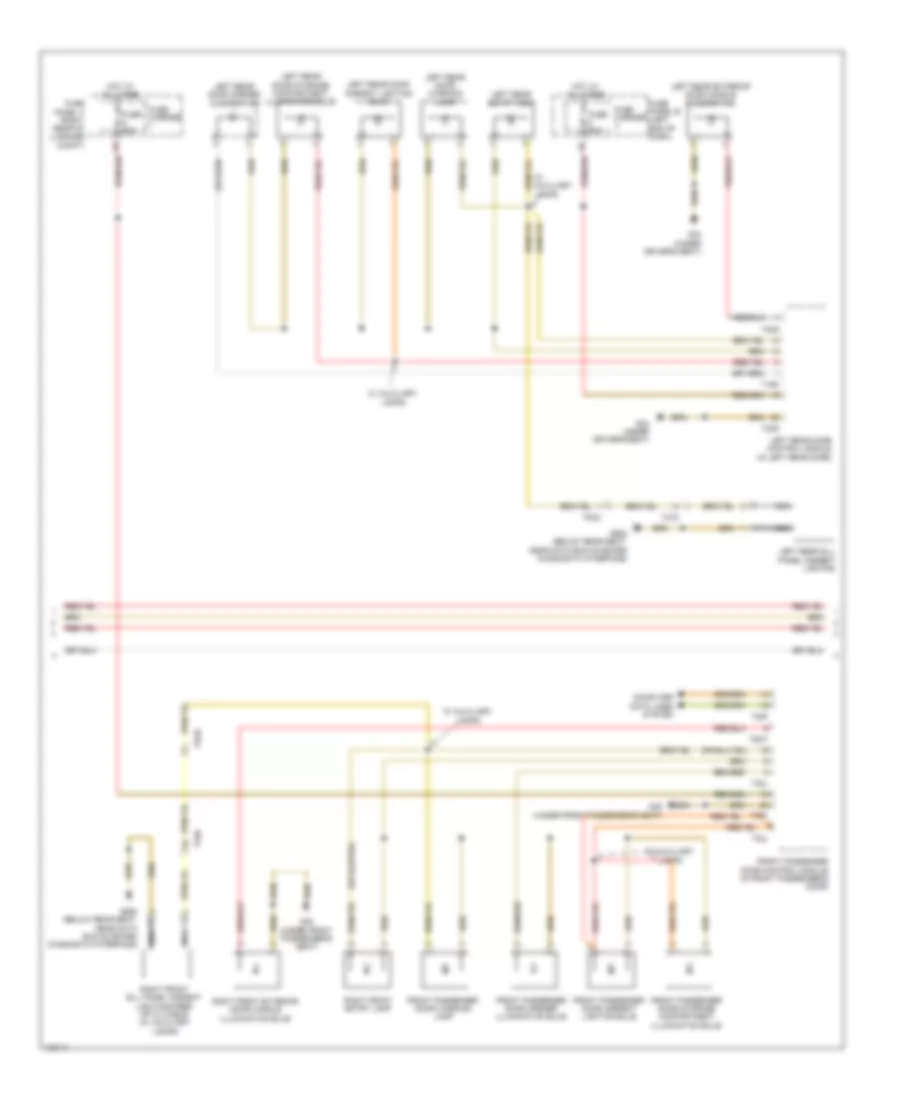

Электросхема подсветки приборов (2 из 3) для Audi A6 Premium Plus 2013

Электросхема подсветки приборов (2 из 3) для Audi A6 Premium Plus 2013 - Список элементов:

• 30a
• Auto hold button
• Cup holder w/ heating & cooling element
• Display unit button
• Fuse 5
• Fuse 7
• Fuse carrier 2
• Fuse carrier 3
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G34 (under driver's seat)
• G35 (under front passenger's seat)
• G45 (behind center of dash)
• G687 (right front side of center tunnel)
• G688 (below rear seat, near data bus on board diagnostic interface)
• Hot at all times
• Left rear ashtray illumination bulb
• Left rear door control module (in left rear door)
• Left rear interior locking switch
• Left rear power window button
• Rear a/c display control head
• Rear window shade switch illumination
• Right instrument panel vent illumination bulb
• Right rear air vent illumination bulb
• Right rear ashtray illumination bulb
• Right rear door control module (in right rear door)
• Right rear door power window button
• Right rear interior locking switch
• Right seat heating button
• T16n
• T16o
• T17d
• T20g
• T20h
• T4er

Электросхема подсветки приборов (3 из 3) для Audi A6 Premium Plus 2013

Электросхема подсветки приборов (3 из 3) для Audi A6 Premium Plus 2013 - Список элементов:

• (if equipped) alarm system deactivation switch
• Computer data lines system
• Driver door control module (in driver front door)
• Driver interior locking switch
• Driver memory seat control head
• Front passenger door control module (in front passenger door)
• Front passenger door window regulator switch
• Front passenger exterior rearview mirror turn signal bulb
• Front passenger interior locking switch
• Front passenger memory seat control head
• Fuse 30a
• Fuse carrier
• Fuse panel b (left end of dash)
• Fuse panel f (right rear of luggage compt)
• G34 (under driver's seat)
• G35 (under front passenger's seat)
• Hot at all times
• Lane change assistance button
• Mirror adjustment switch
• Power window control head
• Rear lid remote release button
• Sunroof button
• T16h
• T20e
• T20f
• T32k
• T32l
• T4bk
• T5aa
• T6g
