Электросхемы Магнитола Мультимедия Audi A3 Quattro 2009

Магнитола Мультимедия

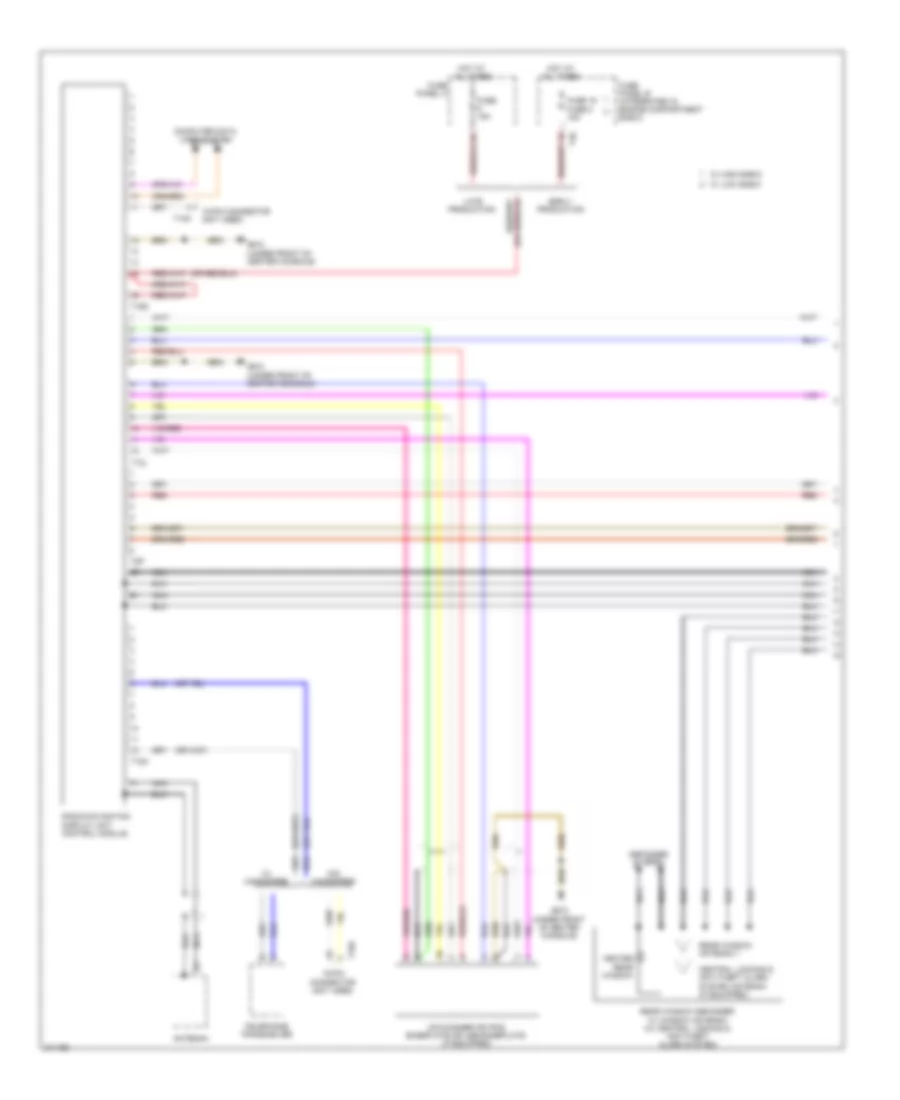

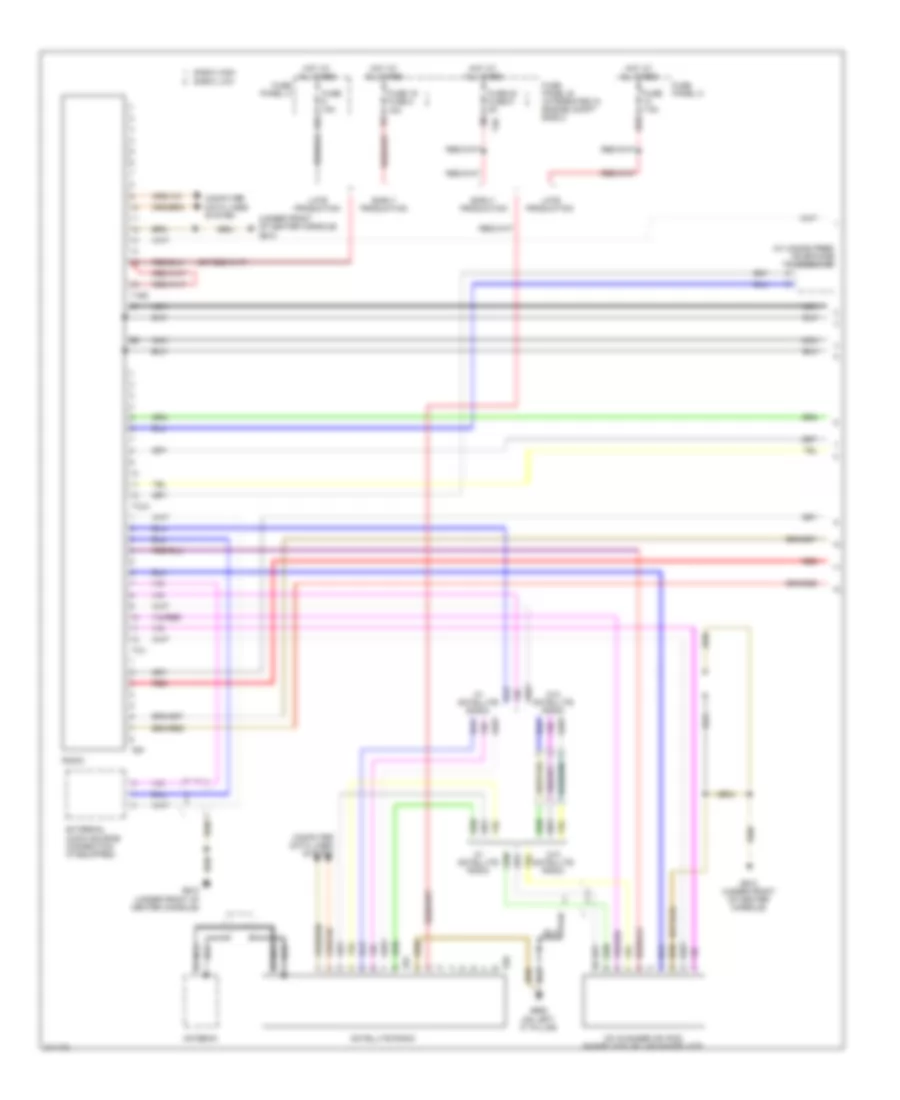

Электросхема магнитолы Bose (1 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы Bose (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (under front of center console) g610
• (w/ hands free) telephone transceiver
• 10a
• Antenna
• Cd changer or ipod baseplate or usb baseplate
• Computer data lines system
• E-box high
• E-box low
• Early production
• External audio source connection (if equipped)
• Fuse 15a
• Fuse 19 fuse 8 15a
• Fuse 20 fuse 9 5a
• Fuse 30a
• Fuse 7.5a
• Fuse panel b (integrated in engine compt e-box)
• Fuse panel c
• G610 (under front of center console)
• G662 (on left "c" pillar)
• Hot at all times
• Late production
• Nca
• Radio
• Satellite radio
• T12i
• T12m
• T16g
• T40
• T8t
• T8u
• W/ satellite radio
• W/o satellite radio

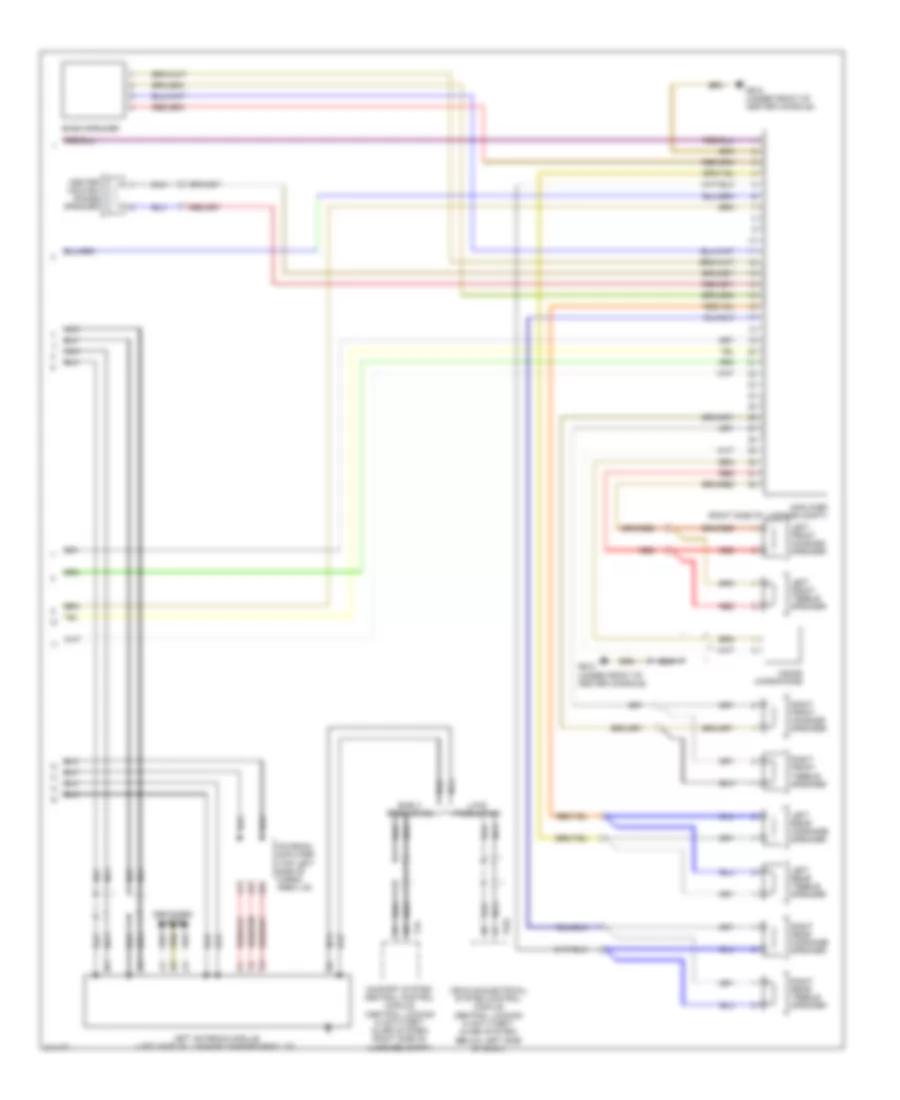

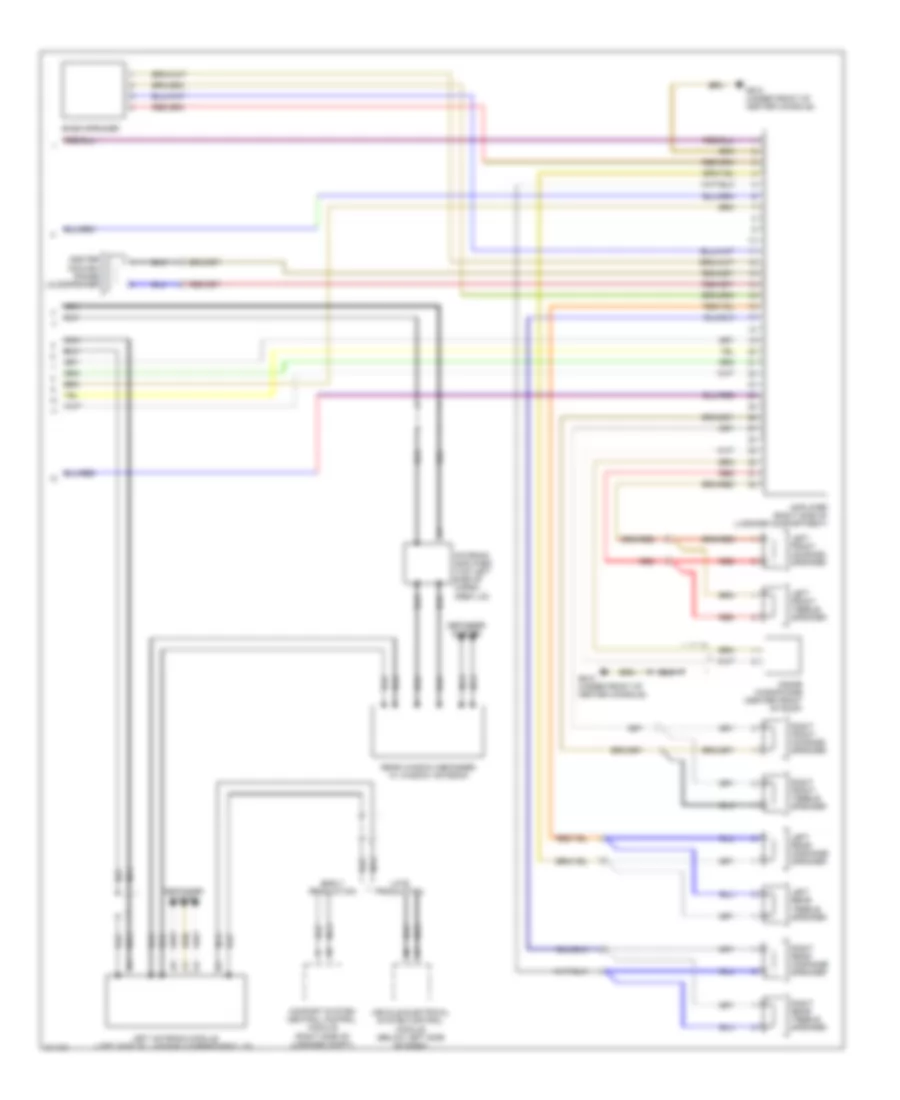

Электросхема магнитолы Bose (2 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы Bose (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• Amplifier (right side of luggage compartment)
• Antenna amplifier (top left side of cargo area lid)
• Bass speaker
• Center mid/high range loudspeaker
• Comfort system central control module (right side of luggage compt)
• Defogger system
• Early production
• G610 (under front of center console)
• Inside microphone (center front of roof)
• Late production
• Left antenna module (left side of luggage compartment lid)
• Left front mid-bass speaker
• Left front treble speaker
• Left rear midrange speaker
• Left rear treble speaker
• Nca
• Rear window defogger w/ window antenna
• Red
• Right front mid-bass speaker
• Right front treble speaker
• Right rear midrange speaker
• Right rear treble speaker
• Vehicle electrical system control module (below left side of dash)

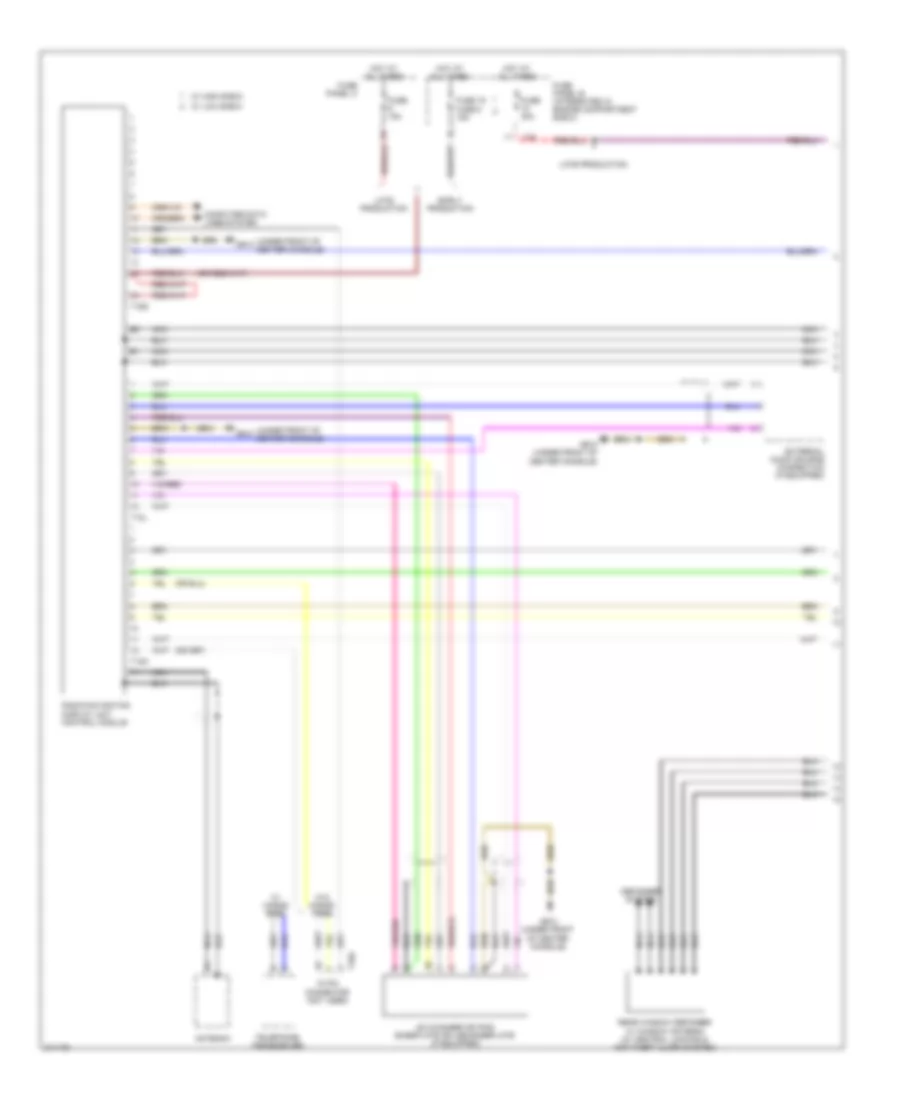

Электросхема магнитолы, С Усилитель (1 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, С Усилитель (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (under front of center console) g610
• (w/ hands free) telephone transceiver
• 10a
• Antenna
• Cd changer or ipod baseplate or usb baseplate
• Computer data lines system
• E-box high
• E-box low
• Early production
• External audio source connection (if equipped)
• Fuse 15a
• Fuse 19 fuse 8 15a
• Fuse 20 fuse 9 5a
• Fuse 7.5a
• Fuse panel b (integrated in engine compt e-box)
• Fuse panel c
• G610 (under front of center console)
• G662 (on left "c" pillar)
• Hot at all times
• Late production
• Nca
• Radio
• Red
• Satellite radio
• T12i
• T12m
• T16g
• T40
• T8p
• T8t
• T8u
• W/ satellite radio
• W/o satellite radio

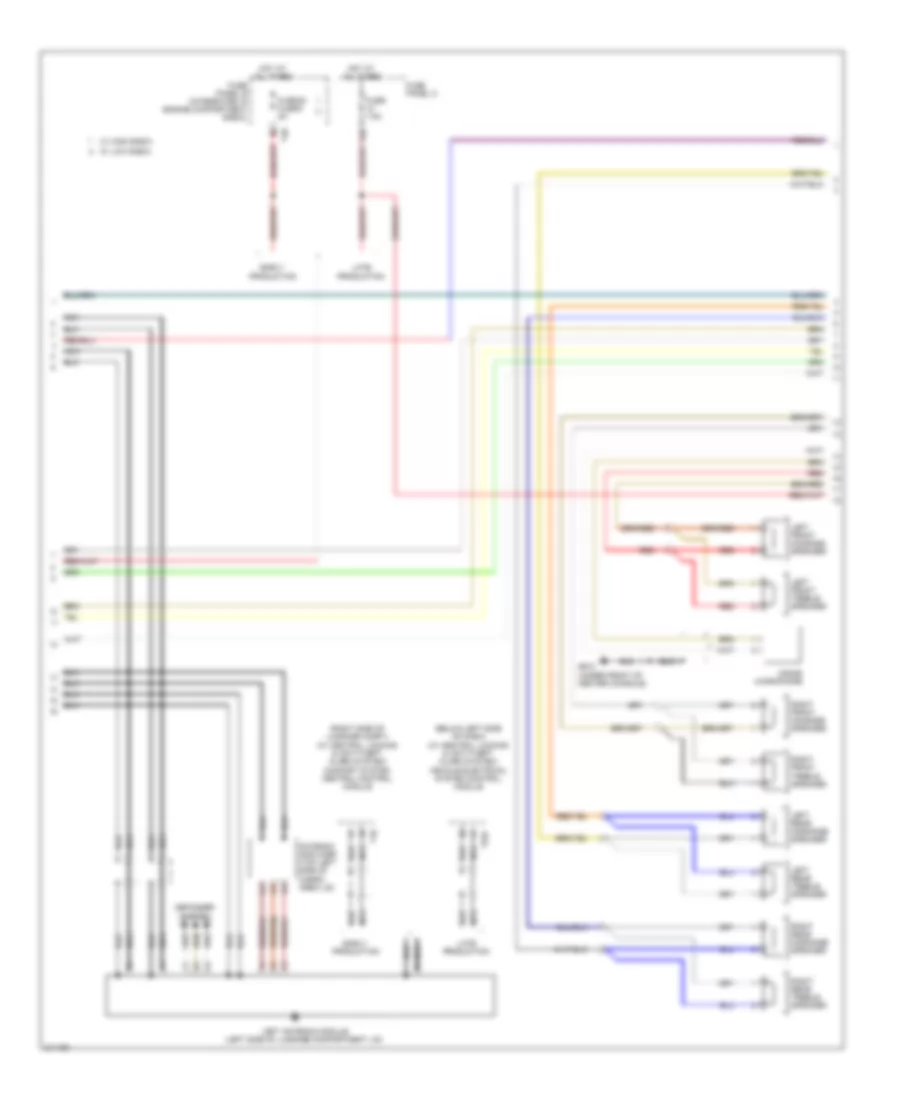

Электросхема магнитолы, С Усилитель (2 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, С Усилитель (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (under front of center console) g610
• Amplifier/woofer
• Antenna amplifier (top left side of cargo area lid)
• Center mid/high range loud speaker
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Defogger system
• Early production
• Fuse 30a
• Fuse panel b (integrated in engine compt e-box)
• G610 (under front of center console)
• Hot at all times
• Late production
• Left antenna module (left side of luggage compartment lid)
• Left front mid-bass speaker
• Left front treble speaker
• Left rear midrange speaker
• Left rear treble speaker
• Nca
• Nca a1
• Rear window defogger w/ window antenna
• Red
• Right front mid-bass speaker
• Right front treble speaker
• Right rear midrange speaker
• Right rear treble speaker
• T40
• Vehicle electrical system control module (below left side of dash)

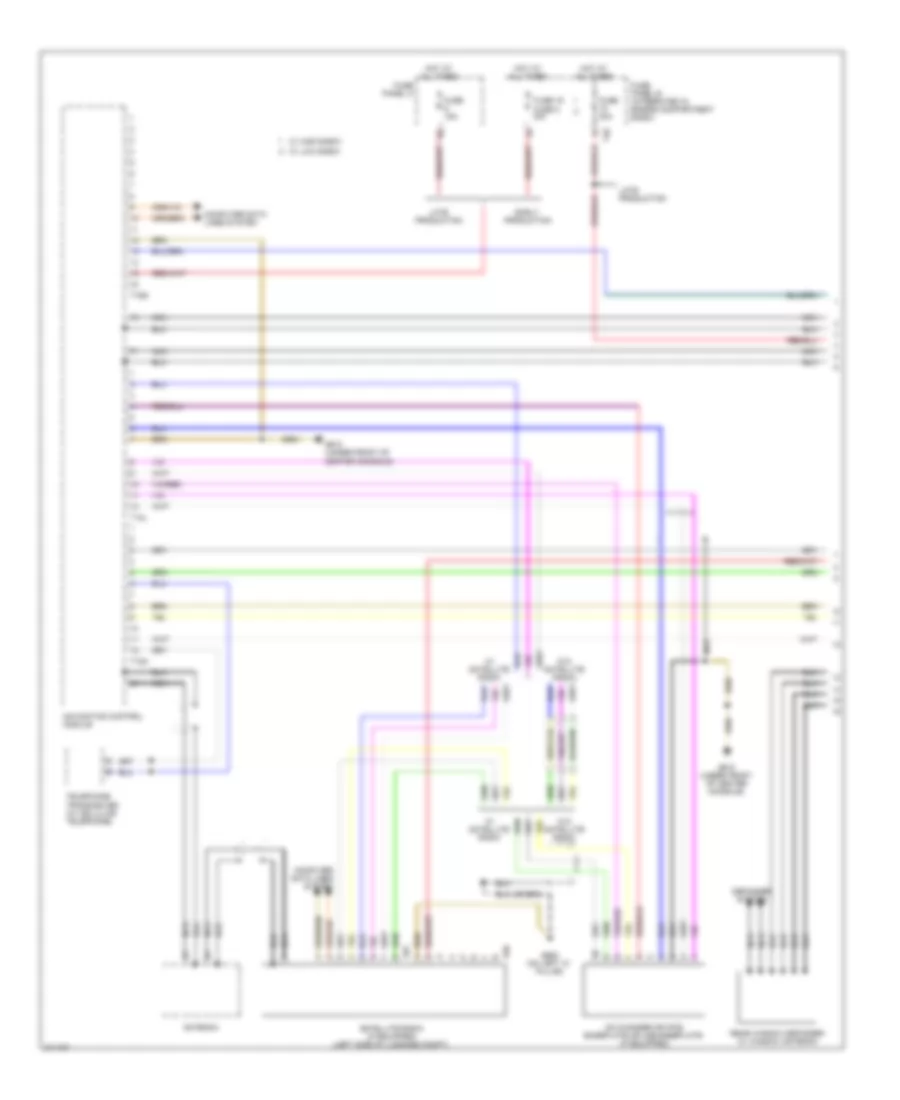

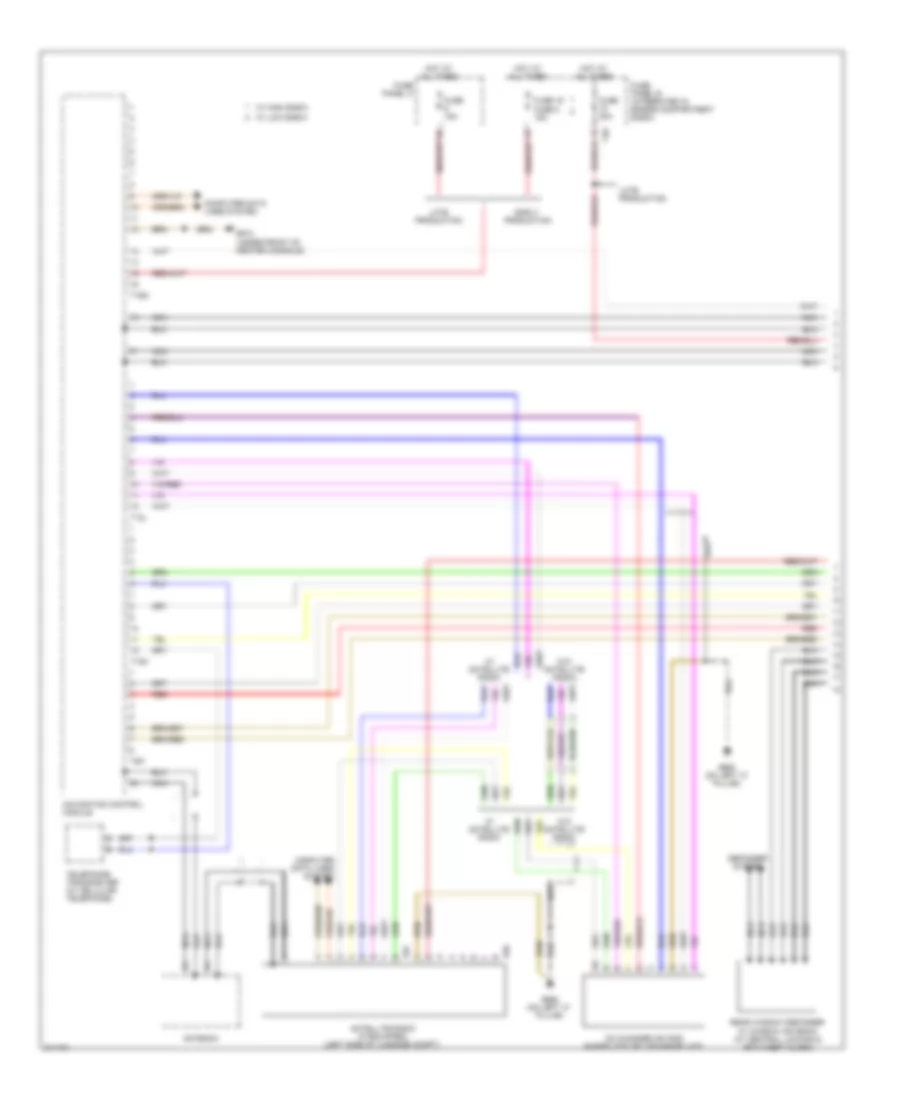

Электросхема магнитолы, С RNS-E С Усилитель (1 из 3) для Audi A3 Quattro 2009

Электросхема магнитолы, С RNS-E С Усилитель (1 из 3) для Audi A3 Quattro 2009 - Список элементов:

• Antenna
• Cd changer or ipod baseplate or usb baseplate
• Computer data lines system
• Defogger system
• Early production
• Fuse 15a
• Fuse 19 fuse 8 15a
• Fuse 30a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G610 (under front of center console)
• G662 (on left "c" pillar)
• Hot at all times
• Late production
• Navigation control module
• Nca
• Rear window defogger w/ window antenna (w/ central locking & anti-theft alarm)
• Red
• Satellite radio (if equipped) (left side of luggage compt)
• T12l
• T12m
• T16g
• T40
• T8p
• T8t
• T8u
• Telephone transceiver (w/ cellular telephone)
• W/ high e-box
• W/ low e-box
• W/ satellite radio
• W/o satellite radio

Электросхема магнитолы, С RNS-E С Усилитель (2 из 3) для Audi A3 Quattro 2009

Электросхема магнитолы, С RNS-E С Усилитель (2 из 3) для Audi A3 Quattro 2009 - Список элементов:

• (below left side of dash) (w/ central locking & anti-theft alarm system) vehicle electrical system control module
• (right side of luggage compt) (w/ central locking & anti-theft alarm system) comfort system central control module
• 10a
• Antenna amplifier (top left side of cargo area lid)
• Center mid/high range loud speaker
• Defogger system
• Early production
• Fuse 20 fuse 9 5a
• Fuse 7.5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• Hot at all times
• Late production
• Left antenna module (left side of luggage compartment lid)
• Left front mid-bass speaker
• Left front treble speaker
• Left rear midrange speaker
• Left rear treble speaker
• Nca
• Red
• Right front mid-bass speaker
• Right front treble speaker
• Right rear midrange speaker
• Right rear treble speaker
• T18
• T40
• T52c
• W/ high e-box
• W/ low e-box

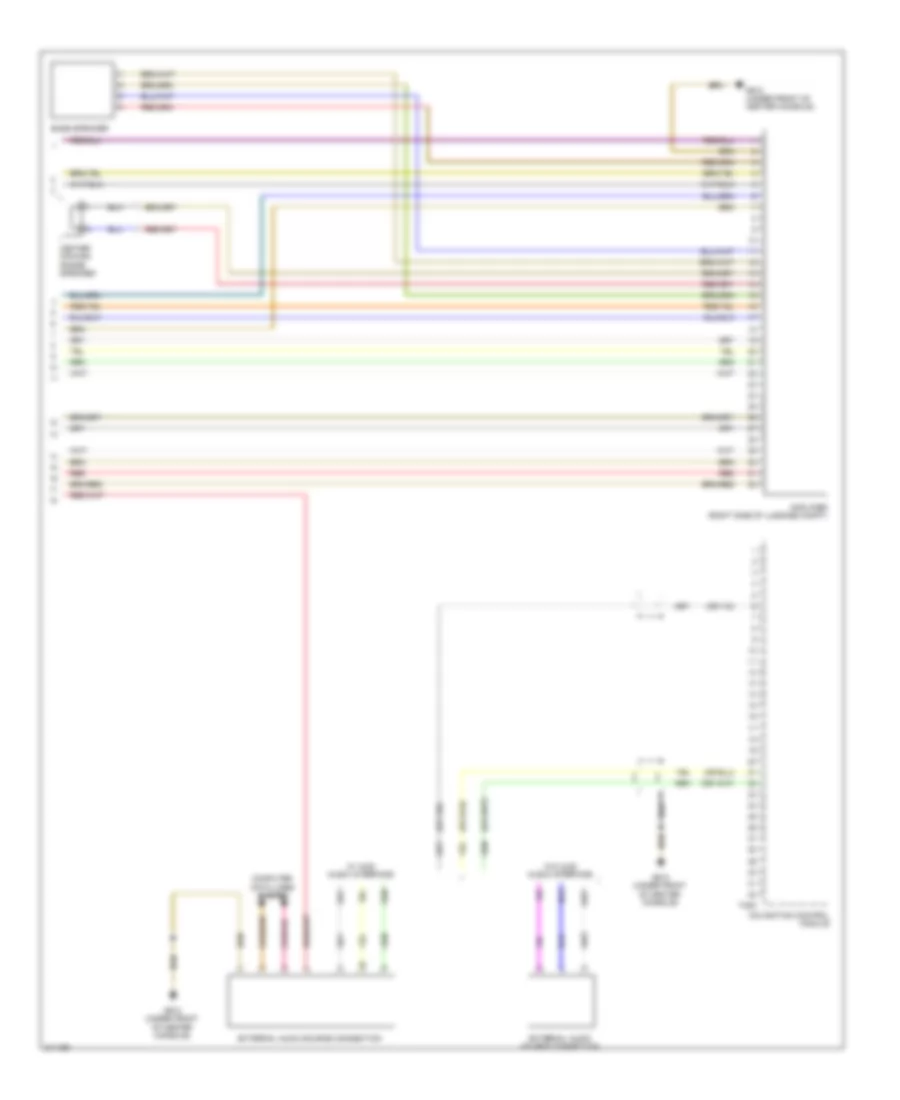

Электросхема магнитолы, С RNS-E С Усилитель (3 из 3) для Audi A3 Quattro 2009

Электросхема магнитолы, С RNS-E С Усилитель (3 из 3) для Audi A3 Quattro 2009 - Список элементов:

• (under front of center console) g610
• Amplifier/woofer
• Computer data lines system
• External audio source connection
• G610 (under front of center console)
• G662 (on left "c" pillar)
• Navigation control module
• T32d
• W/ audi music interface
• W/o audi music interface

Электросхема магнитолы, С RNS-E С Bose (1 из 3) для Audi A3 Quattro 2009

Электросхема магнитолы, С RNS-E С Bose (1 из 3) для Audi A3 Quattro 2009 - Список элементов:

• Antenna
• Cd changer or ipod baseplate or usb baseplate (if equipped)
• Computer data lines system
• Defogger system
• Early production
• Fuse 15a
• Fuse 19 fuse 8 15a
• Fuse 30a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G610 (under front of center console)
• G662 (on left "c" pillar)
• Hot at all times
• Late production
• Navigation control module
• Nca
• Rear window defogger w/ window antenna
• Satellite radio (if equipped) (left side of luggage compt)
• T12l
• T12m
• T16g
• T40
• T8t
• T8u
• Telephone transceiver (w/ cellular telephone)
• W/ high e-box
• W/ low e-box
• W/ satellite radio
• W/o satellite radio

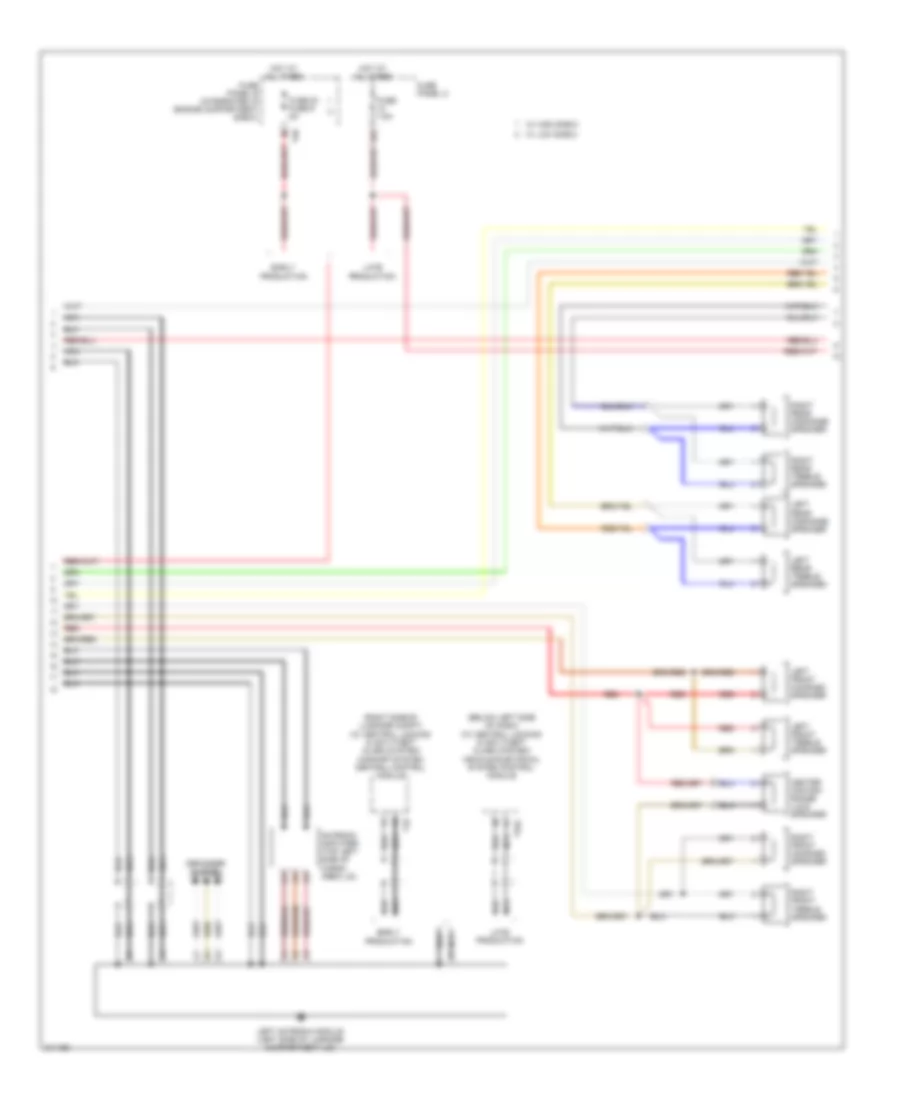

Электросхема магнитолы, С RNS-E С Bose (2 из 3) для Audi A3 Quattro 2009

Электросхема магнитолы, С RNS-E С Bose (2 из 3) для Audi A3 Quattro 2009 - Список элементов:

• (below left side of dash) (w/ central locking & anti-theft alarm system) vehicle electrical system control module
• (right side of luggage compt) (w/ central locking & anti-theft alarm system) comfort system central control module
• 10a
• Antenna amplifier (top left side of cargo area lid)
• Defogger system
• Early production
• Fuse 20 fuse 9 5a
• Fuse 7.5a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G610 (under front of center console)
• Hot at all times
• Inside microphone
• Late production
• Left antenna module (left side of luggage compartment lid)
• Left front mid-bass speaker
• Left front treble speaker
• Left rear midrange speaker
• Left rear treble speaker
• Nca
• Red
• Right front mid-bass speaker
• Right front treble speaker
• Right rear midrange speaker
• Right rear treble speaker
• T18
• T40
• T52c
• W/ high e-box
• W/ low e-box

Электросхема магнитолы, С RNS-E С Bose (3 из 3) для Audi A3 Quattro 2009

Электросхема магнитолы, С RNS-E С Bose (3 из 3) для Audi A3 Quattro 2009 - Список элементов:

• Amplifier (right side of luggage compt)
• Bass speaker
• Center mid/high range speaker
• Computer data lines system
• External audio source connection
• G610 (under front of center console)
• Navigation control module
• Red
• T32d
• W/ audi music interface
• W/o audi music interface

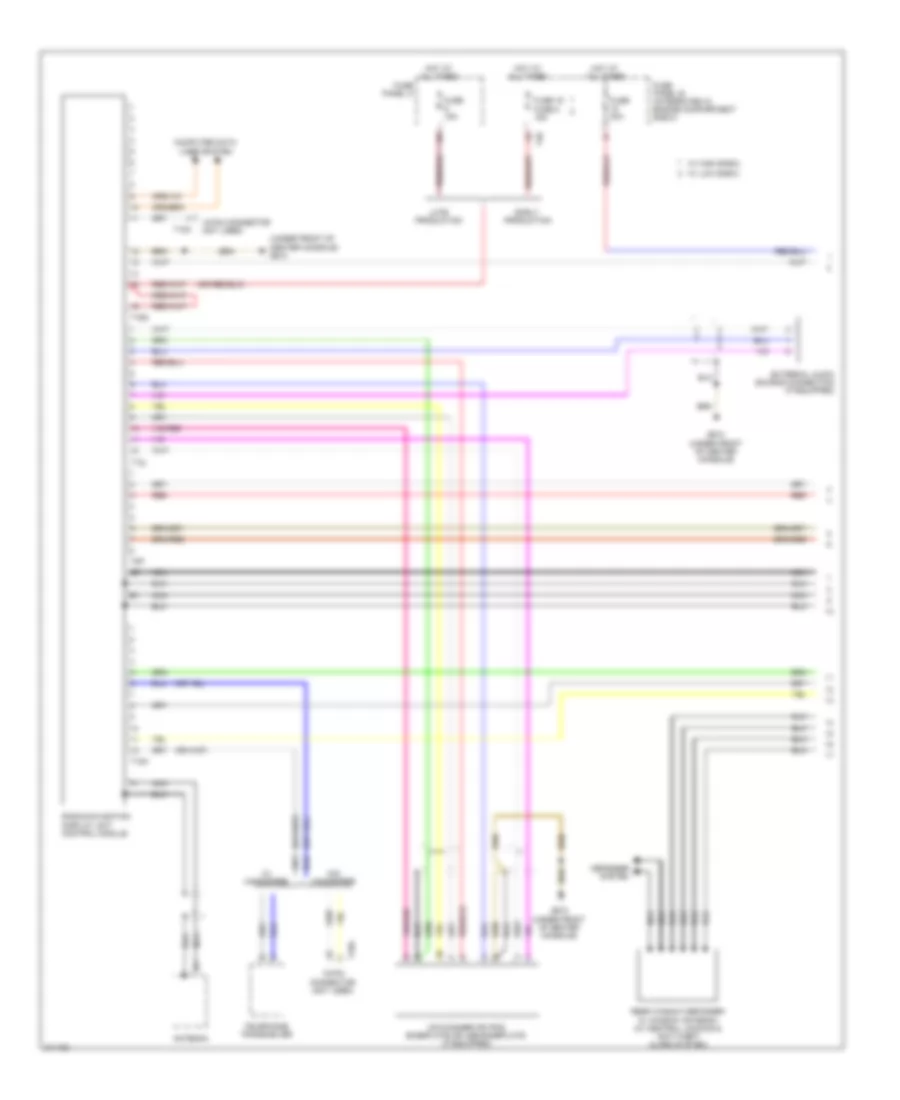

Электросхема магнитолы, без RNS-E С Усилитель (1 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, без RNS-E С Усилитель (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (under front of center console) g610
• 18-pin connector (not used)
• Antenna
• Cd changer or ipod baseplate or usb baseplate (if equipped)
• Computer data lines system
• Defogger system
• Early production
• External audio source connection (if equipped)
• Fuse 15a
• Fuse 19 fuse 8 15a
• Fuse 30a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G610 (under front of center console)
• Hot at all times
• Late production
• Nca
• Radio/navigation display unit control module
• Rear window defogger w/ window antenna (w/ central locking & anti-theft alarm system)
• Red
• T12l
• T12m
• T16g
• T18a
• T40
• T8p
• Telephone transceiver
• W/ handsfree
• W/ high e-box
• W/ low e-box
• W/o handsfree

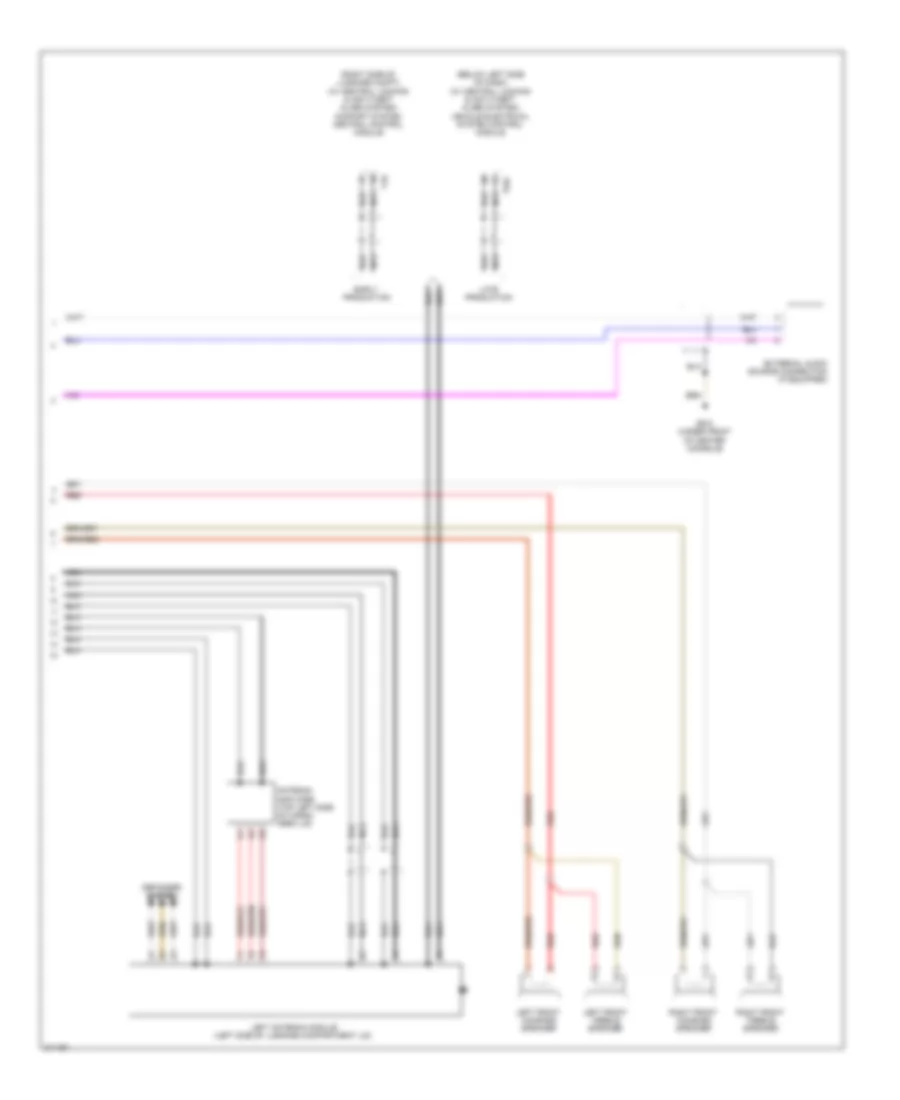

Электросхема магнитолы, без RNS-E С Усилитель (2 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, без RNS-E С Усилитель (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (below left side of dash) (w/ central locking & anti-theft alarm system) vehicle electrical system control module
• (right side of luggage compt) (w/ central locking & anti-theft alarm system) comfort system central control module
• (under front of center console) g610
• Amplifier/woofer
• Antenna amplifier (top left side of cargo area lid)
• Center mid/high range speaker
• Computer data lines system
• Defogger system
• Early production
• G662 (on left "c" pillar)
• Late production
• Left antenna module (left side of luggage compartment lid)
• Left front mid-bass speaker
• Left front treble speaker
• Left rear midrange speaker
• Left rear treble speaker
• Nca
• Red
• Right front mid-bass speaker
• Right front treble speaker
• Right rear midrange speaker
• Right rear treble speaker
• T18
• T52c

Электросхема магнитолы, без RNS-E С Bose (1 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, без RNS-E С Bose (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (under front of center console)
• 18 pin connector (not used)
• Antenna
• Cd changer or ipod baseplate or usb baseplate (if equipped)
• Computer data lines system
• Defogger system
• Early production
• External audio source connection (if equipped)
• Fuse 15a
• Fuse 19 fuse 8 15a
• Fuse 30a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G610
• G610 (under front of center console)
• Hot at all times
• Late production
• Nca
• Radio/navigation display unit control module
• Rear window defogger w/ window antenna (w/ central locking & anti-theft alarm system)
• T12l
• T12m
• T16g
• T18a
• T40
• Telephone transceiver
• W/ hands free
• W/ high e-box
• W/ low e-box
• W/o hands free

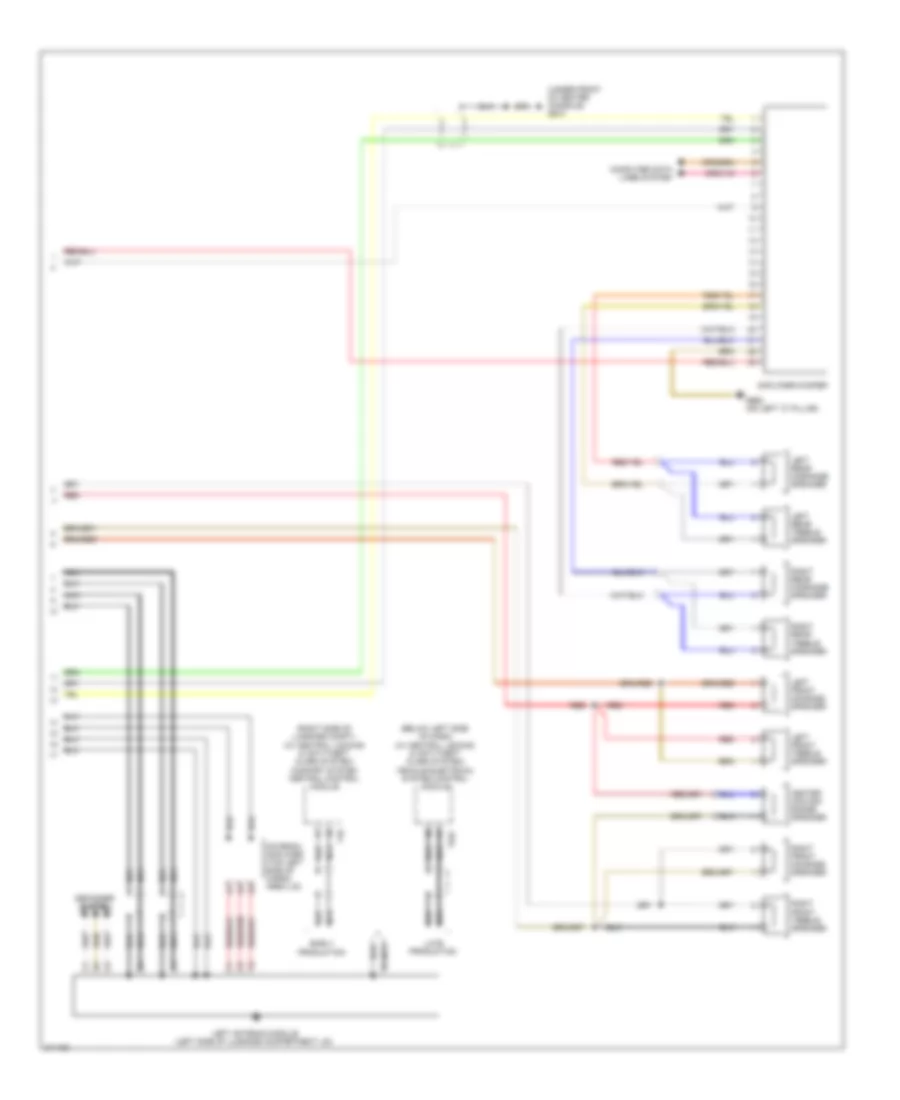

Электросхема магнитолы, без RNS-E С Bose (2 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, без RNS-E С Bose (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• Amplifier (right side of luggage compt)
• Antenna amplifier (top left side of cargo area lid)
• Bass speaker
• Center mid/high range speaker
• Comfort system central control module (central locking & anti-theft alarm system) (right side of luggage compt)
• Defogger system
• Early production
• G610 (under front of center console)
• Inside microphone
• Late production
• Left antenna module (left side of luggage compartment lid)
• Left front mid-bass speaker
• Left front treble speaker
• Left rear midrange speaker
• Left rear treble speaker
• Nca
• Red
• Right front mid-bass speaker
• Right front treble speaker
• Right rear midrange speaker
• Right rear treble speaker
• T18
• T52c
• Vehicle electrical system control module (central locking & anti-theft alarm system) (below left side of dash)

Электросхема магнитолы, без RNS-E без Усилитель (1 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, без RNS-E без Усилитель (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• 18-pin connector (not used)
• Antenna
• Cd changer or ipod baseplate or usb baseplate (if equipped)
• Central locking & anti-theft alarm system antenna (if equipped)
• Computer data lines system
• Defogger system
• Early production
• Fuse 15a
• Fuse 19 fuse 8 15a
• Fuse panel b (integrated in engine compartment e-box)
• Fuse panel c
• G610 (under front of center console)
• Heated rear window
• Hot at all times
• Late production
• Nca
• Radio/navigation display unit control module
• Rear window antenna 1
• Rear window defogger w/ window antenna (w/ central locking & anti-theft alarm system)
• Red
• T12l
• T12m
• T16g
• T18a
• T40
• T8p
• Telephone transceiver
• W/ handsfree
• W/ high e-box
• W/ low e-box
• W/o handsfree

Электросхема магнитолы, без RNS-E без Усилитель (2 из 2) для Audi A3 Quattro 2009

Электросхема магнитолы, без RNS-E без Усилитель (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (below left side of dash) (w/ central locking & anti-theft alarm system) vehicle electrical system control module
• (right side of luggage compt) (w/ central locking & anti-theft alarm system) comfort system central control module
• Antenna amplifier (top left side of cargo area lid)
• Defogger system
• Early production
• External audio source connection (if equipped)
• G610 (under front of center console)
• Late production
• Left antenna module (left side of luggage compartment lid)
• Left front mid-bass speaker
• Left front treble speaker
• Nca
• Red
• Right front mid-bass speaker
• Right front treble speaker
• T18
• T52c
