Противоугонная система Сигнализация

Электросхема противоугонной сигнализации (1 из 2) для Audi A3 Quattro 2009

Электросхема противоугонной сигнализации (1 из 2) для Audi A3 Quattro 2009 - Список элементов:

• 12a
• 13a
• 23a
• 28a
• 38a
• Central locking safe indicator lamp
• Computer data lines system
• Door control module (driver's) (integrated in driver's door window regulator motor)
• Door control module (front passenger's) (integrated in right front door window regulator motor)
• Door control module (right rear) (integrated in right rear door window regulator motor)
• Driver interior locking button
• Driver's door central locking lock unit
• Front passenger door central locking lock unit
• Front passenger interior locking button
• Fuse 10a
• Fuse 30a
• Fuse panel c
• G44 (behind left kick panel)
• G638 (behind right kick panel)
• Hot at all times
• Interior lights system
• Mirrors & power windows systems
• Right rear central locking lock unit
• T20f
• T20g
• T20o
• T32a
• T32b
• W/ front passenger's door opener illumination

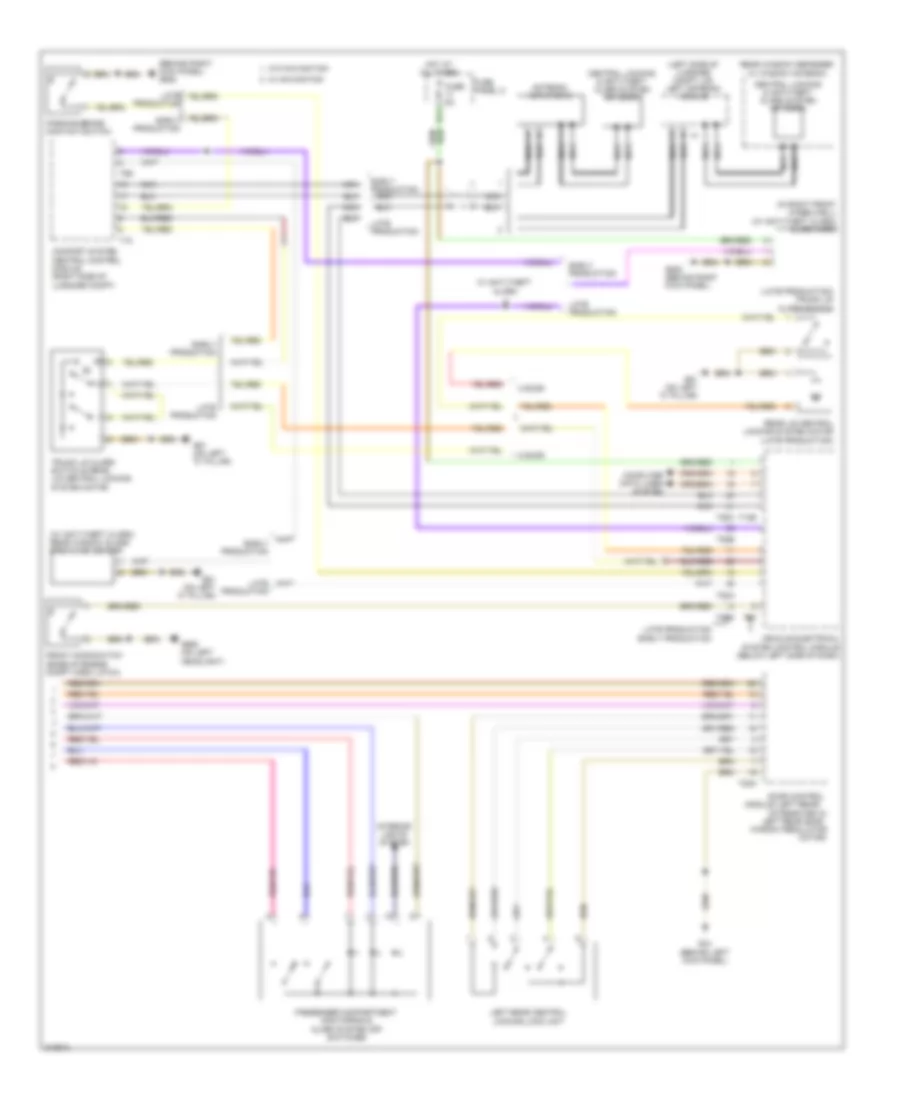

Электросхема противоугонной сигнализации (2 из 2) для Audi A3 Quattro 2009

Электросхема противоугонной сигнализации (2 из 2) для Audi A3 Quattro 2009 - Список элементов:

• (behind right kick panel) g638
• (in right front wheelwell) (w/ anti-theft alarm) alarm horn
• (integrated in
• (late production) trunk lid alarm switch
• (left side of luggage compt lid) left antenna module
• (w/ anti-theft alarm) rear window glass breakage sensor
• 17a
• 3 door
• 5 door
• Antenna amplifier 2
• Central locking & anti-theft alarm system antenna
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Door control
• Early production
• Early production nca
• Front hood switch (base of engine compt hood latch)
• Fuse 5a
• Fuse panel c
• G44 (behind left kick panel)
• G61 (on left "c" pillar)
• G638 (behind right kick panel)
• G655 (on left headlight)
• Hot at all times
• Interior lights system
• Late production
• Left rear central locking lock unit
• Left rear door
• Module (left rear)
• Motor)
• Nca
• Parking brake contact switch
• Passenger compartment monitoring & alarm system off switches
• Production
• Rear lid central locking system motor (late production)
• Rear window defogger w/ window antenna
• T12e
• T18
• T20n
• T52a
• T52b
• T52c
• T6g
• T8h
• Trunk lid alarm switch & rear lid central locking system motor
• Vehicle electrical system control module (below left side of dash)
• W/ anti-theft alarm
• W/ navigation
• W/o navigation
• Window regulator
