Электросхемы Стартер Генератор Audi A3 Quattro 2009

Стартер Генератор

2.0L ТУРБО

2.0L турбо, Электросхема Генератора для Audi A3 Quattro 2009

2.0L турбо, Электросхема Генератора для Audi A3 Quattro 2009 - Список элементов:

• 200a
• Battery
• Computer data lines system
• Early production
• Fuse 150a
• Fuse panel a
• G12 (left side of engine compt)
• Gen warning ind
• Generator
• Instrument cluster module
• Late production
• Motronic engine control module (ecm) (in center of plenum chamber)
• Nca
• Red
• Starting circuit
• T12e
• T52c
• T8h
• T94
• Vehicle electrical system control module (below left side of dash)
• W/ generator 140a
• W/o generator 140a

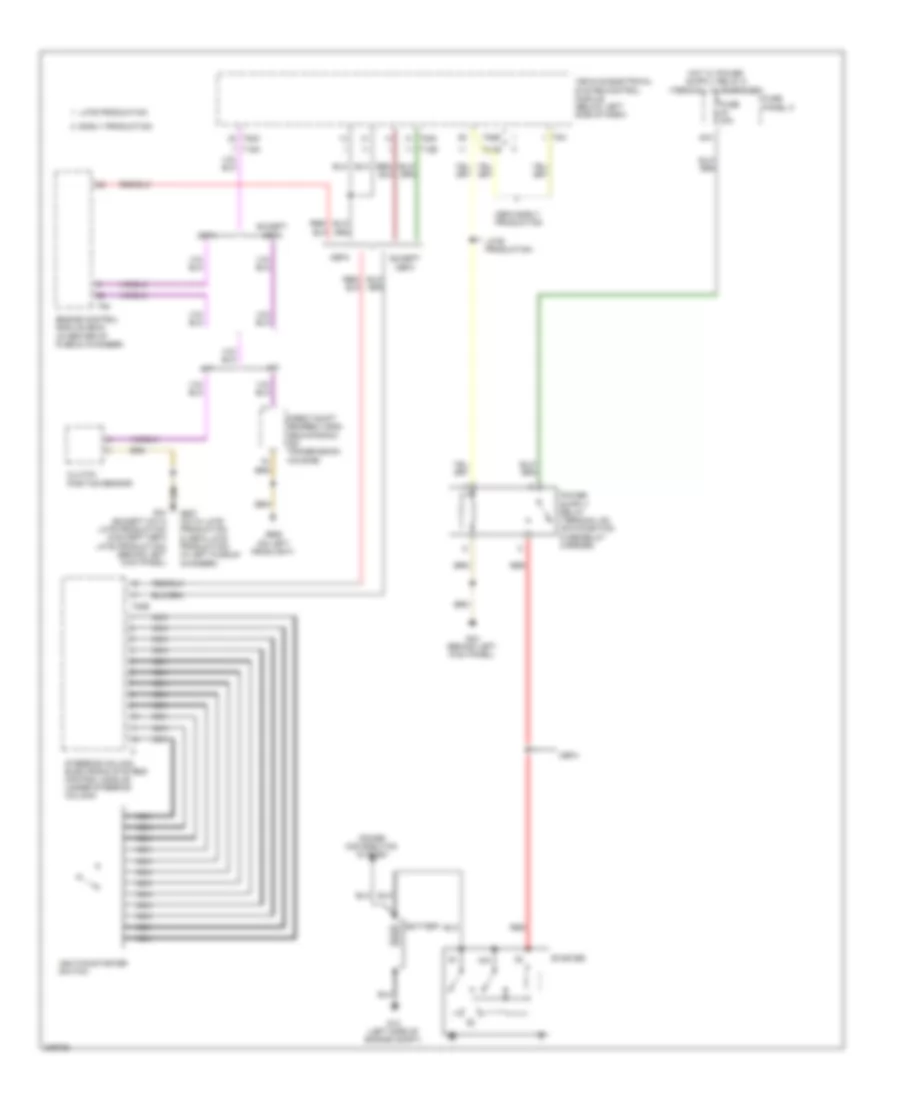

2.0L турбо, Электросхема стартера для Audi A3 Quattro 2009

2.0L турбо, Электросхема стартера для Audi A3 Quattro 2009 - Список элементов:

• 15a
• 40a
• A/t
• Battery
• Cbfa
• Cbfa early production
• Clutch position sensor
• Direct shift gearbox (dsg) mechatronic (on transmission housing)
• Early production
• Engine control module (ecm) (in center of plenum chamber)
• Except
• Except cbfa
• Fuse 40a
• Fuse panel c
• G12 (left side of engine compt)
• G44 (behind left kick panel)
• G44 (except ccta late production & except cbfa late production) (behind left kick panel)
• G607 (ccta late production & cbfa late production) (in left plenum chamber)
• G655 (on left headlight)
• Ignition/starter switch
• Late production
• M/t
• Nca
• Power distribution system
• Red
• Starter
• Steering column electronic systems control module (under steering column)
• T11b
• T12e
• T16a
• T20b
• T52b
• T52c
• T8h
• T94
• Vehicle electrical system control module (below left side of dash)

3.2L

3.2L, Электросхема Генератора для Audi A3 Quattro 2009

3.2L, Электросхема Генератора для Audi A3 Quattro 2009 - Список элементов:

• (on left headlight) g655
• Air bag control module (under front of center console)
• Battery
• Battery interrupt igniter
• Computer data lines system
• E-box high
• Early production
• Fuse 1 150a 200a
• Fuse panel a
• G51 (at right side of luggage compt)
• Gen warning ind
• Generator & voltage regulator
• Instrument cluster module
• Late production
• Main fuse panel d (right rear of luggage compartment)
• Motronic engine control module (ecm) (in center of plenum chamber)
• Nca
• Red
• Starter
• Suppressor
• T121
• T12e
• T2aa
• T52c
• T8h
• Terminal 30 wire junction
• Vehicle electrical system control module (below left side of dash)
• W/ generator 140a
• W/o generator 140a

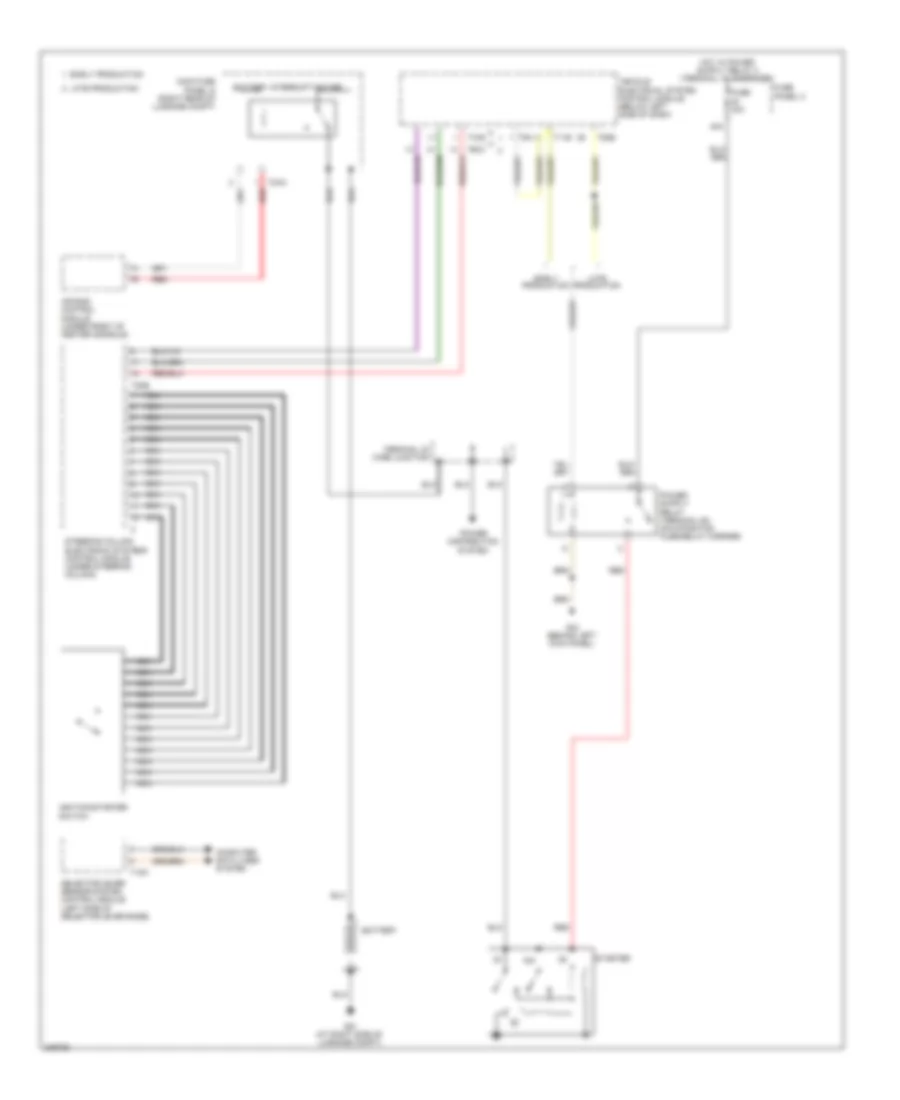

3.2L, Электросхема стартера для Audi A3 Quattro 2009

3.2L, Электросхема стартера для Audi A3 Quattro 2009 - Список элементов:

• 15a
• 40a
• Air bag control module (under front of center console)
• Battery
• Battery interrupt igniter
• Computer data lines system
• Early production
• Fuse 40a
• Fuse panel c
• G44 (behind left kick panel)
• G51 (at right side of luggage compt)
• Ignition/starter switch
• Late production
• Main fuse panel d (right rear of luggage compt)
• Nca
• Power distribution system
• Red
• Selector lever sensor system control module (left side of selector lever base)
• Starter
• Steering column electronic systems control module (under steering column)
• T10k
• T11b
• T12e
• T20b
• T2aa
• T52b
• T52c
• T8h
• Terminal 30 wire junction
• Vehicle electrical system control module (below left side of dash)
